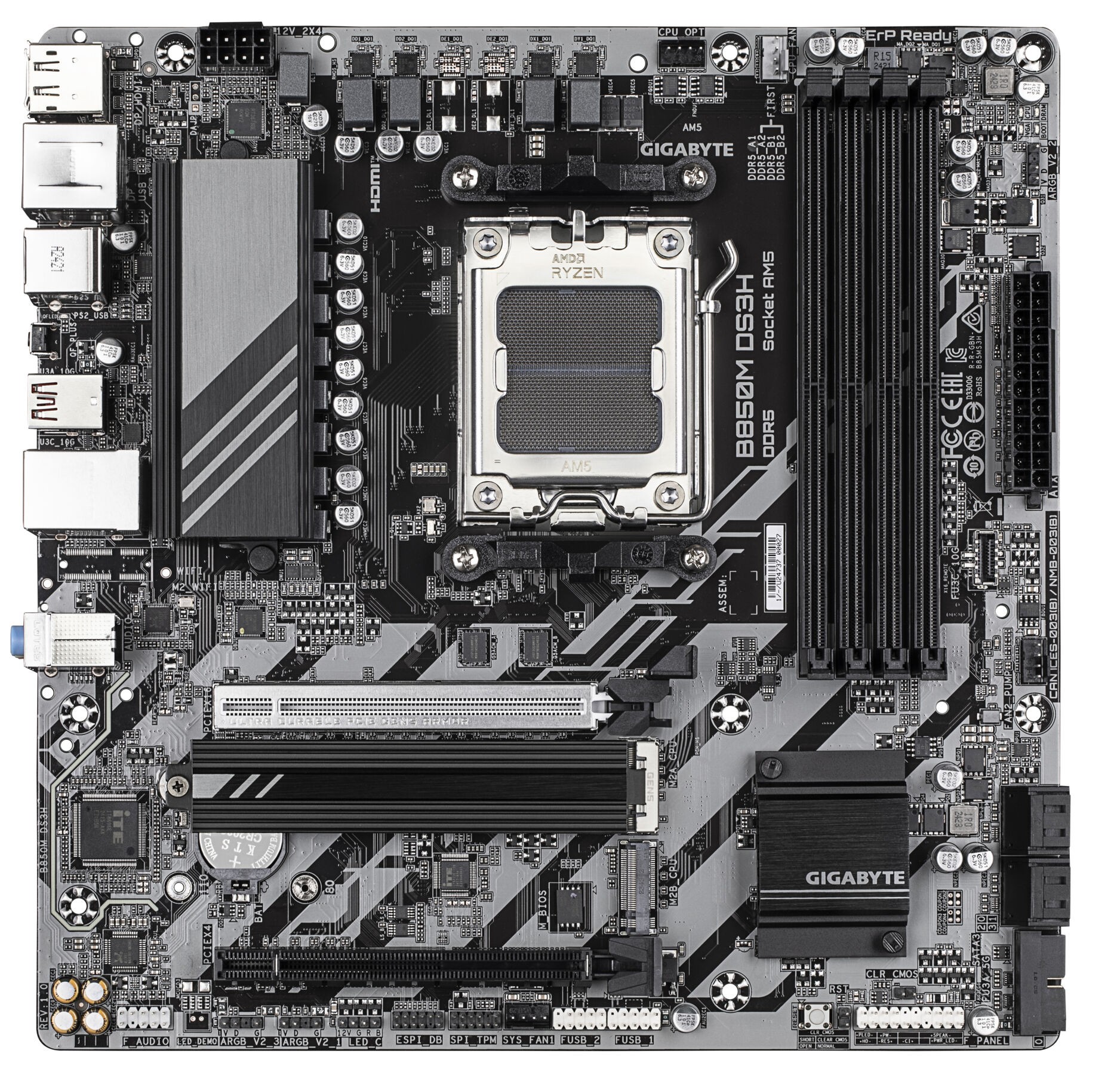

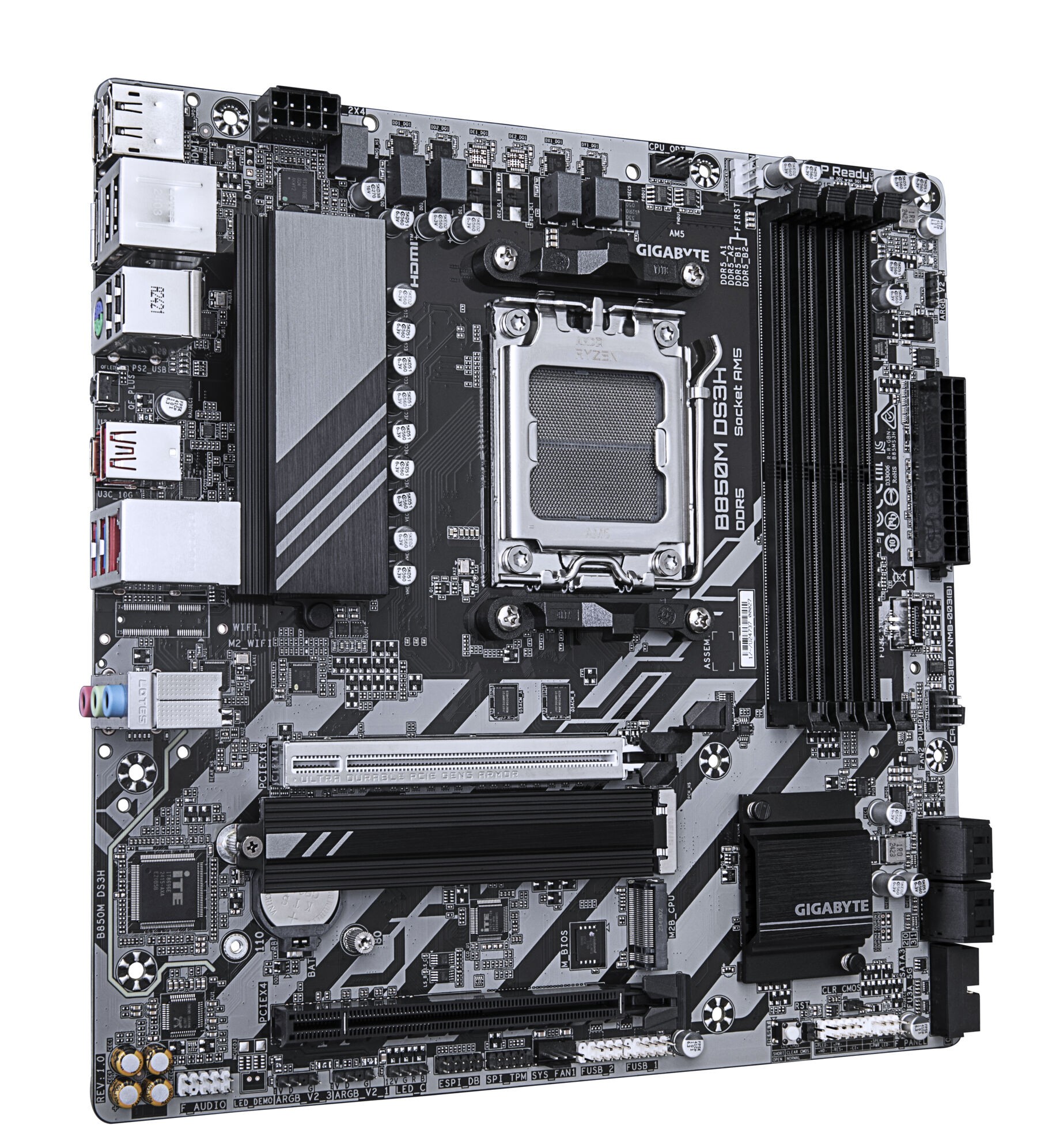

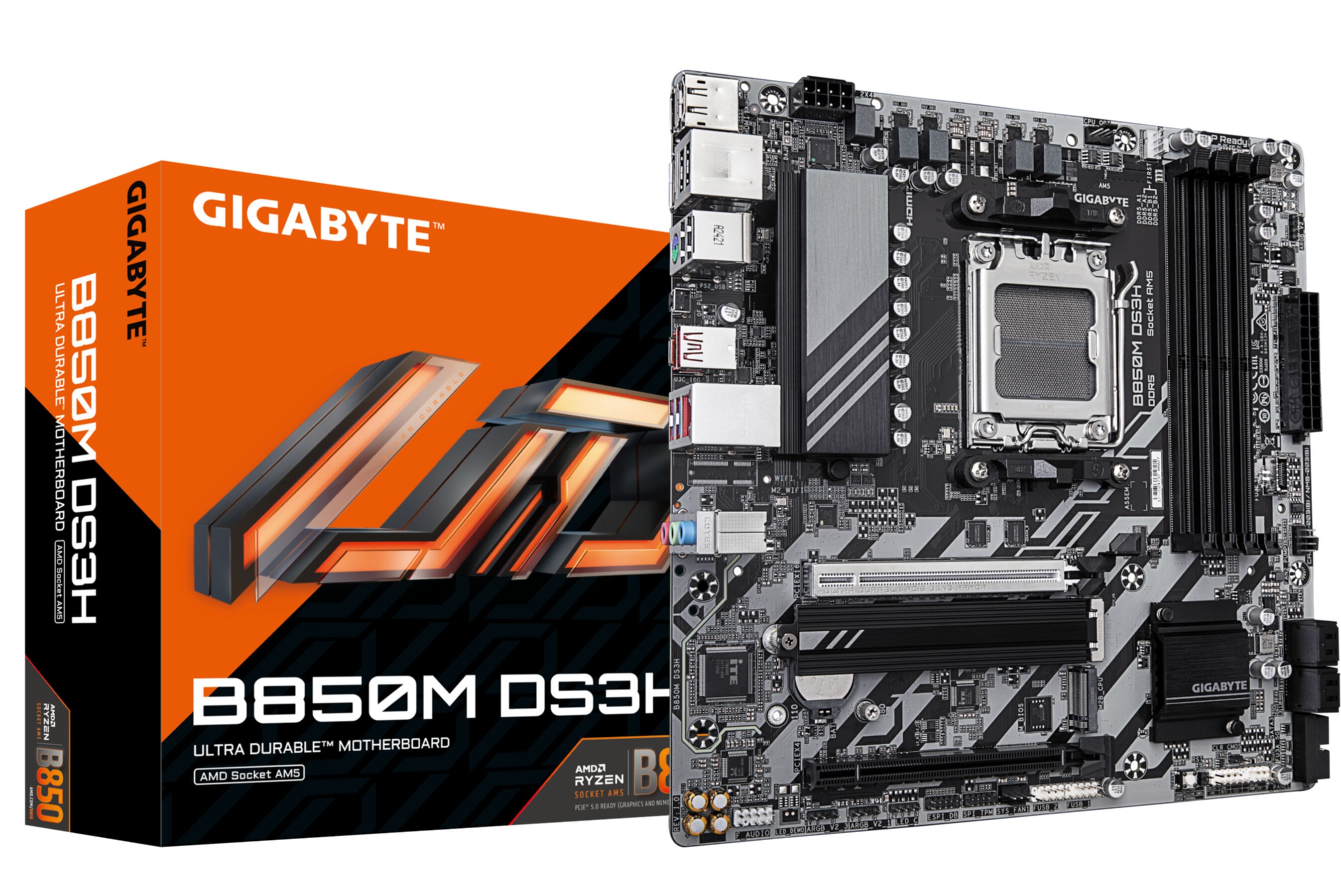

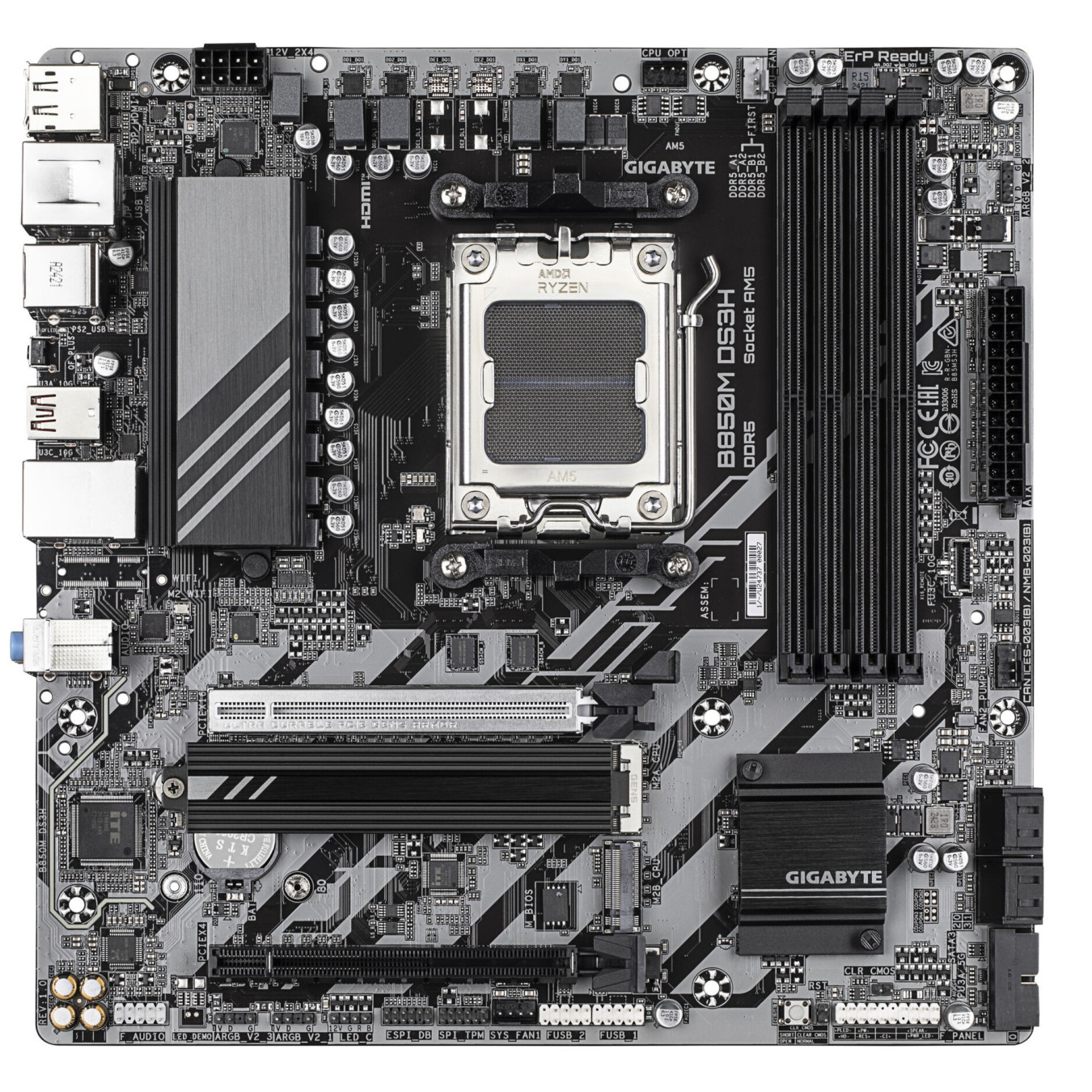

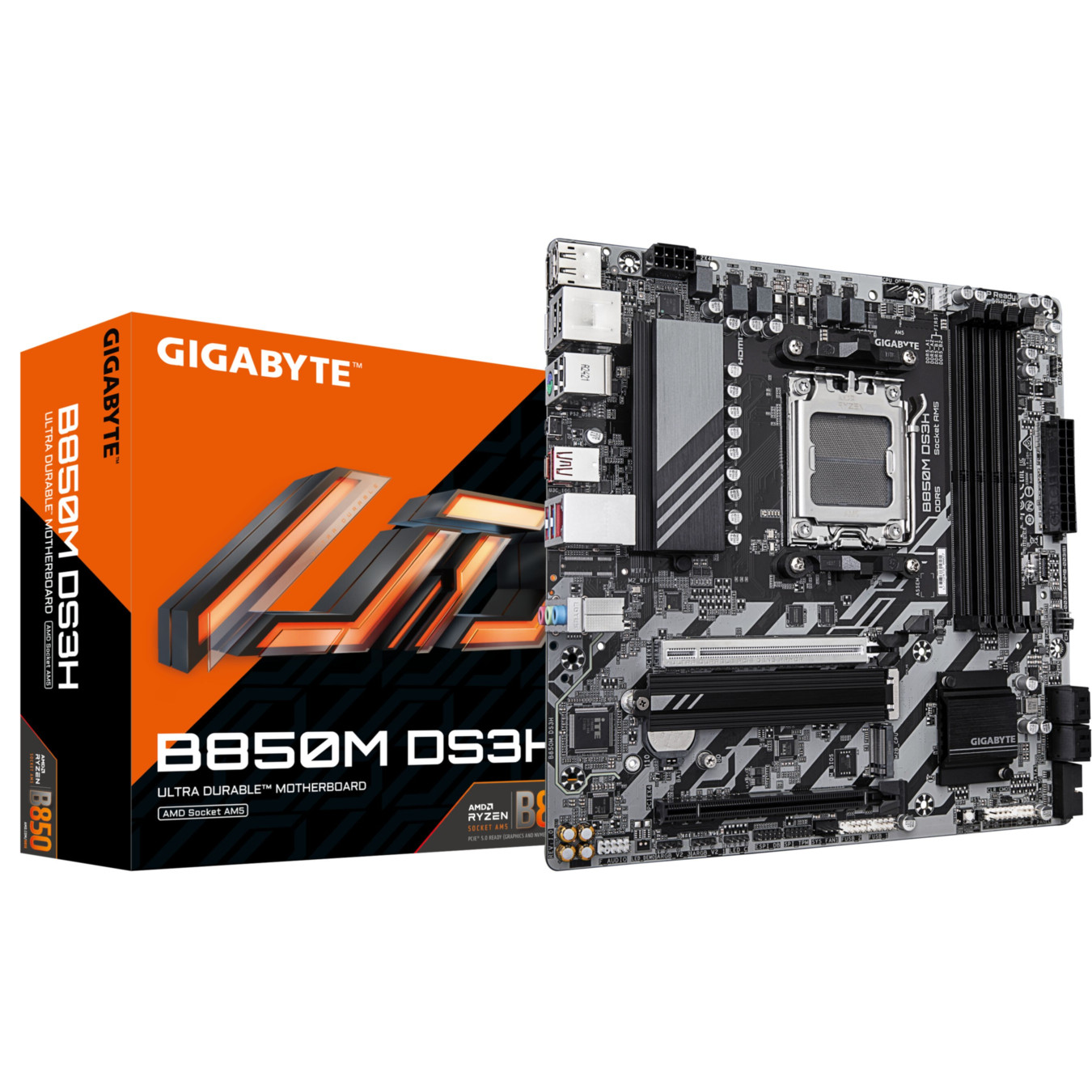

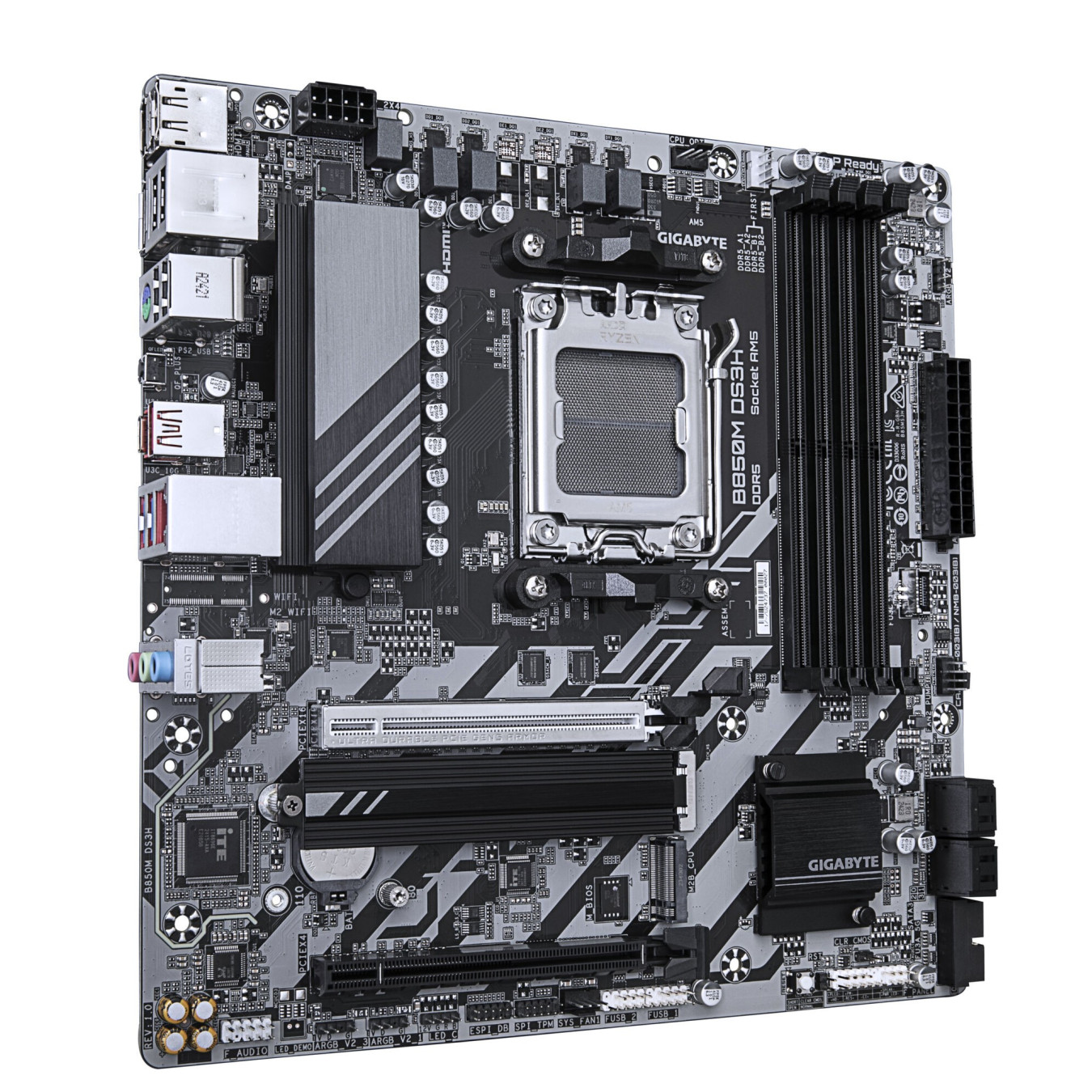

Gigabyte GA-B850M DS3H - AM5 Micro-ATX Motherboard, DDR5, Up to 256GB, PCIe 5.0, 2x M.2, 2.5Gb LAN
AM5 micro-ATX motherboard with DDR5 support (4 DIMMs, up to 256GB), AMD B850, PCIe 5.0 x16, 2x M.2, 4x SATA III, HDMI 2.1, DP 2.1, rear USB-C, 2.5Gb LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |

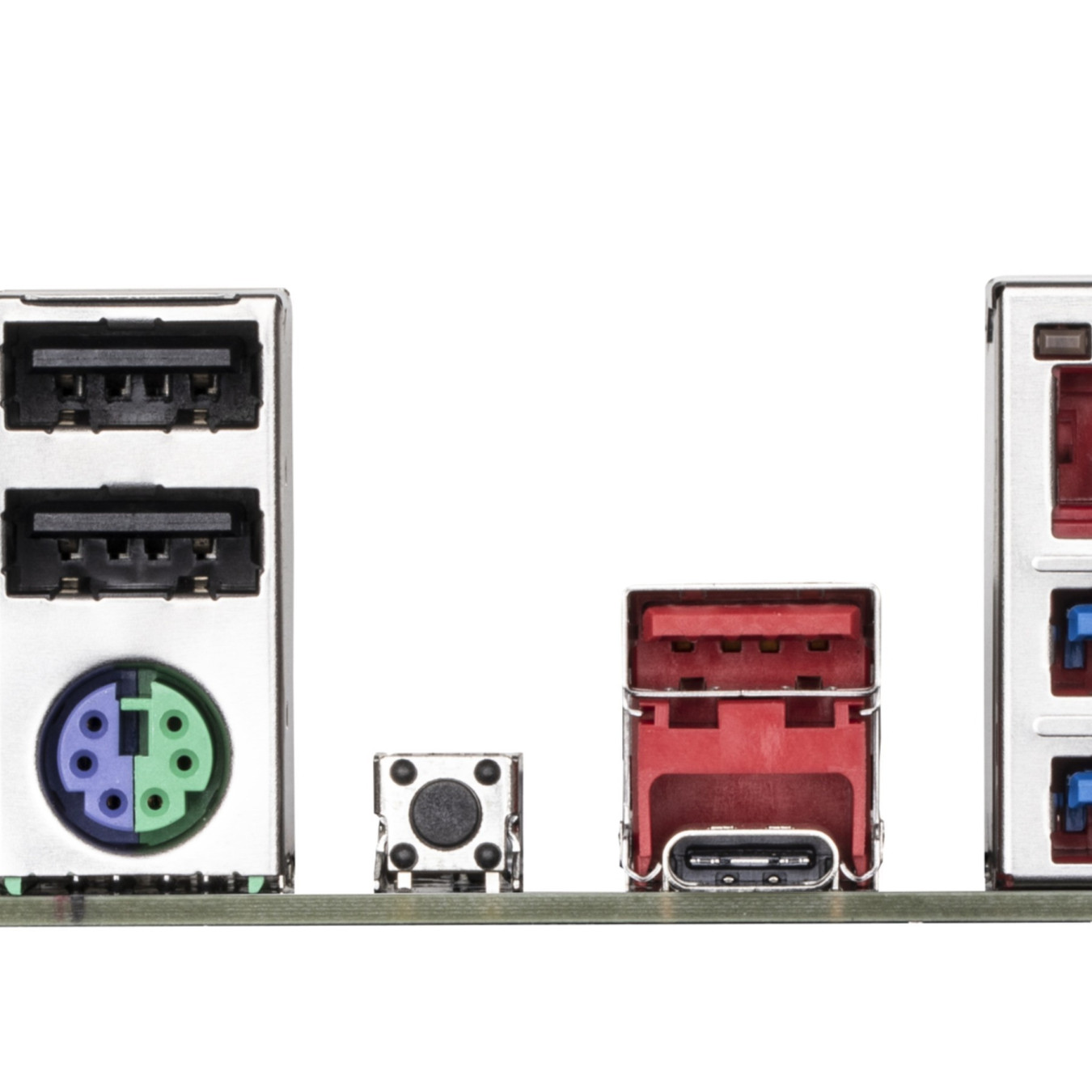

| Motherboards - USB-C | Rear Type-C |
GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs. 16+2+2 Phases Digital VRM. up to 8200MHz DDR5 (OC). 1xPCIe 5.0 + 1xPCIe 4.0 M.2. 2.5 LAN. USB 3.2 Gen 2. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4400.4800.5200.5600.6000.6200.6400.6600.6666.6800.7000.7200.7600.7800.8000.8200 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Feature | Screws included |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Number of CPU fan connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Serial port headers | 1 |
| Number of RGB LED pin headers | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan. Temperature. Voltage. Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.34 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Weight | 1.14 kg |
| Warranty period | 3 year(s) |
