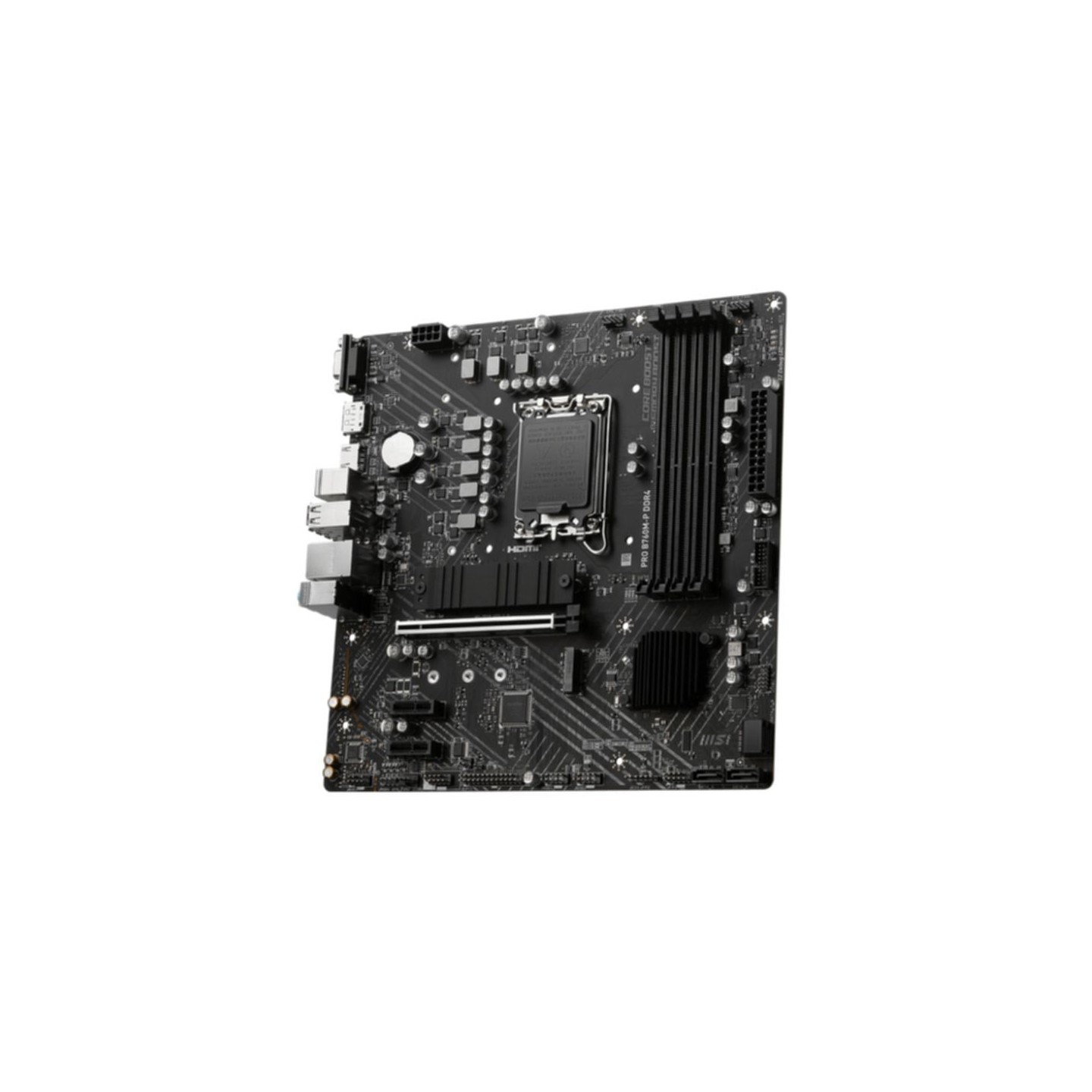

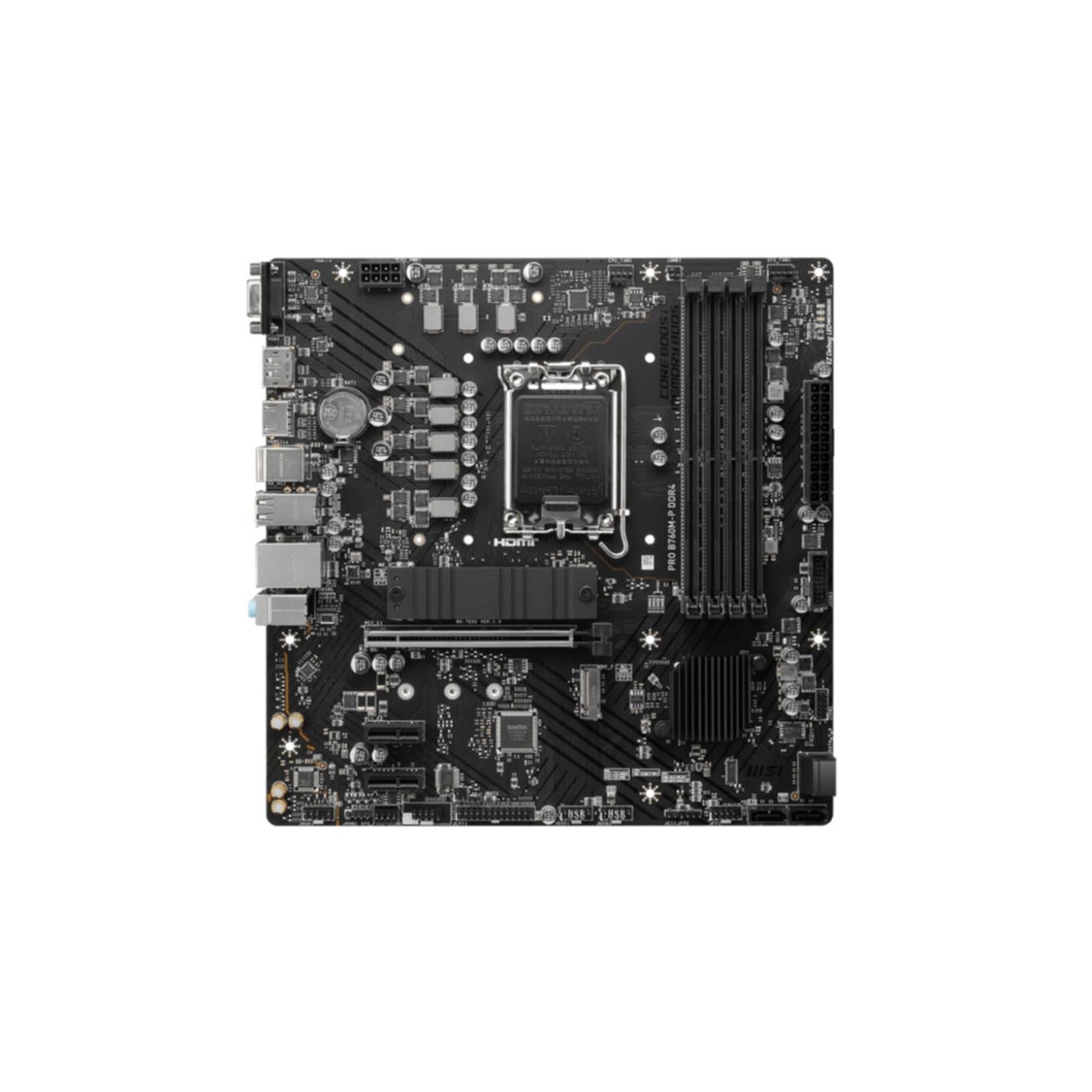

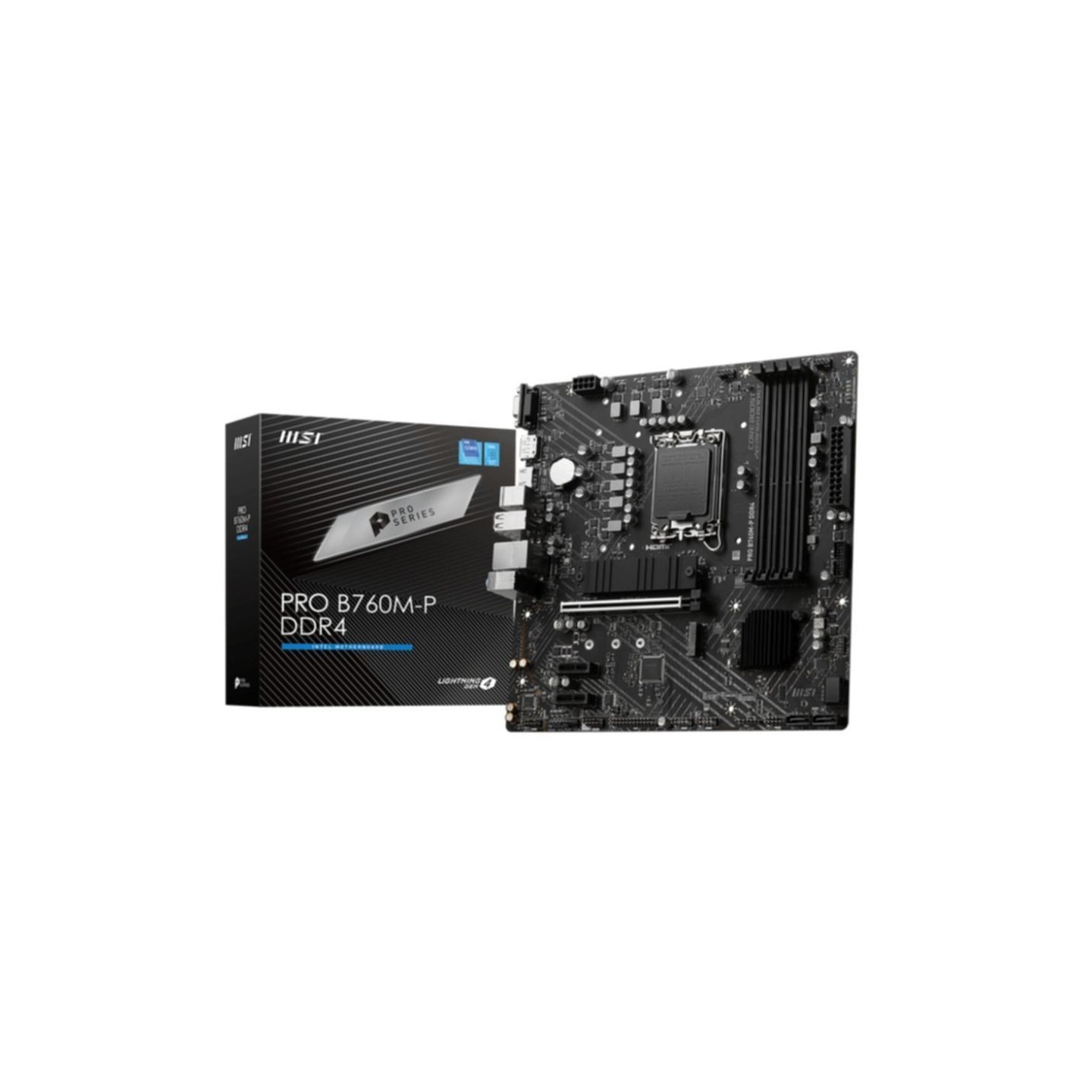

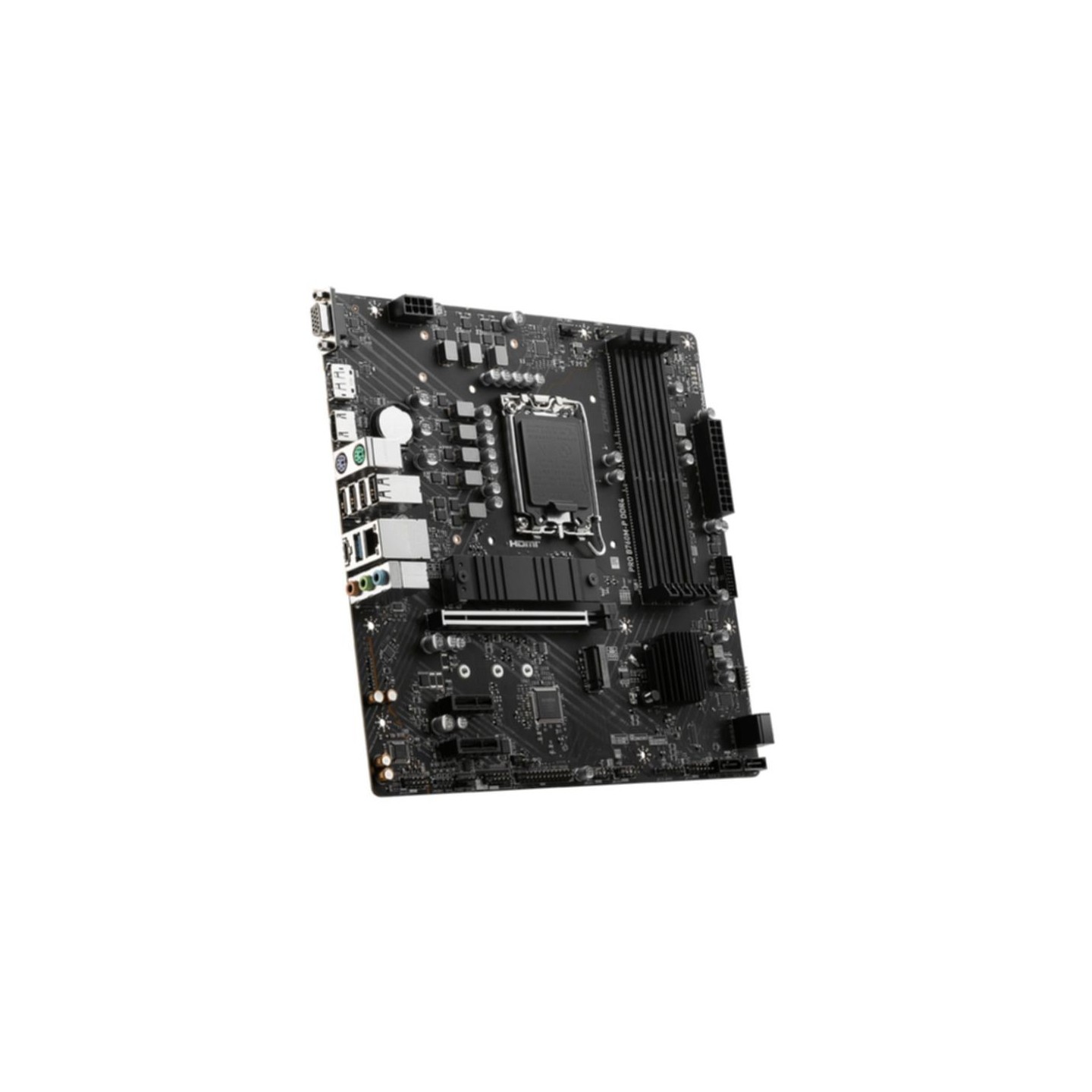

MSI PRO B760M-P DDR4 LGA1700 Micro-ATX Intel B760 Motherboard (Boxed)
LGA1700 micro-ATX motherboard with Intel B760 chipset. Supports 14th/13th/12th Gen Intel CPUs, 4x DDR4 up to 128GB (4800+MHz OC), 2x PCIe 4.0 M.2, 4x SATA III, 2.5Gb LAN, USB-C, HDMI/DP 1.4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The MSI PRO B760M-P DDR4 is a reliable micro-ATX motherboard designed for business and productivity builds. It features the Intel B760 chipset and LGA 1700 socket, supporting Intel Core 14th/13th/12th Gen processors, Pentium Gold, and Celeron CPUs. With Core Boost power design, it handles multi-core performance and overclocking efficiently.
Memory configuration includes 4x DDR4 DIMM slots supporting up to 128GB in dual-channel mode, with speeds up to 4800+MHz (OC) and Intel Extreme Memory Profile (XMP). Storage options feature 2x M.2 slots (PCIe 4.0 x4), 4x SATA III ports with RAID 0/1/5/10 support. Connectivity includes 2.5 Gigabit Ethernet, rear USB 3.2 Gen2 Type-C, multiple USB 3.2/2.0 ports, HDMI 1.4, and DisplayPort 1.4. Audio is powered by Realtek ALC897 7.1-channel HD.
- Expansion: 1x PCIe 4.0 x16 (Steel Armor), 2x PCIe x1
- DIY Friendly: EZ M.2 Clip, EZ Debug LED, Frozr AI Cooling
- Lightning Gen4: PCIe 4.0 and M.2 for fast storage/GPU
- Compatible: Windows 10/11, non-ECC unbuffered DDR4
| Processor Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro ATX |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 4x DIMM |
| Max Memory | 128 GB |
| Supported Memory Speeds | Up to 4800+ MHz (OC), 4600/4400/4266/4200/4000/3800/3733/3600/3466/3400/3333/3200/2933/2666/2400/2133 MHz |
| Memory Profile | Intel XMP |
| M.2 Slots | 2 (PCIe 4.0 x4) |
| SATA III Ports | 4 |
| RAID Levels | 0, 1, 5, 10 |
| PCIe x16 Slots | 1x PCIe 4.0 |
| PCIe x1 Slots | 2x PCIe 4.0 |
| Ethernet | 2.5 Gigabit |
| USB 3.2 Gen 2 Type-C | 1 (rear) |
| Audio Codec | Realtek ALC897 7.1-channel |
| Video Outputs | HDMI 1.4, DisplayPort 1.4, VGA |
| Dimensions (PCB) | 243.84 x 243.84 mm |
| BIOS | UEFI AMI |
| OS Support | Windows 10, Windows 11 |
| Wireless | None |
