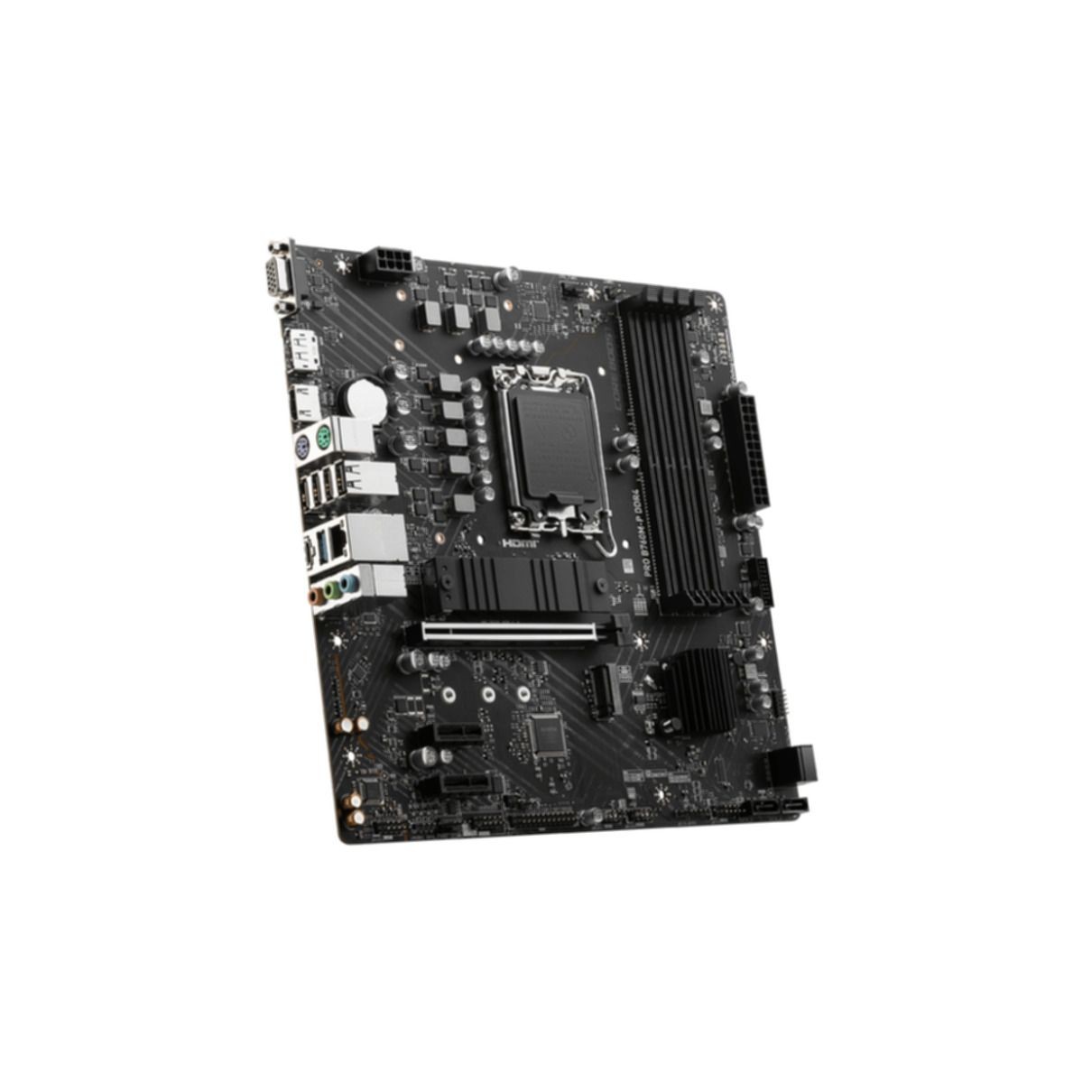

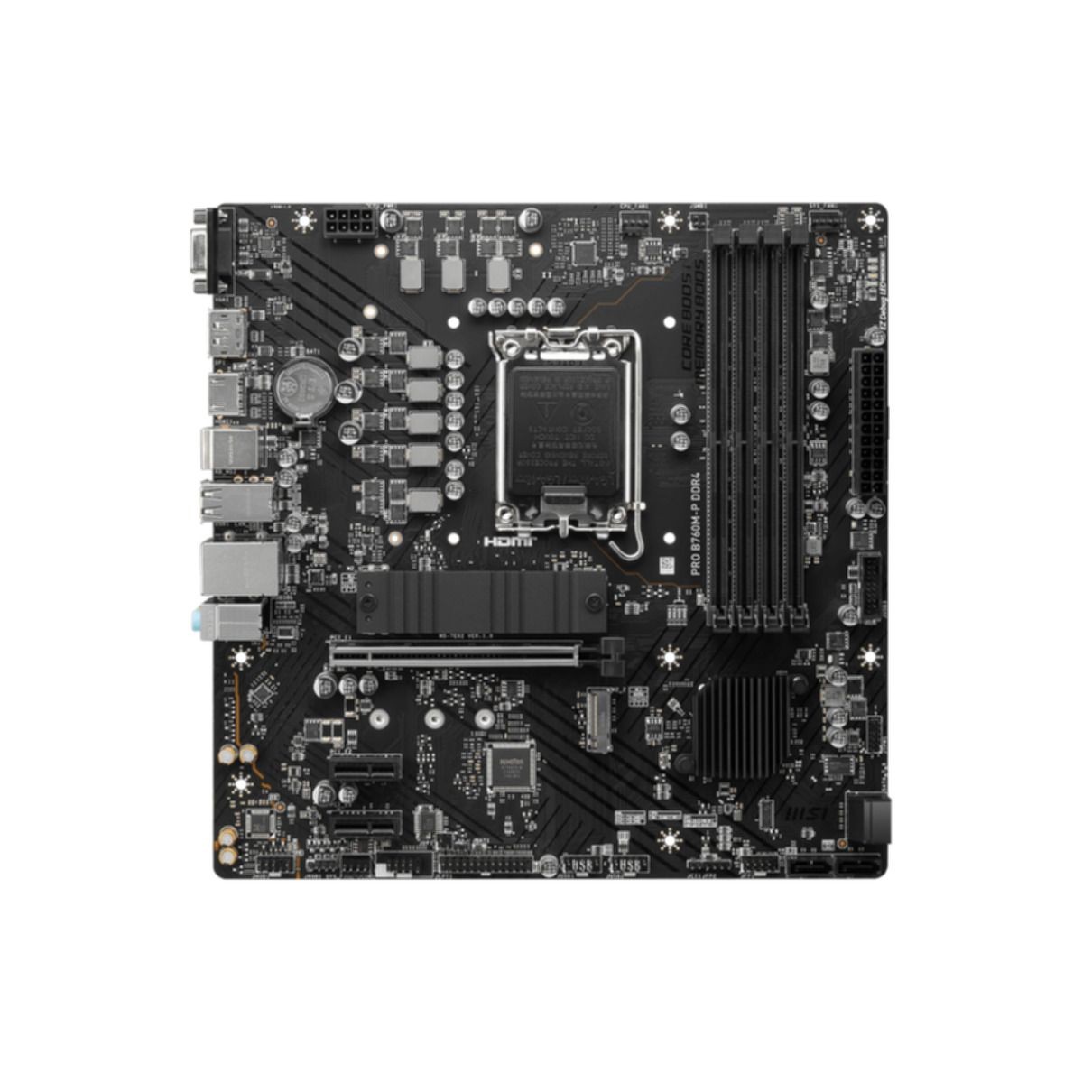

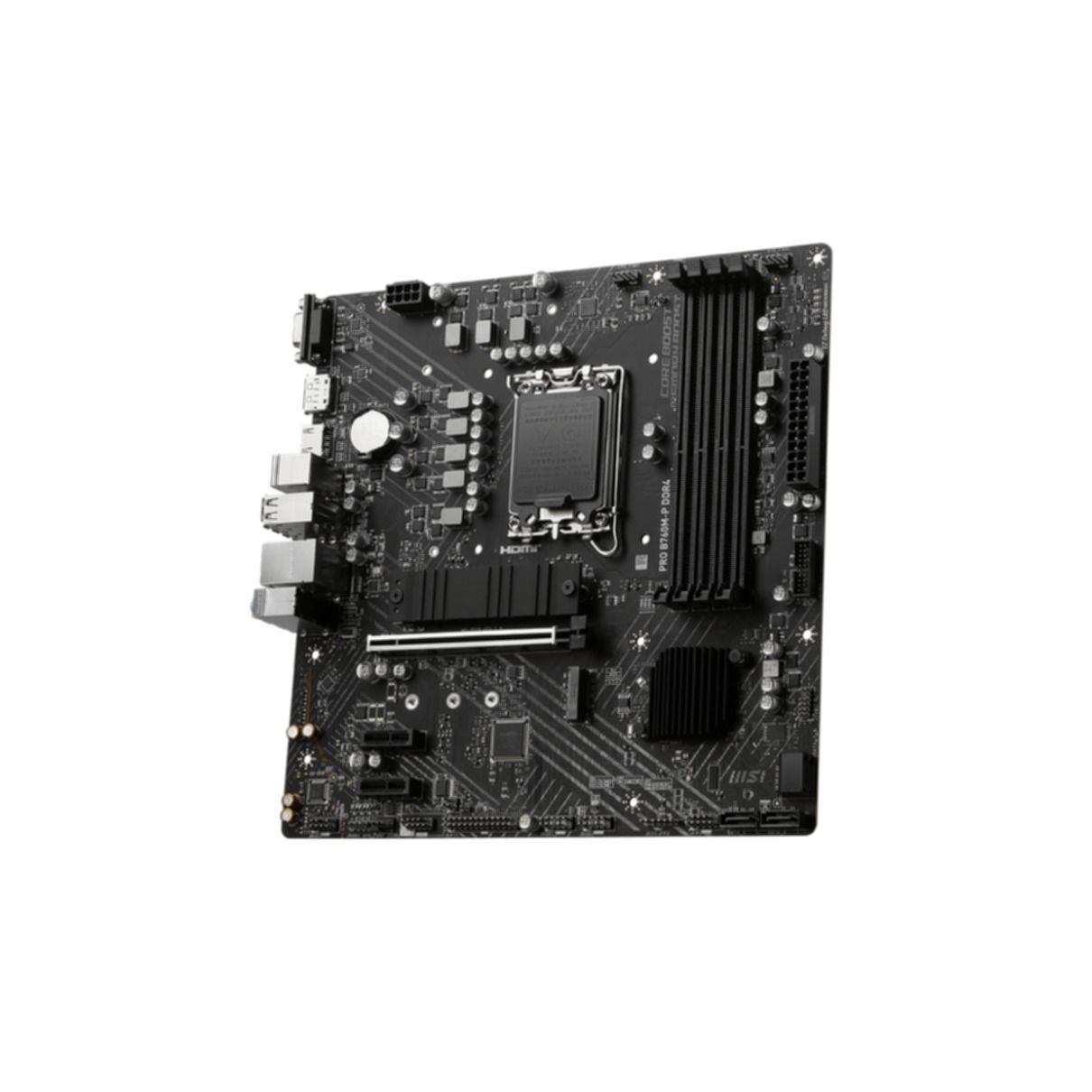

MSI PRO B760M-P DDR4 - LGA1700 Micro-ATX Motherboard, Intel B760, DDR4 up to 128GB, 2x M.2, 2.5Gb LAN (Black)
LGA1700 micro-ATX motherboard with Intel B760 chipset, 4x DIMM DDR4 (up to 128GB), 2x M.2, 4x SATA III, 2.5Gb Ethernet, USB-C, HDMI 1.4 & DisplayPort 1.4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
MSI PRO B760M-P DDR4. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. RAID levels: 0. 1. 5. 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800. 4600. 4400. 4266. 4200. 4000. 3800. 3733. 3600. 3466. 3400. 3333. 3200. 2933. 2666. 2400. 2133 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2. SATA III |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Width | 243.8 mm |
| Depth | 243.8 mm |
