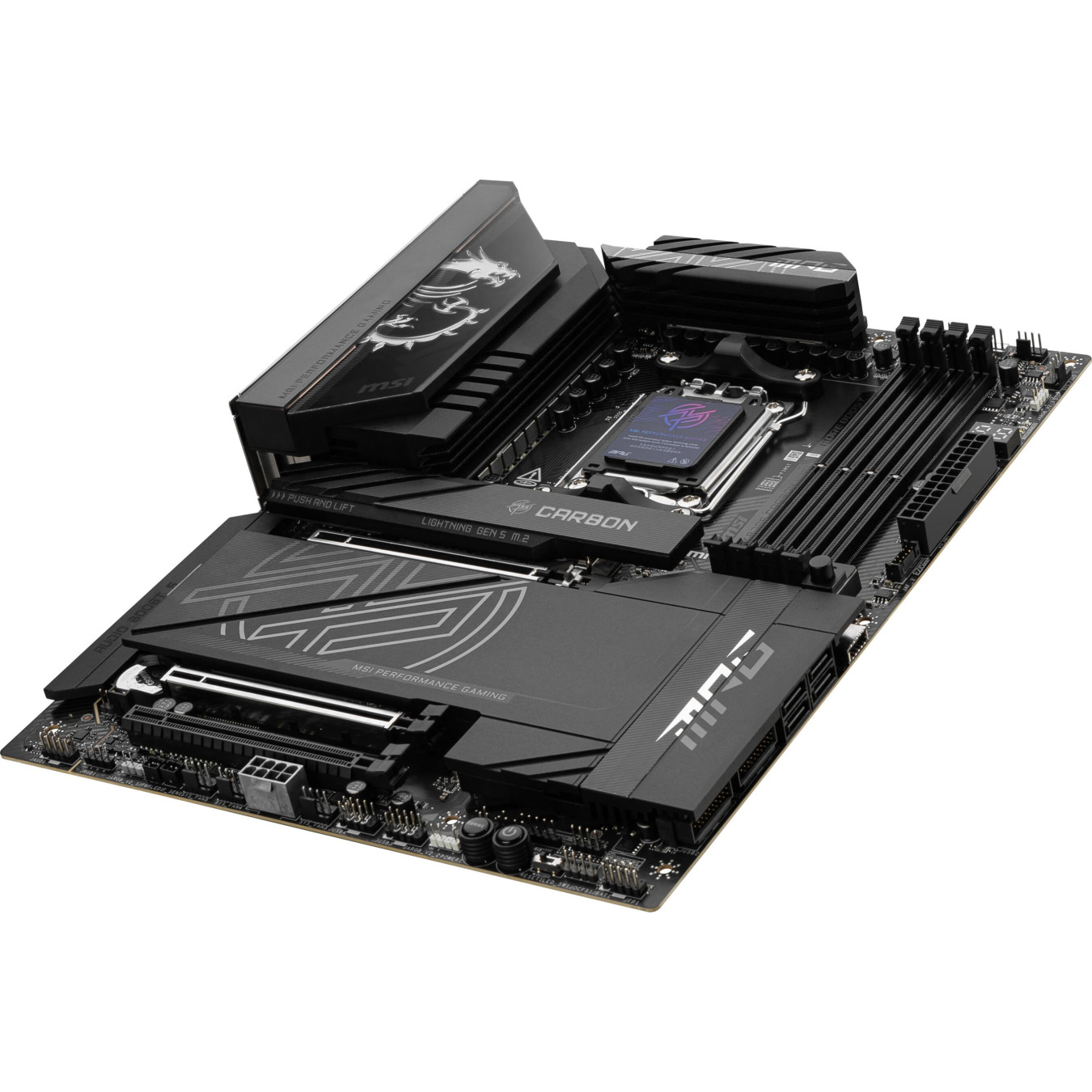

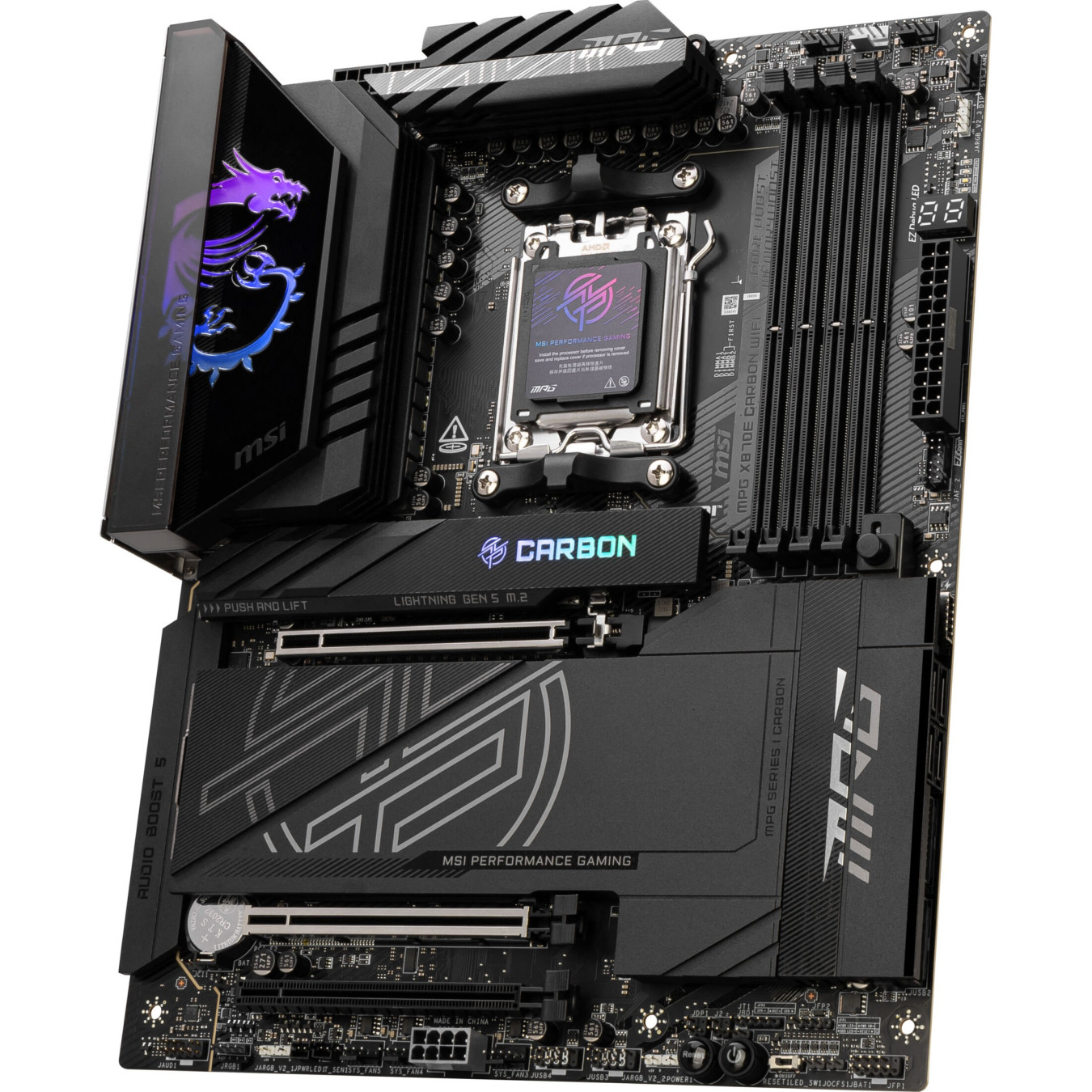

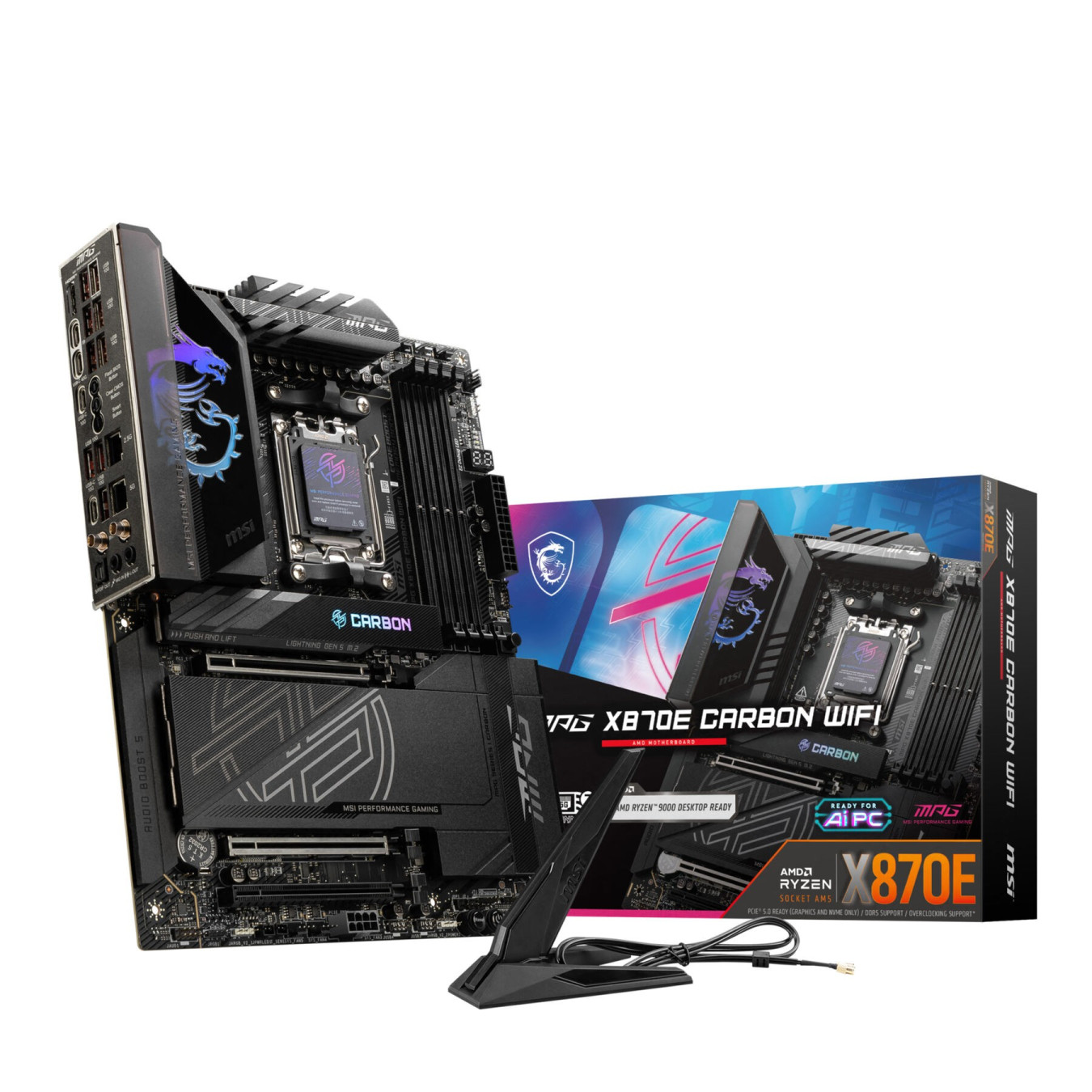

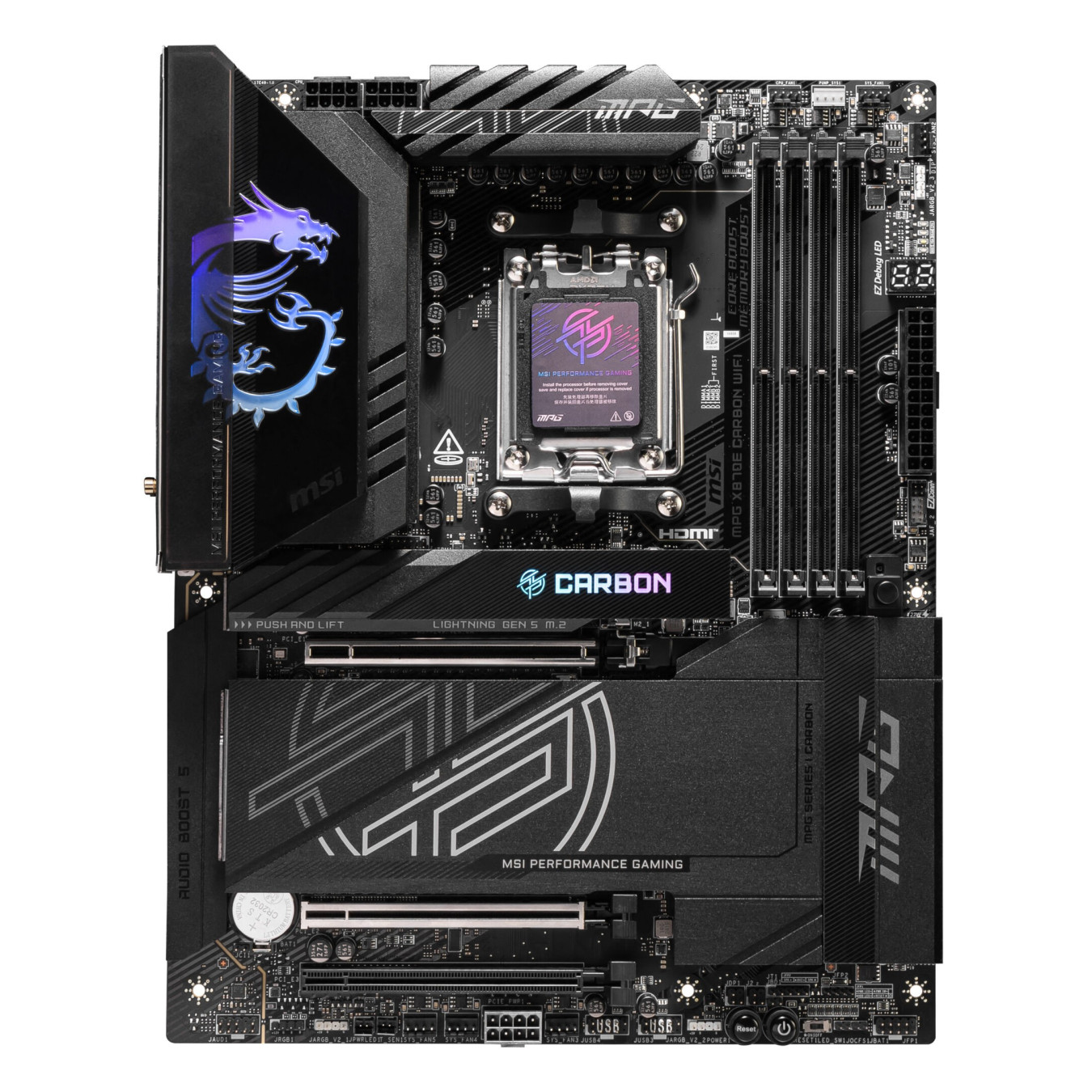

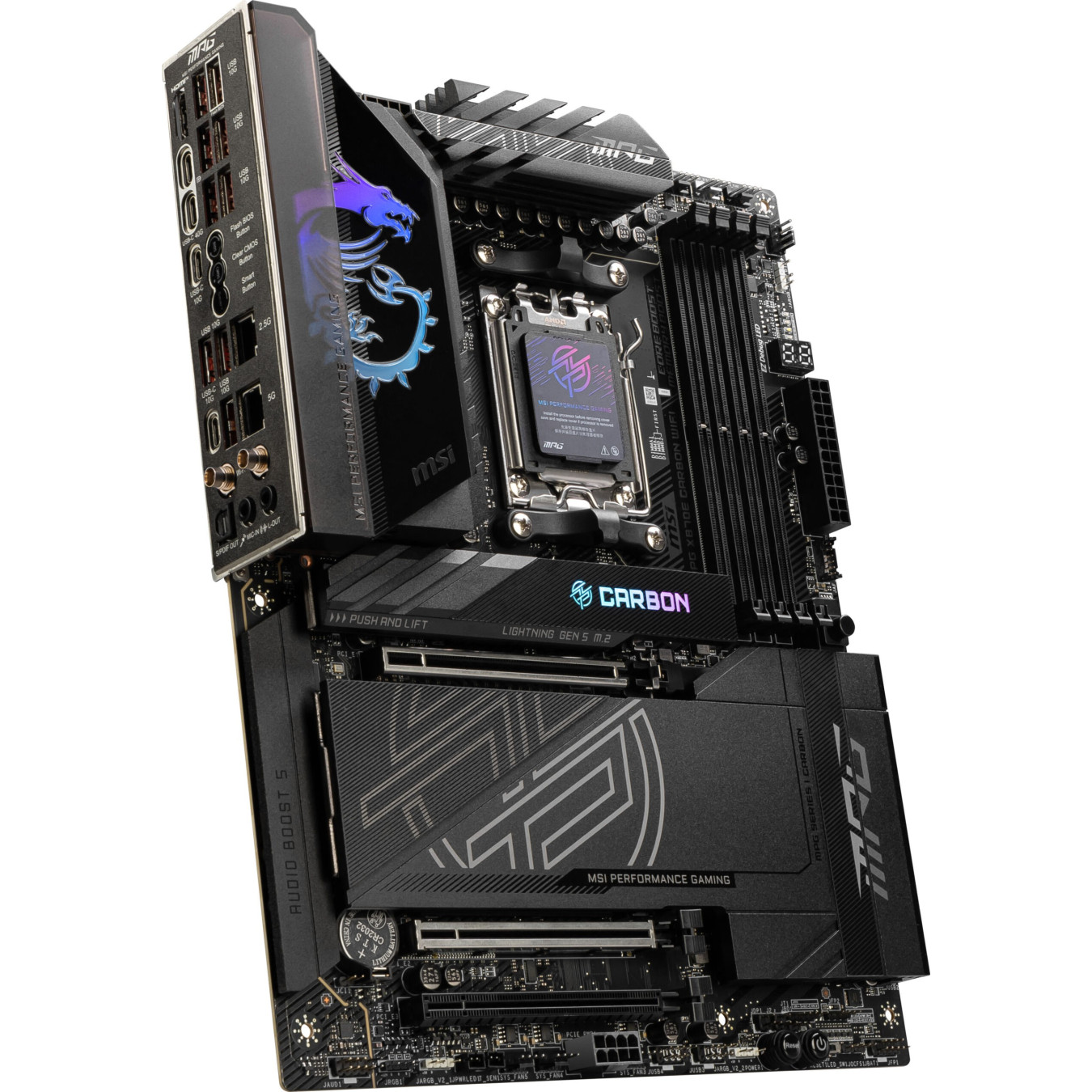

MSI MPG X870E Carbon WiFi - AM5 ATX Motherboard, DDR5 256GB, 4x M.2, PCIe 5.0, 5GbE+2.5Gb LAN, WiFi 7, USB4, RGB (Black) (Boxed)
AM5 ATX gaming motherboard (AMD X870E) w/ DDR5 up to 256GB (4x DIMM), 4x M.2 PCIe 5.0, dual PCIe 5.0 x16, Wi-Fi 7, Bluetooth 5.4, 5GbE+2.5GbE LAN, 2x USB4, HDMI+2xDP, RGB headers, 18+2+1 110A VRM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870E |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The MSI MPG X870E Carbon WiFi is a premium AM5 ATX motherboard designed for high-performance AMD Ryzen 7000/8000/9000 series processors. Featuring the AMD X870E chipset, it supports DDR5 memory up to 256GB across 4 DIMM slots with EXPO/XMP overclocking profiles for speeds beyond 8000MT/s. It delivers robust power through an 18+2+1 phase VRM with 110A Smart Power Stages, ideal for extreme overclocking and multi-core workloads.

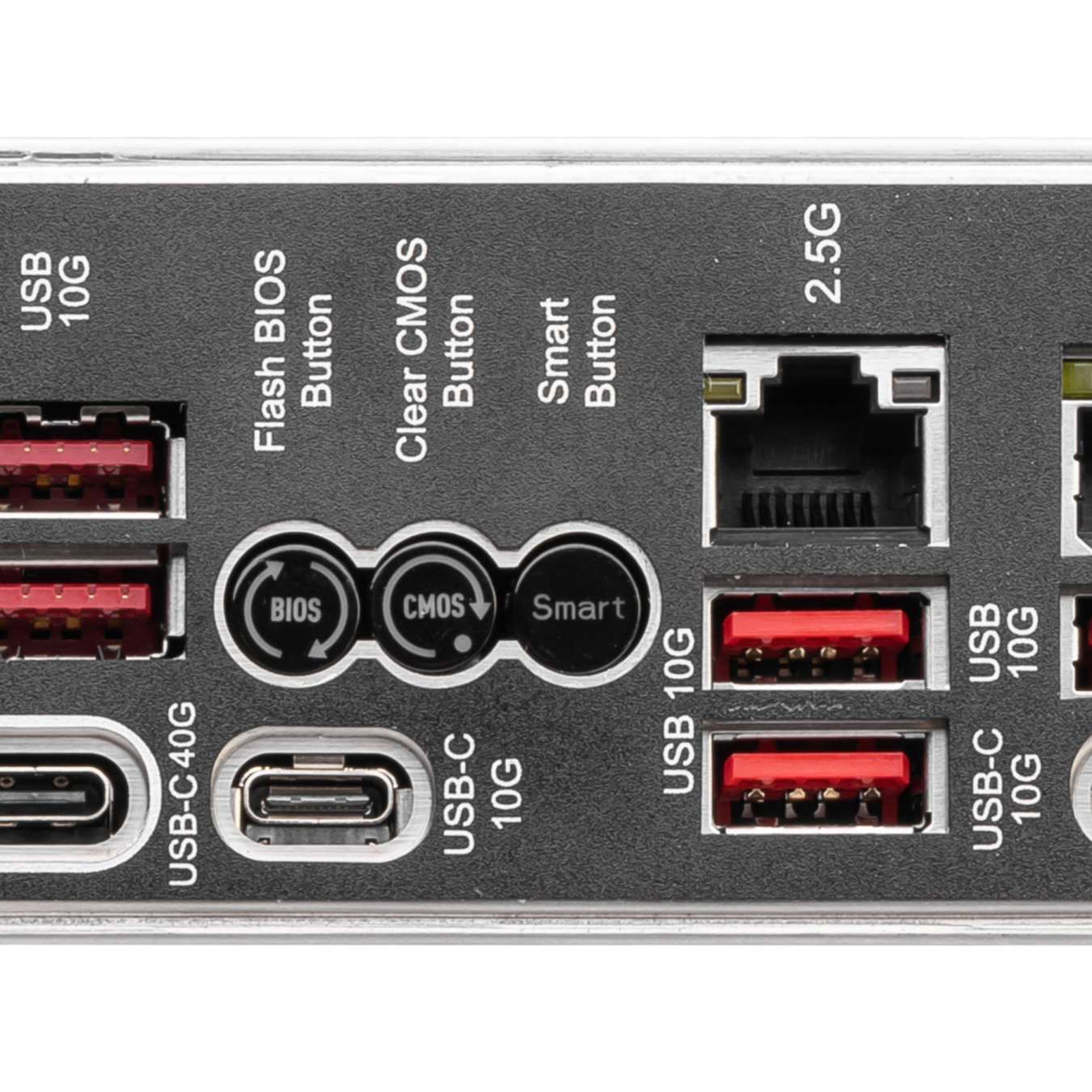

Connectivity is top-tier with Wi-Fi 7 (Qualcomm FastConnect 7800), Bluetooth 5.4, dual 5GbE and 2.5GbE LAN ports, and extensive USB including 2x USB4 (40Gbps Type-C), multiple USB 3.2 Gen2 ports. Storage options include 4x M.2 slots (PCIe 5.0/4.0) with EZ M.2 Shield Frozr II cooling, plus 4x SATA III. Expansion features dual PCIe 5.0 x16 slots, supplemented by a 6+2-pin PCIe power connector for heavy GPU loads. Rear I/O offers HDMI 2.1 and 2x DisplayPort.
- ✅ 18+2+1 110A VRM for Ryzen 9 overclocking
- ✅ Wi-Fi 7 + dual LAN (5G/2.5G) for ultimate networking
- ✅ 2x USB4 ports + abundant USB 3.2
- ✅ 4x M.2 PCIe 5.0 + EZ PCIe release
- ✅ 3x 3-pin ARGB + 1x 4-pin RGB headers
- ✅ 7x fan/pump headers + Debug LED panel
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000/8000/9000 |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Ethernet interface type | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| USB4 Gen 2x2 ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Voltage Regulator Modules (VRM) | 18+2+1 phase, 110A SPS |
| RGB Headers | 3x 3-pin ARGB, 1x 4-pin RGB |
| Fan/Pump Headers | 7x 4-pin |
| PCIe Supplemental Power | 1x 6+2-pin |
