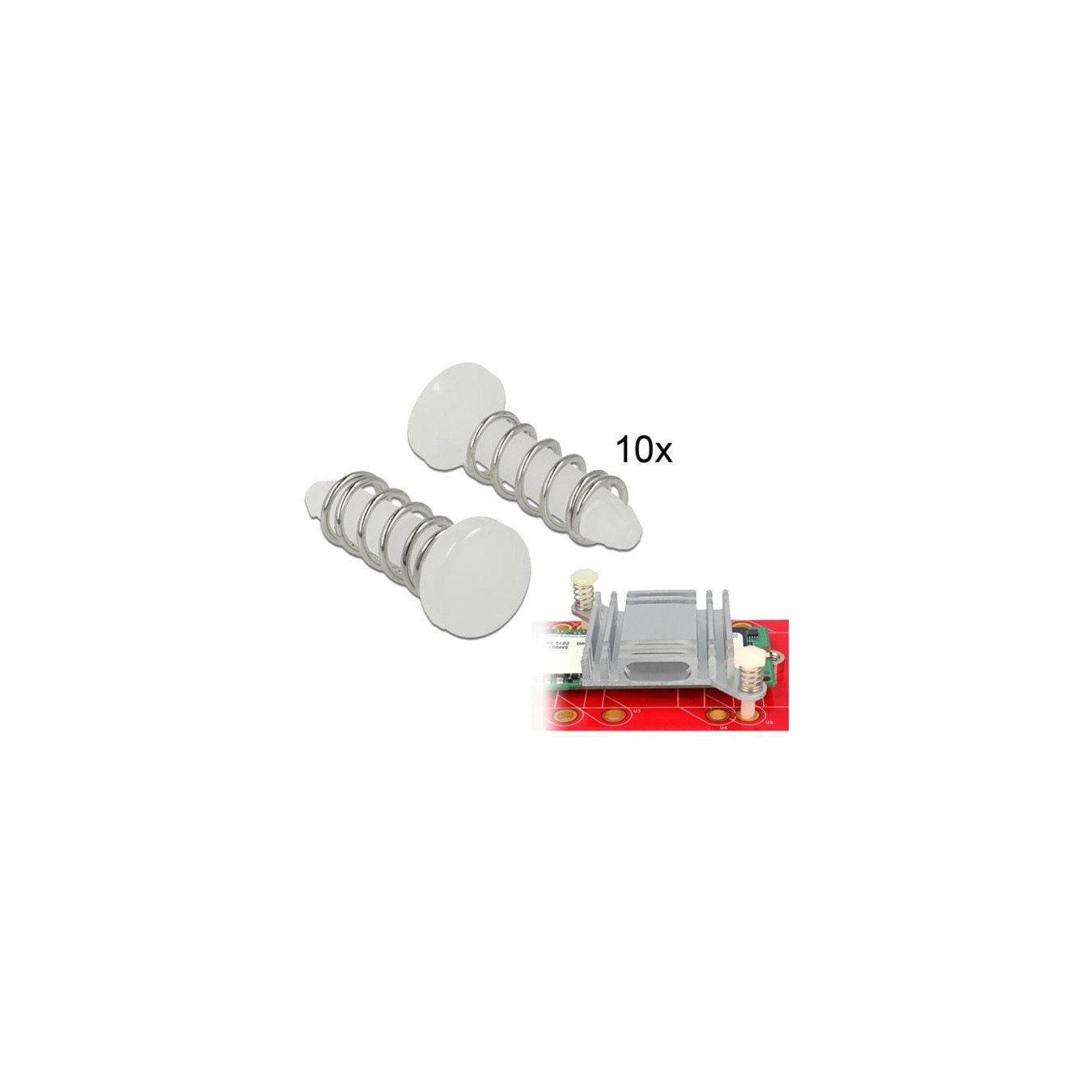

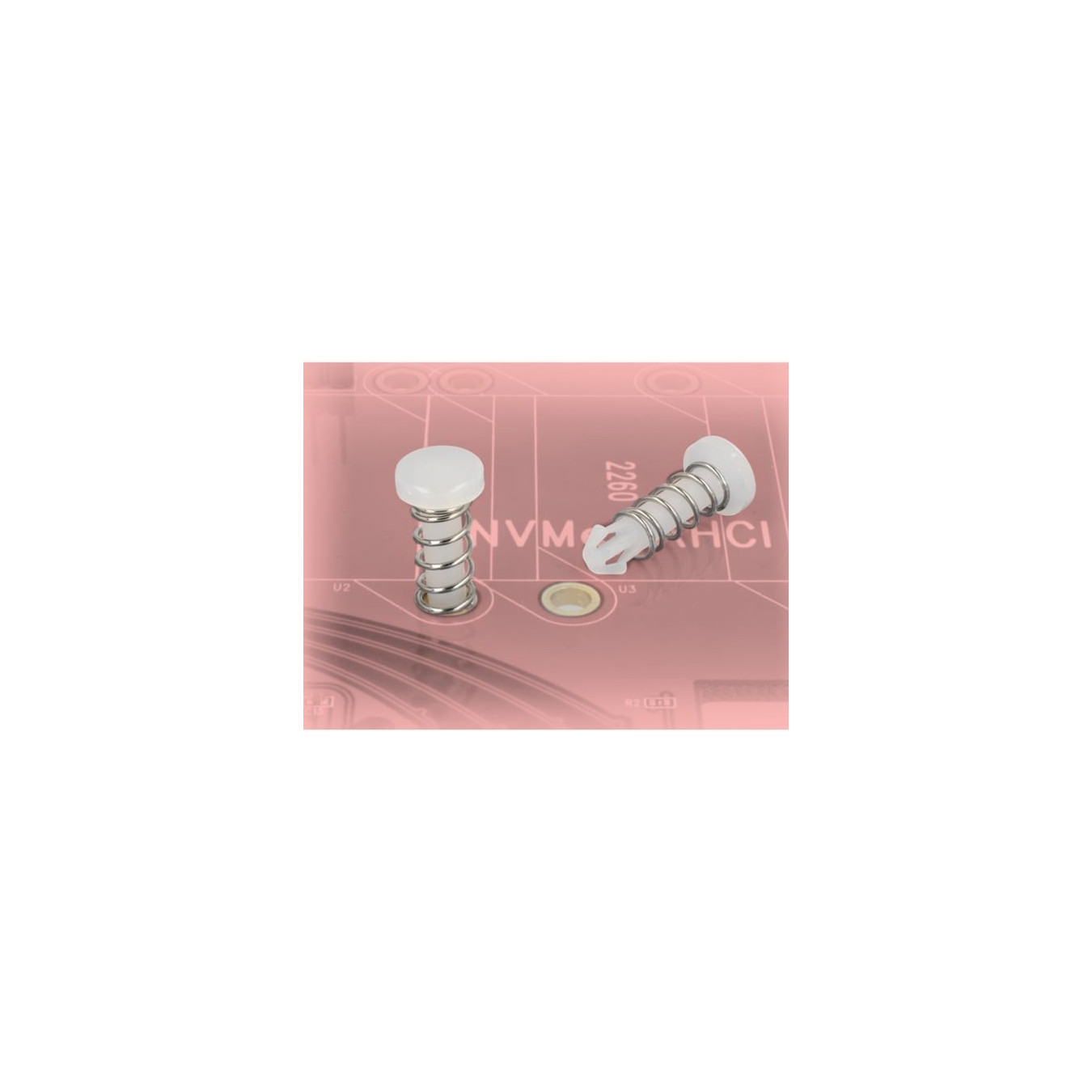

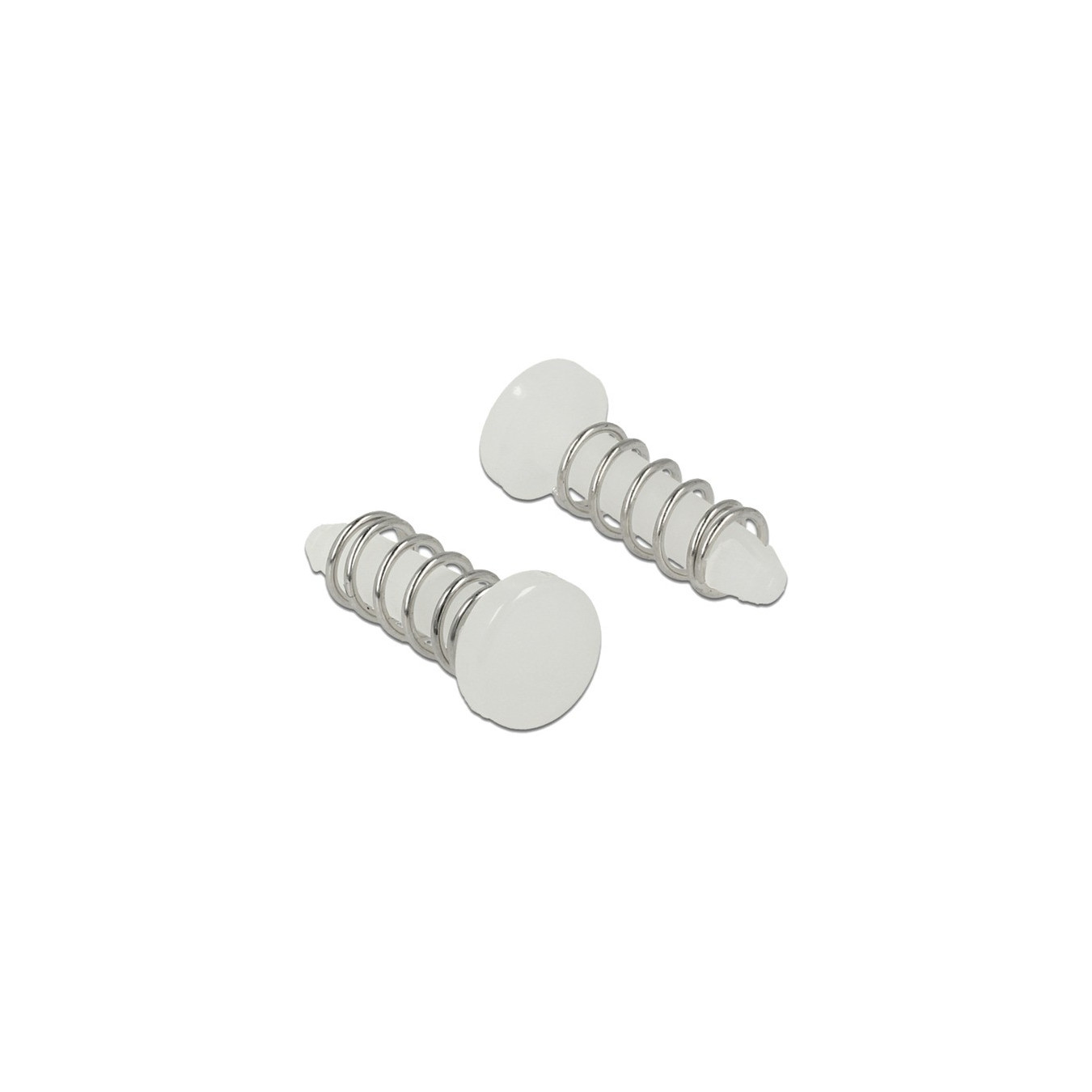

Snap rivet for heat sink, fastening mounting

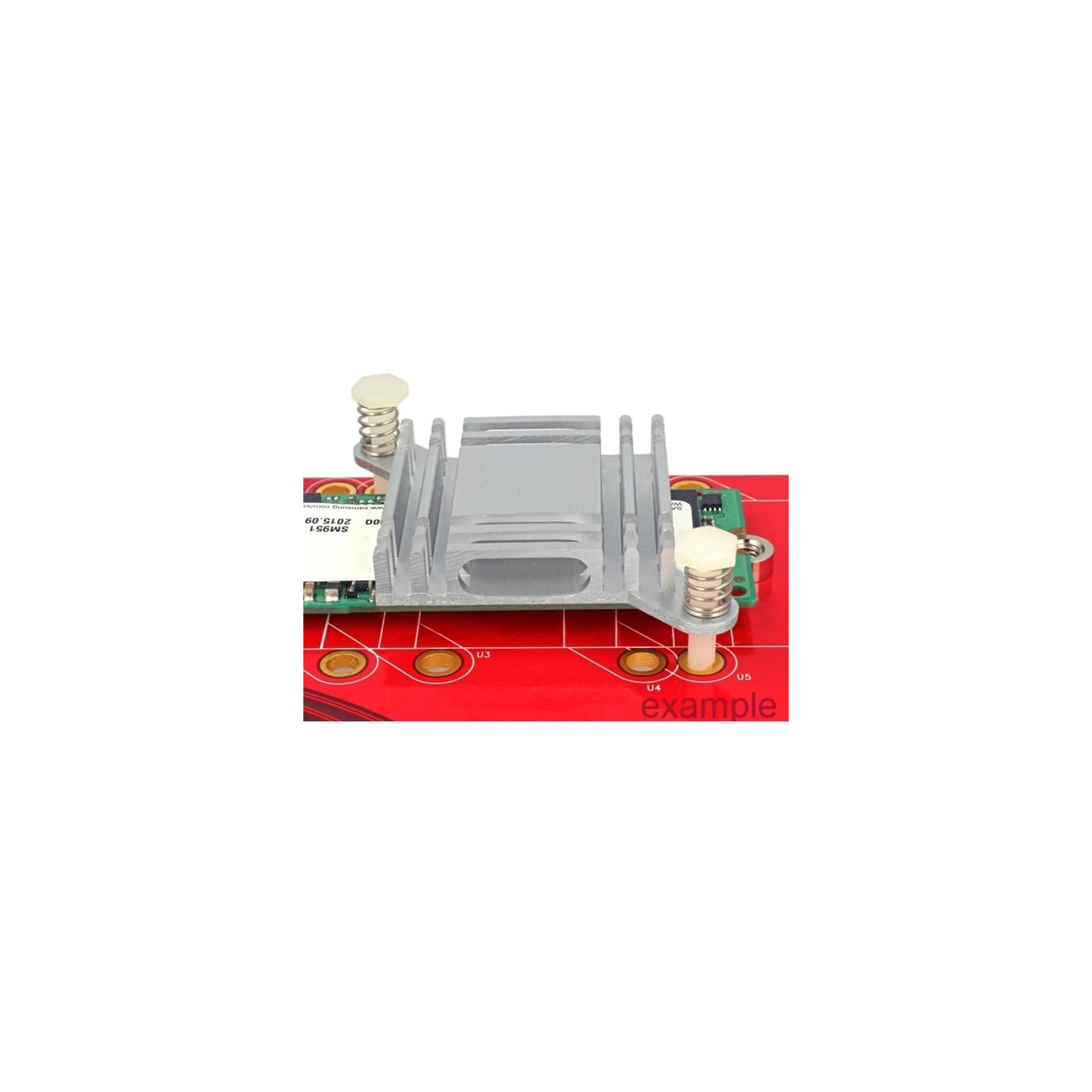

This snap rivet can be used to attach heat sinks to PC boards. The prerequisite is a mounting hole with a diameter of 3 mm on the board.
Item no.: 1404527
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This snap rivet can be used to attach heat sinks to PC boards. The prerequisite is a mounting hole with a diameter of 3 mm on the board.
| Typ | Fastening/assembly |
| Color | white |
| EAN | 4043619182725 |
| Manufacturer no. | 18272 |
| To hold/attach - from | PC systems |
| Suitable for | Heat sink |
| Fastening type | Clamping device |
| Material | plastic |
| Feature | Fire resistance class: 94V-0, 94V-2 |

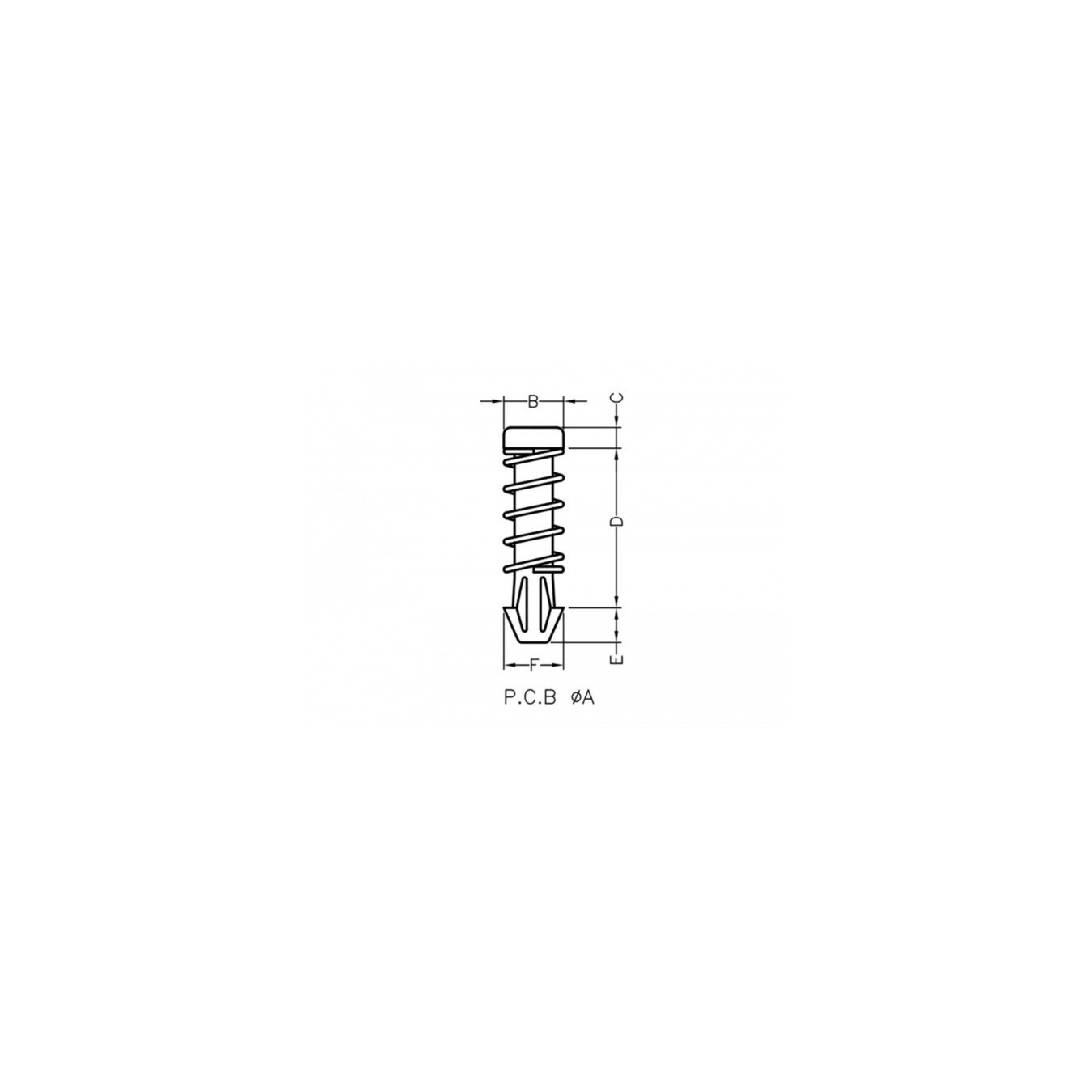

| More information | Ø Top: 6.3 mm, Ø Bottom: 4.2 mm |
| Notice | Mounting hole on board: Ø 3.0 mm |
| Dimensions | Depth: 15.2mm |
| Weight | 20 Gramm |
