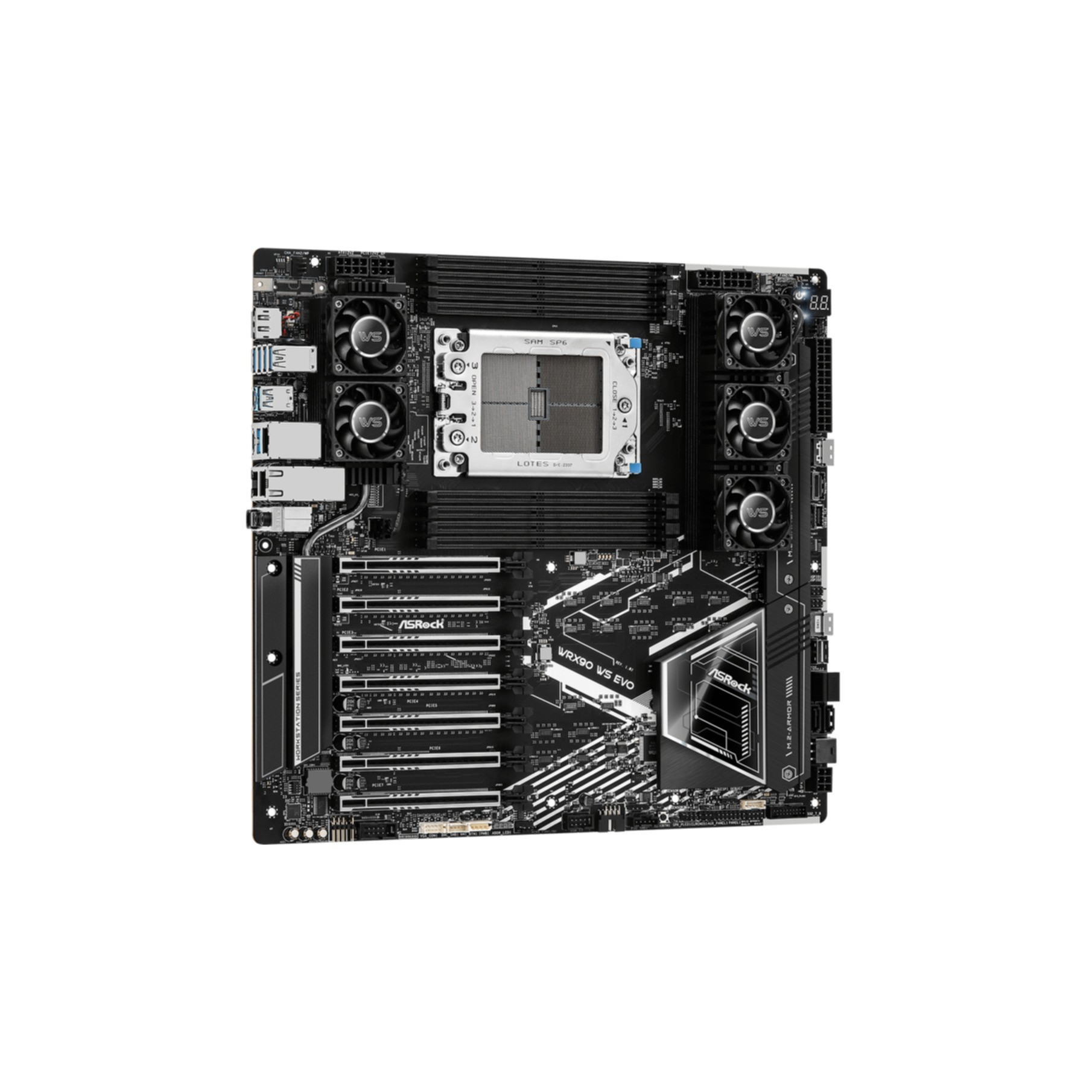

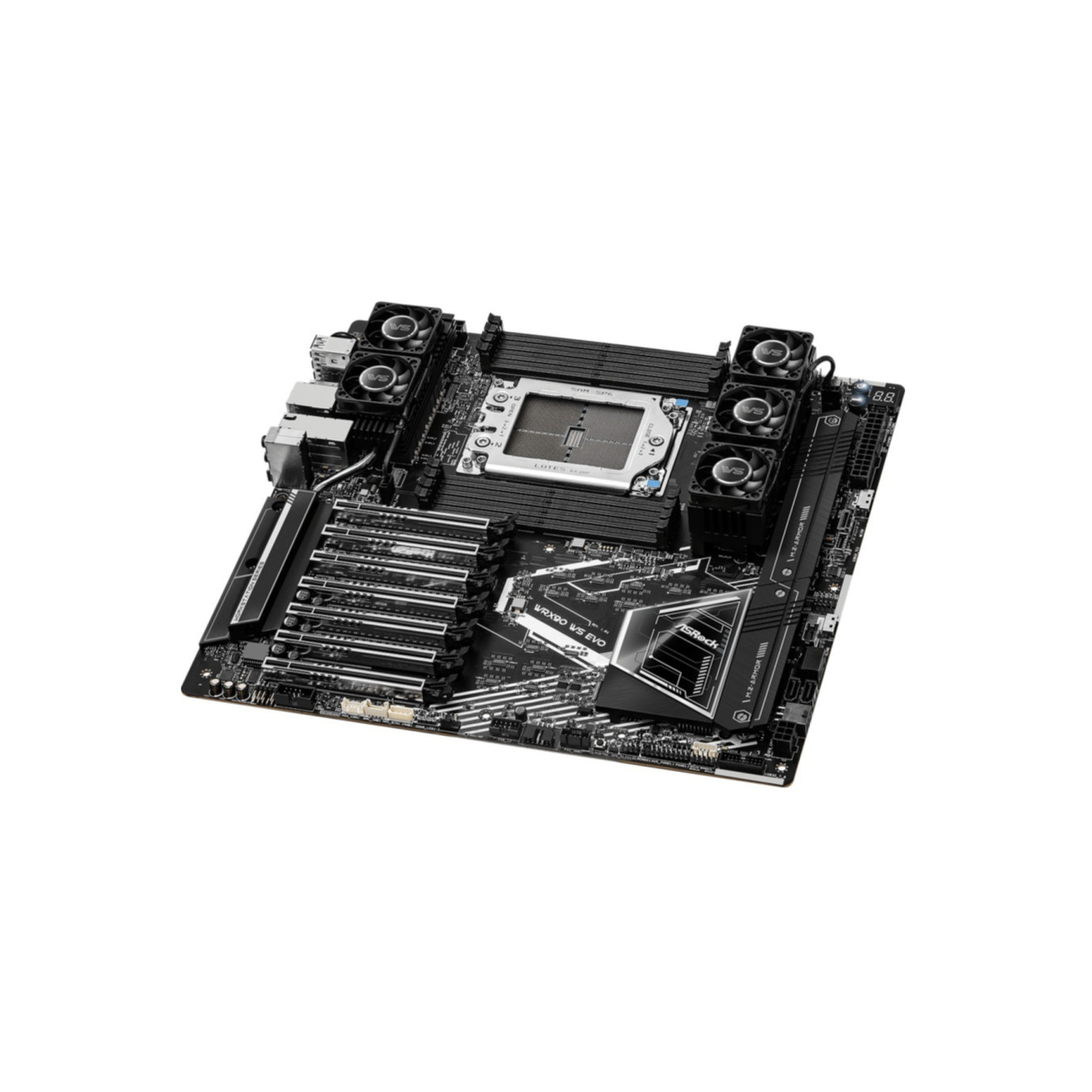

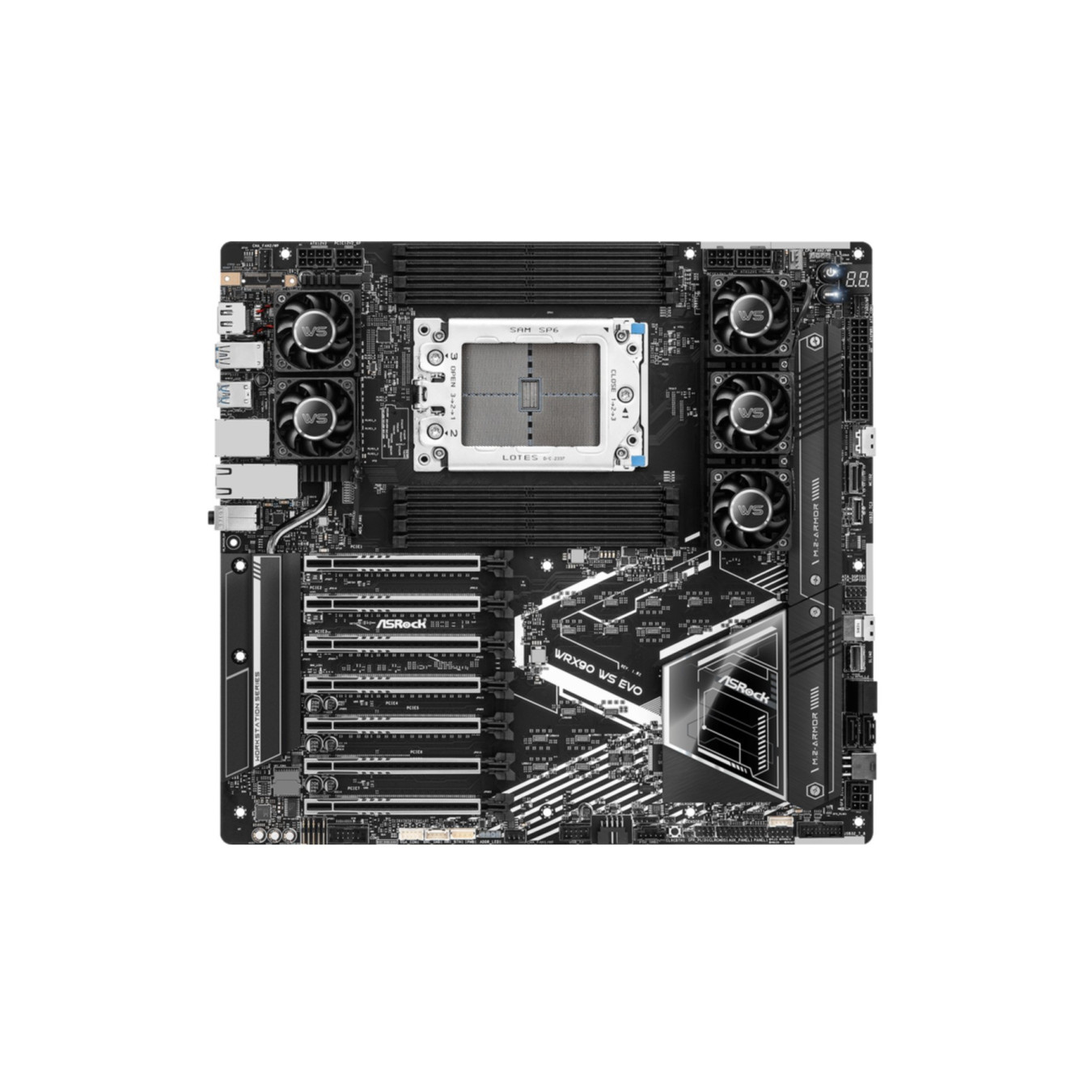

ASRock WRX90 WS EVO - sTR5 EEB Motherboard - DDR5, 8x DIMM (up to 7600MHz), 10Gb LAN, 2x M.2, 4x SATA, Black
sTR5 workstation motherboard for AMD Threadripper; EEB form factor, DDR5 (8 DIMM slots, up to 7600MHz, up to 2TB), 10Gb LAN, Realtek ALC1220 7.1, 2x M.2 (80mm), 4x SATA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 8 (HEDT) |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| unterstützte Prozessormodelle | AMD Ryzen™ Threadripper™ |
| Sockel | Socket sTR5 |
| Chipsatz | AMD WRX90 |
| BIOS | EFI AMI, 256 Mbit |
| Formfaktor | EEB |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 2 TB |
| Memory slots | 8 |
| Speicher je Speicherplatz | 32 GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 7600 MHz |
| Speicher Kanäle | Vierfach-Kanal |
| Speichertyp | unbuffered;non-ECC |
| Controller in CPU | ja |
| LAN (RJ45) | 10 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 4 |
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| VGA | 1 |
| DVI | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 2 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 1 |
| Mainbord Strom | 24pin |
| CPU Strom | 4pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 80mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 3 |
| Sound-Chip | 7.1 Kanäle, Realtek ALC1220 |
| LAN | Intel X710-AT2 |
| RAID SATA | 0, 1, 10 |
| Farbe | schwarz |
| Gewicht (g) | 820 |
| Breite (cm) | 23 |
| Tiefe (cm) | 20.10 |
| Internal graphic | yes |
| verfügbare Slots | 2 |
