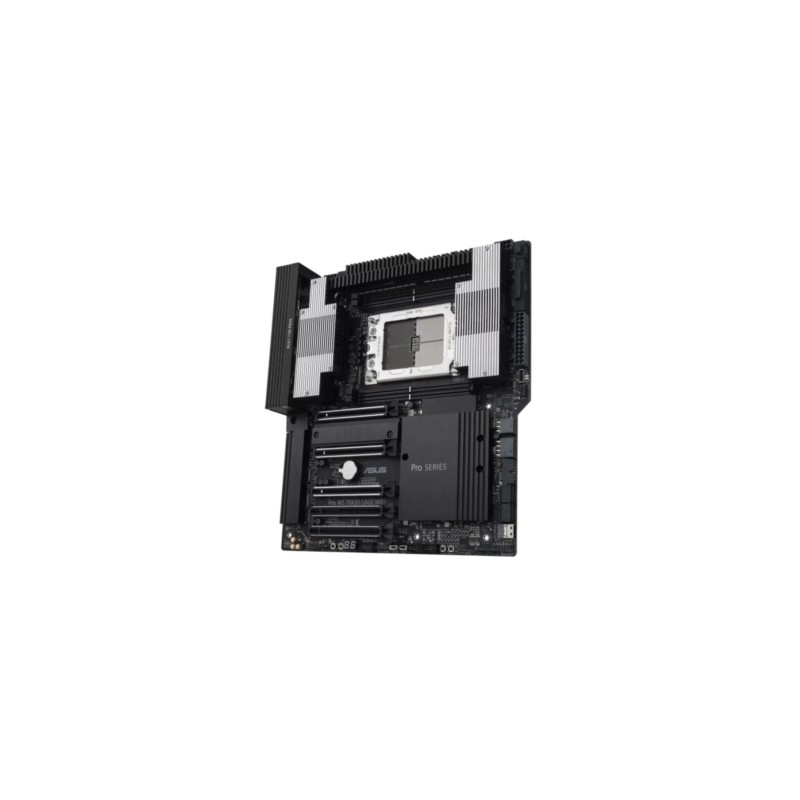

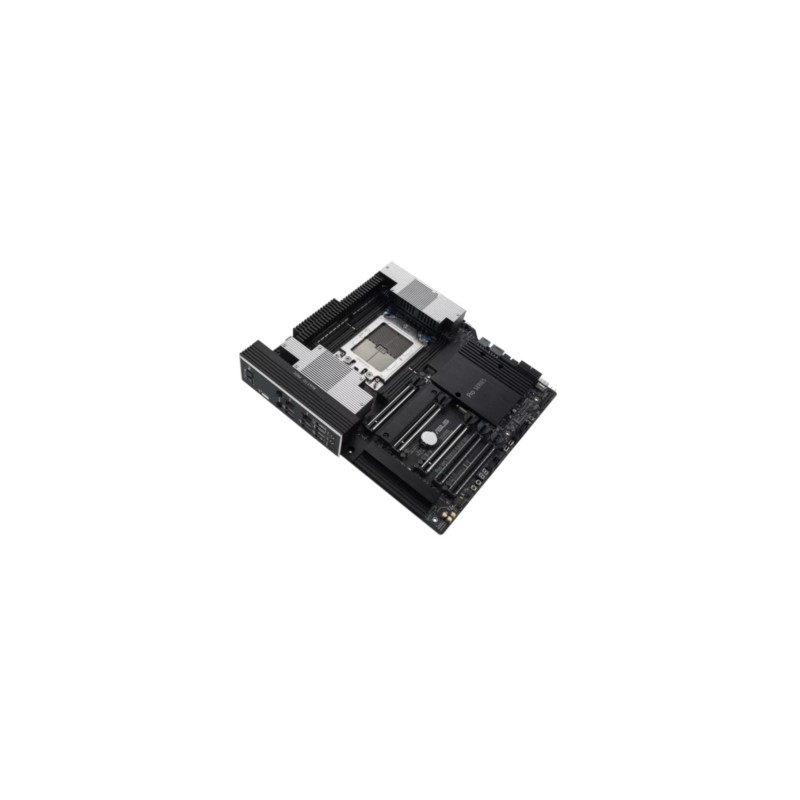

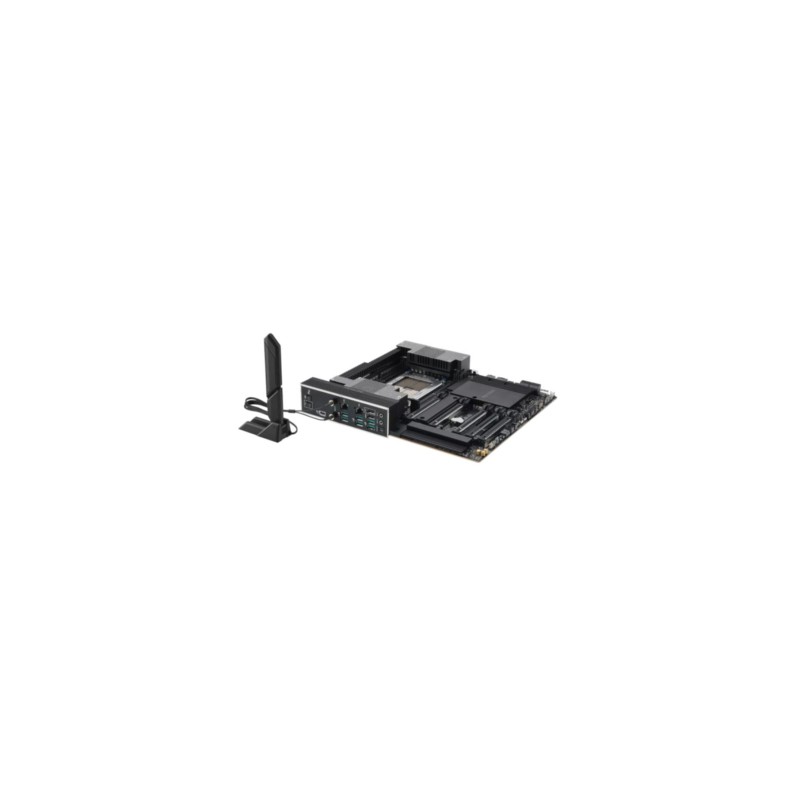

ASUS Pro WS TRX50-SAGE WIFI - TRX50-SAGE - sTR5 Socket, DDR5 4x DIMM, Quad-Channel, Wi‑Fi 7, Black
Workstation motherboard for AMD Threadripper: sTR5 socket, AMD TRX50 chipset, SSI CEB, DDR5 (4 DIMMs, quad-channel), 3x M.2, 4x SATA, 10Gb+2.5Gb LAN, Wi‑Fi 7.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | sTRX5/sTR5 |
|---|---|
| Motherboards - Chipset | TRX50 |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |

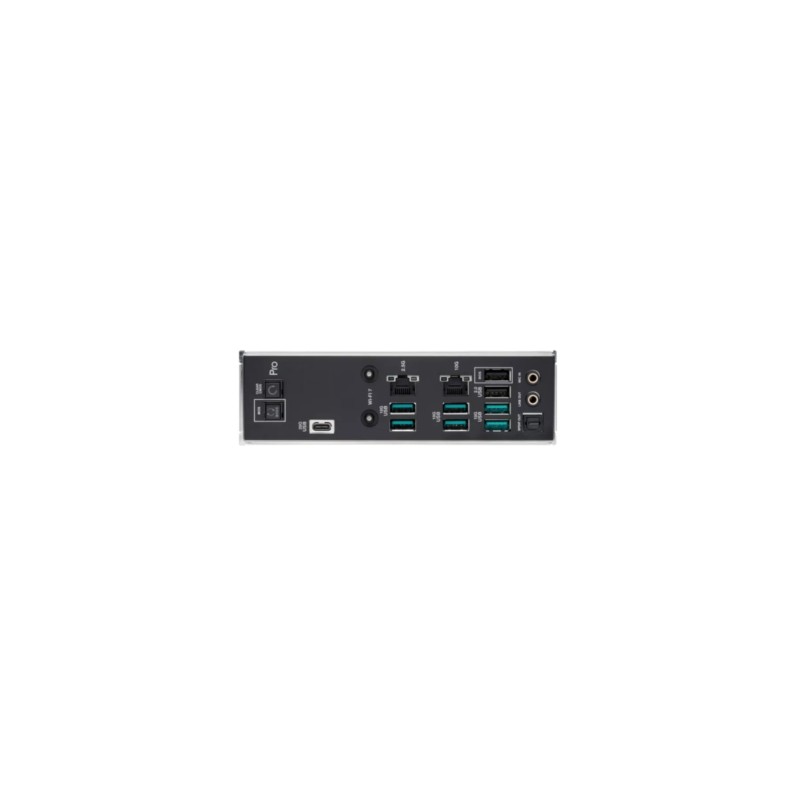

| Motherboards - USB-C | Rear Type-C |
ASUS Pro WS TRX50-SAGE WIFI. Processor manufacturer: AMD. Processor socket: Socket sTR5. Compatible processor series: AMD Ryzen Threadripper 1000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 1 TB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. USB connector type: USB Type-A. USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet. 10 Gigabit Ethernet. LAN controller: Intel I226-LM. Top Wi-Fi standard: Wi-Fi 7 (802.11be)
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 1 TB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Feature | Clear CMOS button |
| RAID levels | 0. 1. 5. 10 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Integrated SAS ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A. USB Type-C |
| Ethernet interface type | 2.5 Gigabit Ethernet. 10 Gigabit Ethernet |
| LAN controller | Intel I226-LM |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD TRX50 |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 320 mm |
| Package depth | 380 mm |
| Package height | 100 mm |
| Package weight | 4.85 kg |
| Width | 305 mm |
| Depth | 280 mm |
| Cables included | PCIe. SATA |
| Weight | 2.53 kg |
