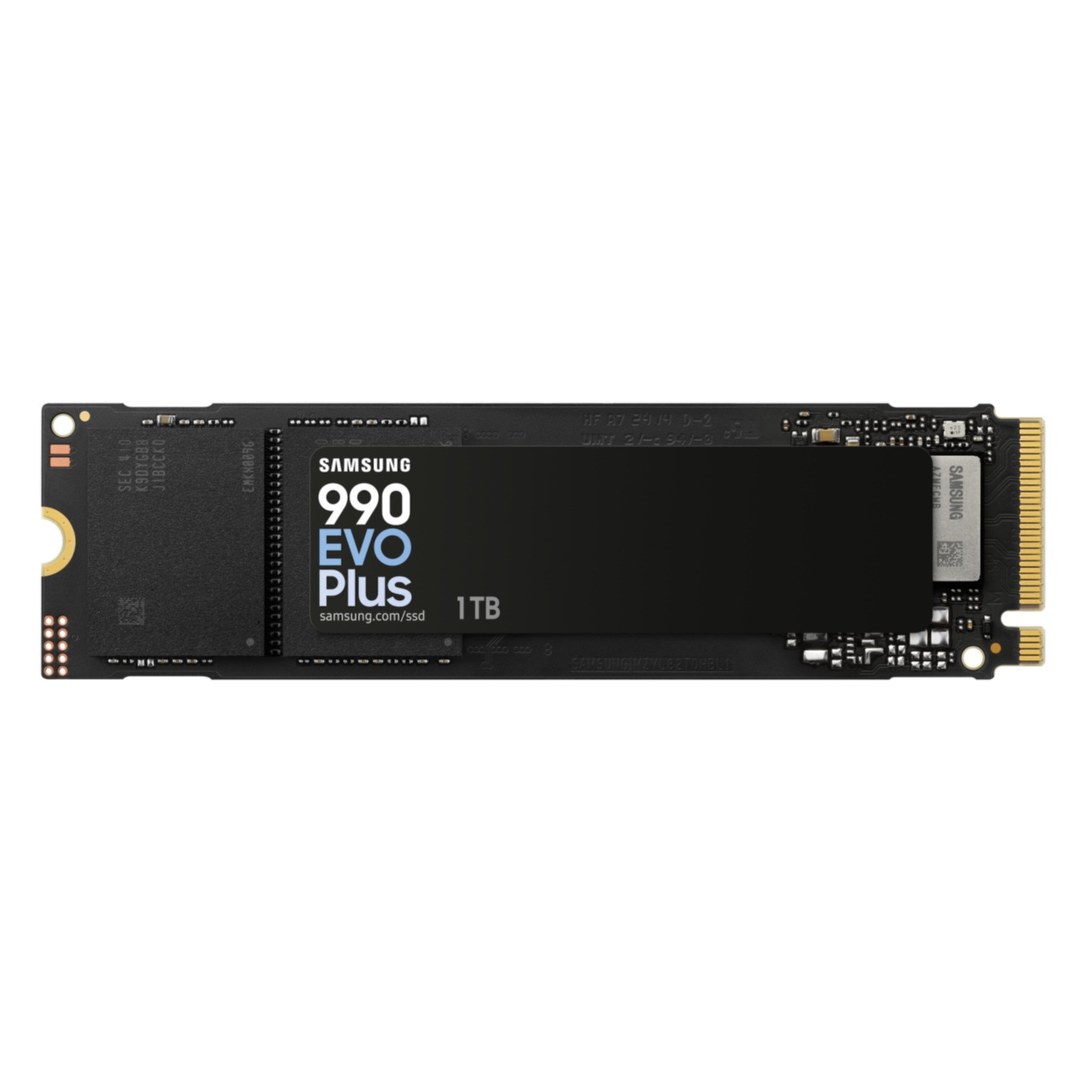

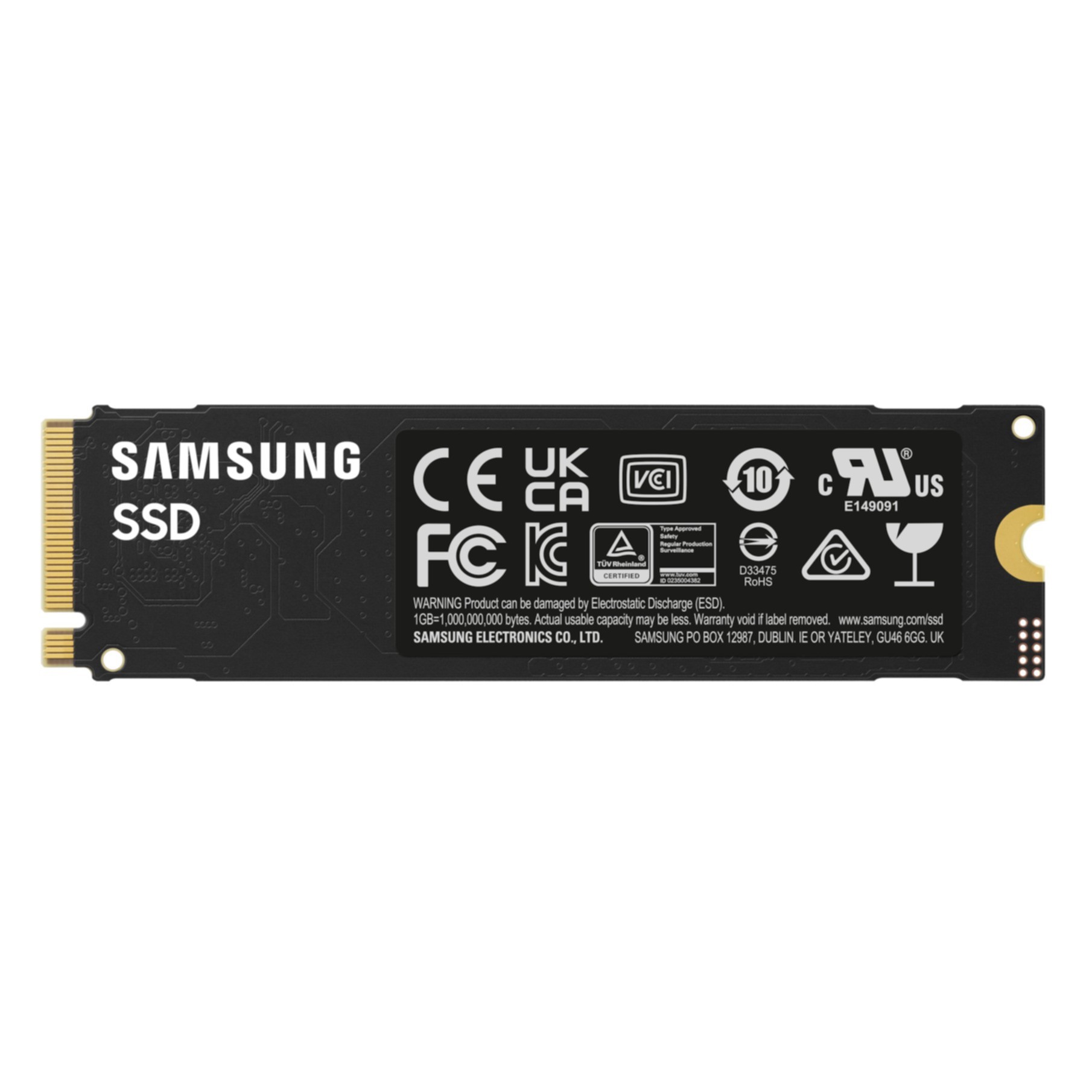

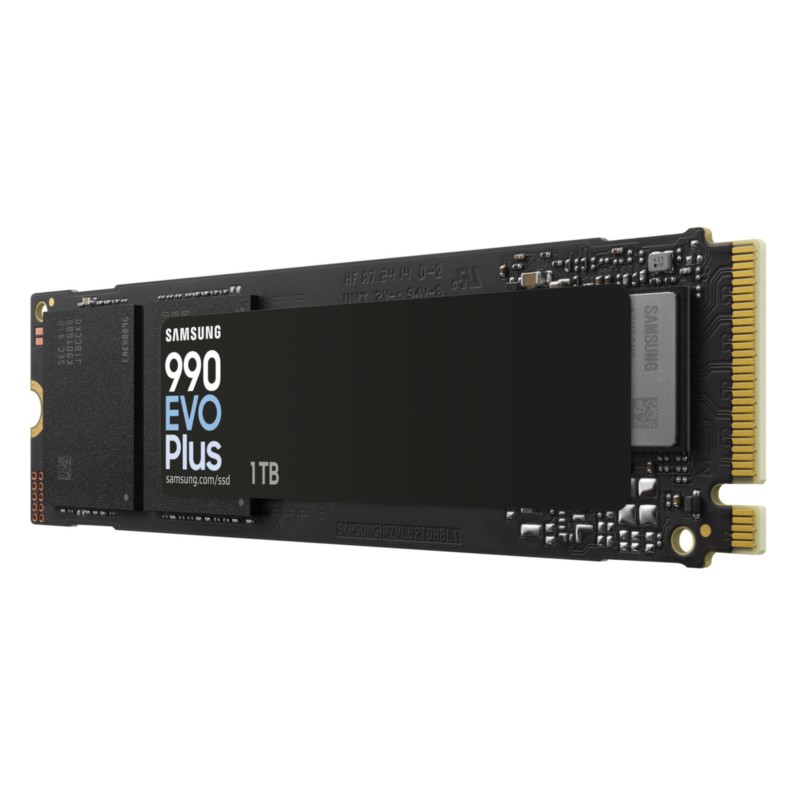

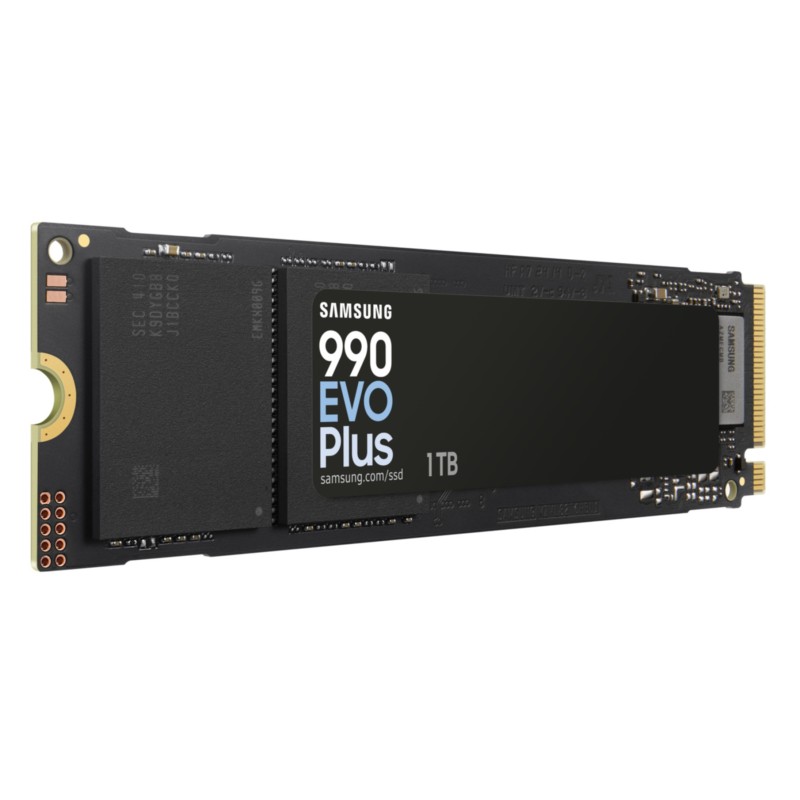

Samsung 990 EVO Plus 1TB M.2 NVMe SSD - MZ-V9S1T0BW - PCIe Gen4 x4, V-NAND TLC, 7150/6300 MB/s
1TB M.2 2280 NVMe SSD (MZ-V9S1T0BW) — PCIe 4.0 x4, NVMe 2.0, V-NAND TLC, up to 7150 MB/s read and 6300 MB/s write. Hardware encryption, S.M.A.R.T. & TRIM support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NVMe Version (SSD) | 2.0 |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
| Storage (SSD & HDD) - Sequential Read (Up to) | 7000 MB/s |
| Storage (SSD & HDD) - Sequential Write (Up to) | 6500 MB/s |
Spectacular speed everyday
Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. Huge files, instant transfer.
Keep cool and power through your day
Optimised efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73% compared to the 990 EVO, achieving the same power level and thermal control with less power consumption. Stay focused on work or play without worrying about overheating or battery life.
Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
Performance
Up to 7,250MB/s of sequential read speed, 45% faster speed than the previous model, the 990 EVO.
Power efficiency
Power efficiency enhanced by 73% compared to the 990 EVO for more MB/s per watt, while maintaining performance and thermal control.
Versatility
Up to 4TB capacity and rapid Intelligent TurboWrite 2.0.
| NVMe version | 2.0 |
| Security algorithms | 256-bit AES |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | V-NAND TLC |
| Component for | PC |
| Hardware encryption | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7150 MB/s |
| Write speed | 6300 MB/s |
| Random read (4KB) | 850000 IOPS |
| Random write (4KB) | 1350000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Width | 80.2 mm |
| Depth | 2.38 mm |
| Height | 22.1 mm |
| Weight | 9 g |
| Operating temperature (T-T) | 0 - 70 °C |
