PCIe to 1 x Seriell RS-232, Adapter
The Delock PCI Express card expands the PC with an external serial RS-232 port. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and dif...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

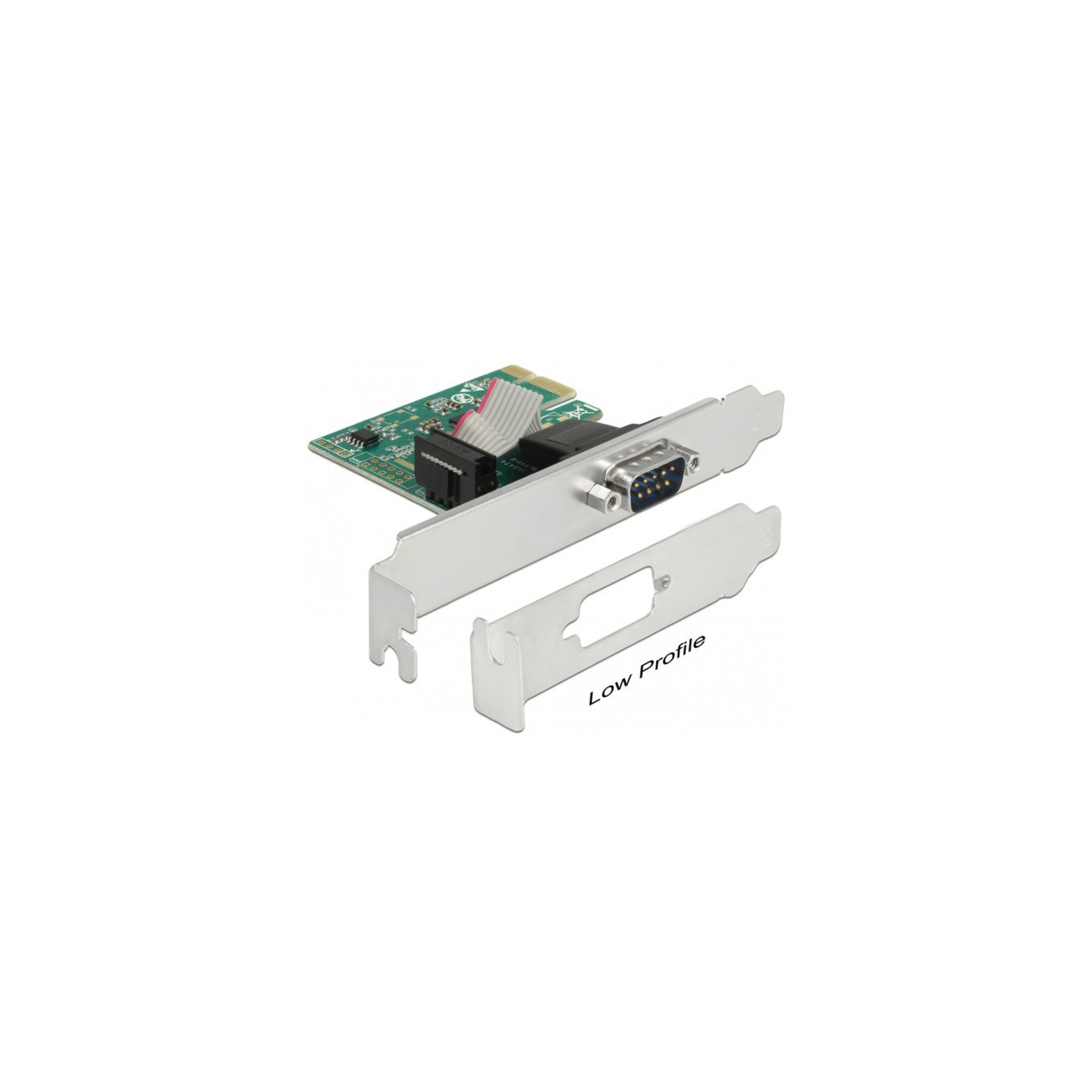

The Delock PCI Express card expands the PC with an external serial RS-232 port. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. Using the low profile panels included in delivery, the PCI Express card can also be installed in a mini PC.
| Typ | Adapter |
| EAN | 4043619899487 |
| Manufacturer no. | 89948 |
| Controller Art | Serial |
| slot | PCIe x1 Version 2.0 |
| Chip | ASIX AX99100 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| Feature | Supports Active State Power Management (ASPM), Supports Direct Memory Access (DMA), Modes: Supports slow IrDA mode up to 115 Kbps, Supports Multi-Drop 9-bit mode | FIFO: 256 bytes | Data bits: 5, 6, 7, 8, 9 | Stop bits: 1, 1.5, 2 | Parity bit: even, odd, none, marked, empty | Flow control: none, hardware RTS/CTS, software XON/XOFF |
| Accessories - available | 1x low profile bezel, driver CD, operating instructions |
| Weight | 114 Gramm |
