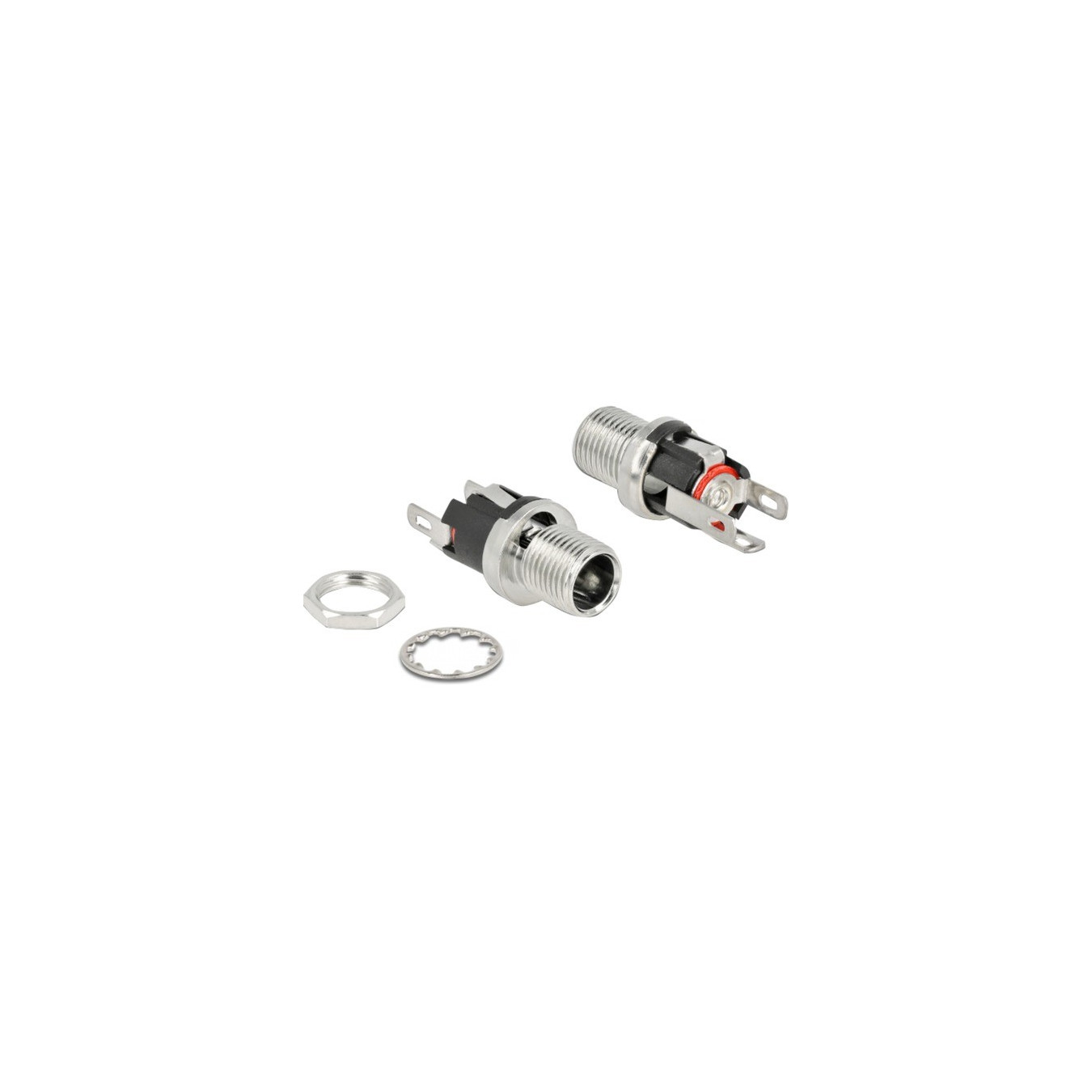

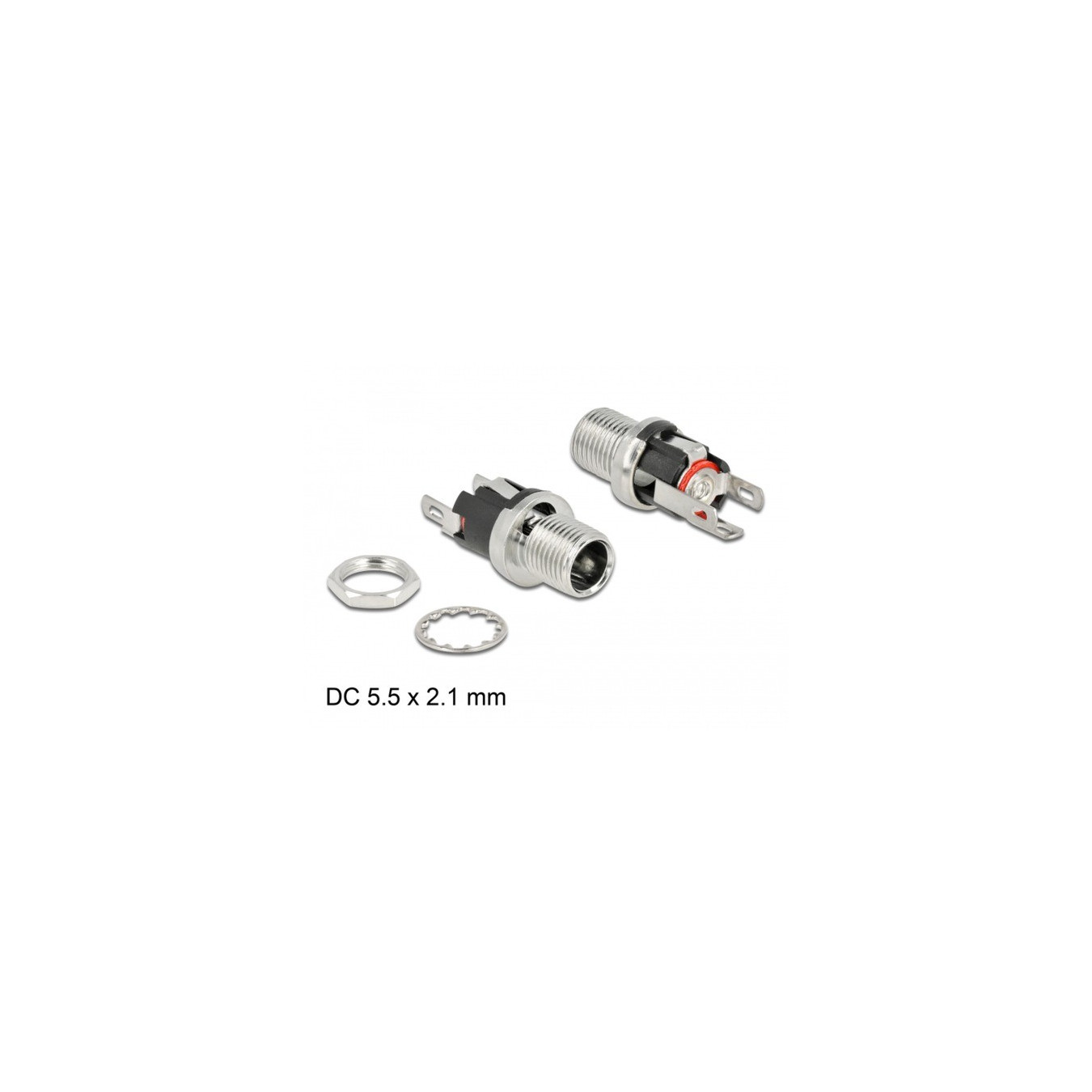

Connector DC 5.5 x 2.1 x 12.0mm socket for installation, plug
The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three sol...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three solder connections on the other side.
| Typ | Plug |
| EAN | 4043619900565 |
| Manufacturer no. | 90056 |
| Manufactured in | Taiwan |
| Application example | Installation e.g. in a housing |
| Area | Power supply |
| Connection - from | 1x power supply (socket) |
| Characteristics | Adapter, extern |
| Feature | Pins nickel-plated copper |
| More information | Outside Ø approx. 5.5mm, inside Ø approx. 2.1mm, operating voltage 16V DC, current max. 3 A, plastic housing PBT, thread type M8*P0.75 |
| Notice | Installation depth approx. 15.8mm |
