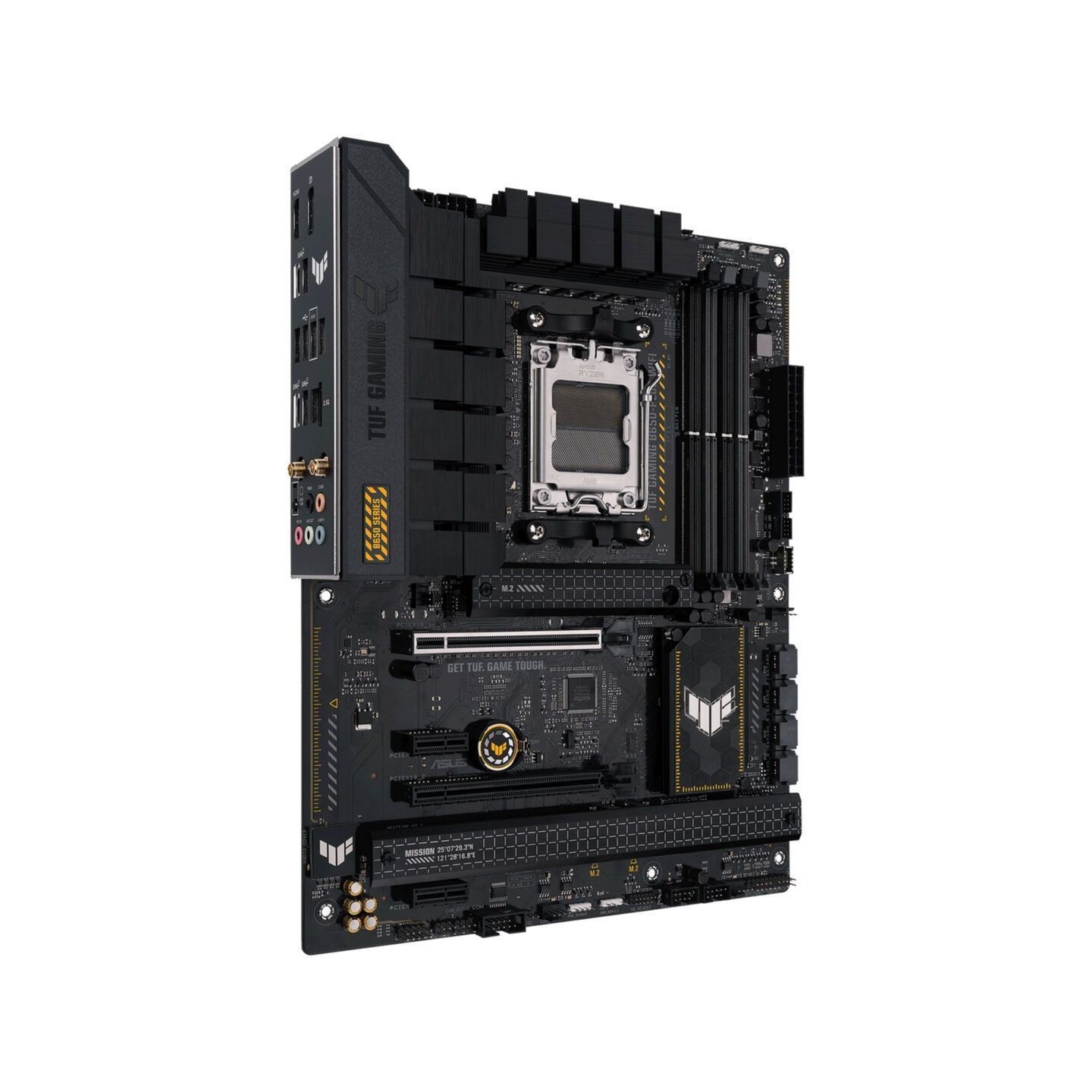

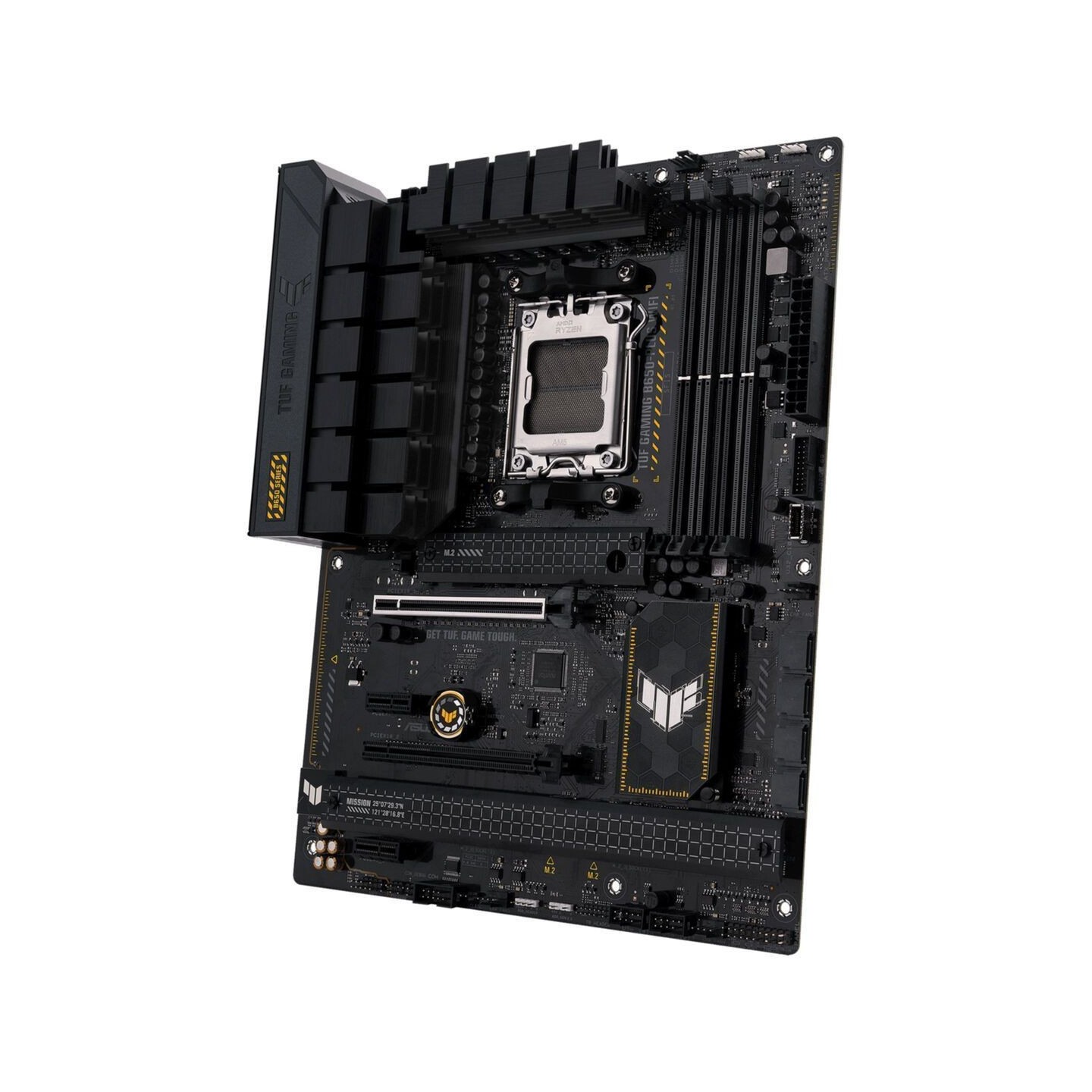

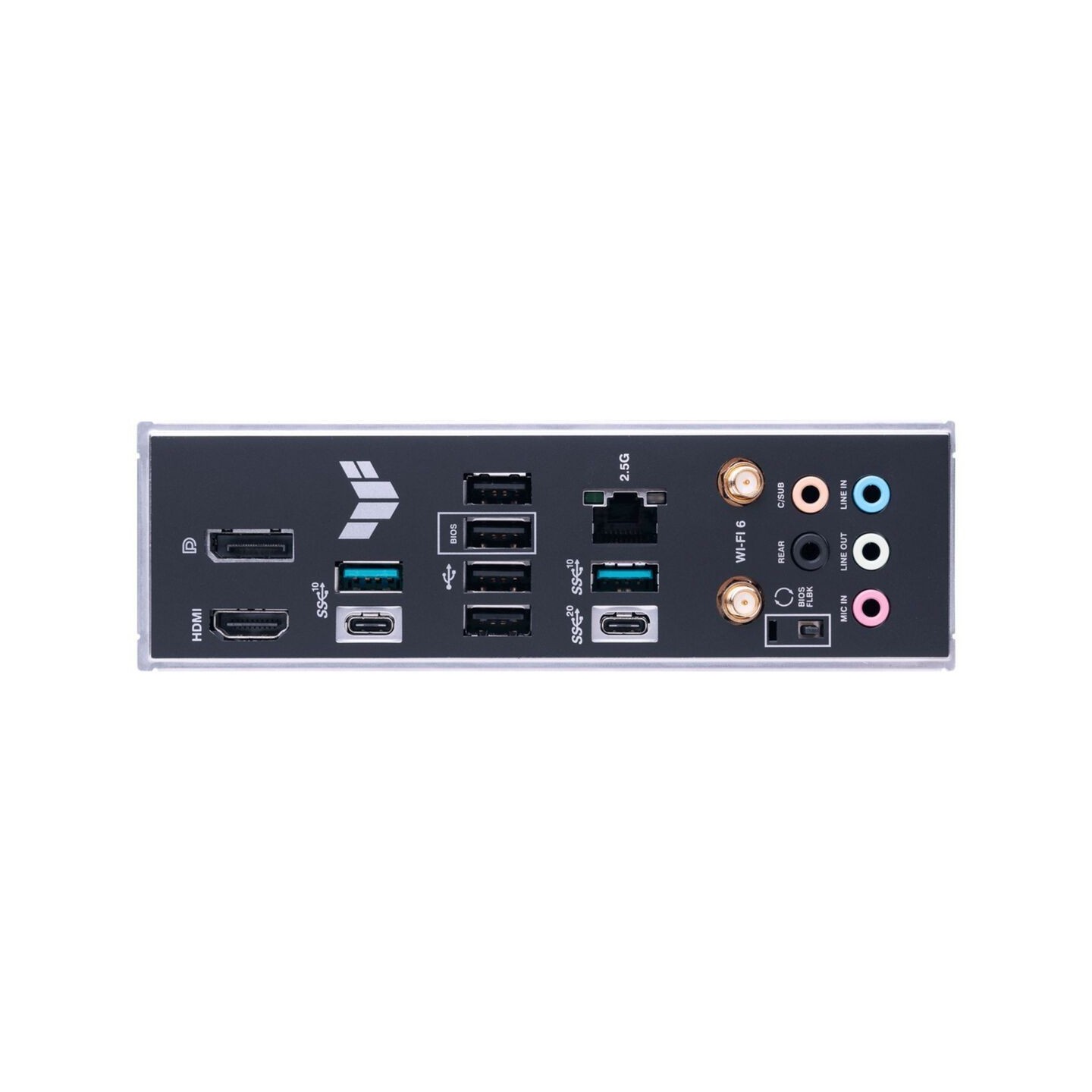

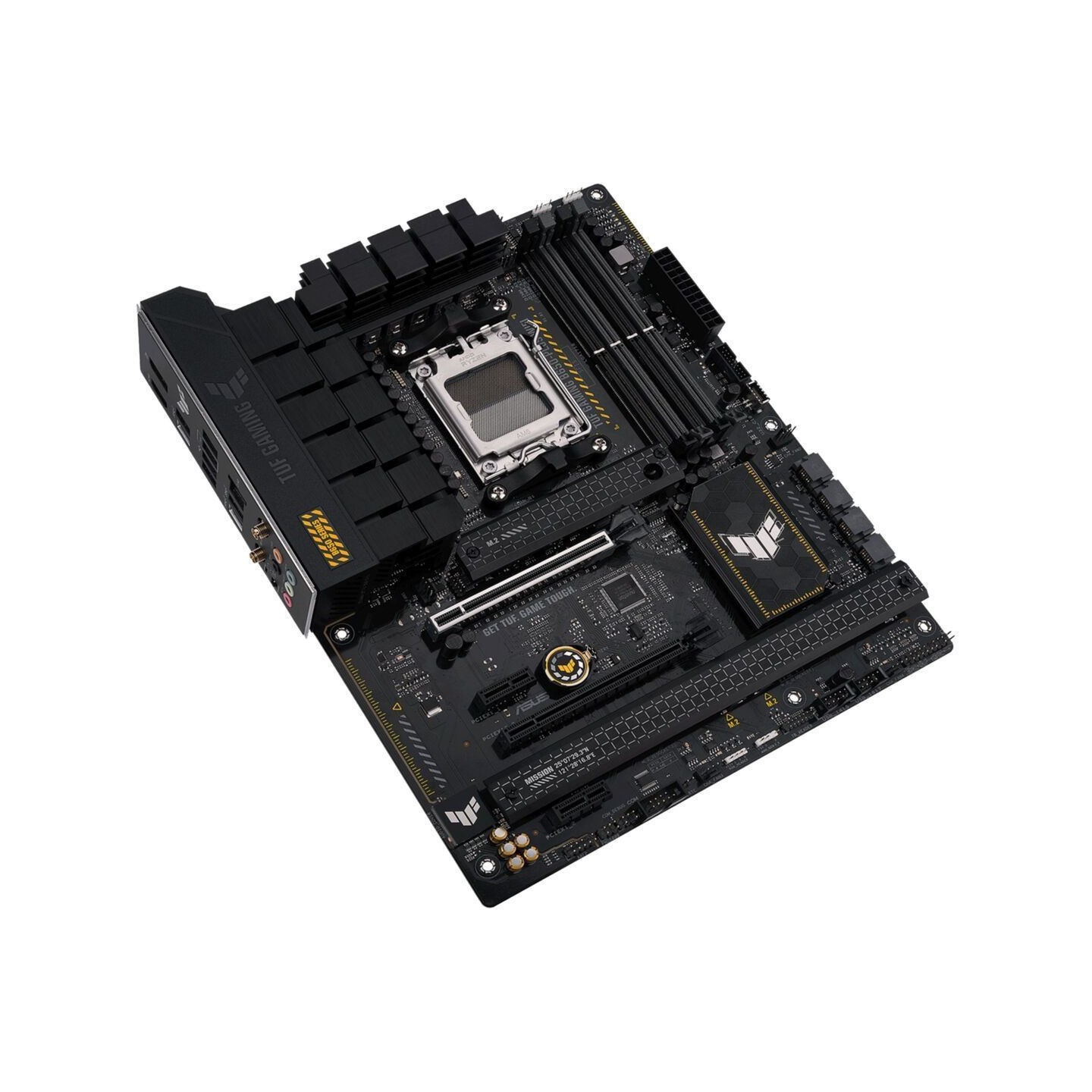

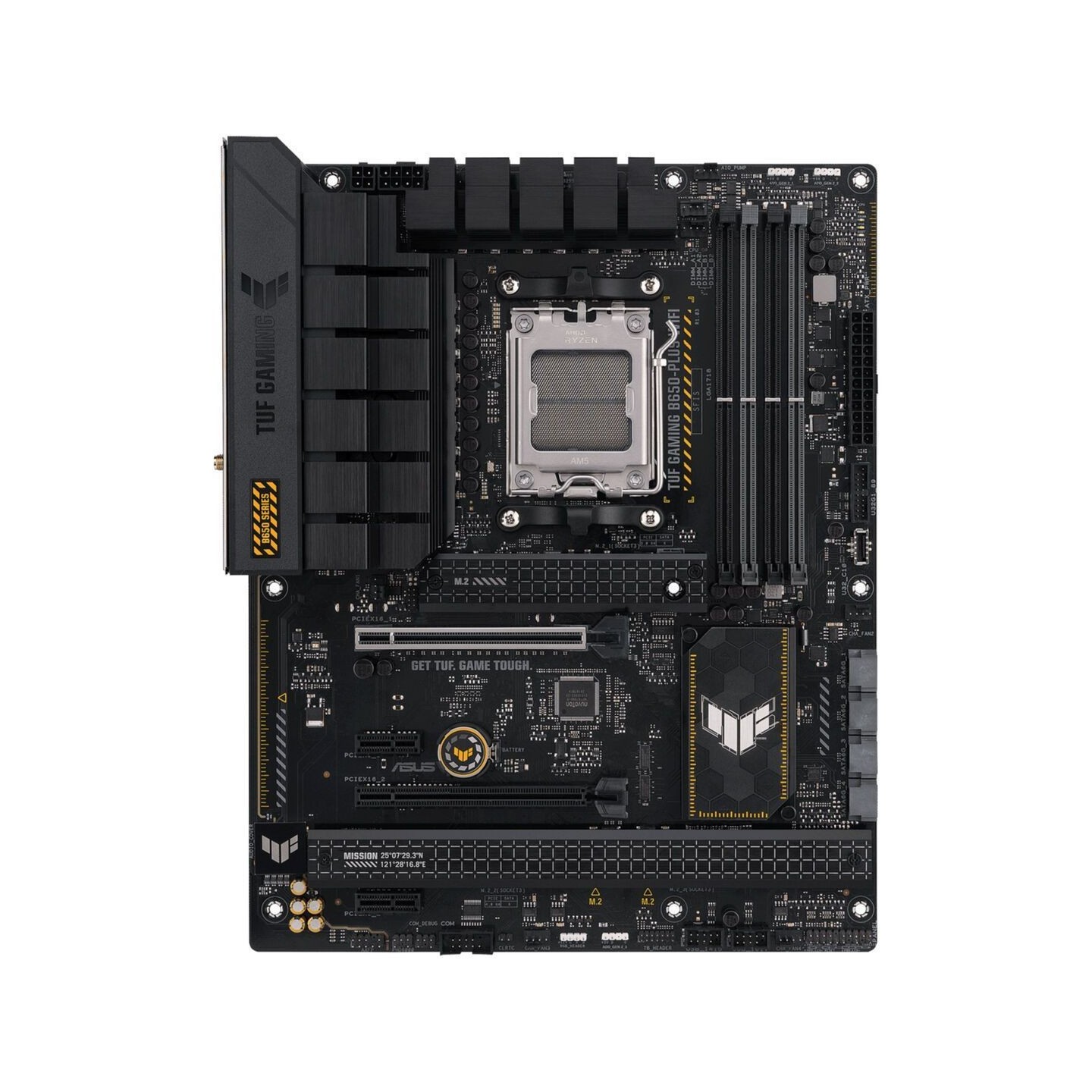

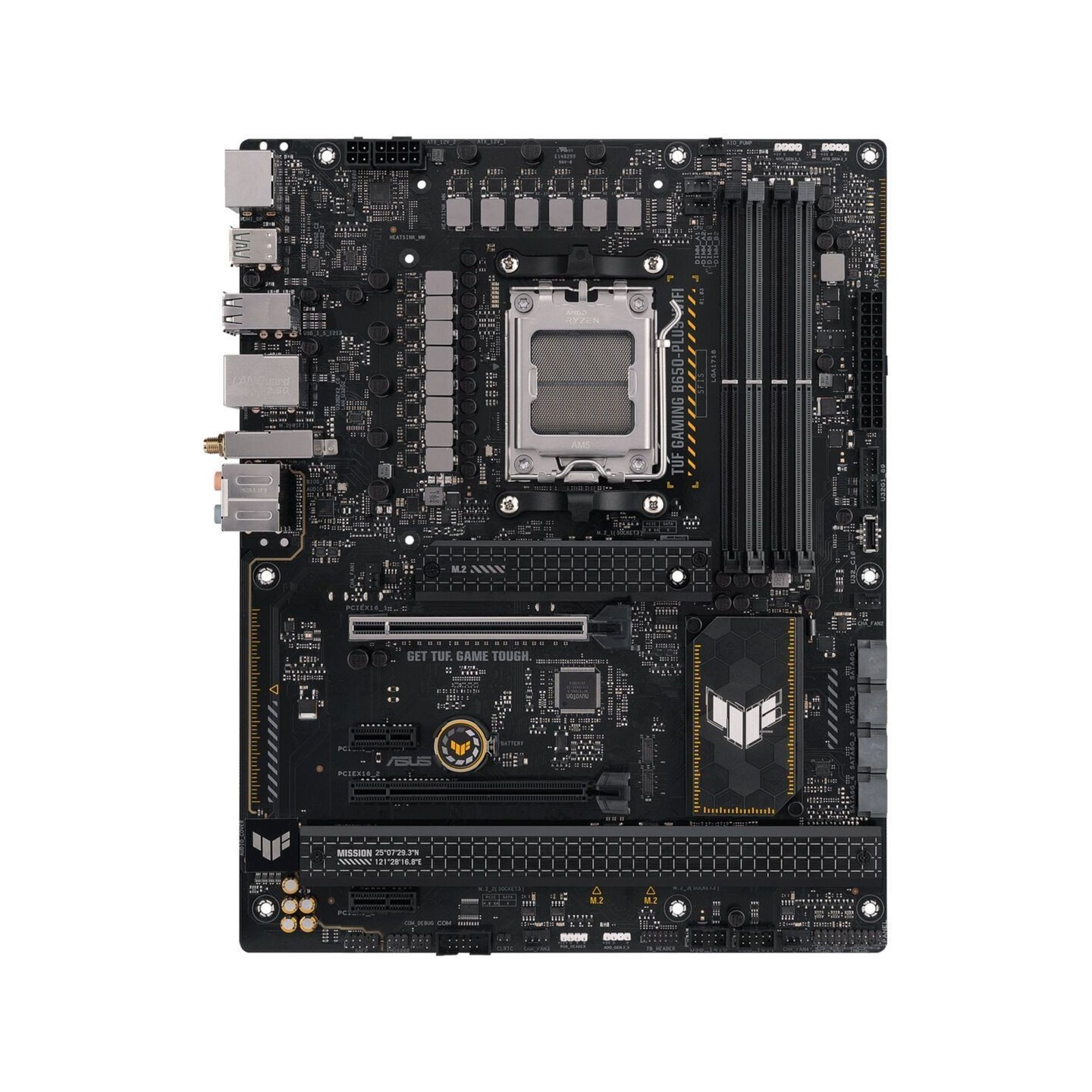

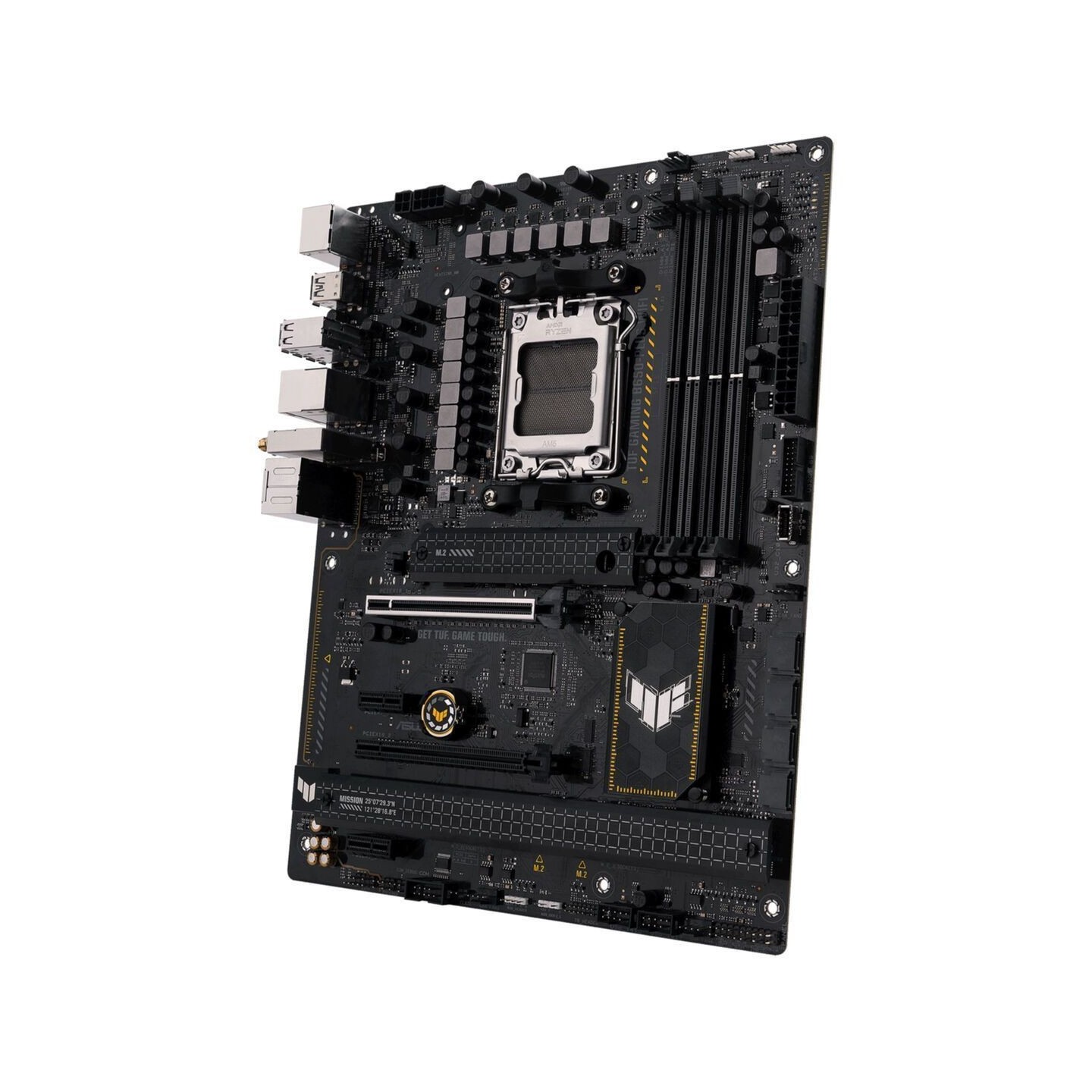

ASUS TUF B650-PLUS GAMING WIFI AM5 ATX MB DDR5 128GB WiFi6 2.5GbE (Boxed)
AM5 ATX motherboard for Ryzen 7000/8000 series. DDR5 up to 128GB OC 6400+, 3x M.2 (1x PCIe5), 4x SATA, WiFi6, BT5.2, 2.5Gb LAN, USB4, mil-grade TUF durability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
ASUS TUF GAMING B650-PLUS WIFI delivers rock-solid performance for AMD Ryzen 7000/8000 series processors on AM5 socket. Built with military-grade TUF components, 12+2 power stages rated 60A, ProCool connectors, and enlarged VRM/M.2 heatsinks for marathon gaming stability.
Comprehensive features include DDR5 dual-channel up to 128GB (OC 6400+MHz with EXPO), PCIe 5.0 M.2 slot, WiFi 6 (802.11ax), Bluetooth 5.2, 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, and Thunderbolt header. UEFI BIOS with EZ/Advanced modes, Armoury Crate for RGB/fan control, and Q-LED diagnostics simplify building.
Immersive gaming with Realtek 7.1 audio, DTS processing, AI Noise Cancelation, and Aura Sync RGB headers. TUF Protection (SafeSlot, LANGuard, stainless I/O) ensures longevity.
- ✅ PCIe 5.0 M.2 + 2x PCIe4 M.2 + 4x SATA III
- ✅ WiFi 6 + 2.5Gb LAN + BT 5.2
- ✅ 12+2 DrMOS power stages (60A)
- ✅ DDR5 128GB max, EXPO overclocking
- ✅ USB4/Thunderbolt header + multiple USB-C
- ✅ Comprehensive cooling + Fan Xpert 4
| Manufacturer Part Number | 90MB1BZ0-M0AAY0 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, Ryzen 8000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 4800-7600+ MHz (OC) |
| Number of M.2 (M) slots | 3 (1x PCIe 5.0, 2x PCIe 4.0) |
| Number of SATA III connectors | 4 |
| Power stages | 12+2 (60A DrMOS) |
| Wi-Fi | Yes (Wi-Fi 6 802.11ax) |
| Bluetooth | Yes (5.2) |
| Ethernet LAN | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt headers | 1 |
| Package width | 338 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.36 kg |
