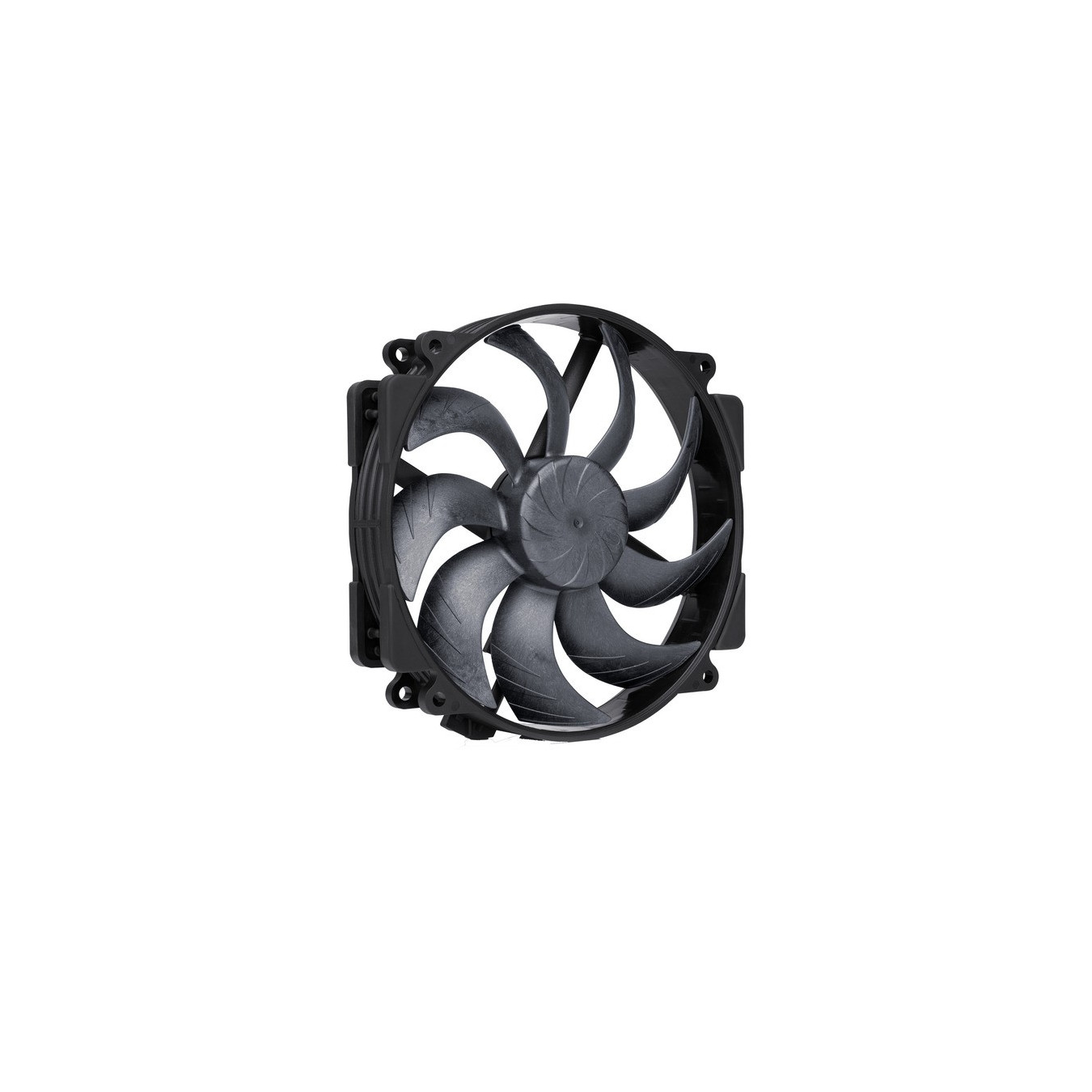

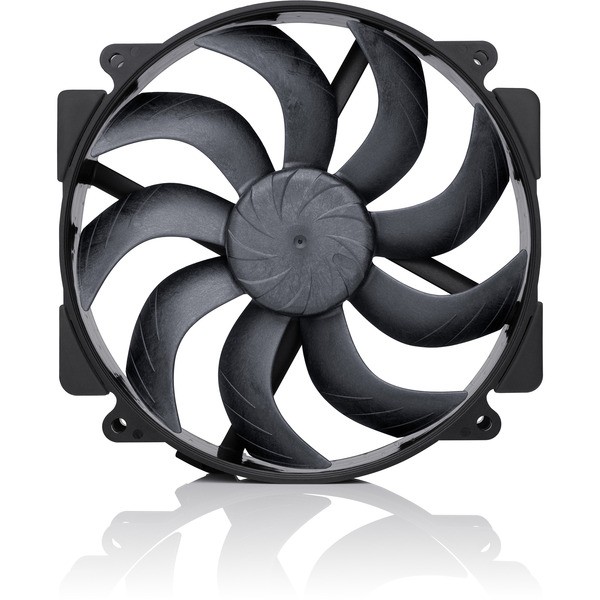

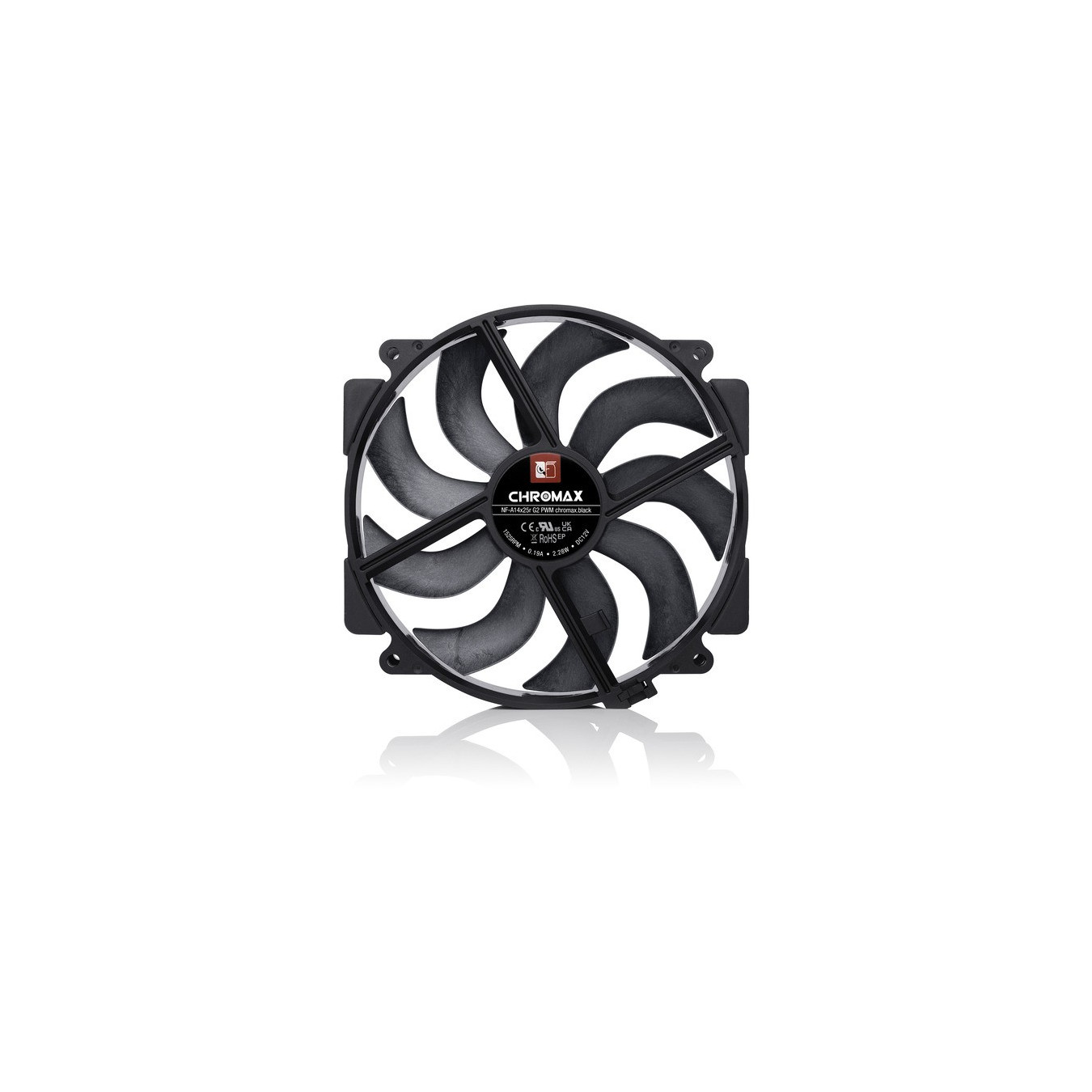

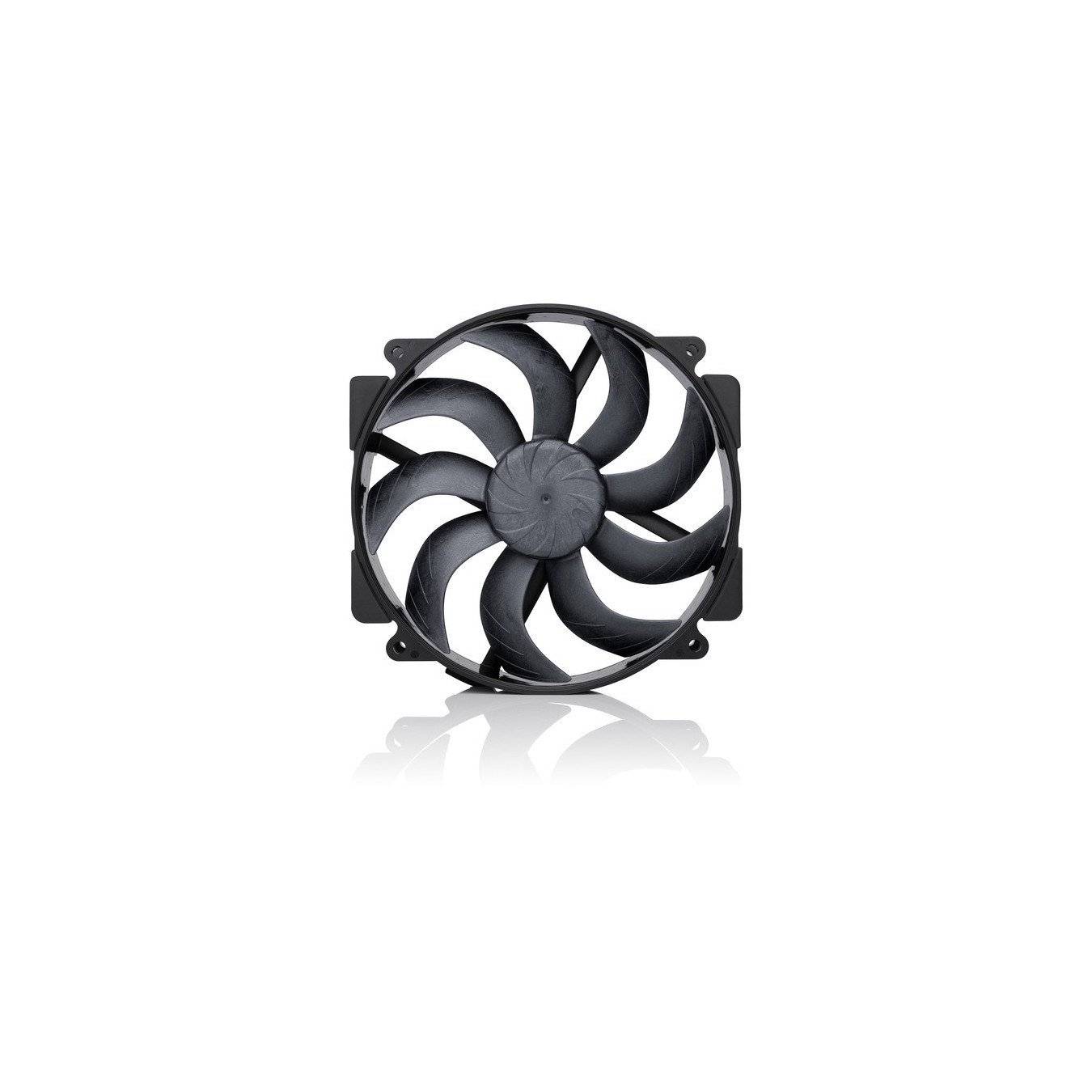

NF-A14x25r G2 PWM chromax.black, case fan
The NF-A14x25r G2 is a highly optimized next-generation 140mm fan that sets new records in silent cooling performance thanks to innovative aerodynamic design measures. This not onl...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

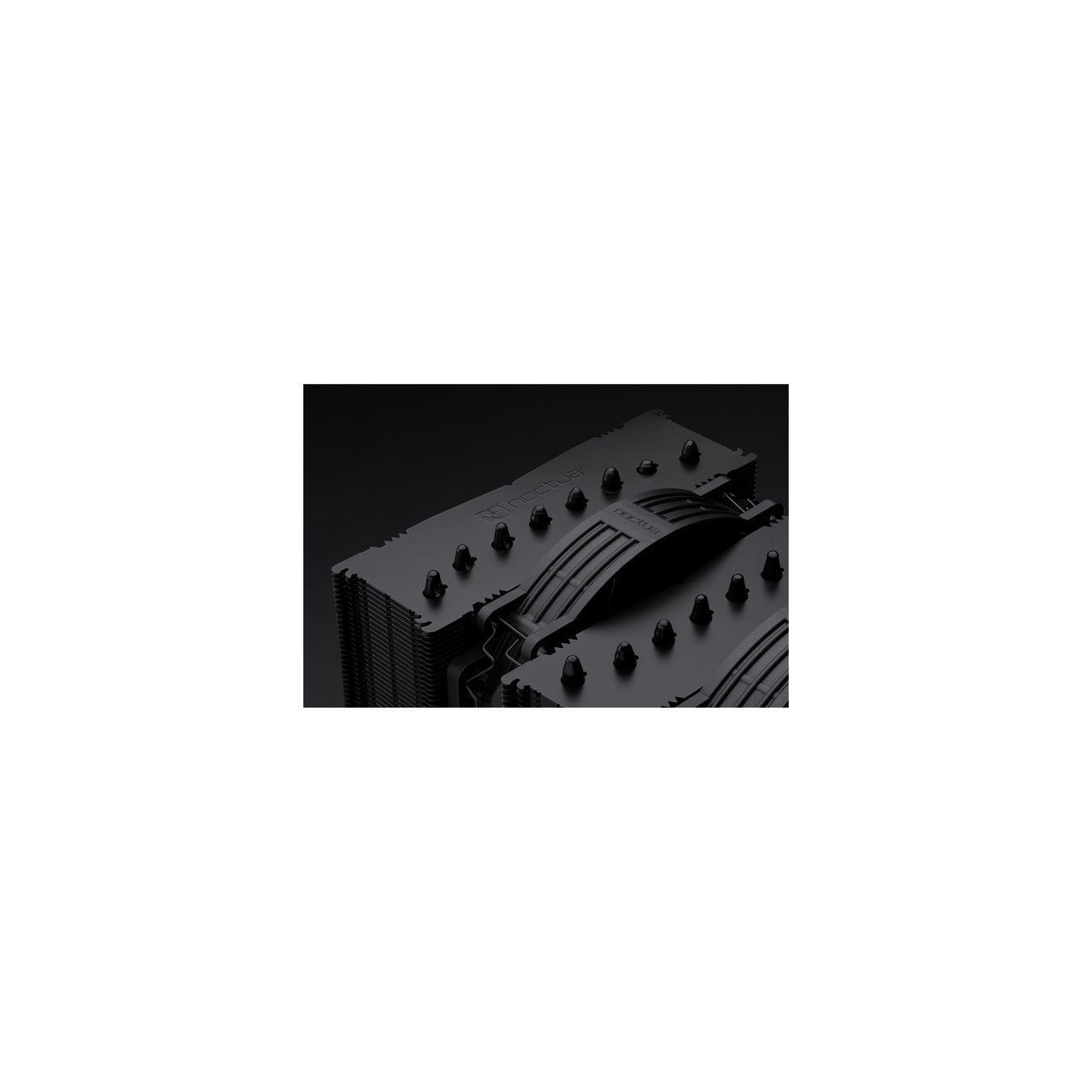

The NF-A14x25r G2 is a highly optimized next-generation 140mm fan that sets new records in silent cooling performance thanks to innovative aerodynamic design measures. This not only makes it the perfect choice for Noctua's next generation 140mm cooler, but also an excellent upgrade for existing models such as the NH-NH-D15(S) or NH-U14S (Sx2-PP set recommended for push/pull configurations). The 4-pin PWM version supports fully automatic speed control via PWM connections and is supplied with a low-noise adapter, which allows the maximum speed in PWM operation to be reduced from 1500 to 1250rpm. The overall package of the NF-A14x25r G2 PWM is rounded off by Noctua's reference class bearing SSO2 and a comprehensive accessory package.
| Typ | fan |
| Color | schwarz |
| EAN | 9010018100747 |
| Manufacturer no. | NF-A14x25r G2 PWM chromax.black |
| Art | Case fan |
| Crowd | 1 piece |
| Fastening | screwed |
| volume | 19.7dB to 24.8dB |
| speed | 1,250 bis 1,500 U/min |
| Fan storage | SSO 2 |
| Volume flow | 127,1 m³/h - 155,6 m³/h |
| Air pressure | From 1.3 mm/H2O to 2.56 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 2,28 Watt |
| Notice | A-Serie mit Flow Acceleration Channels |

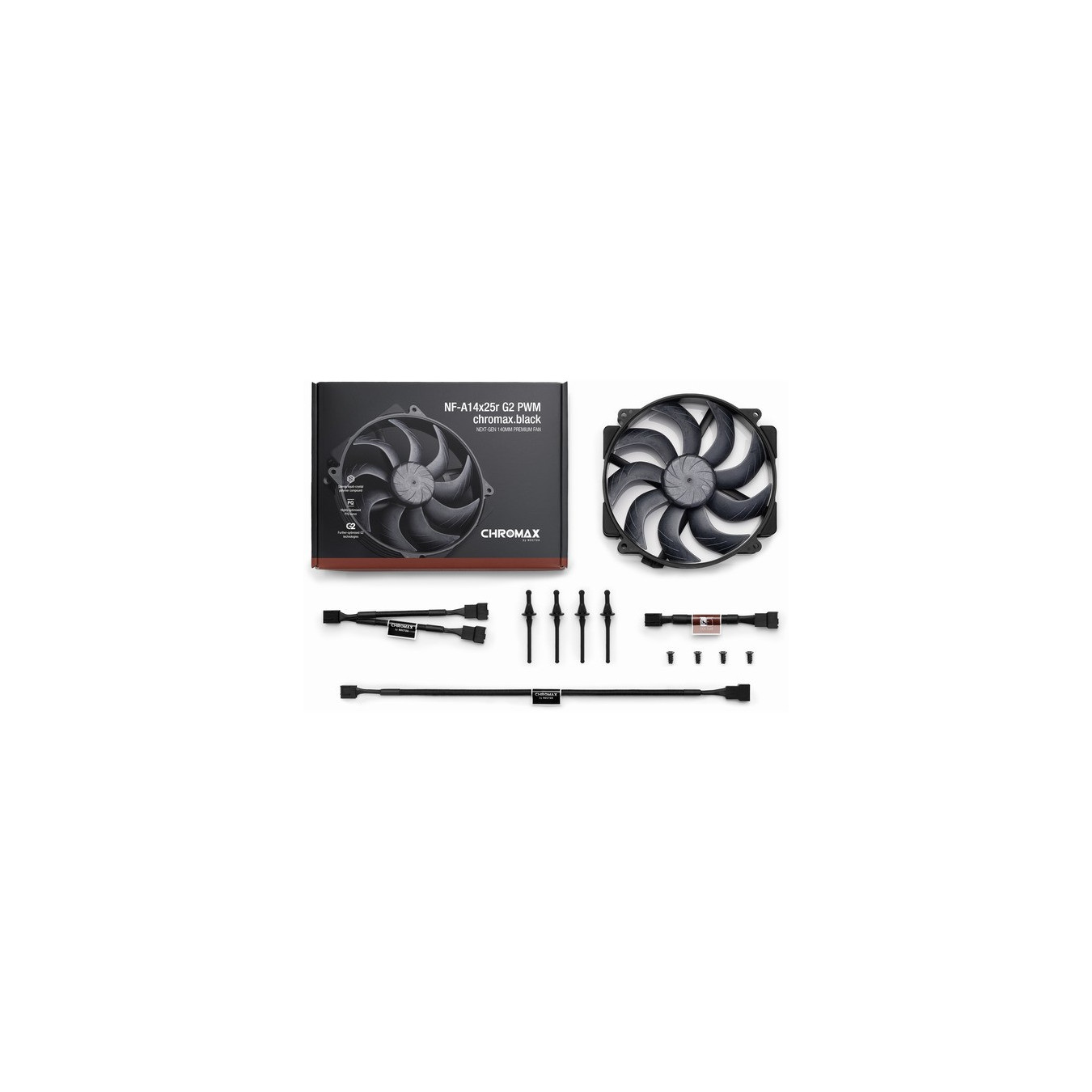

| Accessories - available | NA-RC16 low noise adapter (L.N.A.), NA-YC1 4-pin PWM Y-cable, NA-EC1 30cm extension cable, 4x NA-AV2 anti-vibration mounts, fan screws |
| Dimensions - Fan1 | Quantity: 1 piece, width: 140 mm, height: 140 mm, depth: 25 mm |
