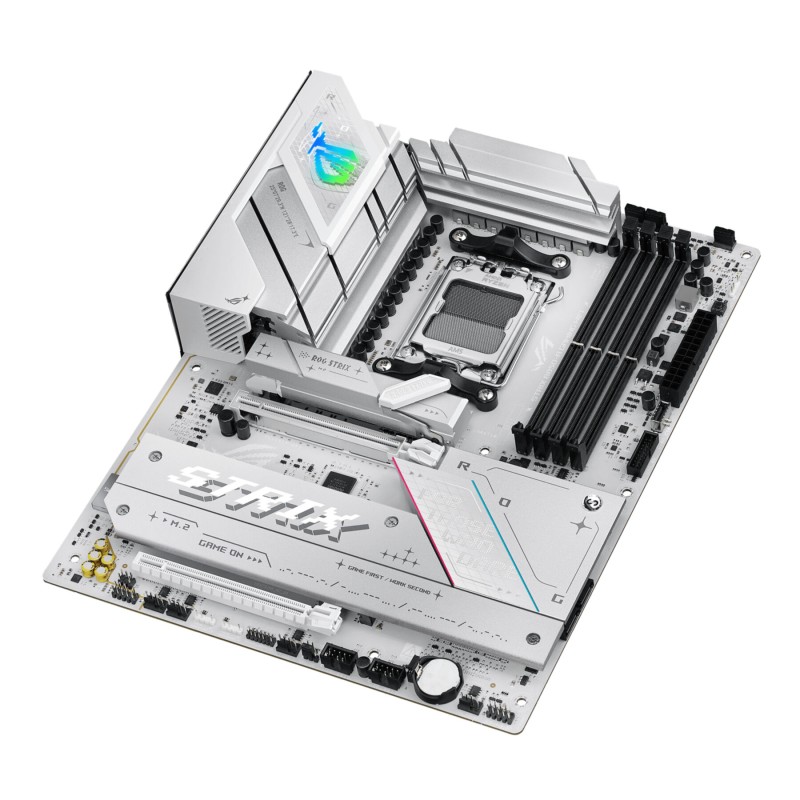

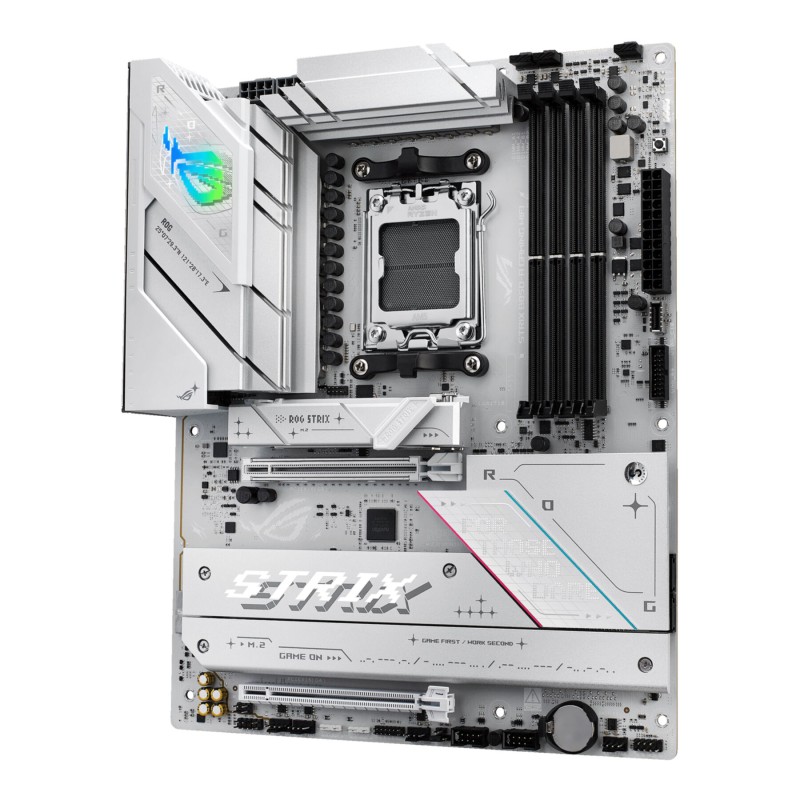

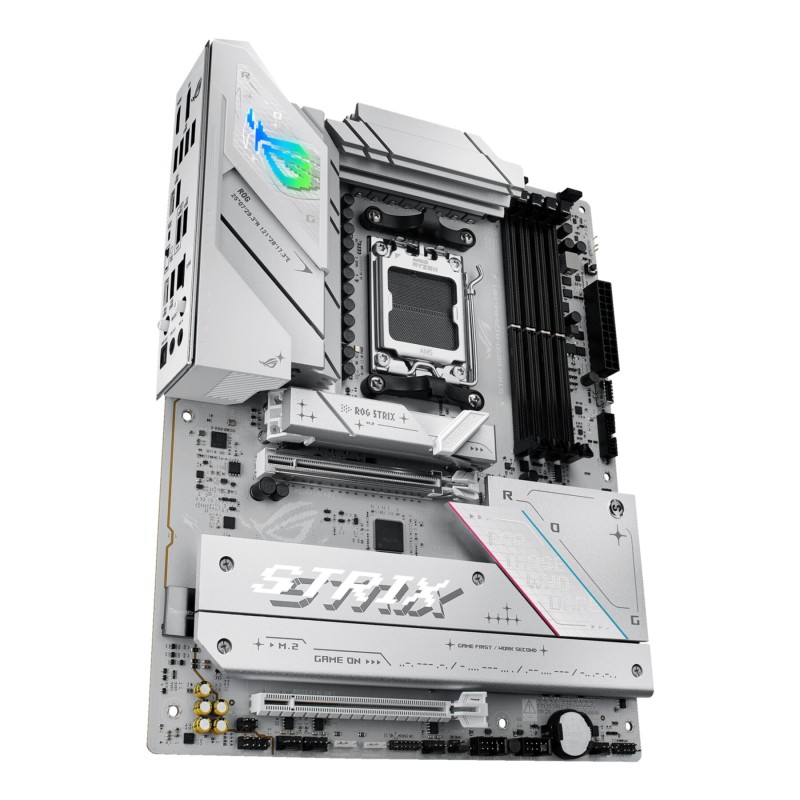

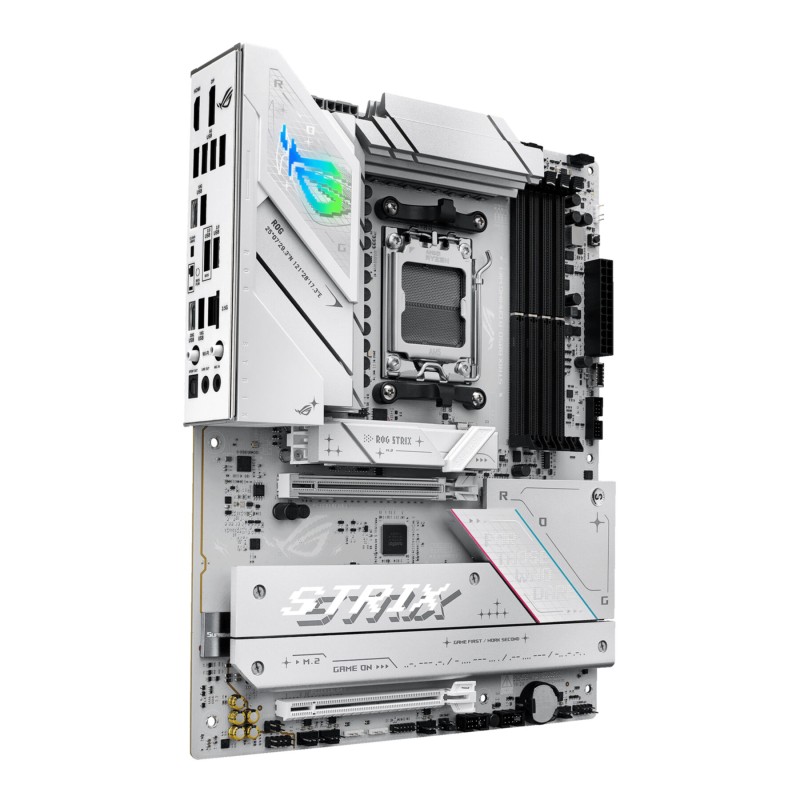

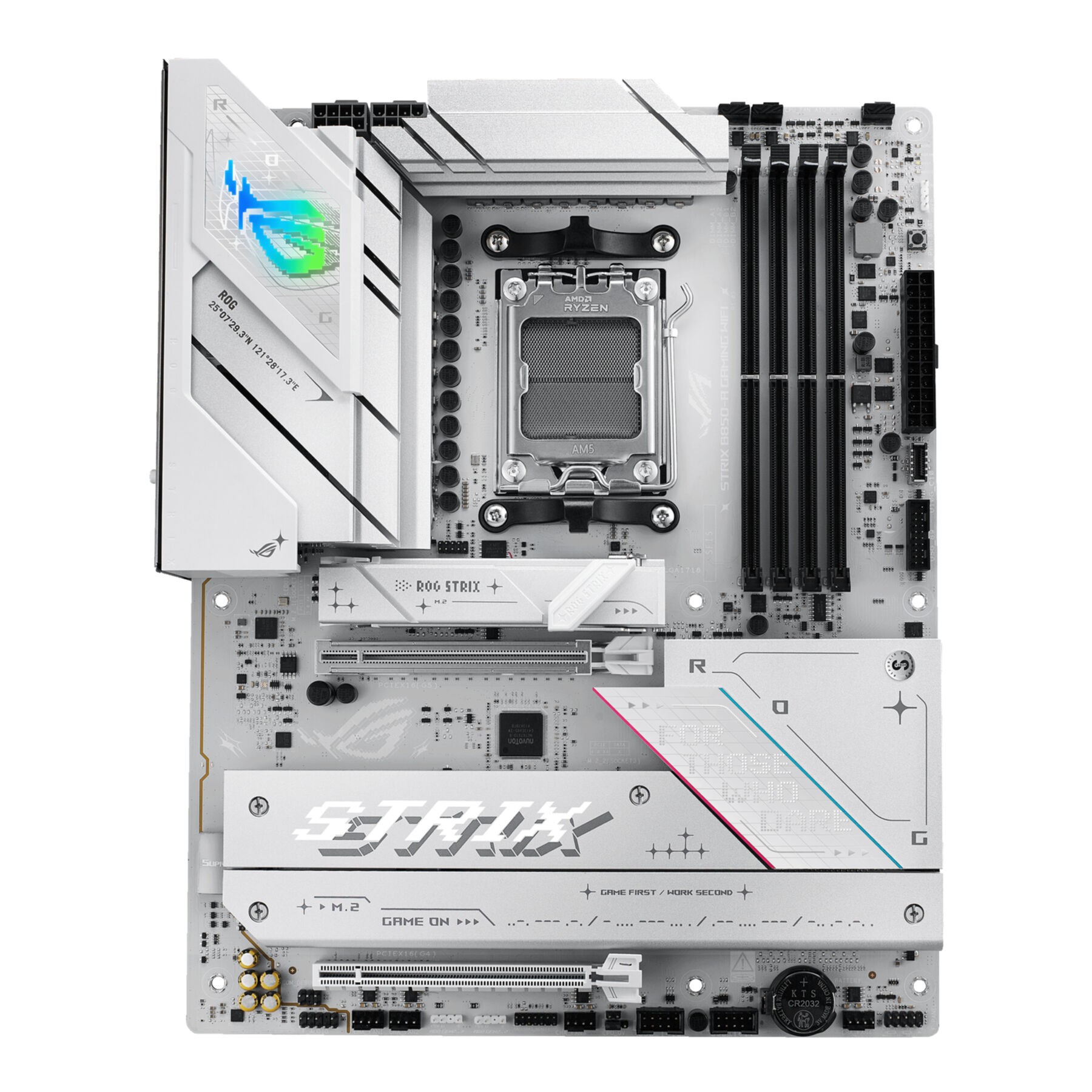

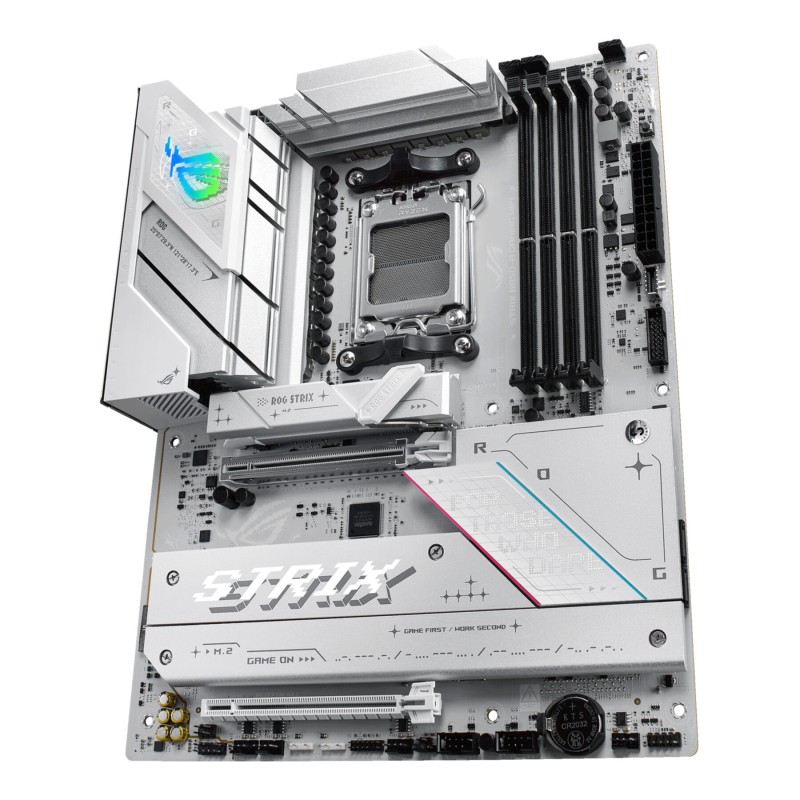

ASUS ROG Strix B850-A Gaming WiFi - AM5 ATX, DDR5 up to 192GB, PCIe 5.0, Wi‑Fi 7, Bluetooth 5.4, 2.5Gb LAN (White)

SKU 5180 Brand ASUS EAN13 4711387772676
AM5 ATX motherboard for Ryzen 7000/8000/9000. DDR5 up to 192GB (4 DIMMs), 4x M.2, PCIe 5.0, Wi‑Fi 7, Bluetooth 5.4, 2.5Gb Ethernet, 7.1 audio, white finish.
Motherboards - Socket AM5
Motherboards - Form Factor ATX
Motherboards - Memory Type DDR5
Motherboards - Memory Slots 4
Motherboards - Max Memory Capacity 192 GB
Motherboards - PCIe Version (primary GPU) PCIe 5.0
Motherboards - M.2 Slots 4
Motherboards - SATA Ports 2
Motherboards - USB-C Rear Type-C

Elevate your build with the ROG Strix B850-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and WiFi 7, it's the ultimate blend of style and performance.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
*Availability of ASUS AI Advisor may vary by region.
**AI Advisor functions may vary by platform.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.

OVERCLOCKING

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

MEMORY

DDR5 DOMINATION
The Strix B850-A is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG STRIX ULTIMATE POWER DESIGN
14(80A)+2(80A)+2(80A) Power Stages

PLAY IN STYLE

UNDENIABLY ROG STRIX
The ROG Strix B850-A stands out with its striking white PCB, offering a fresh and modern aesthetic that seamlessly complements almost any system build. The matching metallic heatsinks enhance its clean, crisp look, while subtle RGB lighting on the I/O shroud allows you to either maintain a sleek, understated appearance or showcase a bold, luminous design.

OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix B850 motherboard delivers. With USB 20Gbps onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD 800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.

Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.


Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)8000 MHz
Maximum internal memory192 GB
Unbuffered memoryYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported2
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution7680 x 4320 pixels
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors2
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
Thunderbolt headers1
Number of water pump connectors1
Number of temperature sensor headers1
RGB LED pin headerYes
Number of RGB LED pin headers3
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
S/PDIF out portYes
Digital audio optical out1
WiFi-AP antenna jack2
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4
Motherboard chipsetAMD B850
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Product colourWhite
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Power source typeATX
Windows operating systems supportedWindows 11
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS buttonYes
Package width353 mm
Package depth273 mm
Package height68 mm
Package weight2.04 kg
Width305 mm
Depth244 mm
Cables includedSATA
Antenna includedYes
Weight2.04 kg
Quick installation guideYes
