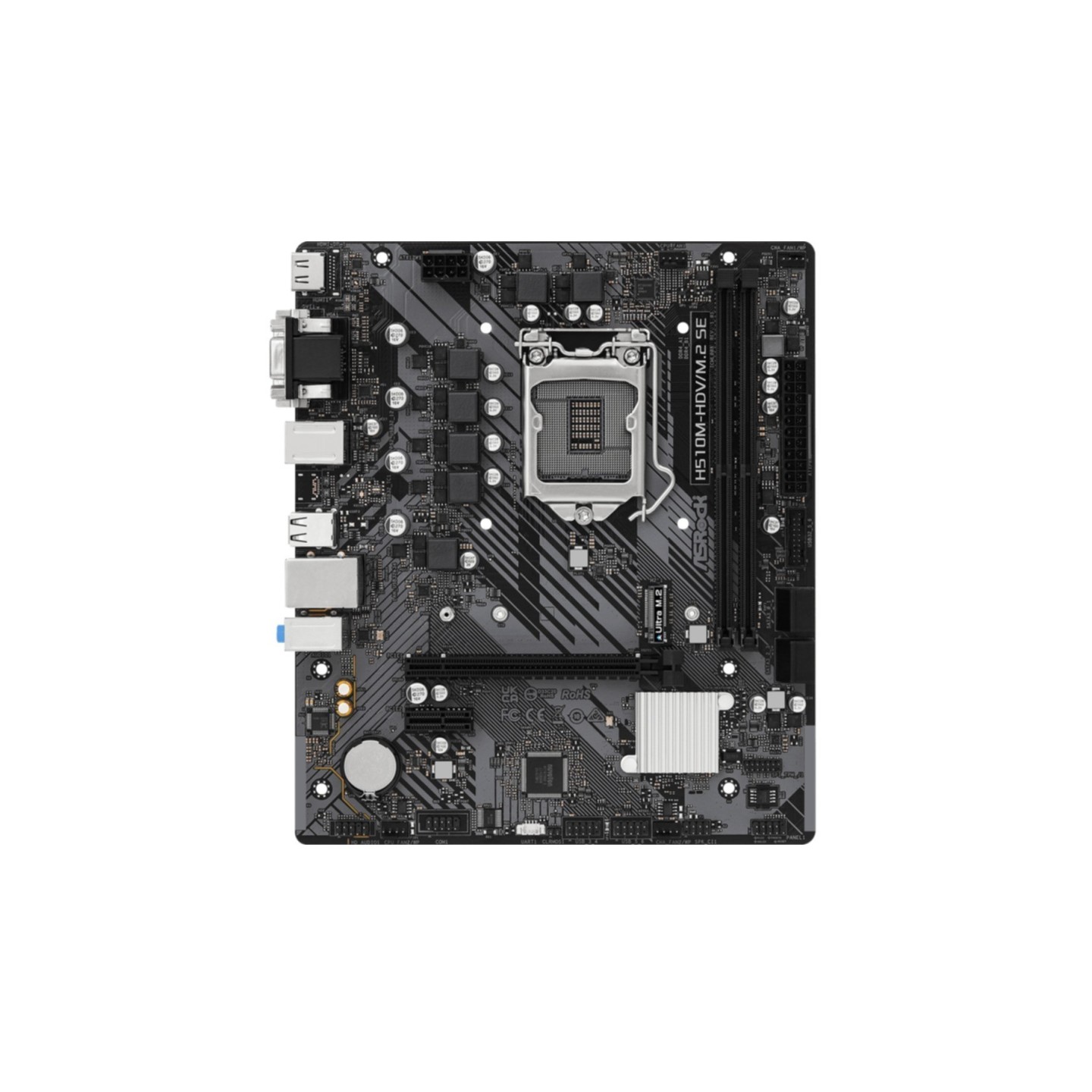

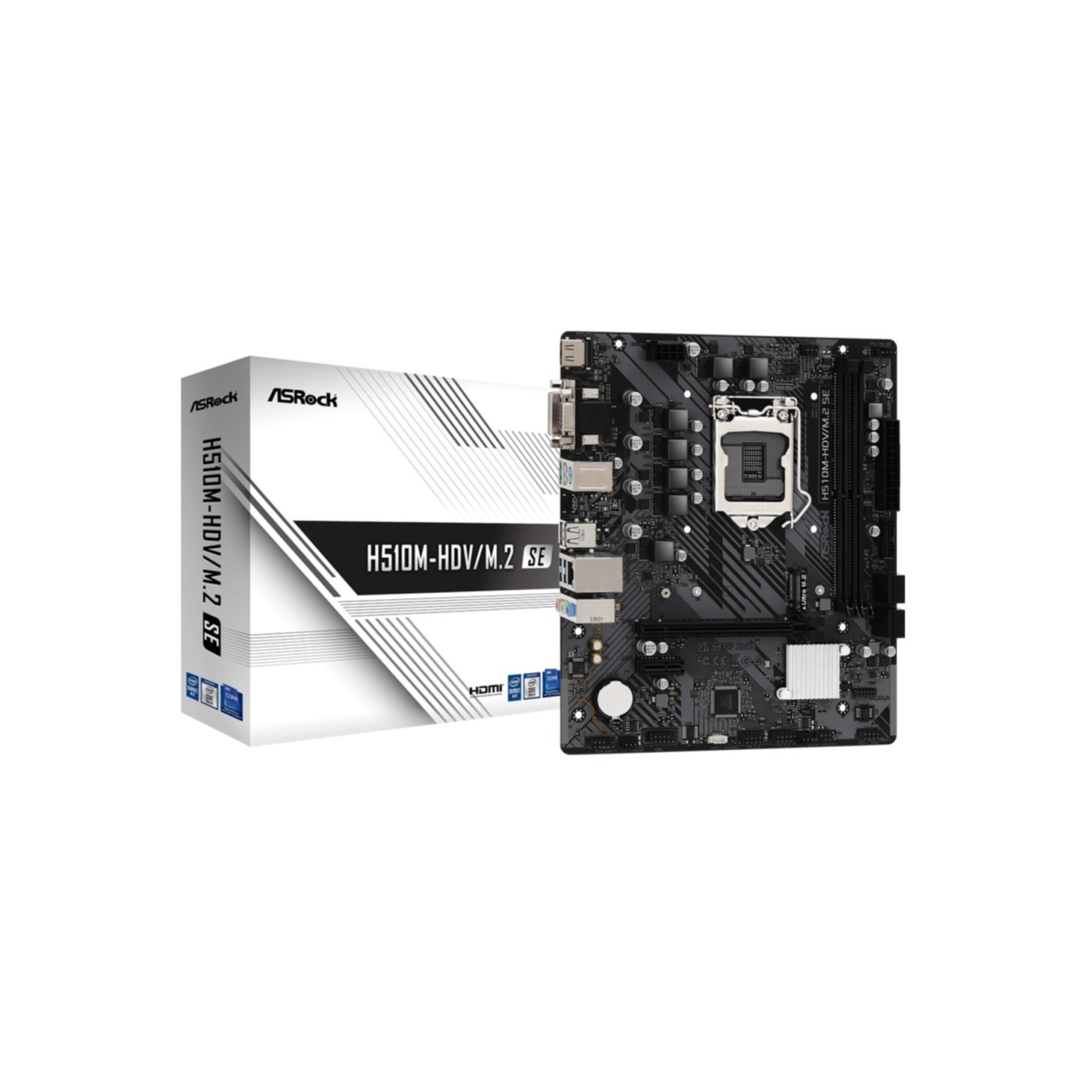

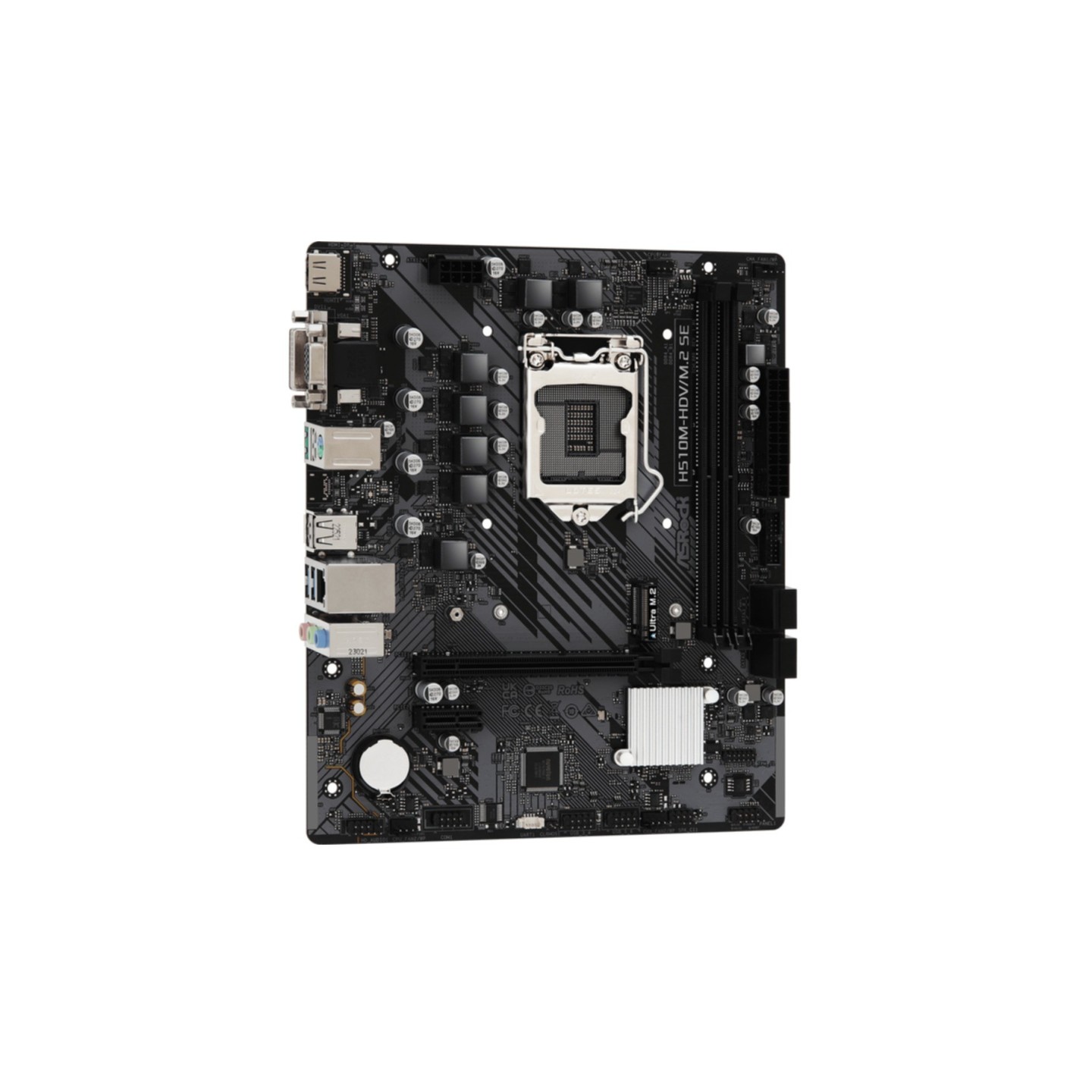

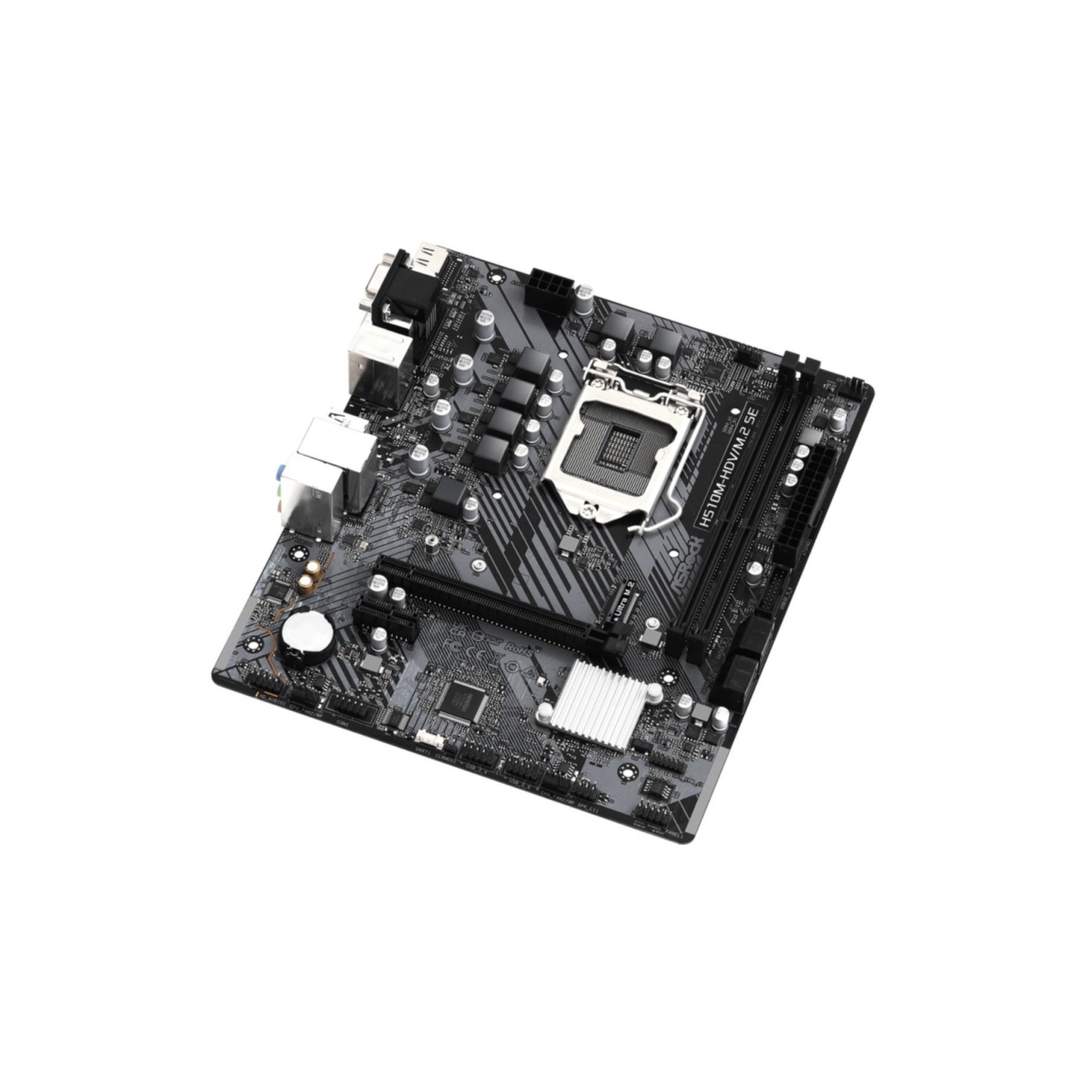

ASRock H510M-HDV/M.2 SE LGA1200 Micro-ATX Motherboard DDR4 (Boxed)
LGA1200 micro-ATX motherboard supporting 10th/11th Gen Intel Core processors. Features DDR4 up to 3200MHz (64GB max), PCIe 4.0 x16, 1x M.2 NVMe, 4x SATA III, Realtek Gigabit LAN, 7.1 audio, and triple video outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1200 |
|---|---|
| Motherboards - Chipset | Intel H510 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
ASRock H510M-HDV/M.2 SE is a compact micro-ATX motherboard designed for budget-conscious builders seeking reliable performance with 10th and 11th generation Intel Core processors. This board combines essential features with quality construction, including a Sapphire Black PCB with high-density glass fabric design for enhanced durability and protection against humidity-related electrical shorts.
The motherboard delivers solid connectivity and storage options with 1x PCIe 4.0 x16 slot for graphics cards, 1x PCIe 3.0 x1 expansion slot, 1x Ultra M.2 slot supporting PCIe Gen3 x4 (up to 32Gb/s) and SATA3 M.2 modules, and 4x SATA III ports for traditional drives. Memory support includes dual DDR4 DIMM slots with speeds up to 3200MHz, accommodating up to 64GB total capacity. The integrated Realtek ALC897 audio codec provides 7.1-channel HD audio, while Realtek Gigabit LAN ensures reliable network connectivity.
Additional features include premium 50A power chokes for improved voltage stability, full spike protection against power surges, a water pump header supporting up to 2A for liquid cooling systems, and an auto driver installer for convenient software setup. The board offers three graphics output options—HDMI (4K @60Hz), DVI-D, and D-Sub—providing flexibility for various display configurations.
- Supports 10th and 11th Gen Intel Core processors (LGA1200)
- DDR4 memory up to 3200MHz, maximum 64GB capacity
- 1x PCIe 4.0 x16 and 1x PCIe 3.0 x1 expansion slots
- 1x M.2 NVMe slot (PCIe Gen3 x4) and 4x SATA III ports
- Triple video outputs: HDMI, DVI-D, D-Sub with 4K support
- Realtek ALC897 7.1-channel HD audio codec
- Realtek Gigabit Ethernet LAN
- Water pump header with adjustable voltage control
- Full spike protection and premium power chokes
- Compact micro-ATX form factor ideal for smaller cases
| Processor Socket | LGA 1200 (Socket H5) |
| Chipset | Intel H510 |
| Form Factor | Micro-ATX |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 2 DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 64 GB |
| Supported Memory Speeds | 2133, 2400, 2666, 2800, 2933, 3200 MHz |
| Maximum Memory Speed | 3200 MHz |
| ECC Support | No (Non-ECC) |
| PCIe x16 Slots | 1x PCIe 4.0 x16 |
| PCIe x1 Slots | 1x PCIe 3.0 x1 |
| M.2 Slots | 1x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| M.2 Speed | 32 Gb/s (PCIe Gen3 x4) |
| SATA III Ports | 4 |
| USB 3.2 Gen1 Ports | 6 (2 Front, 4 Rear) |
| USB 2.0 Headers | 2 |
| USB 3.2 Gen1 Headers | 1 |

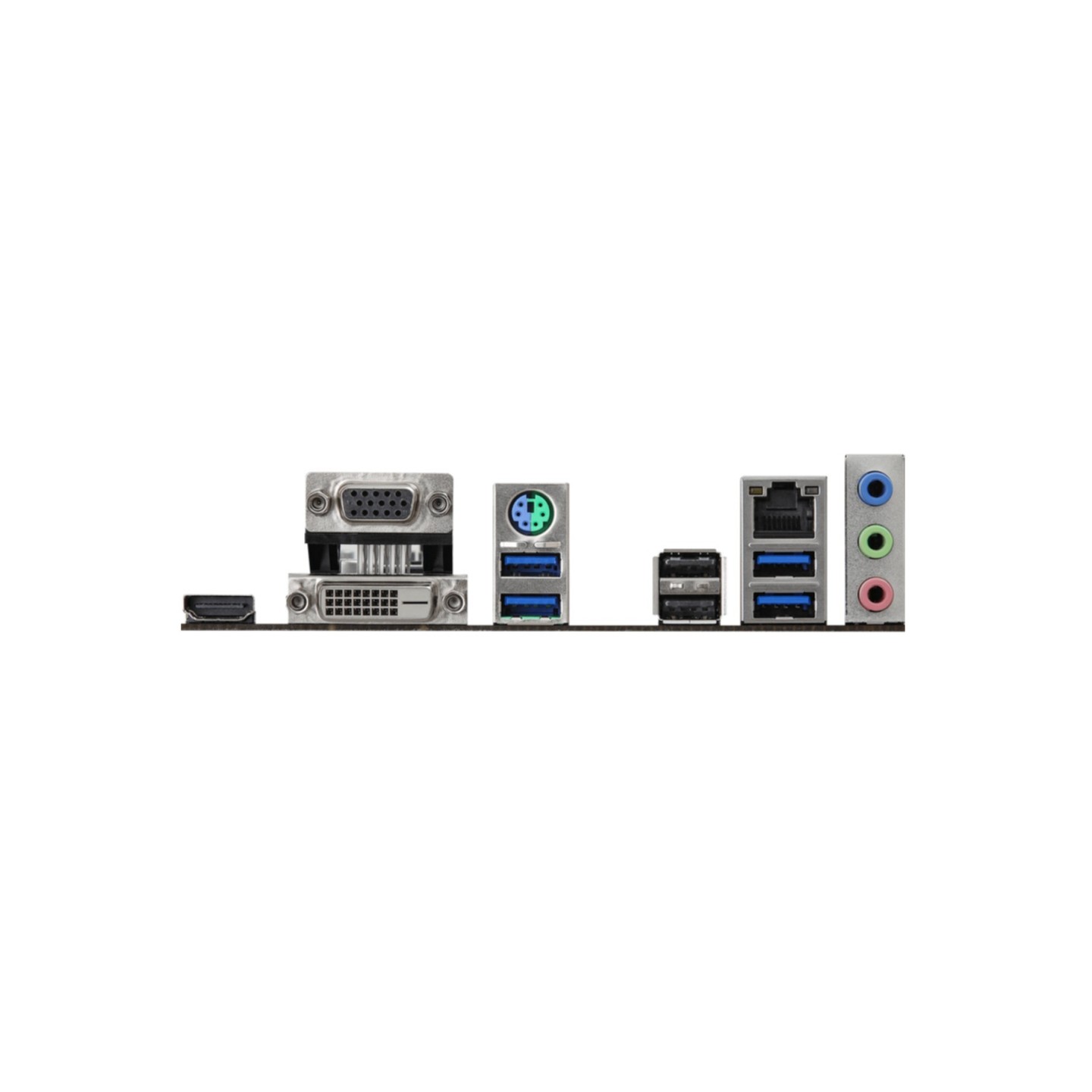

| Graphics Outputs | HDMI (4K @60Hz), DVI-D, D-Sub |
| HDMI Version | 1.4/2.0 |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1 CH HD |
| Network | Realtek 8111H Gigabit Ethernet |
| Wireless | None |
| Power Phases | 5 Power Phase Design |
| Power Chokes | Premium 50A Power Chokes |
| CPU Fan Header | Yes (supports water pumps up to 2A) |
| Chassis Fan Headers | 2 |
| BIOS Type | UEFI AMI |
| BIOS Memory | 128 Mbit |
| PCB Design | Sapphire Black PCB with High Density Glass Fabric |
| Protection Features | Full Spike Protection, Auto Driver Installer |
| Motherboard Dimensions | 231 mm (W) x 198 mm (D) |
| Supported OS | Windows 10 x64, Windows 11 x64 |
| Compliance | CE, EuP, FCC, ErP |
| Included Accessories | SATA cables |
