MSI PRO H610M-G LGA1700 Micro-ATX Intel H610 DDR5 96GB HDMI2.1 (Boxed)
LGA1700 mATX motherboard with Intel H610, 2x DDR5 up to 96GB/5600MHz, PCIe4 x16, 1x M.2 PCIe3x4, 4x SATA6Gb/s, HDMI2.1+DP1.4+VGA, Realtek 1GbE+ALC897 7.1 audio. Pro series for stable productivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |

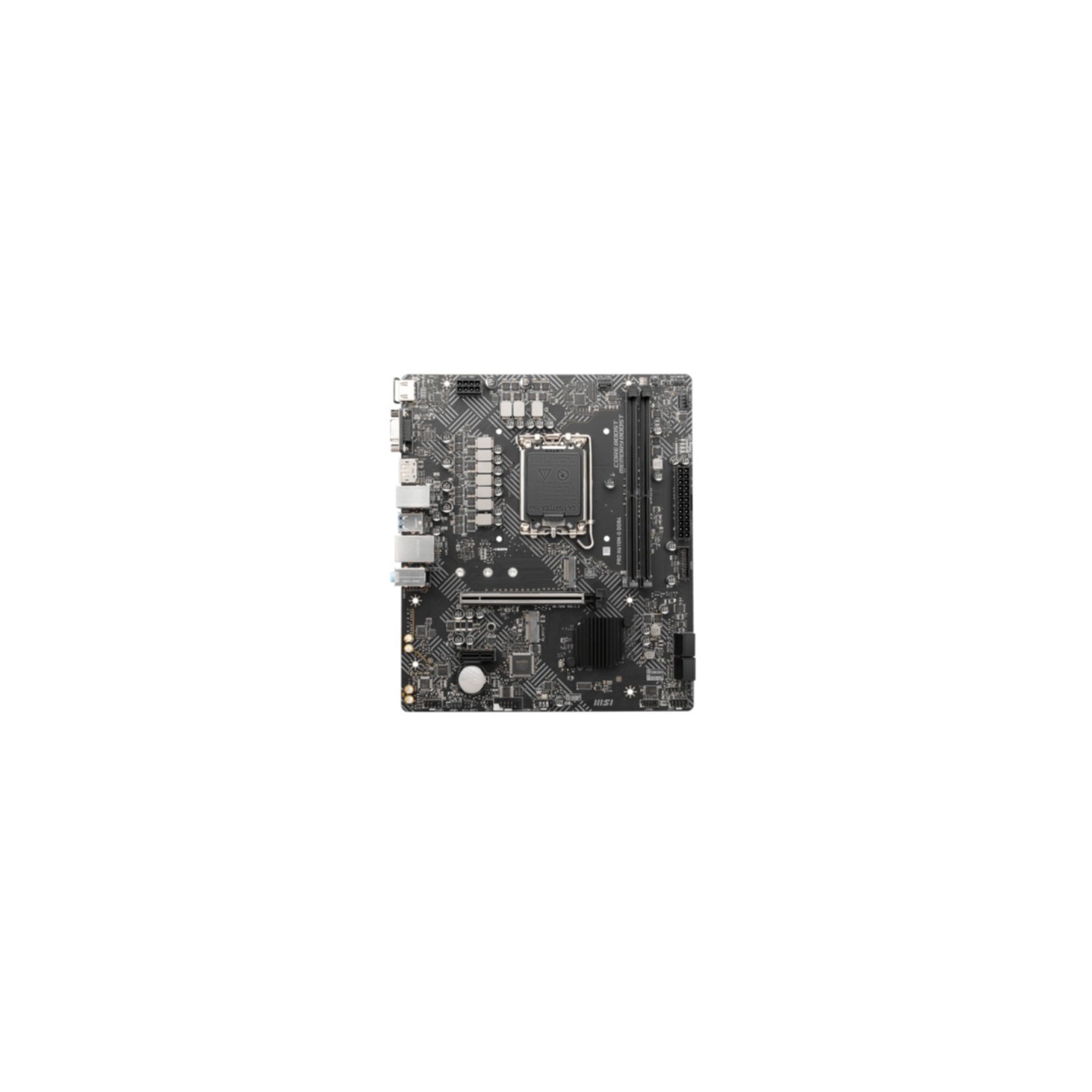

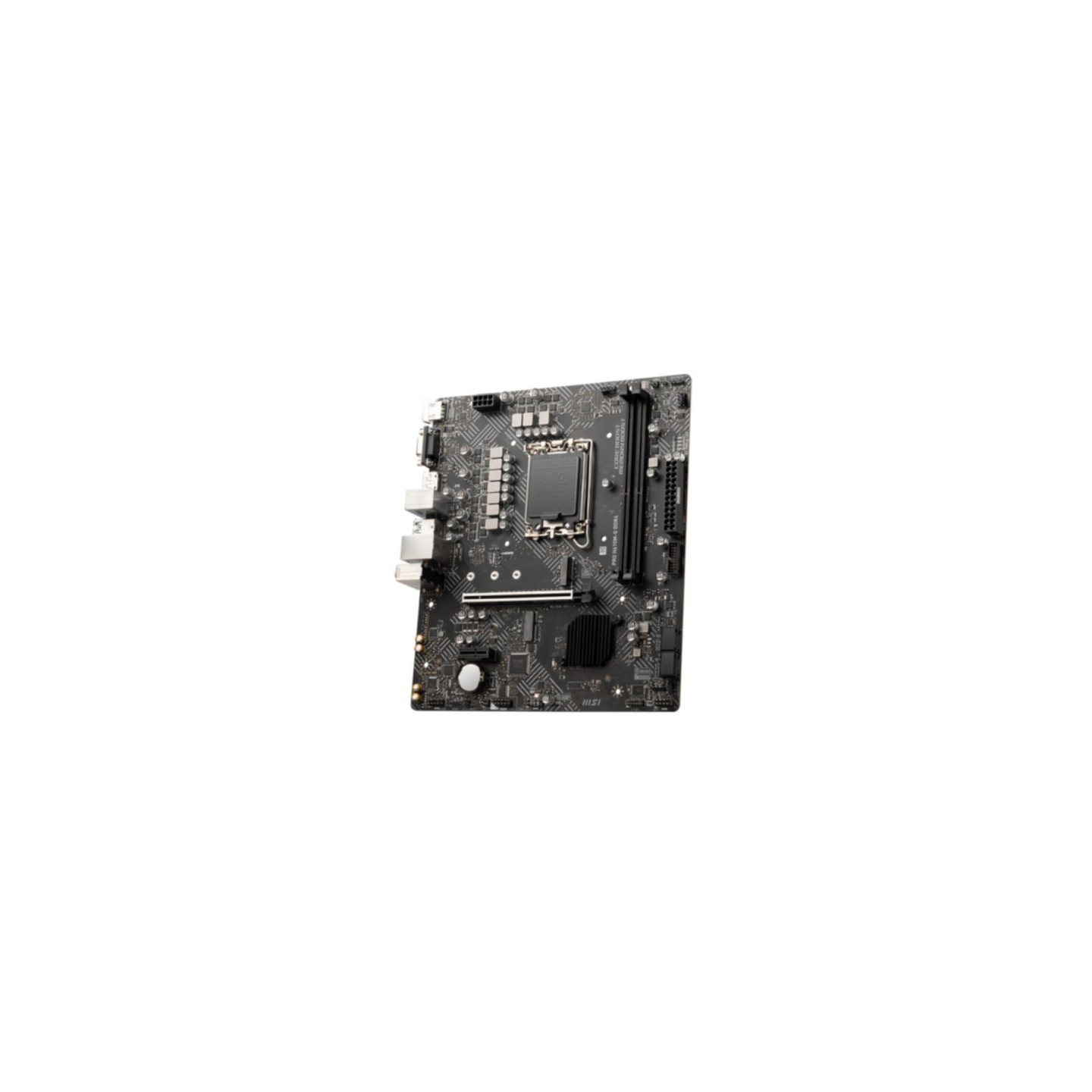

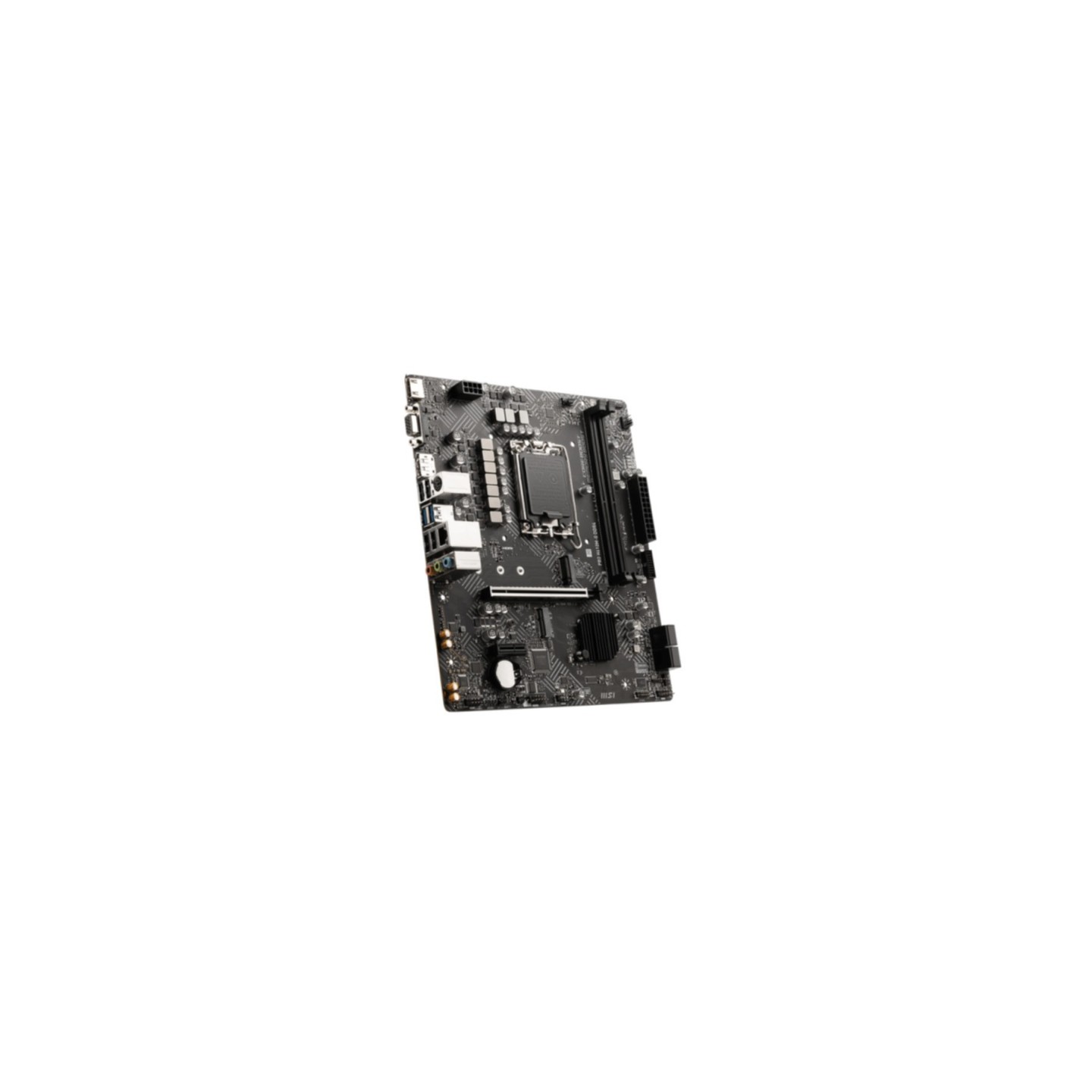

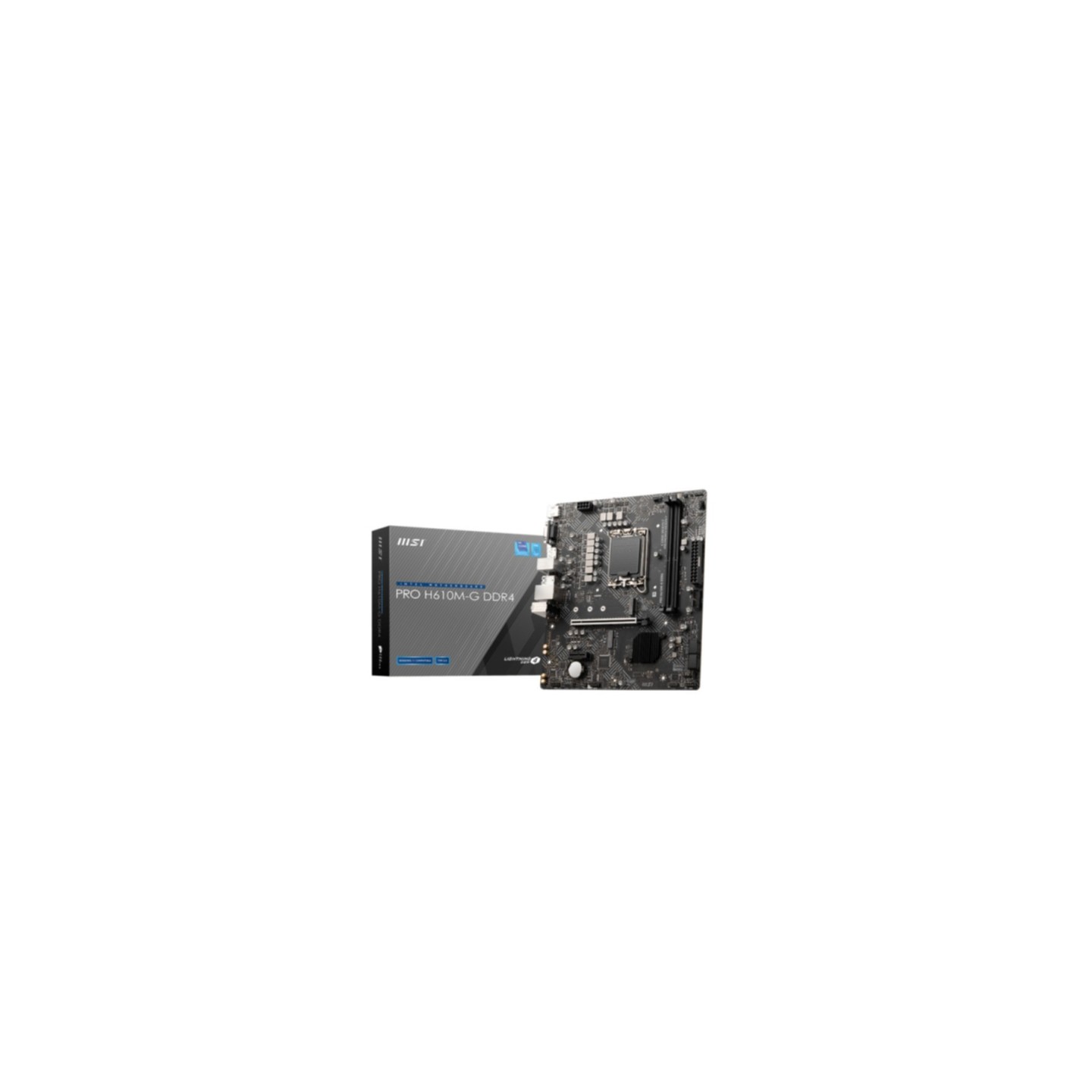

The MSI PRO H610M-G is a compact micro-ATX motherboard designed for professional workflows, featuring the Intel H610 chipset and LGA1700 socket for 12th/13th/14th Gen Intel Core, Pentium Gold, and Celeron processors. It supports dual-channel DDR5 memory up to 96GB at 5600MHz with XMP 3.0, ideal for efficient multitasking and longevity with minimal troubleshooting[1].

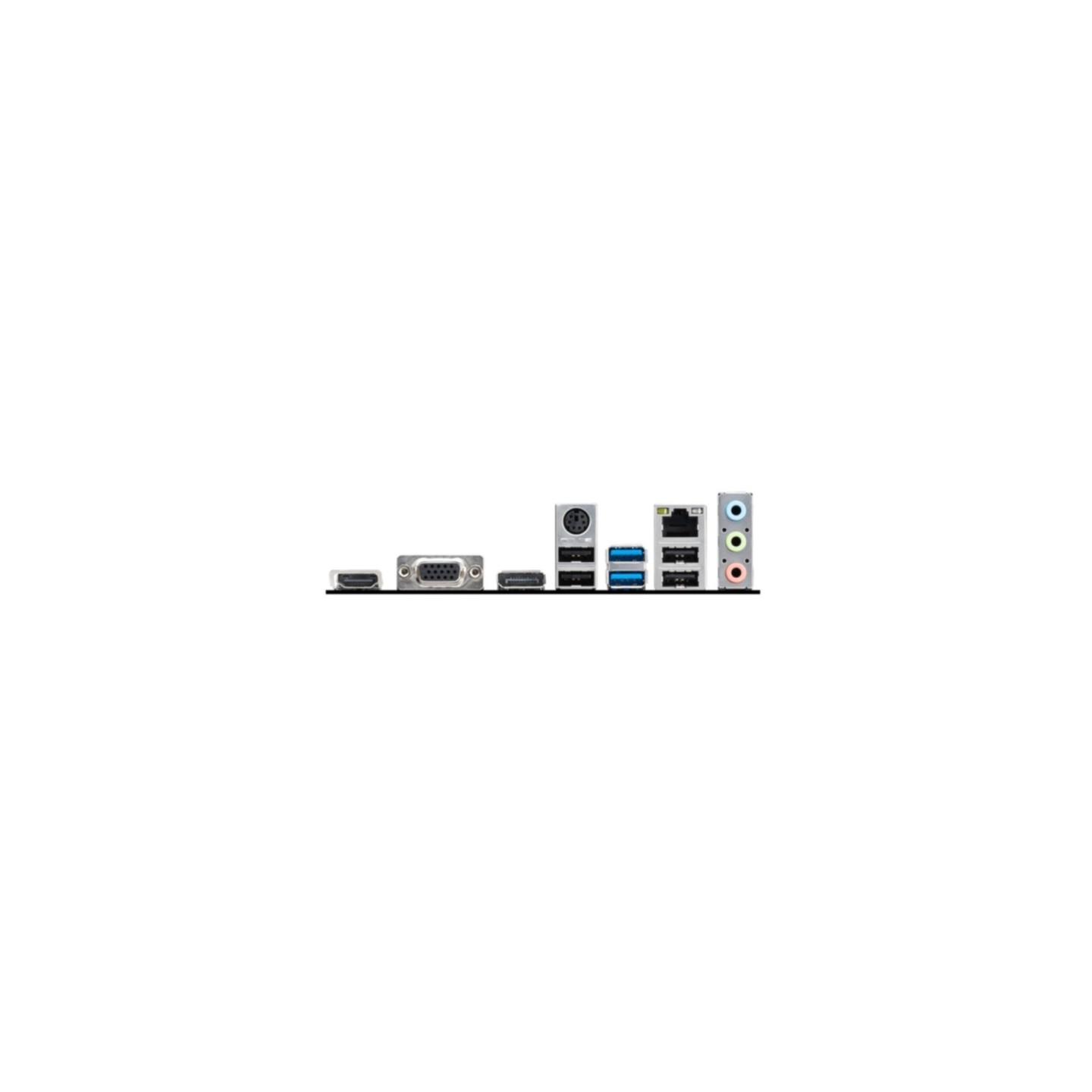

Key connectivity includes PCIe 4.0 x16 (CPU) and PCIe 3.0 x1 slots, Lightning Gen4 with steel armor for heavy GPUs, 1x M.2 (PCIe3 x4/SATA 2280/2260/2242), 4x SATA 6Gb/s, Realtek ALC897 7.1-channel HD audio, Gigabit Ethernet, and rear I/O with 4x USB2.0, 2x USB 5Gbps Type-A, HDMI 2.1, DisplayPort 1.4, VGA. FROZR AI Cooling auto-adjusts fans based on CPU/GPU temps[1][2].
- CPU: Intel 12th-14th Gen LGA1700
- Memory: 2x DDR5-5600, 96GB max, XMP 3.0
- Storage: 1x M.2 PCIe3x4/SATA, 4x SATA6
- Expansion: PCIe4 x16, PCIe3 x1
- Video: HDMI2.1, DP1.4, VGA
- LAN: Realtek 1GbE
- Audio: ALC897 7.1ch
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 12th/13th/14th Gen, Pentium Gold, Celeron |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Memory channels | Dual-channel |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 slots | 1 (PCIe 4.0 from CPU) |
| PCI Express x1 slots | 1 (PCIe 3.0 from chipset) |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 (rear) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 (rear) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Width | 211 mm |
| Depth | 243.8 mm |
| BIOS type | UEFI AMI |
| RGB Headers | 2x 3-pin ARGB, 1x 4-pin RGB |
