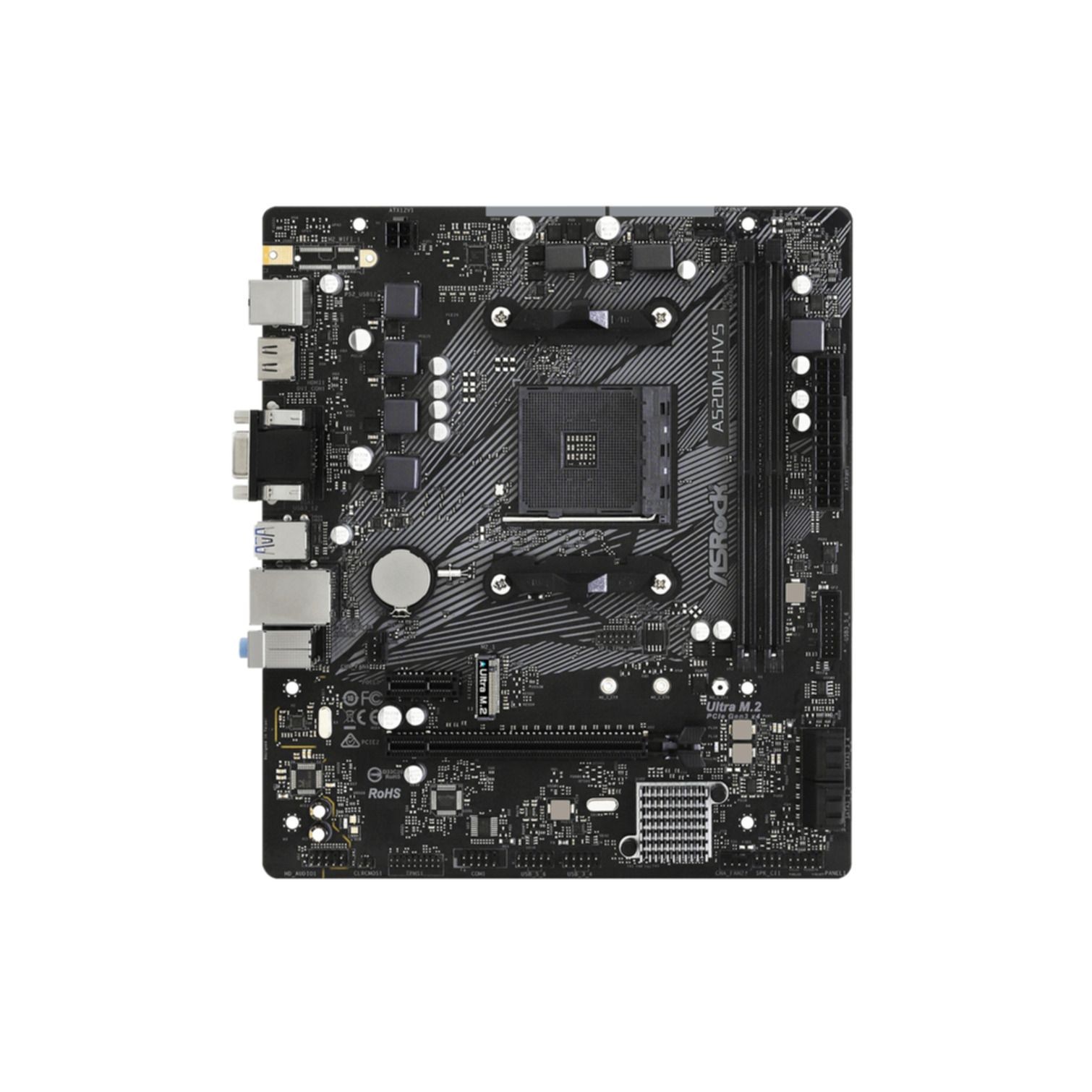

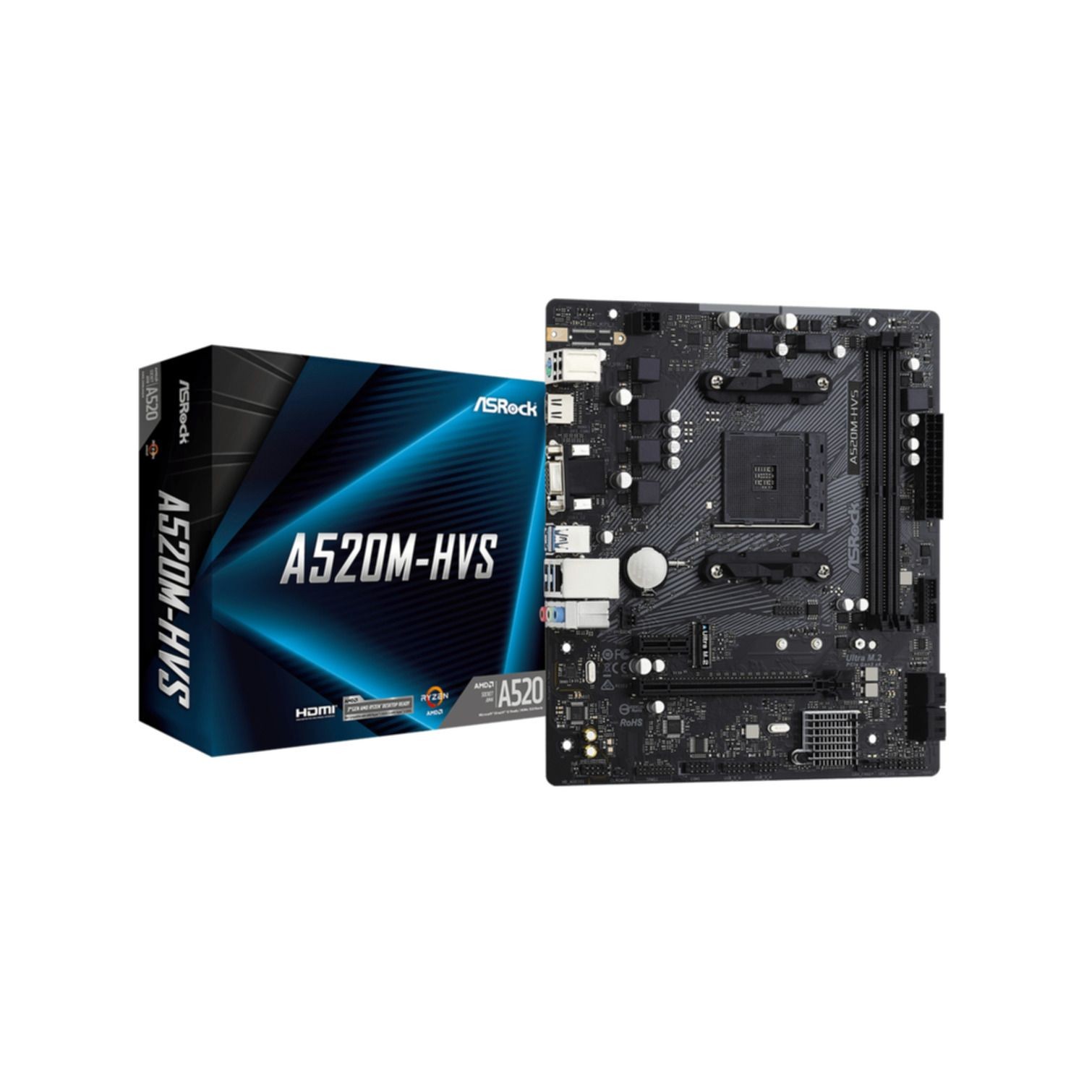

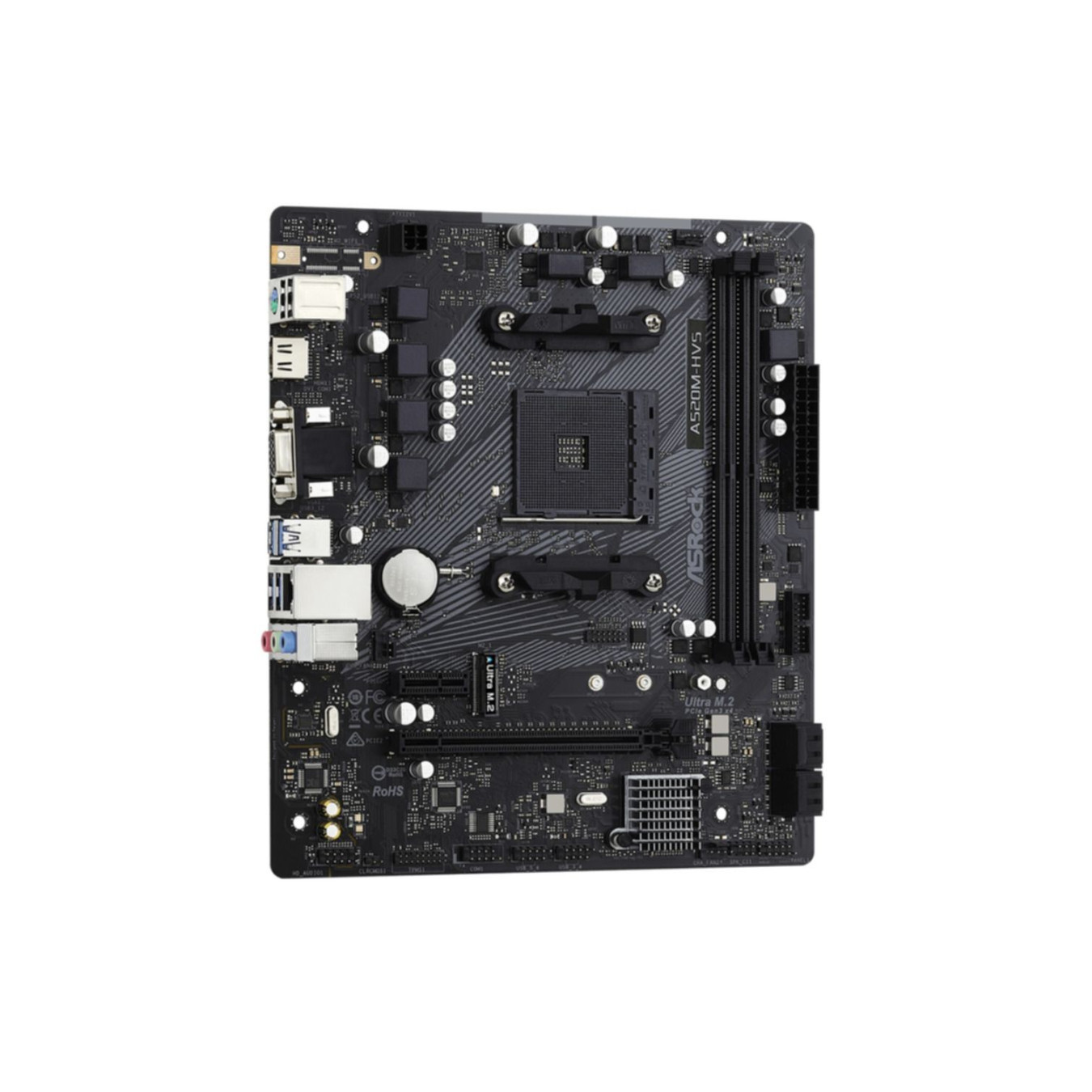

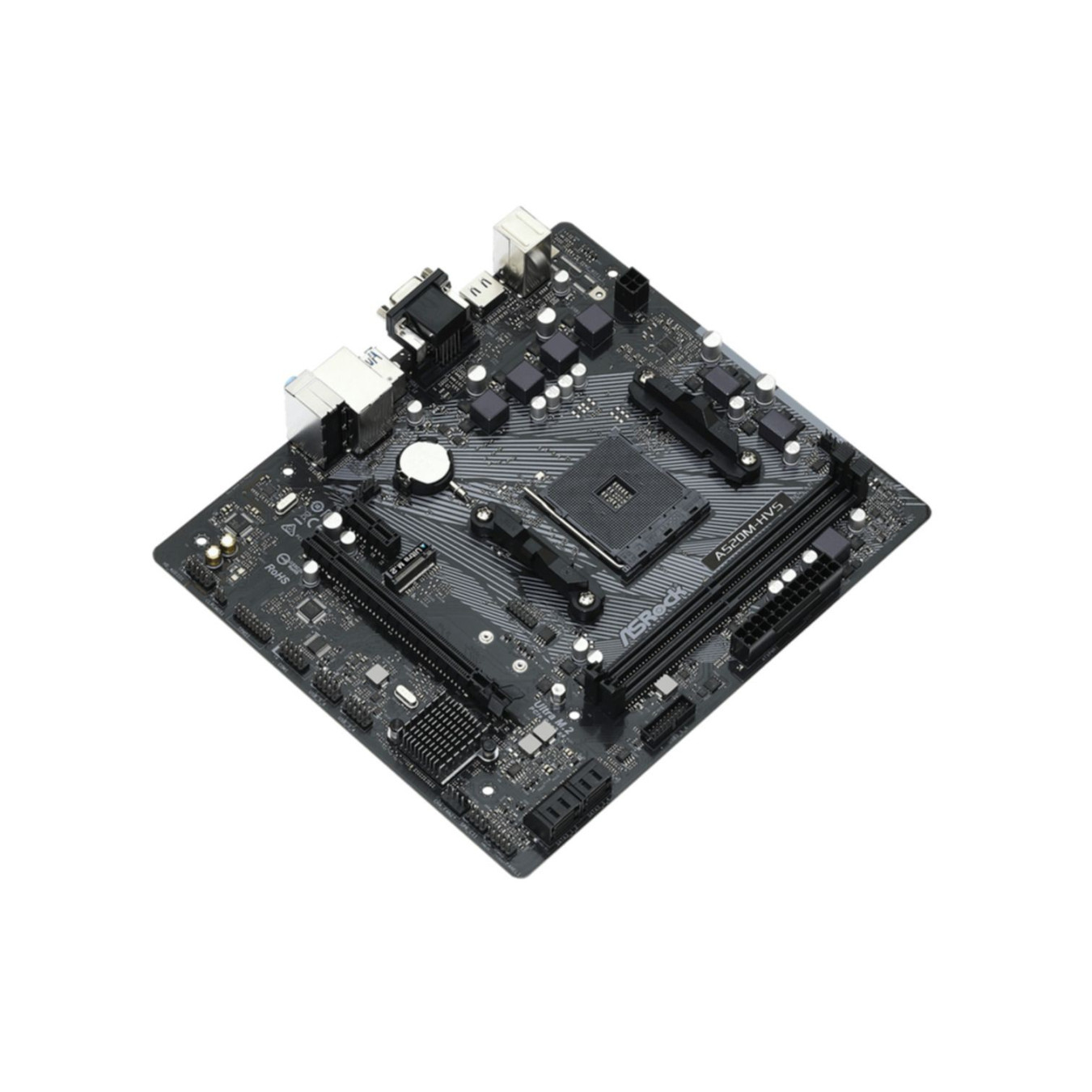

ASRock A520M-HVS - AM4 Micro-ATX Motherboard - AMD A520, DDR4, 64GB Max, M.2 & SATA, HDMI/VGA
ASRock A520M-HVS micro-ATX AM4 motherboard with AMD A520 chipset. Supports Ryzen 3000, DDR4 up to 64GB (2x DIMM), M.2 + SATA III, Gigabit LAN, HDMI and VGA outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 5 |
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |

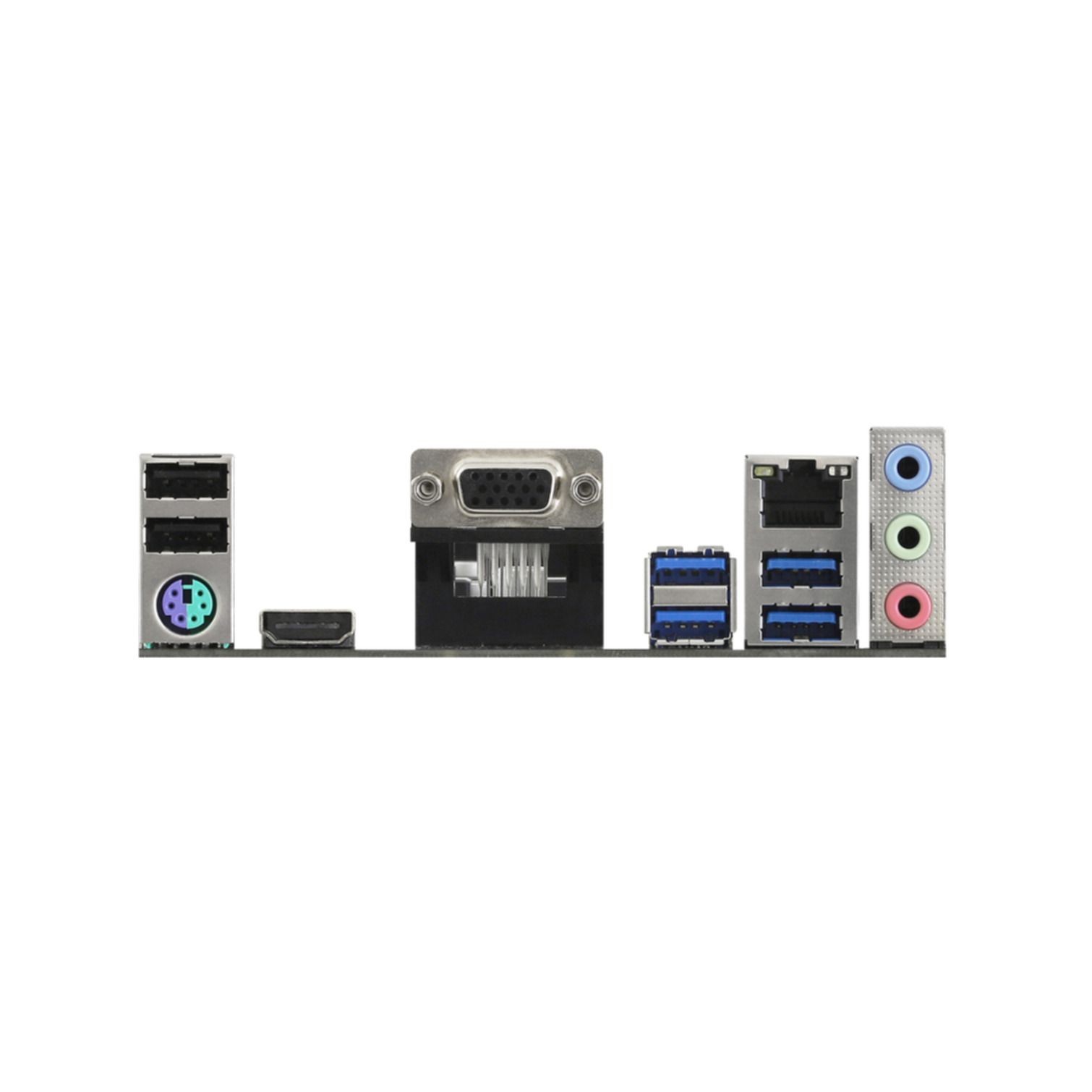

| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS type | UEFI AMI |
| Harmonized System (HS) code | 84733020 |
| Width | 230 mm |
| Depth | 201 mm |
| Cables included | SATA |
| Drivers included | Yes |
