PCIe x4 to 2x USB 3.2 Gen 2 Typ-A + 2x USB-C, USB-Controller
The PCI Express card from Delock expands the PC with four external USB 3.2 Gen 2 ports, two USB-C and two USB Type-A ports. Various USB devices can be connected to the card, such a...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

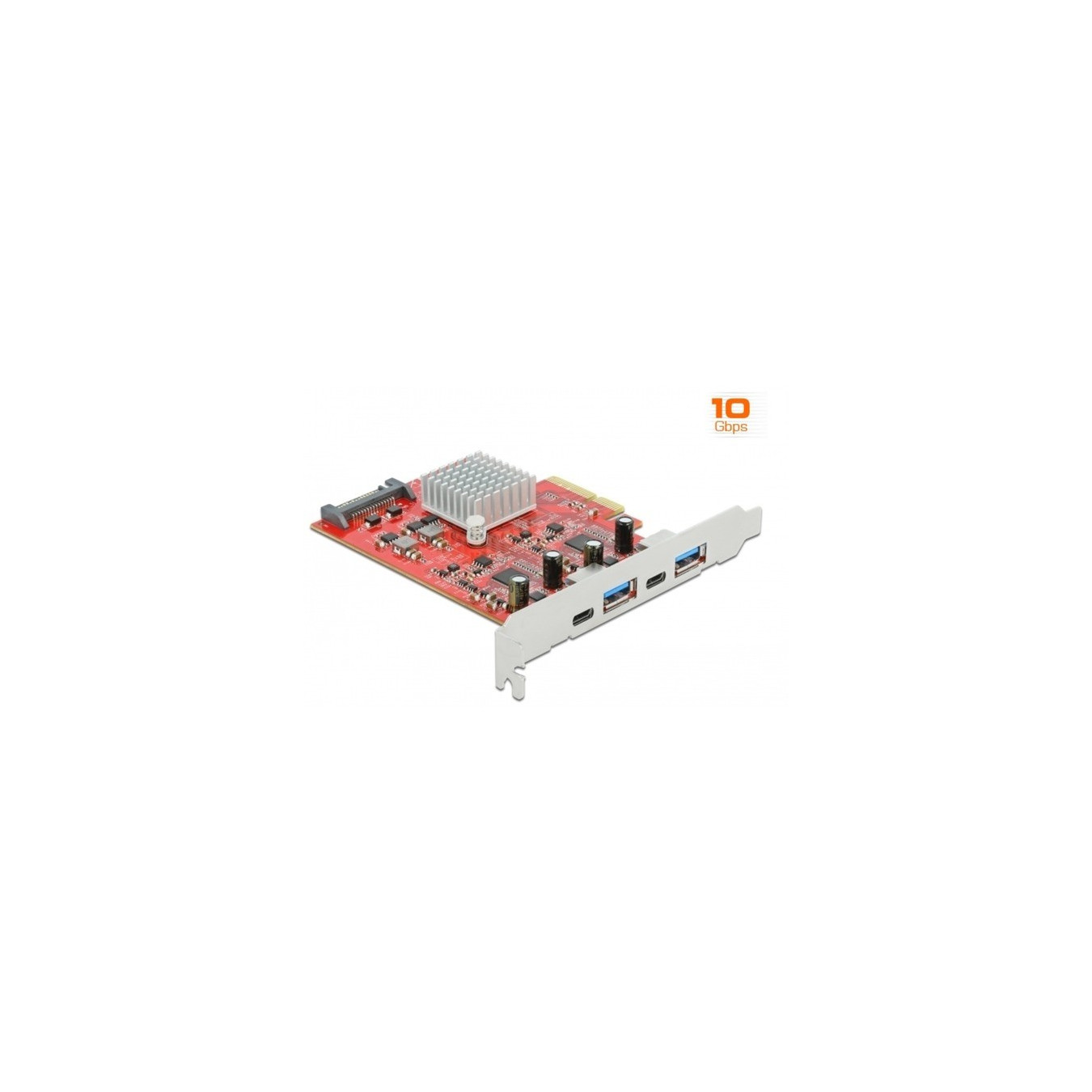

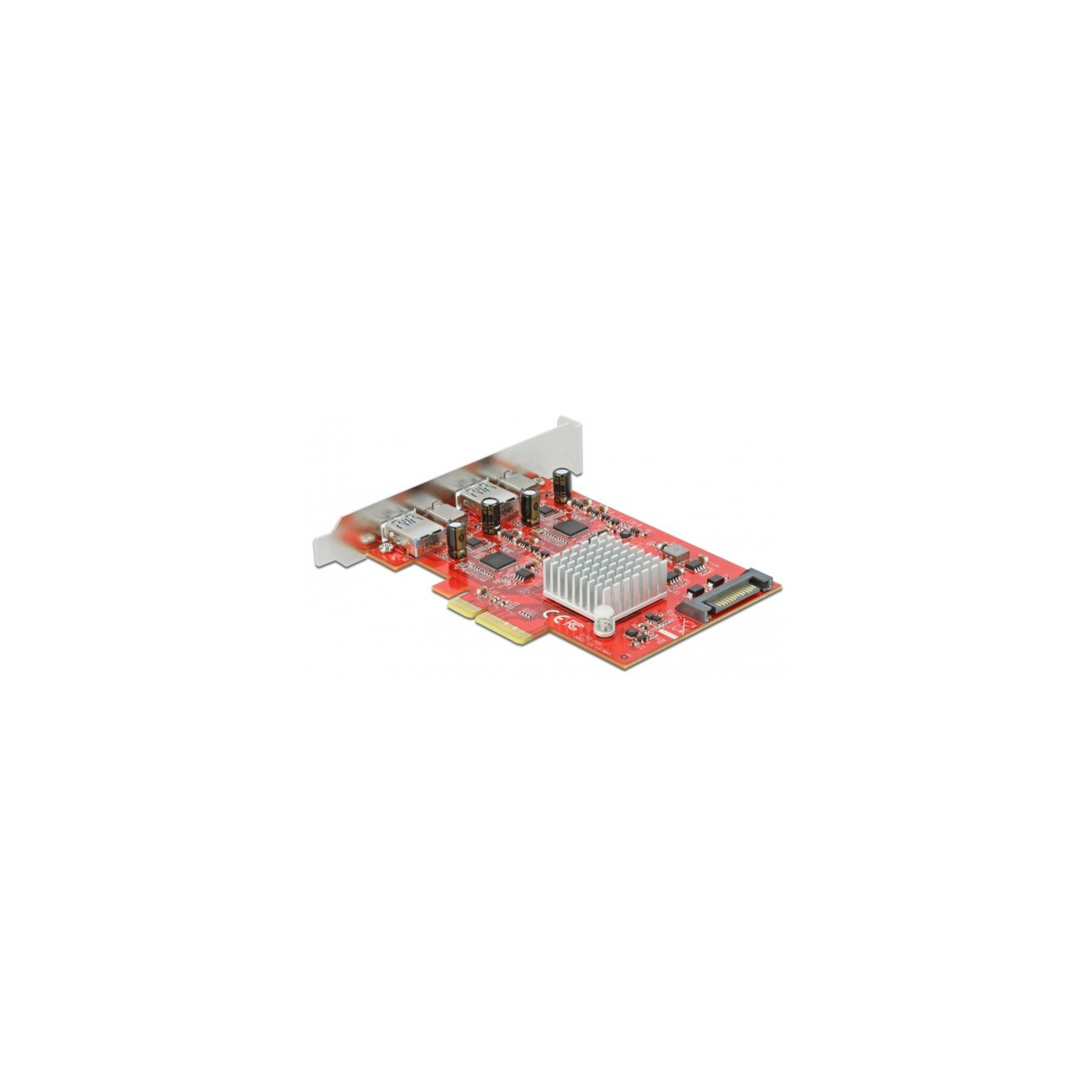

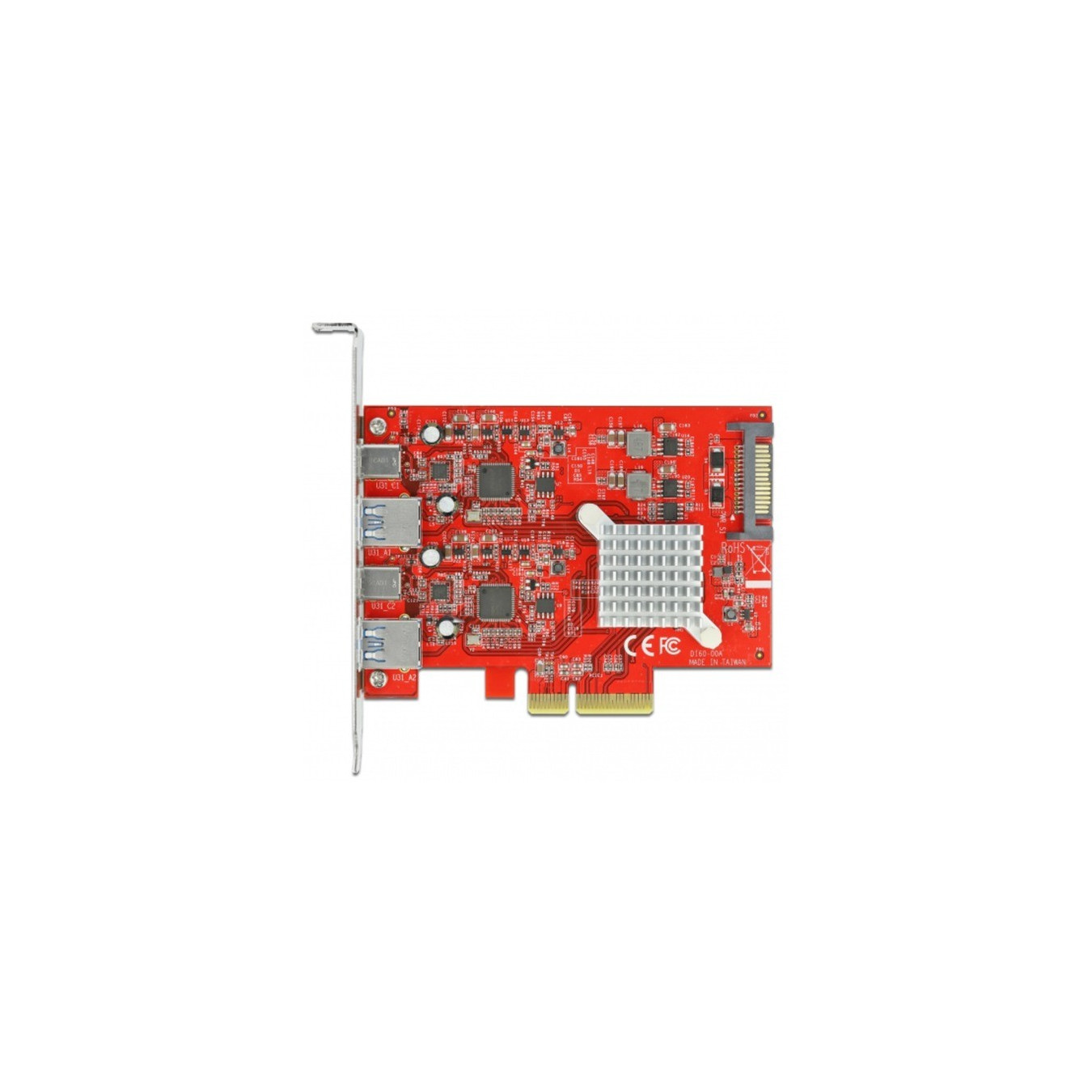

The PCI Express card from Delock expands the PC with four external USB 3.2 Gen 2 ports, two USB-C and two USB Type-A ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The card enables a data transfer rate of 10 Gbit/s on all ports when used simultaneously.
| Typ | USB-Controller |
| EAN | 4043619890415 |
| Manufacturer no. | 89041 |
| Controller Art | USB 3.2 (10 Gbit/s) |
| slot | PCIe x4 Version 3.0 |
| Chip | 2x ASM3142 |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s), PCIe x4 |
| Data throughput | 10 GBit/s |
| Connections - external | 2x USB A, 2x USB C |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Feature | 1 x SATA 15 Pin Power Connector |
| More information | The card has two ASM3142 chipsets for one USB Type-A and one USB Type-C™ port each. This ensures the high data transfer rate of 10 Gbps on all ports when used simultaneously. |
| Notice | The PCIe card can be powered via the PCIe port. If this is not enough, the card has a SATA power connection. A maximum of 5 V / 3 A is output on the USB Type-C™ ports and 5 V / 2 A on the Type-A ports, a maximum of 10 A on all ports together. |
