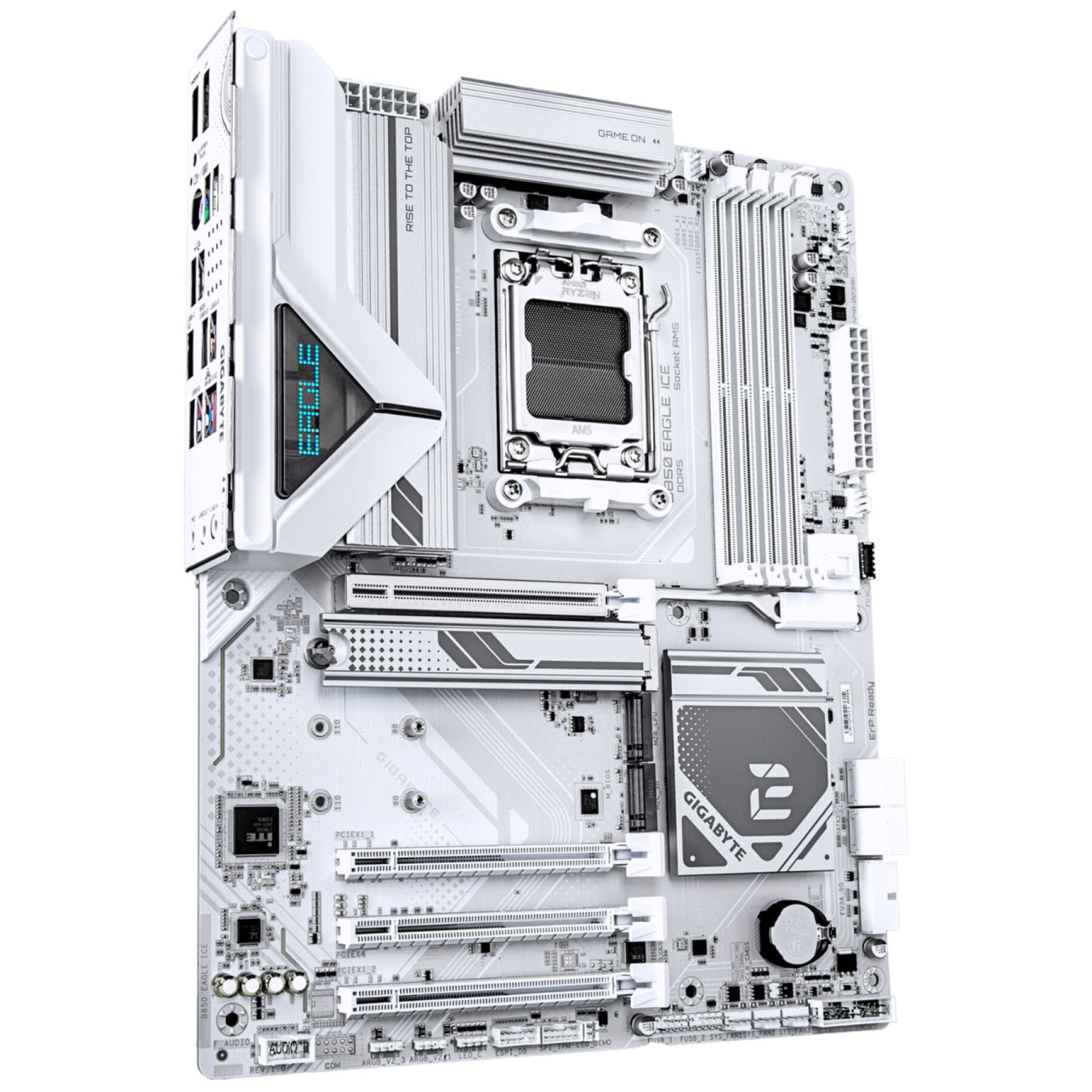

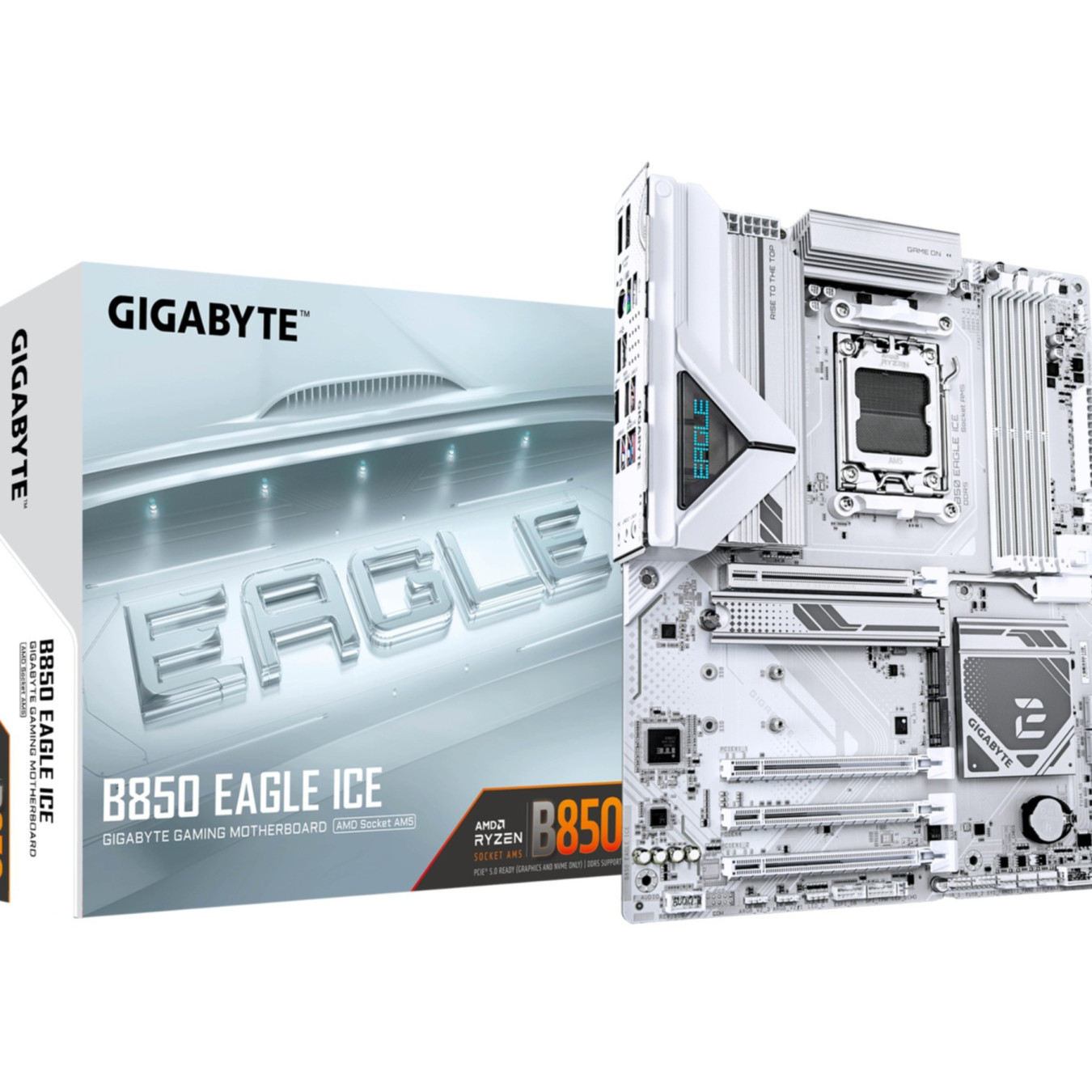

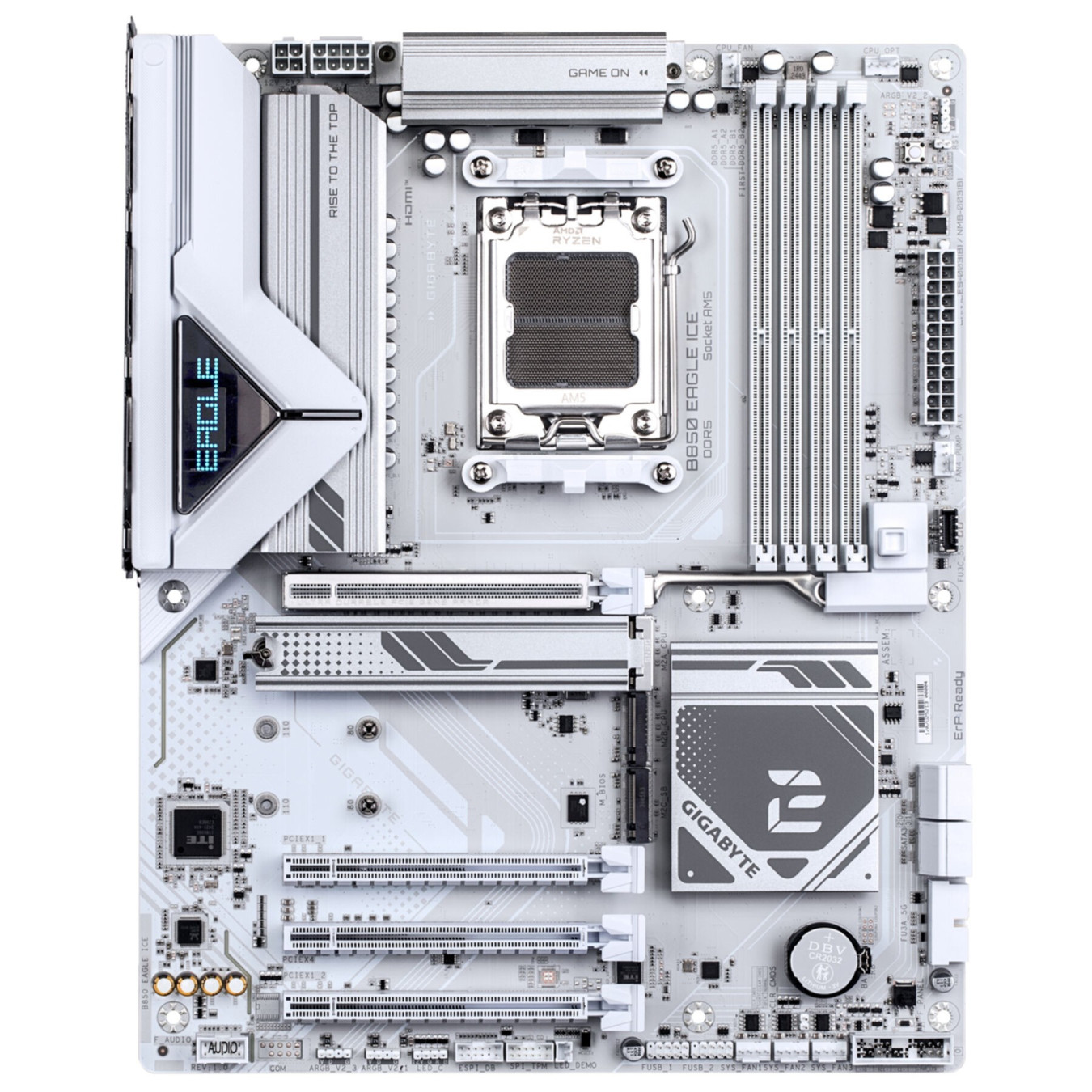

Gigabyte GA-B850 EAGLE ICE - AM5 ATX Motherboard, AMD B850, DDR5, 4x DIMM, 256GB Max
AM5 ATX motherboard with AMD B850 chipset. Supports AMD Ryzen 7000/8000/9000 series, DDR5 up to 8200 MHz, 4 DIMM slots, 256 GB maximum memory.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
Produktbeschreibung
Das GIGABYTE B850 EAGLE ICE basiert auf dem AMD-B850-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-Slots für bis zu 256 GB Arbeitsspeicher. Zur weiteren Ausstattung des GIGABYTE B850 EAGLE ICE gehören ein PCIe-5.0-x16-Slot, ein PCIe-4.0-x1-Slot (x4 Lanes) und zwei PCIe-3.0-x16-Slots (x1 Lanes). Außerdem verfügt das GIGABYTE B850 EAGLE ICE über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, drei M.2-Anschlüsse und eine Reihe an USB Schnittstellen.
Art.-Nr.: 100142311
| Typ | Mainboard |
| Farbe | weiß/silber |
| EAN | 4719331871680 |
| Hersteller-Nr. | B850 EAGLE ICE |
| Sockel | AM5 |
| Max. unterstützte CPUs | 1 |
| Betriebssystem - Unterstützung | Windows 10 ready, Windows 11 ready |
| Prozessor - Unterstützte Modelle | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipsatz | AMD B850 |
| Steckplätze - PCIe x16 | 4x (davon: 1x PCIe x16, 3x PCIe x1) |
| BIOS - EFI-BIOS | Ja |
| Formfaktor | ATX |
| Verwendung | PC |
| Netzteil | ATX12V (24-Pin + 8-Pin + 4-Pin) |
| Speicher - maximal | 256 GB |
| Anschlüsse (extern) - USB-A 3.2 Gen 2 (10 Gbit/s) | 2 |
| Anschlüsse (intern) - SATA | 4 |
| Anschlüsse (optional) - USB 3.2 Gen 1 (5 Gbit/s) | 2 |
| SATA-Controller | AMD B850 |
| direkt nutzbare RAID-Level | 0, 1, 10 |
| USB-Controller | AMD B850 |
| Onboard Grafik | Die Grafikanschlüsse des Mainboards sind nur bei Verwendung einer CPU mit integriertem Grafikchip nutzbar. |
| Sound | Realtek Audio Codec |
| LAN | Realtek 2.5GbE LAN |
| Weitere Informationen | Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich. |
| Abmessungen | Breite: 244 mm x Höhe: 305 mm |
| Warn- und Sicherheitshinweise | Warnhinweise:Achtung: Produkt enthält eine Knopfzelle oder Münzbatterie. |
| Typ | Mainboard |
| Farbe | weiß/silber |
| EAN | 4719331871680 |
| Hersteller-Nr. | B850 EAGLE ICE |
| Sockel | AM5 |
| Max. unterstützte CPUs | 1 |
| Betriebssystem - Unterstützung | Windows 10 ready, Windows 11 ready |
| Prozessor - Unterstützte Modelle | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipsatz | AMD B850 |
| Steckplätze - PCIe x16 | 4x (davon: 1x PCIe x16, 3x PCIe x1) |
| BIOS - EFI-BIOS | Ja |
| Formfaktor | ATX |
| Verwendung | PC |
| Netzteil | ATX12V (24-Pin + 8-Pin + 4-Pin) |
| Speicher - maximal | 256 GB |
| Anschlüsse (extern) - USB-A 3.2 Gen 2 (10 Gbit/s) | 2 |
| Anschlüsse (intern) - SATA | 4 |
| Anschlüsse (optional) - USB 3.2 Gen 1 (5 Gbit/s) | 2 |
| SATA-Controller | AMD B850 |
| direkt nutzbare RAID-Level | 0, 1, 10 |
| USB-Controller | AMD B850 |
| Onboard Grafik | Die Grafikanschlüsse des Mainboards sind nur bei Verwendung einer CPU mit integriertem Grafikchip nutzbar. |
| Sound | Realtek Audio Codec |
| LAN | Realtek 2.5GbE LAN |
| Weitere Informationen | Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich. |
| Abmessungen | Breite: 244 mm x Höhe: 305 mm |
| Warn- und Sicherheitshinweise | Warnhinweise:Achtung: Produkt enthält eine Knopfzelle oder Münzbatterie. |
