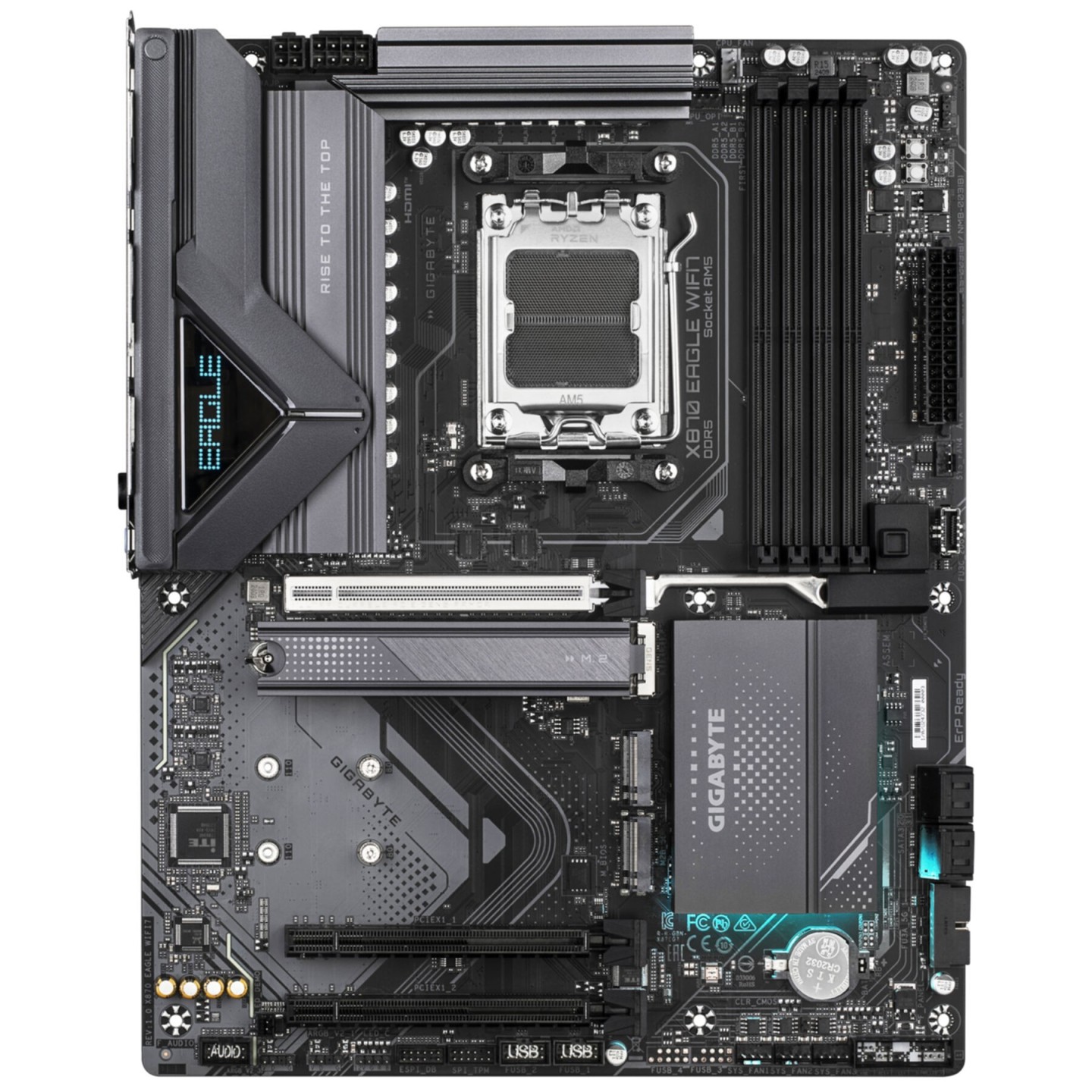

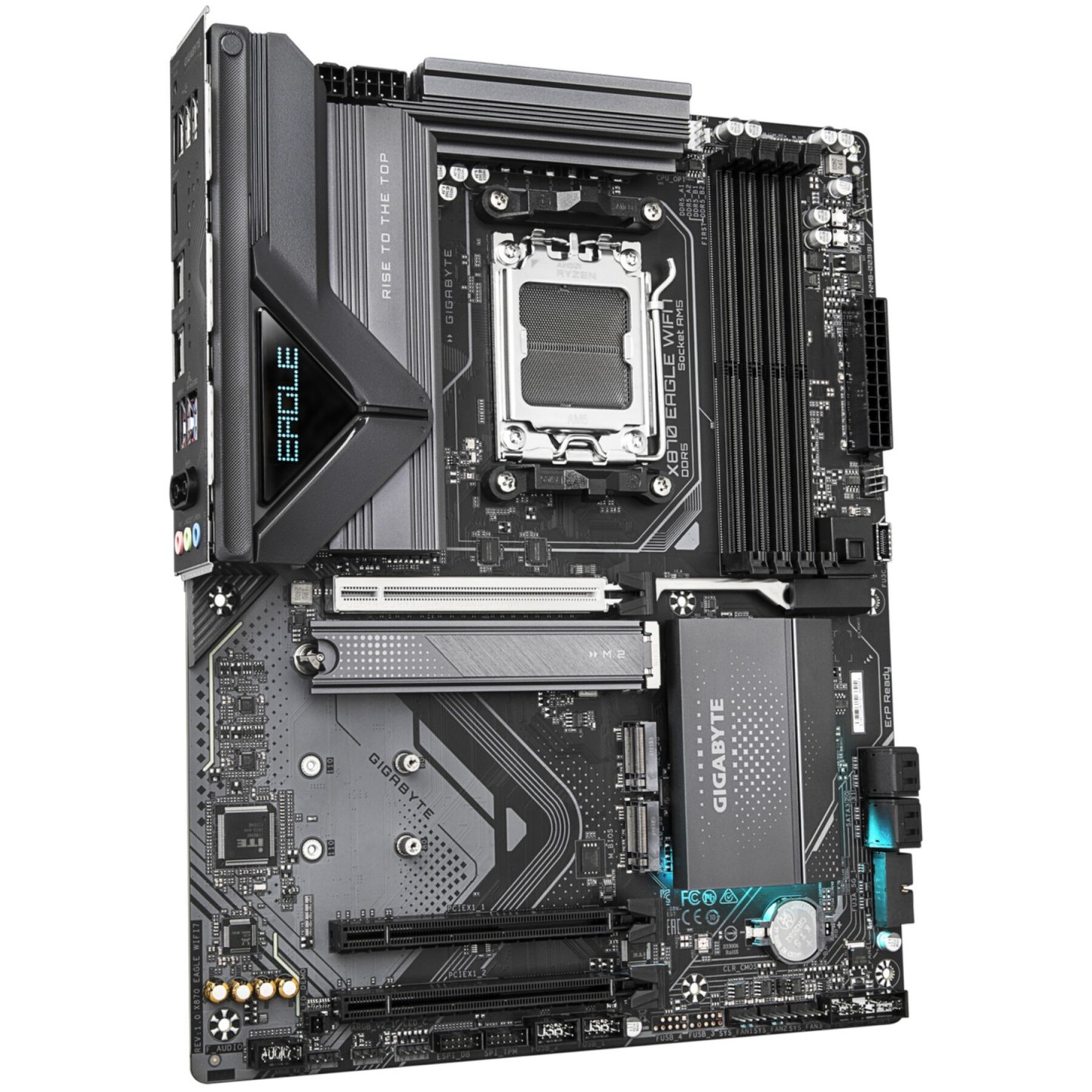

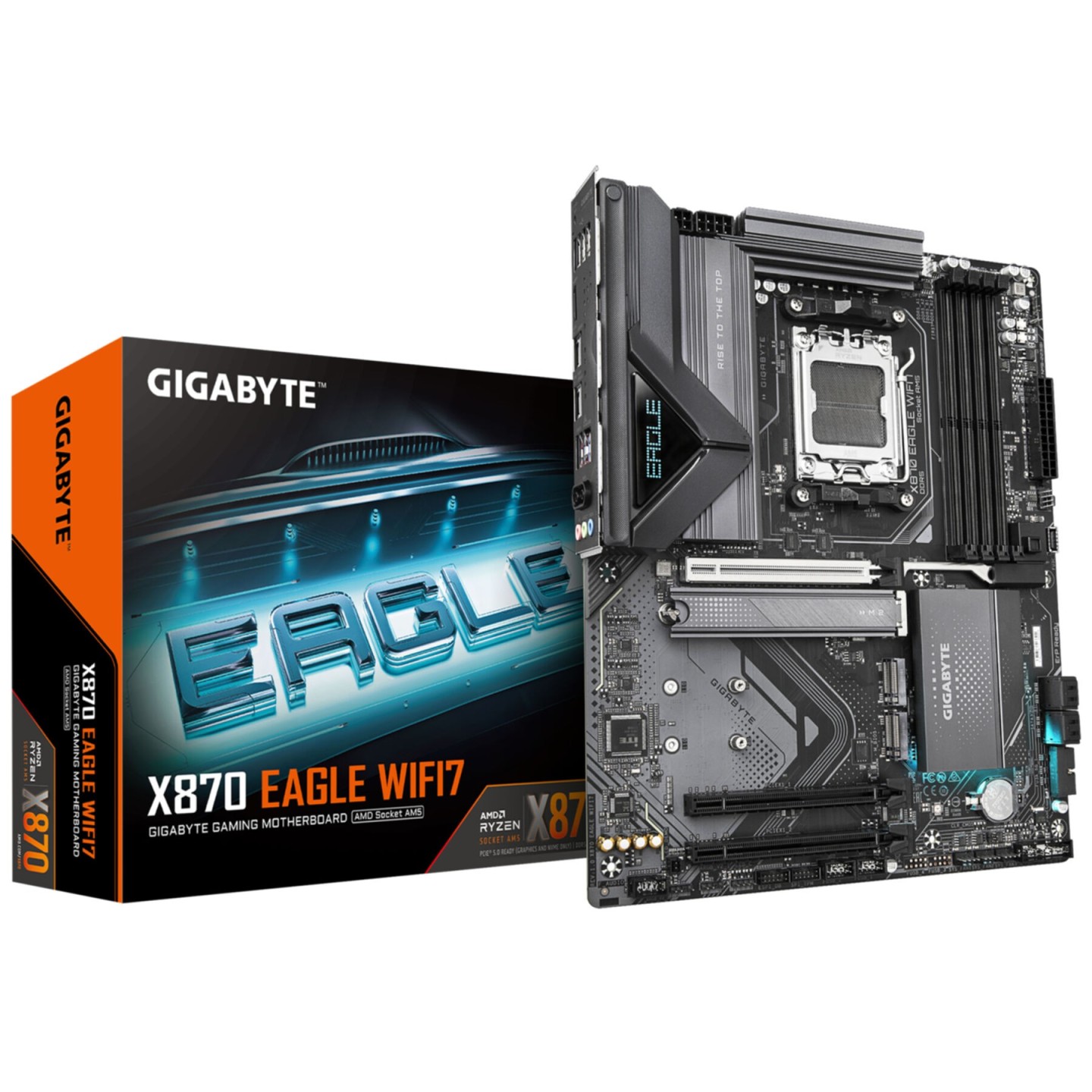

Gigabyte GA-X870 EAGLE WIFI7 ATX AM5 Motherboard AMD X870 DDR5 Wi-Fi7 USB4 (Boxed)
ATX AM5 Gigabyte GA-X870 EAGLE WIFI7 motherboard w/ AMD X870 chipset. Supports Ryzen 7000/8000/9000, DDR5 to 256GB (EXPO/XMP), 3x M.2 (1x PCIe5), Wi-Fi 7, BT5.4, dual USB4, 2.5GbE LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
Elevate your PC build with the Gigabyte GA-X870 EAGLE WIFI7, an ATX AM5 motherboard featuring the advanced AMD X870 chipset. Designed for AMD Ryzen 7000, 8000, and 9000 series processors, it delivers robust performance for gaming, content creation, and professional workloads. Enjoy dual-channel DDR5 support up to 256GB across 4 DIMM slots with AMD EXPO and Intel XMP overclocking profiles for maximum memory speeds up to 8200MHz+(OC).
Connectivity is future-proofed with Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4, 2.5GbE LAN (Realtek RTL8125), and dual USB4 Type-C ports supporting DisplayPort alt mode. Storage options include 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) with Thermal Guard, plus 4x SATA III. The 14+2+2 phase digital VRM with 6-layer PCB ensures stable power delivery, enhanced by VRM Thermal Armor. PCIe 5.0 x16 slot for GPUs, EZ-Latch designs for easy installation, and Realtek ALC897 7.1 audio complete the premium feature set.
- ✅ AMD Socket AM5 for Ryzen 7000/8000/9000 series
- ✅ 256GB DDR5 max (4x DIMM, EXPO/XMP)
- ✅ 3x M.2 (PCIe 5.0/4.0), 4x SATA III
- ✅ Wi-Fi 7, BT 5.4, 2.5GbE, dual USB4
- ✅ PCIe 5.0 x16 GPU slot, EZ-Latch features
- ✅ 14+2+2 VRM, advanced thermal design
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Product colour | Black |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8200 MHz |
| VRM Design | 14+2+2 Twin Digital VRM |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of SATA III connectors | 4 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Memory Profile Support | AMD EXPO, XMP |
| Warranty period | 5 year(s) |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.94 kg |
| Width | 305 mm |
| Depth | 244 mm |
