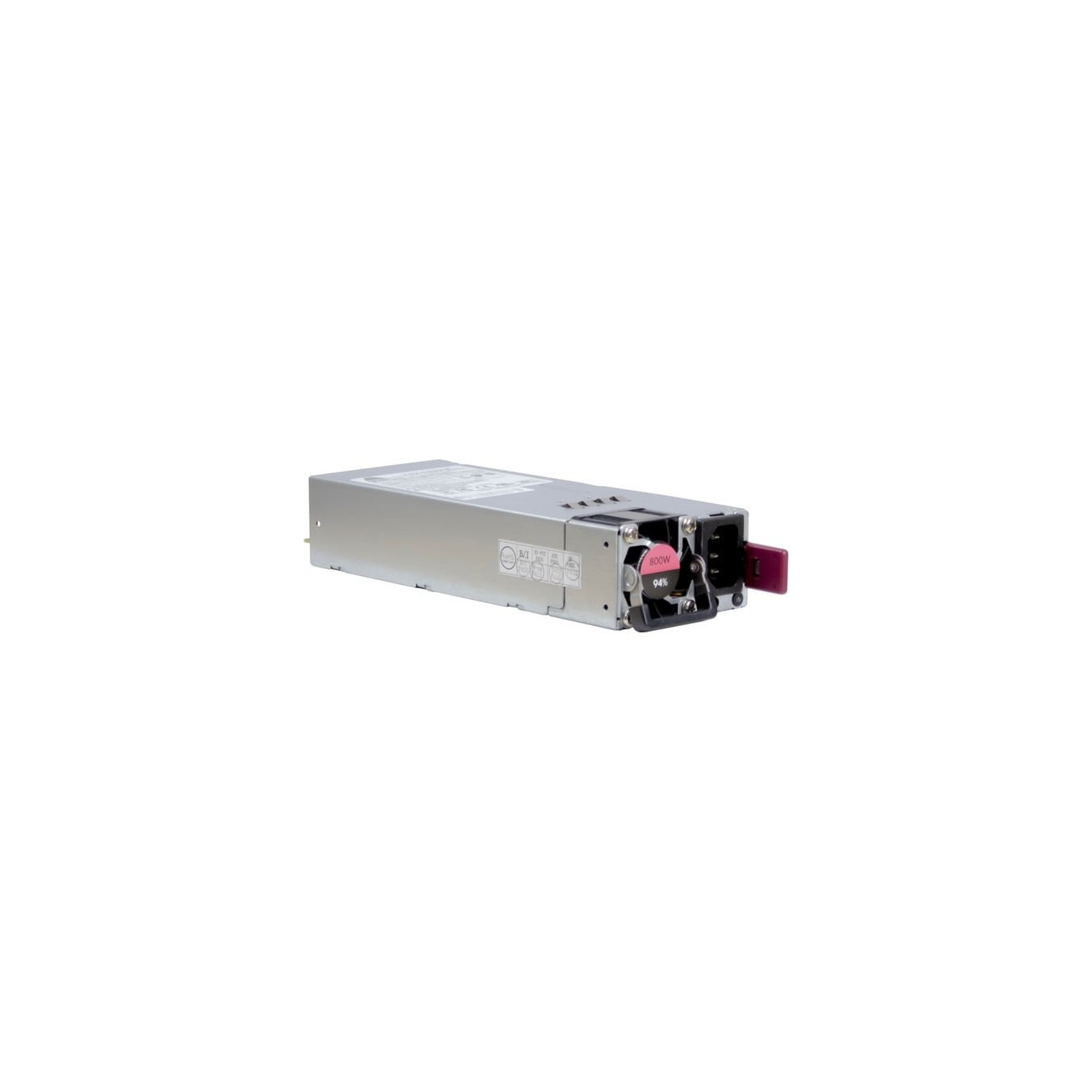

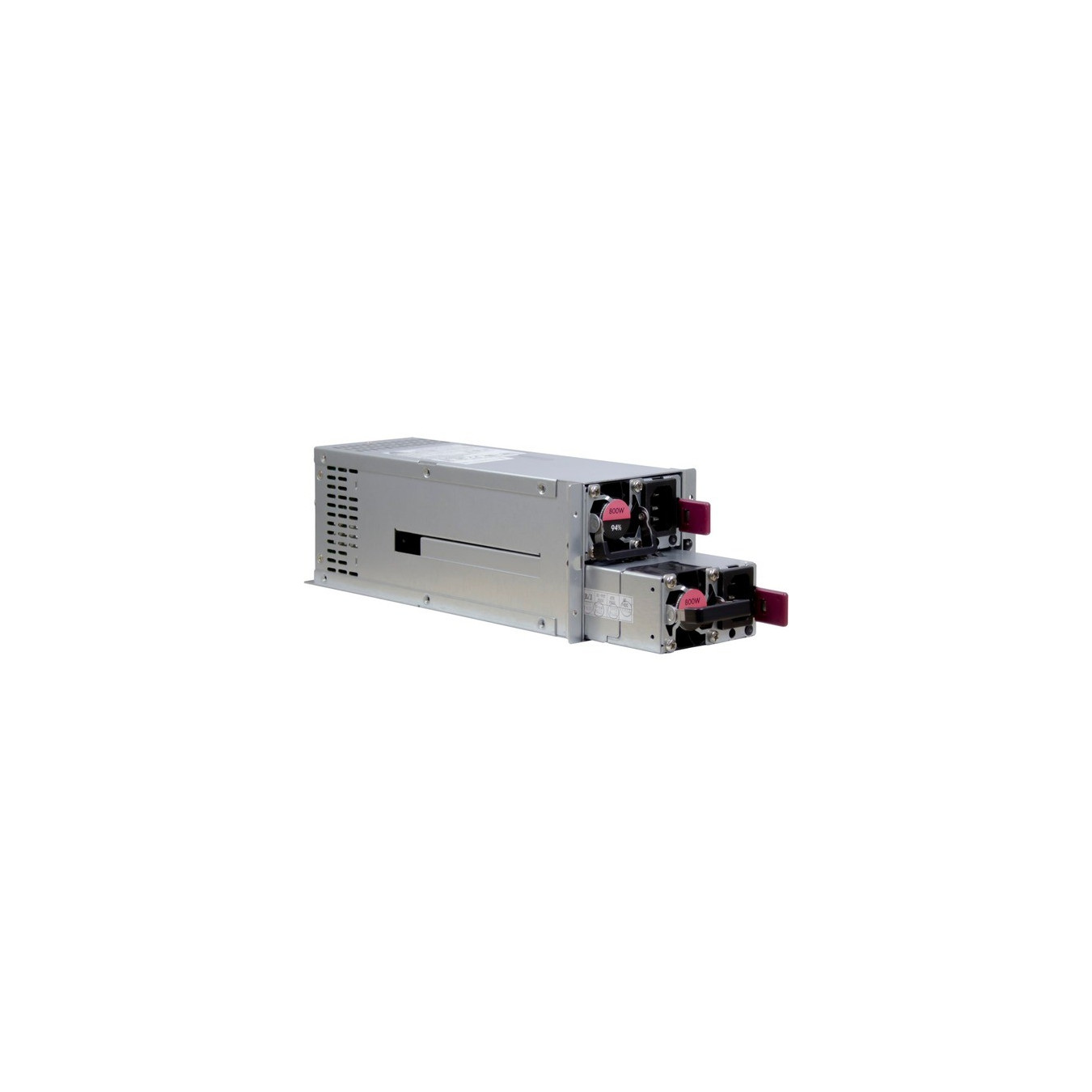

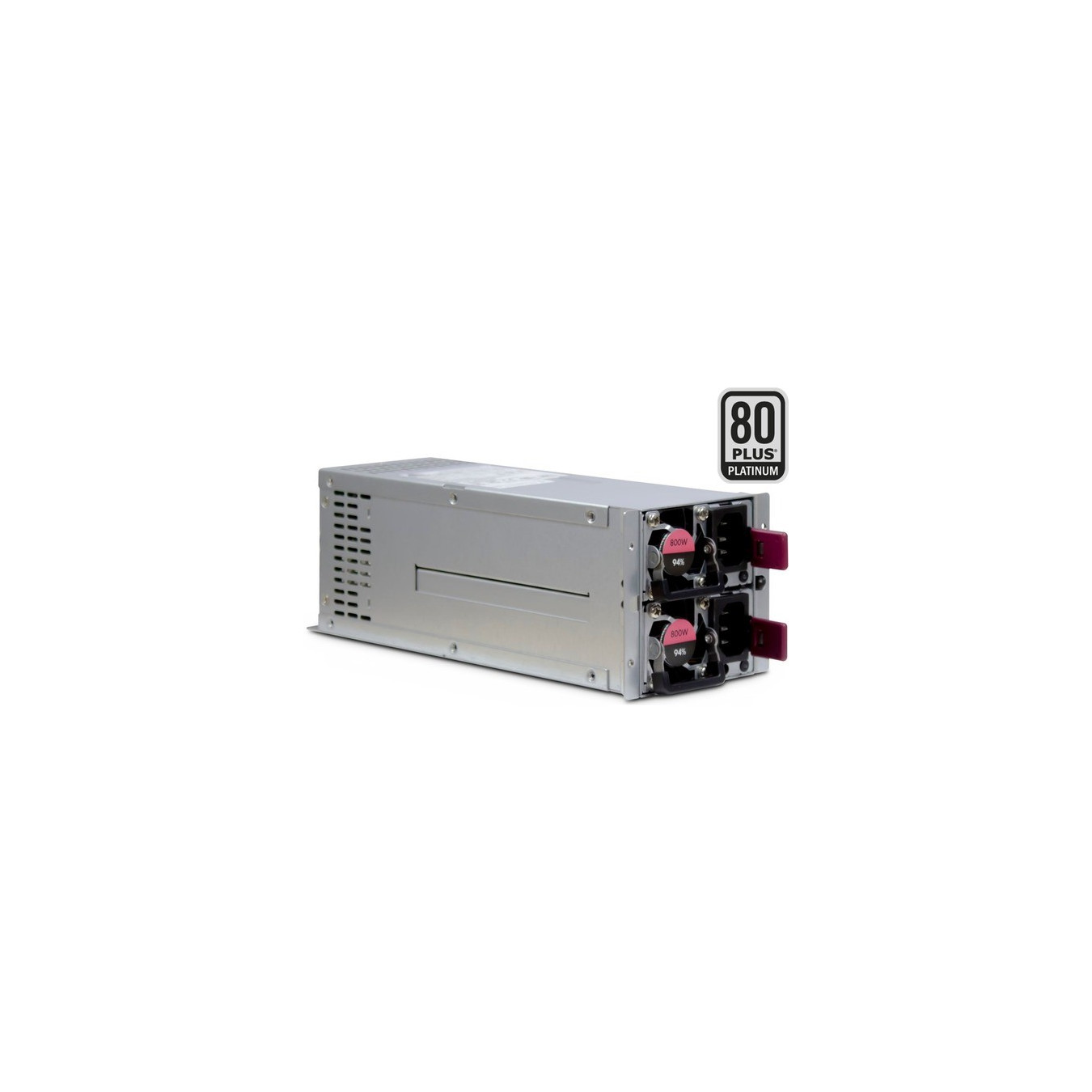

ASPOWER R2A-DV0800-N, PC power supply
The Inter-Tech ASPOWER R2A-DV0800-N is a high-quality, 800 watt, redundant server power supply with up to 92% efficiency. It offers a two-color LED status display per module, acous...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Inter-Tech ASPOWER R2A-DV0800-N is a high-quality, 800 watt, redundant server power supply with up to 92% efficiency. It offers a two-color LED status display per module, acoustic and visual alarm signal in the event of a module failure and fan error, switch for reset and an I²C bus (PMBus compatible) for error signaling and transmission of voltages and currents to compatible backplanes or mainboards.
| Typ | PC power supply |
| Color | grau |
| EAN | 4260455643511 |
| Manufacturer no. | 99997247 |
| Performance - Overall | 800 W |
| Certification | 80 PLUS Platinum |
| Current strengths - +3.3 V | 30 A |
| Power factor correction | Active PFC |
| Connections | 1x 24-Pin-ATX12V-2.x, 2x 4+4-Pin-12V, 1x 4-Pin-3,5", 6x 4-Pin-5,25", 2x 15-Pin-SATA |
| Cooling - number of fans | 2x 40 mm Lüfter |
| Protective functions | Current Surge Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP) |
| More features | Redundant |
| Feature | Two-color LED status display per module, acoustic and visual alarm signal in the event of a module failure and fan error, switch for reset, I²C bus (PMBus compatible) for error signaling and transmission of voltages and currents to compatible backplanes or mainboards |
| Dimensions | Width: 96.5mm x Height: 84mm x Depth/Length: 270mm |
| Weight | 3,1 kg |
