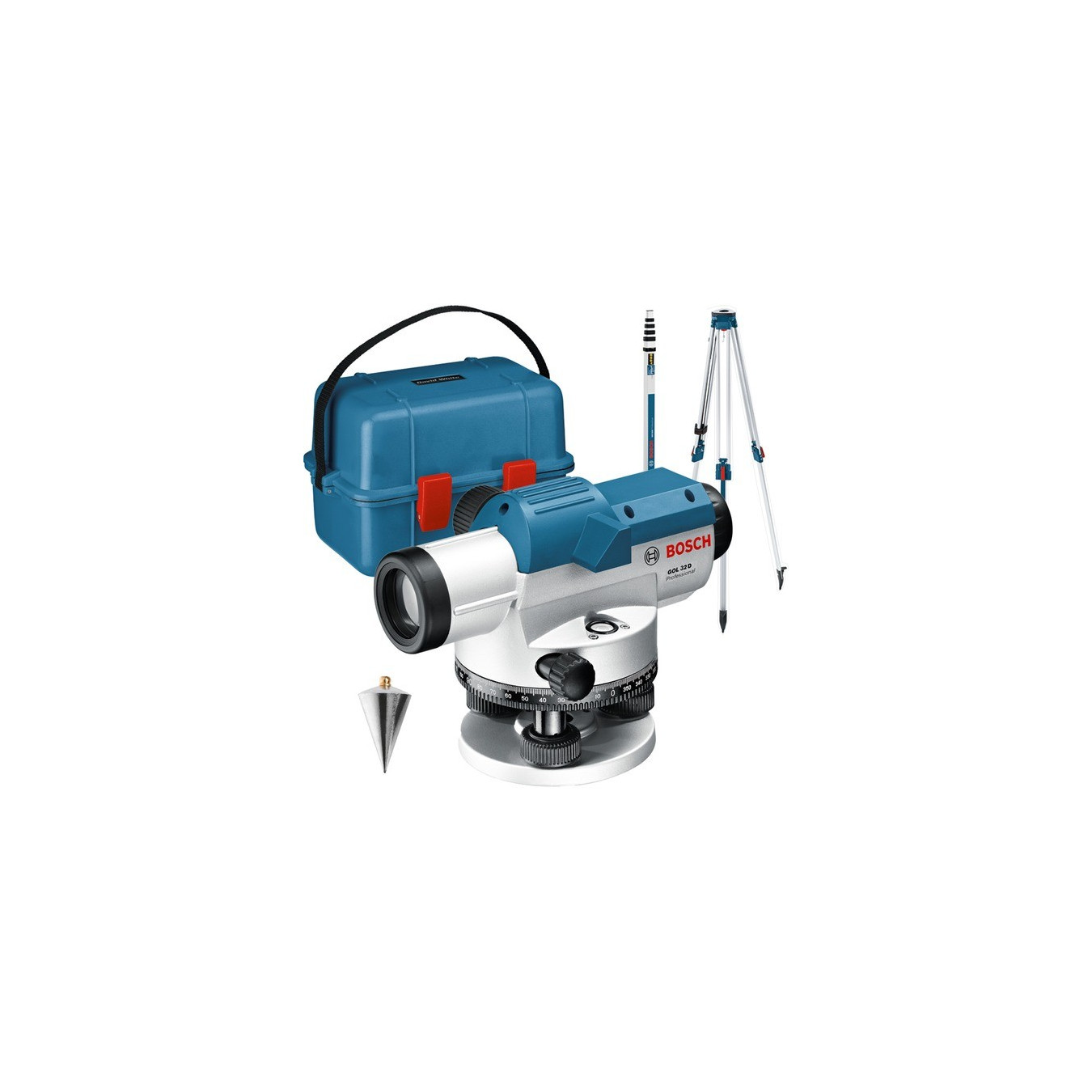

Optical leveling device GOL 32 G Professional, with construction tripod
The optical leveling device GOL 32 G Professional from Bosch is intended for determining and checking exactly horizontal height gradients, as well as for measuring heights, distanc...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The optical leveling device GOL 32 G Professional from Bosch is intended for determining and checking exactly horizontal height gradients, as well as for measuring heights, distances and angles, with a scale in the Gon unit and division horizontal circle 1 gon. The sturdy metal housing with dust and splash protection (IP 54) is suitable for outdoor use. The GOL 32 G Professional optical leveling device has a target collimator built into the device, an integrated circular level and a large focusing button for easy alignment. The fast lens produces a sharp image of the target, and the compensator locking device ensures safe transport.
| Typ | Leveling device |
| Color | blau |
| EAN | 3165140745024 |
| Manufacturer no. | 0601068503 |
| Manufactured in | China |
| Purpose of use | For determining and checking exactly horizontal height gradients |
| Service | Large focusing knob, side fine adjustment, adjustment screw for circular level and line of sight |
| Display/display | Scale: unit of measurement 400 gon, division horizontal circle 1 gon |
| Tripod thread | 5/8" |
| Security | Transport locking device for the compensator |
| Protection class (IP) | IP54 |
| Work area | without receiver: 120 meters |
| enlargement | 32 little |
| Leveling - leveling range | +/- 15 ° |
| Operating temperature range | from -10°C to 50°C |
| Storage temperature range | from -20°C to 70°C |
| Feature | Built-in target collimator, integrated circular level, sturdy metal housing, robust design |
| More information | Accuracy of the circular level 8'/2mm, field of view 1°30', lens diameter 36mm, minimum measuring distance 0.3 meters |
| Accessories - available | Transport case, construction tripod BT 160 Professional, plumb bob, measuring rod GR 500 Professional, lens protector, Allen key, adjustment mandrel |
| Dimensions - General | Width: 13.4 cm x Height: 14.3 cm x Depth/Length: 21.3 cm |
| Weight | 1,5 kg |
