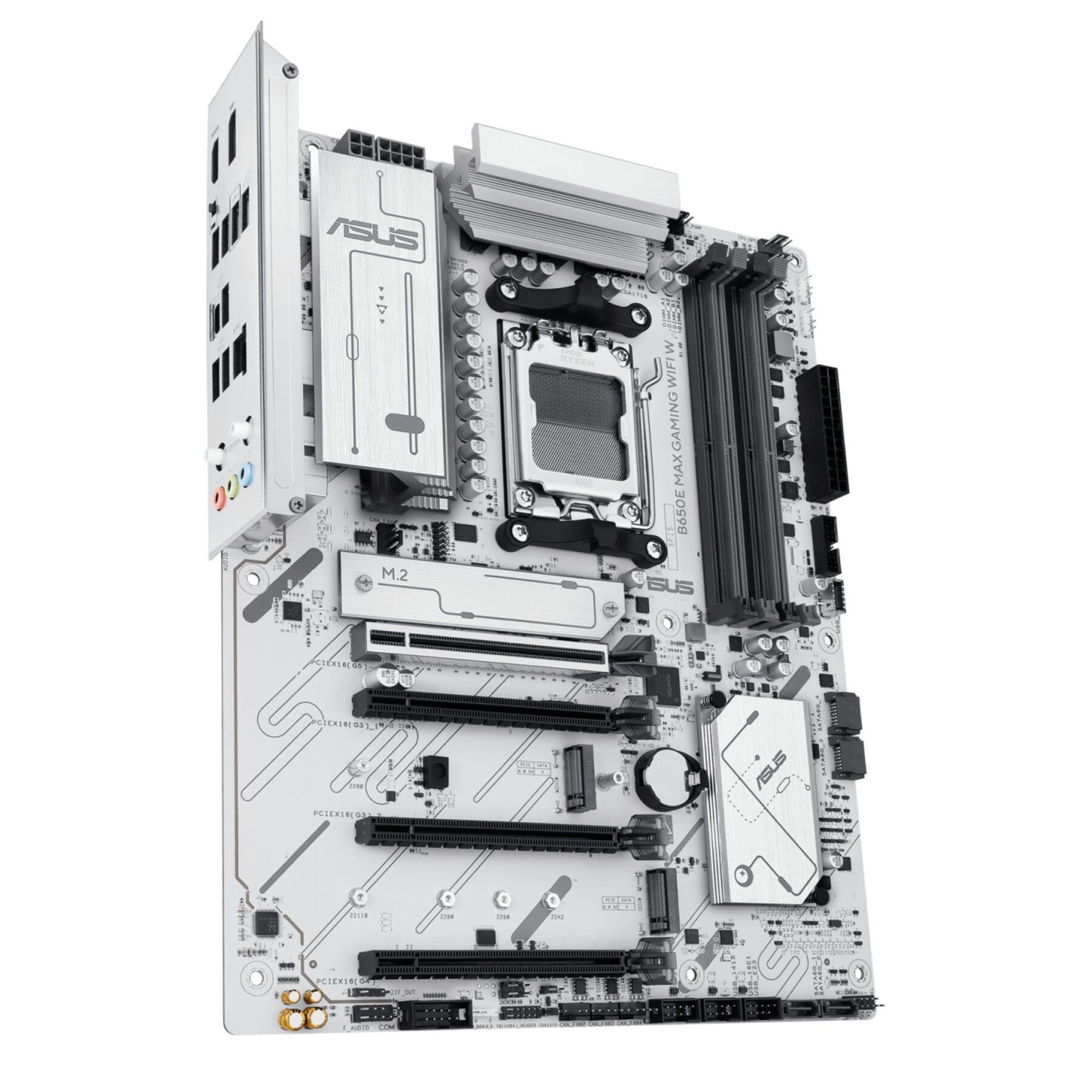

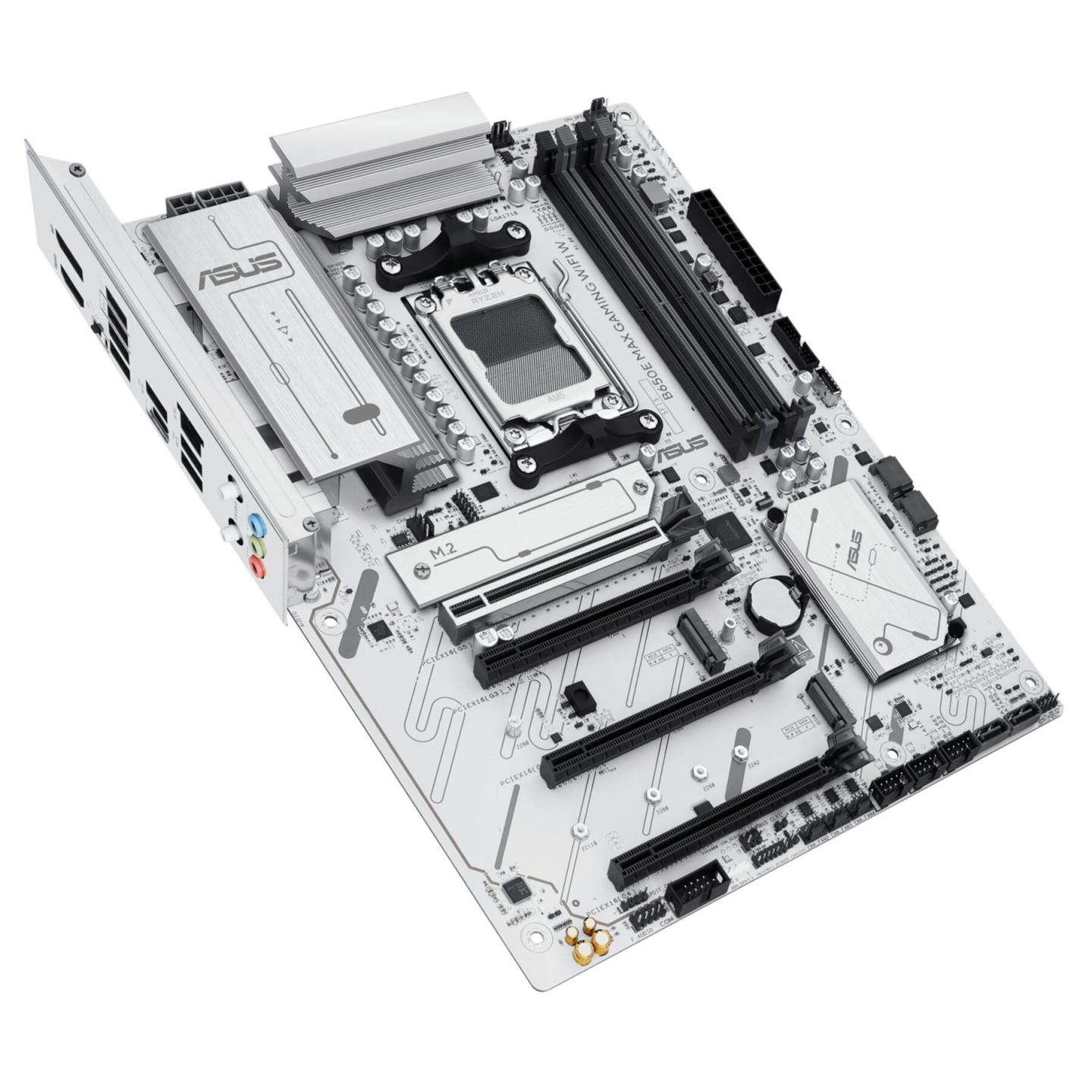

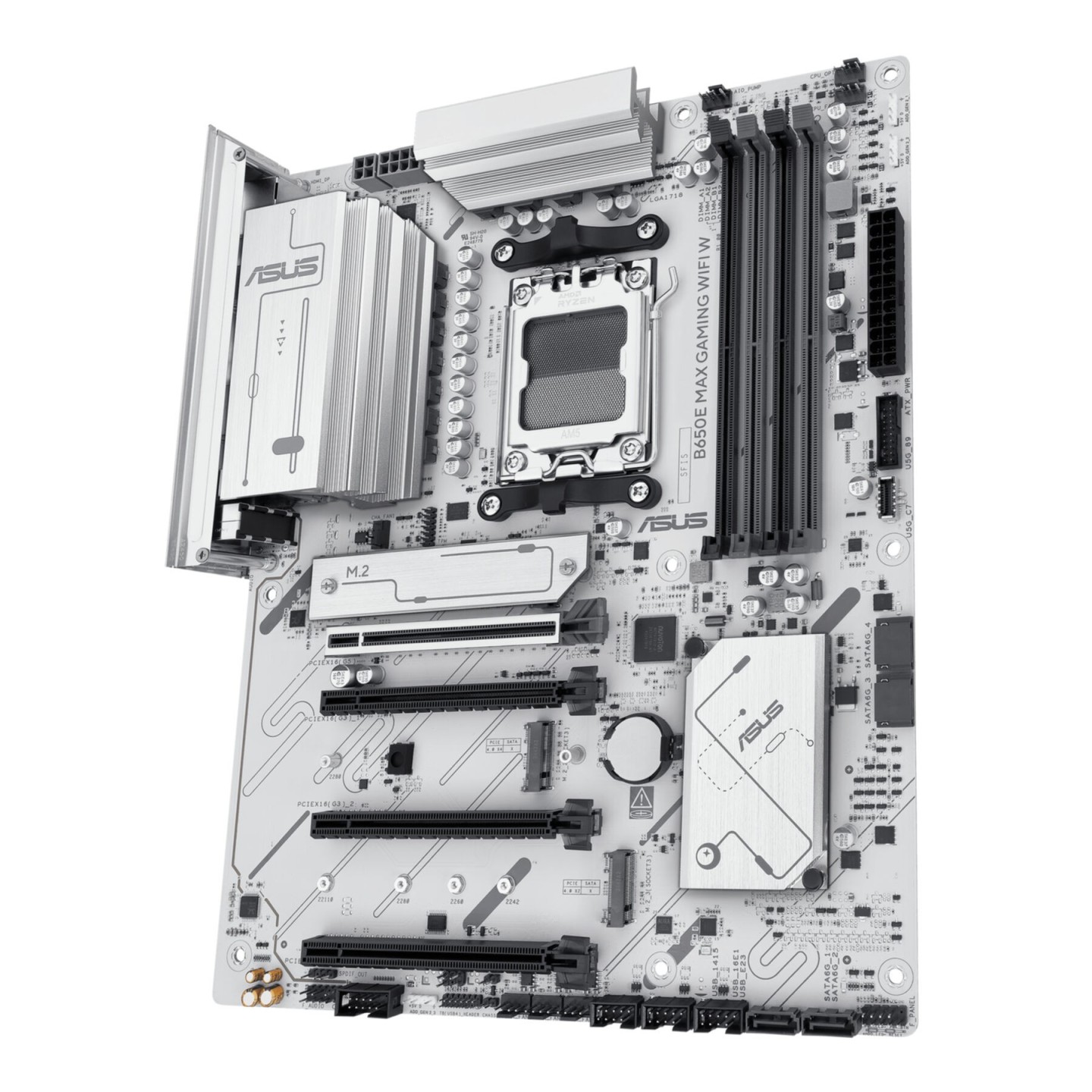

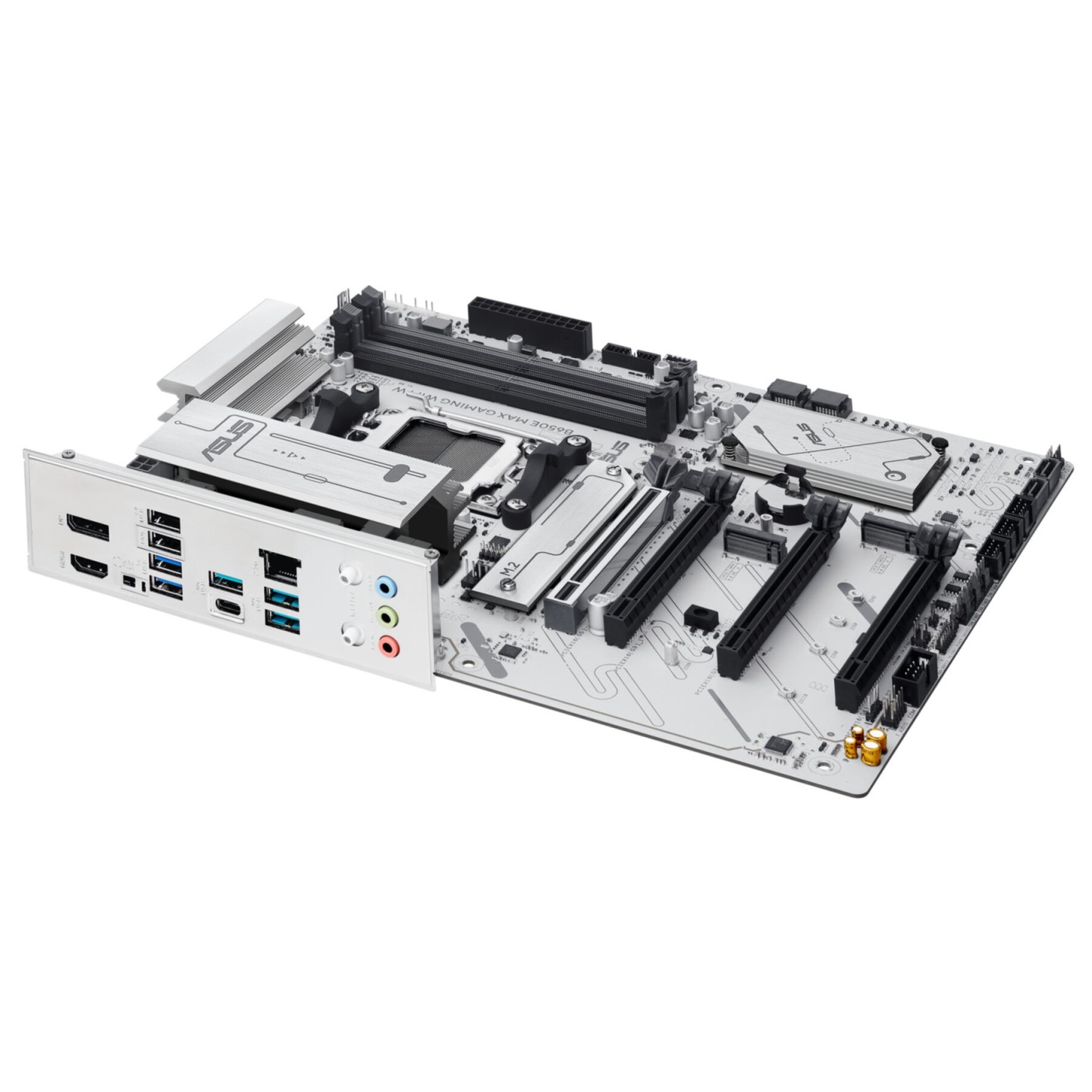

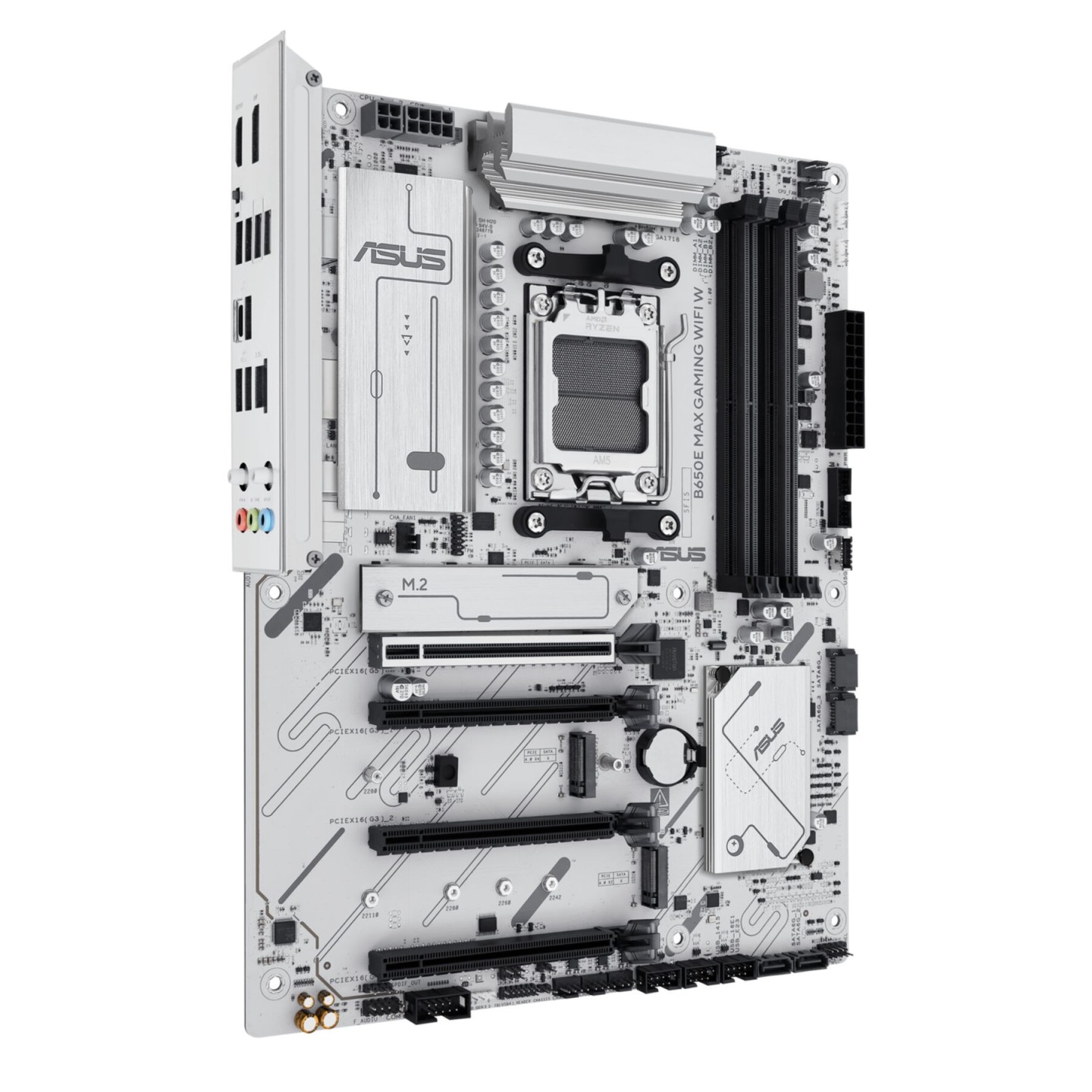

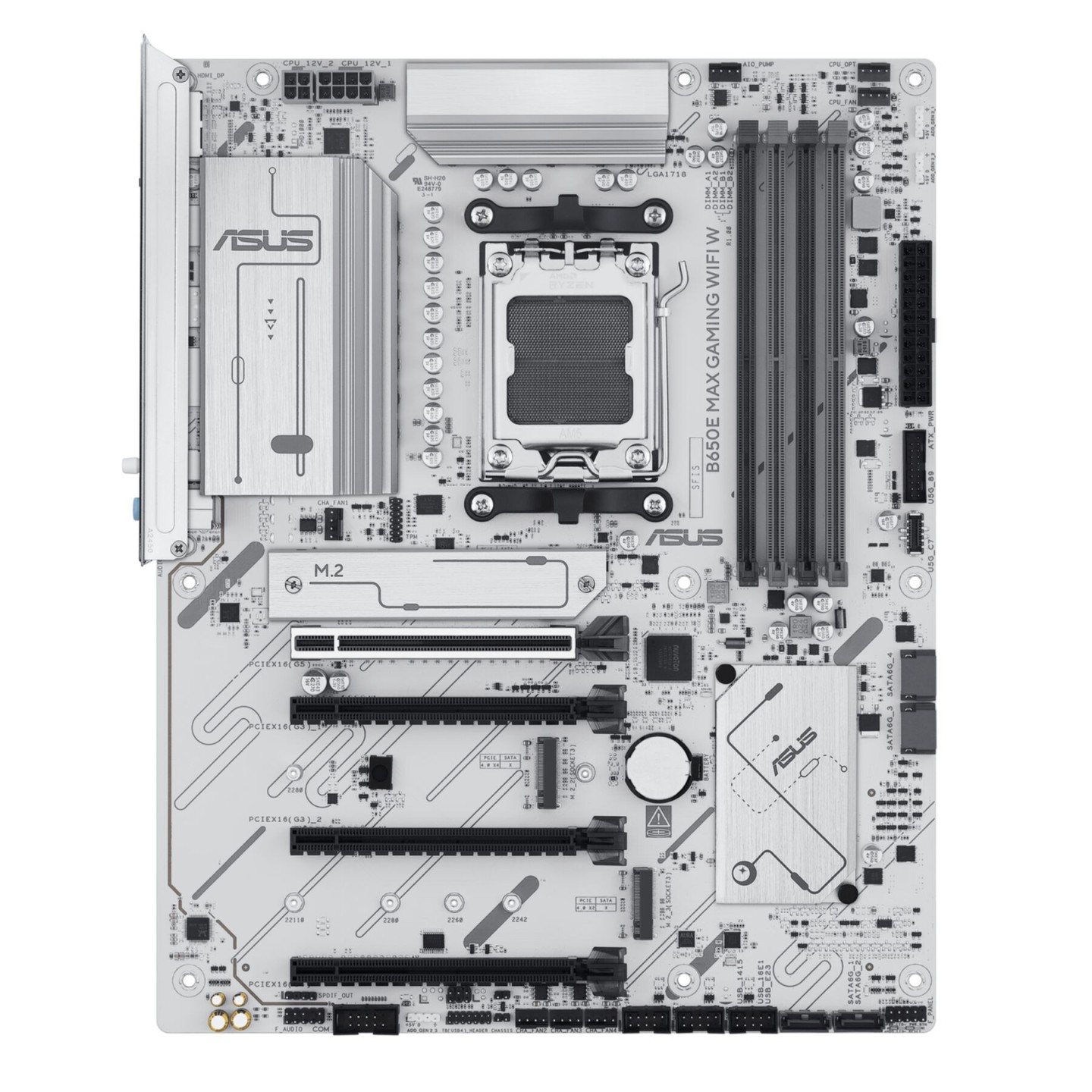

ASUS B650E MAX GAMING WIFI W - AM5 ATX Motherboard, DDR5, 4x DIMM, 256GB (Boxed)
ASUS B650E MAX GAMING WIFI W is an AM5 ATX motherboard supporting AMD Ryzen 9000/8000/7000 series with DDR5 memory, PCIe 5.0, WiFi 6E, and comprehensive cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650E |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | White |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
ASUS B650E MAX GAMING WIFI W is a premium AM5 ATX motherboard engineered for AMD Ryzen 9000, 8000, and 7000 series processors. This motherboard combines robust power delivery with modern connectivity standards, featuring an 8+2+1 phase power design with discrete MOSFETs for stable performance. The board supports DDR5 memory with up to 256GB capacity across four DIMM slots, enabling high-speed computing for demanding applications and gaming workloads.
The motherboard excels in storage and connectivity with three M.2 slots (first slot supports PCIe 5.0 at 128Gbps for ultra-fast NVMe drives), four SATA III ports for traditional storage, and comprehensive I/O including WiFi 6E, 2.5Gb Ethernet, USB 10Gbps Type-C and Type-A ports, DisplayPort, and HDMI. Advanced features include ASUS OptiMem II technology for optimized memory bandwidth, comprehensive cooling solutions with VRM and M.2 heatsinks, and customizable RGB lighting via three Addressable RGB Gen 2 headers. The white PCB design and DIY-friendly features like BIOS FlashBack and pre-mounted I/O shield make this an excellent choice for PC builders seeking performance and aesthetics.
- Socket AM5 compatible with AMD Ryzen 9000/8000/7000 series processors
- DDR5 memory support with 4 DIMM slots, up to 256GB capacity
- PCIe 5.0 M.2 slot for next-generation NVMe SSDs at 128Gbps speeds
- WiFi 6E and 2.5Gb Ethernet for ultrafast wireless and wired connectivity
- 8+2+1 phase power design with discrete MOSFETs for stable power delivery
- Three M.2 slots with mixed PCIe generations (5.0, 4.0, 4.0)
- Four SATA III ports for additional storage drives
- USB 10Gbps Type-C and Type-A ports for high-speed peripheral connectivity
- Comprehensive cooling with VRM, M.2, and PCH heatsinks
- Three Addressable RGB Gen 2 headers for customizable lighting
| Processor Socket | Socket AM5 |
| Chipset | AMD B650E |
| Form Factor | ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4 x DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 256 GB |
| M.2 Slots | 3 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| M.2 Slot 1 Speed | PCIe 5.0 x4 (128 Gbps) |
| M.2 Slot 1 Length | Up to 2280 |
| M.2 Slot 2 Speed | PCIe 4.0 x4 (64 Gbps) |
| M.2 Slot 2 Length | Up to 2280 |
| M.2 Slot 3 Speed | PCIe 4.0 x4 (64 Gbps) |
| M.2 Slot 3 Length | Up to 22110 |
| SATA Ports | 4 x SATA III (6 Gb/s) |
| Power Delivery | 8+2+1 Phase with discrete MOSFETs |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (@x4), 2x PCIe 3.0 x16 (@x1) |

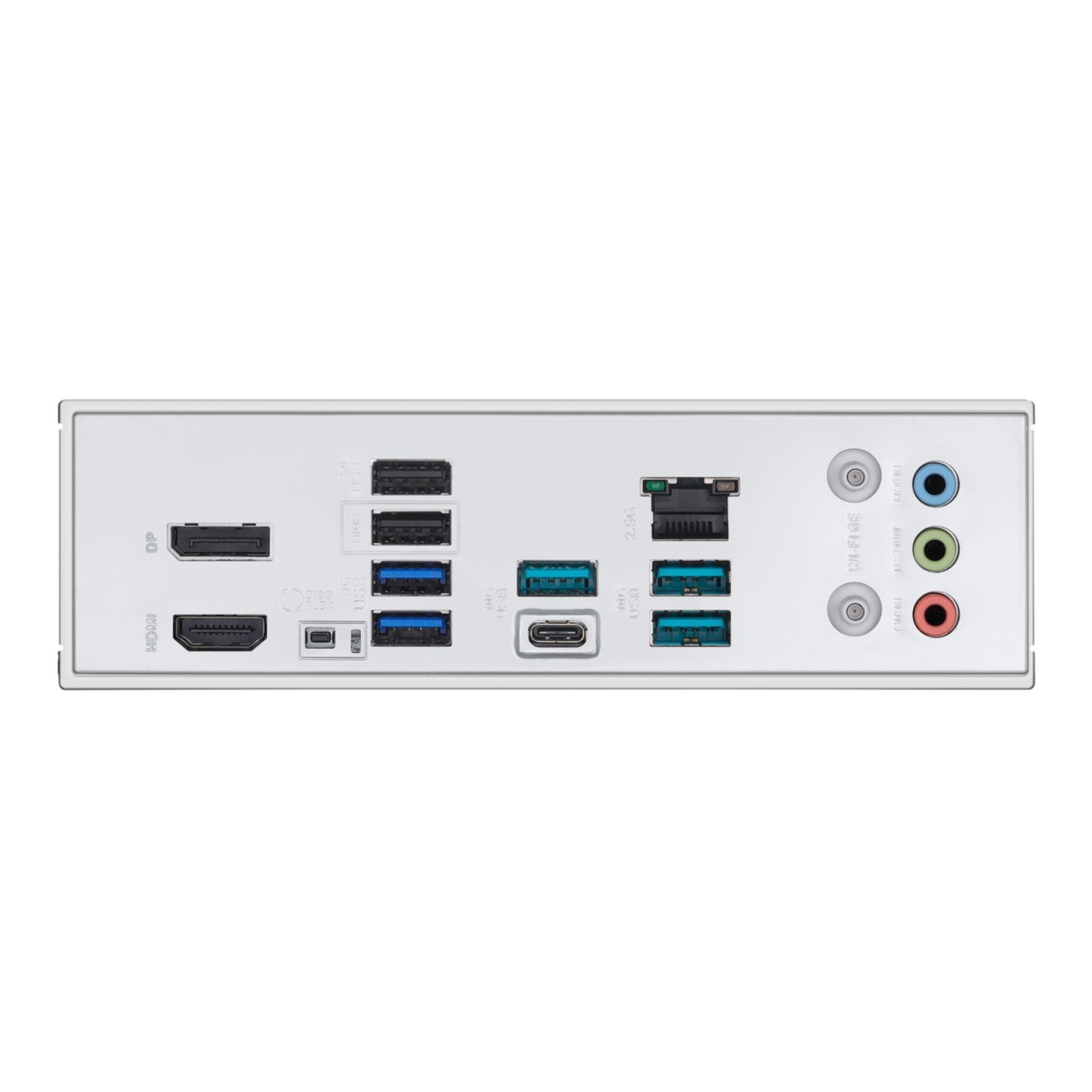

| Rear USB Ports | 1x USB 10Gbps Type-C, 3x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 Type-A |
| Front Panel USB Headers | 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 3x USB 2.0 |
| Video Outputs | 1x HDMI, 1x DisplayPort |
| Ethernet | 2.5 Gigabit Ethernet (Realtek) |
| WiFi | WiFi 6E (802.11ax) with 2x2 MU-MIMO, 2.4/5/6 GHz bands |
| Bluetooth | Bluetooth 5.3 |
| Audio | 7.1 channels with dedicated audio PCB layers |
| RGB Headers | 3x Addressable RGB Gen 2 headers |
| Fan Headers | 1x CPU fan header, 4x chassis fan headers (hybrid) |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin EPS, 1x 4-pin Molex |
| Internal Headers | 1x Thunderbolt (USB4) header, 1x TPM header, 1x COM header, 1x Chassis Intrusion header |
| BIOS | UEFI AMI, 256 Mbit, BIOS FlashBack support |
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, passive cooling |
| PCB Color | White |
| Motherboard Dimensions | 305 mm (W) x 244 mm (D) |
| Supported Processors | AMD Ryzen 9000, 8000, 7000 series (up to ~170W TDP) |
| Memory Speed Support | DDR5-6400+ (OC up to 8000+ MHz) |
| RAID Support | RAID 0, 1, 5, 10 |
| Included Accessories | SATA cables, antenna, screws, I/O shield (pre-mounted) |
