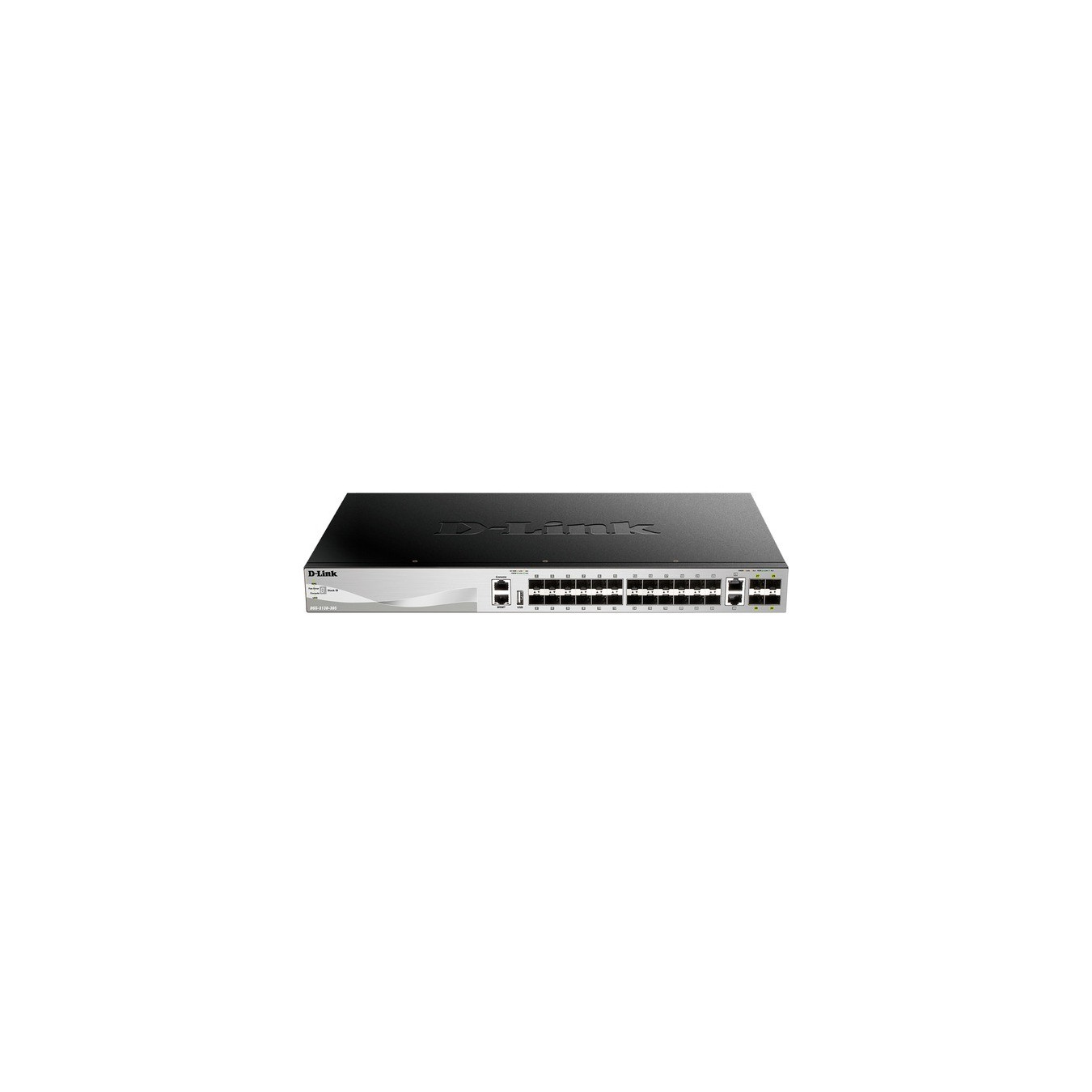

DGS-3130-30S E, Switch
Designed for small to medium enterprise networks, the DGS-3130 Series offers a unified software image with L2 and L3 capabilities, 10 Gigabit ports, and higher port density through...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Designed for small to medium enterprise networks, the DGS-3130 Series offers a unified software image with L2 and L3 capabilities, 10 Gigabit ports, and higher port density through physical stacking. Thanks to all of these features, the switches fit perfectly into a variety of environments and structures, including Metro Ethernet applications.
| Typ | Switch |
| EAN | 0790069469961 |
| Manufacturer no. | DGS-3130-30S/E |
| Design | Rack |
| Area of application | Business |
| Connections - Network | RJ-45 24x (of which: 24x 10/100/1000, 10x 1000/2500/5000/10000) |
| Routing & Switching - Switching Bandbreite | 168 GBit/s |
| Feature | MAC Address Table: 16K (16,384) entries, Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Jumbo Frames up to 9 Kbytes, 802.1AX/802.3ad Link Aggregation, Max. 32 groups per device, 8 ports per group, Spanning Tree Protocols, 802.1D STP, 802.1w RSTP, 802.1s MSTP, BPDU Filtering, Root Guard, Loop Guard, Loopback Detection, Port Mirroring, Supports One-to-One, Many-toOne, Supports Mirroring for both Tx/Rx, Supports 4 mirroring groups, Flow mirroring, Supports Mirroring for Tx/Rx, VLAN Mirroring, RSPAN, L2 Protocol Tunneling, Ethernet Ring |
| Dimensions | Width: 440mm x Height: 25mm x Depth/Length: 250mm |
| Weight | 3,5 kg |
