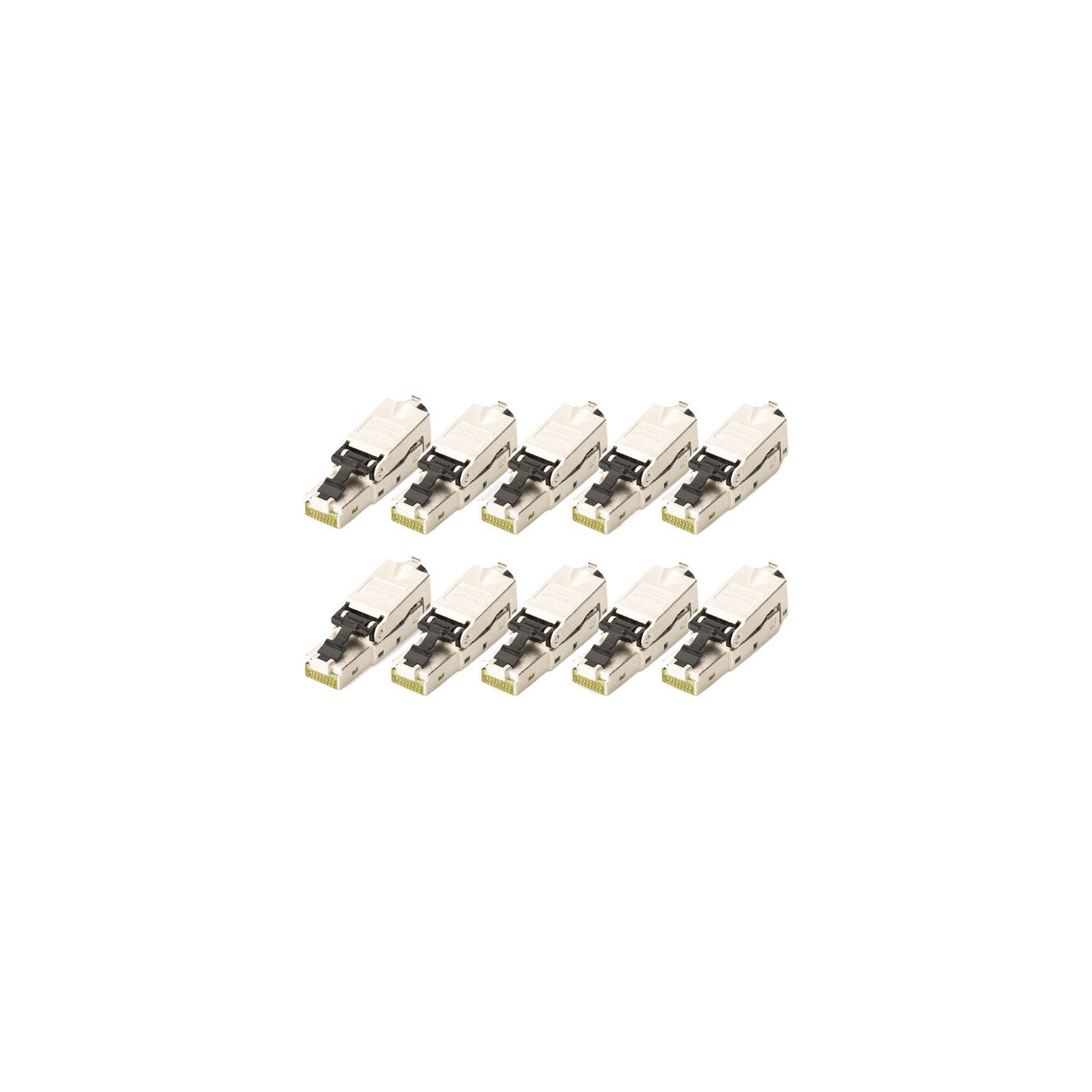

CAT.6a field plug STP dust cap kink protection, 10 pieces
The DIGITUS® CAT 6A connector for field assembly is a modern, high-quality RJ45 connector that is not only characterized by its extremely easy usability, but also always provides r...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS® CAT 6A connector for field assembly is a modern, high-quality RJ45 connector that is not only characterized by its extremely easy usability, but also always provides reliable and time-saving support to the field assembly engineer during every use. The quick assembly in just 60 seconds without any special tools, as well as the enormous flexibility, makes it the perfect choice for all locations. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers through fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector.
| Typ | Plug |
| Color | silber |
| EAN | 4016032495116 |
| Manufacturer no. | DN-93631-10 |
| Number | 10 pieces |
| Area | network |
| Feature | STP dust cap | TIA 568-A,B,Profinet2 | Pre-assembled protective cap | Robust zinc die-cast housing | 360° contacting of the cable shield for improved EMC protection | PoE+ according to IEEE 802.3at: Suitable for Power over Ethernet+ | Gigabit Ethernet according to IEEE 802.3 | 10 Gigabit Ethernet according to IEEE 802.3an: Suitable for 10 Gigabit Ethernet |
| More information | Optimized for field use, even under difficult conditions | Ideal for repairing and expanding networks | Conductor cross sections AWG 27/7-22/7, AWG 24/1-22/1 | Core diameter: 0.85 - 1.6 mm | Cable outer diameter: 5.0-9.0mm |

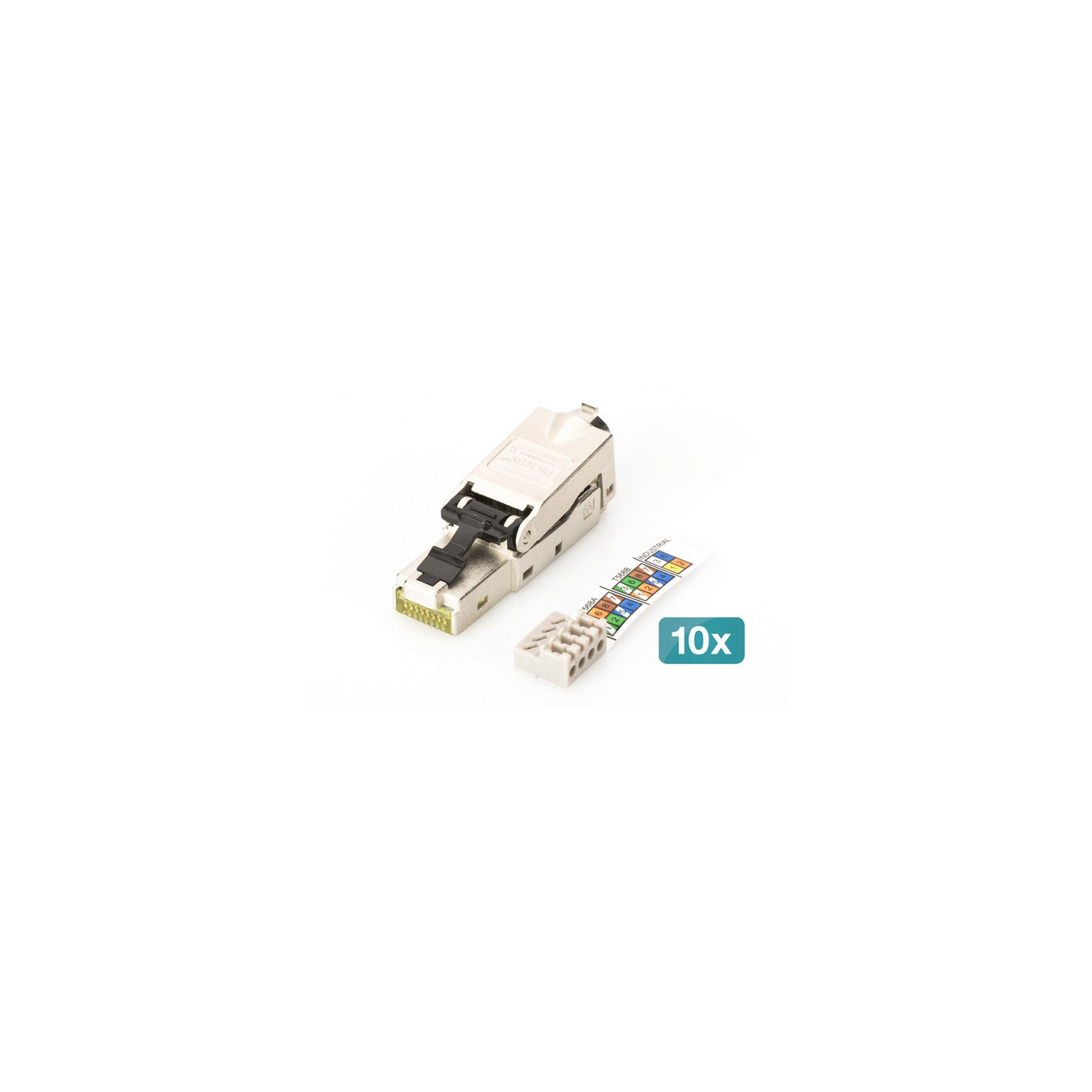

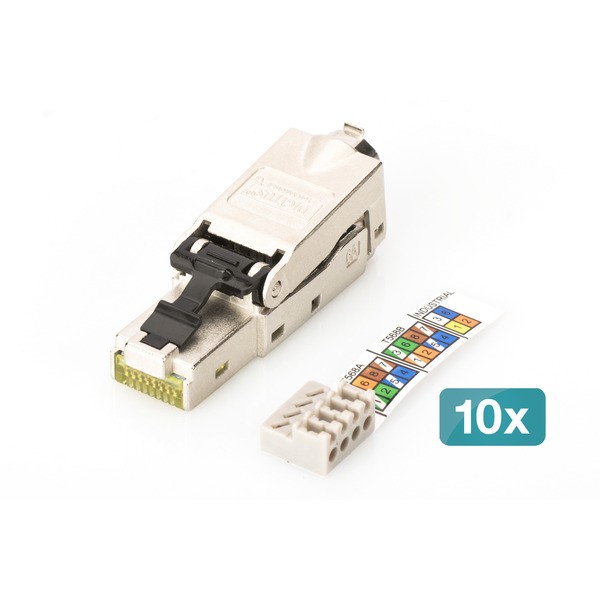

| Accessories - available | 10x kink protection grommet with strain relief, 1x wire manager with wiring information, 1x cable tie, 1x assembly instructions |
| Dimensions | Width: 13mm x Height: 12.5mm x Depth/Length: 45mm |
| Weight | 78 Gramm |
