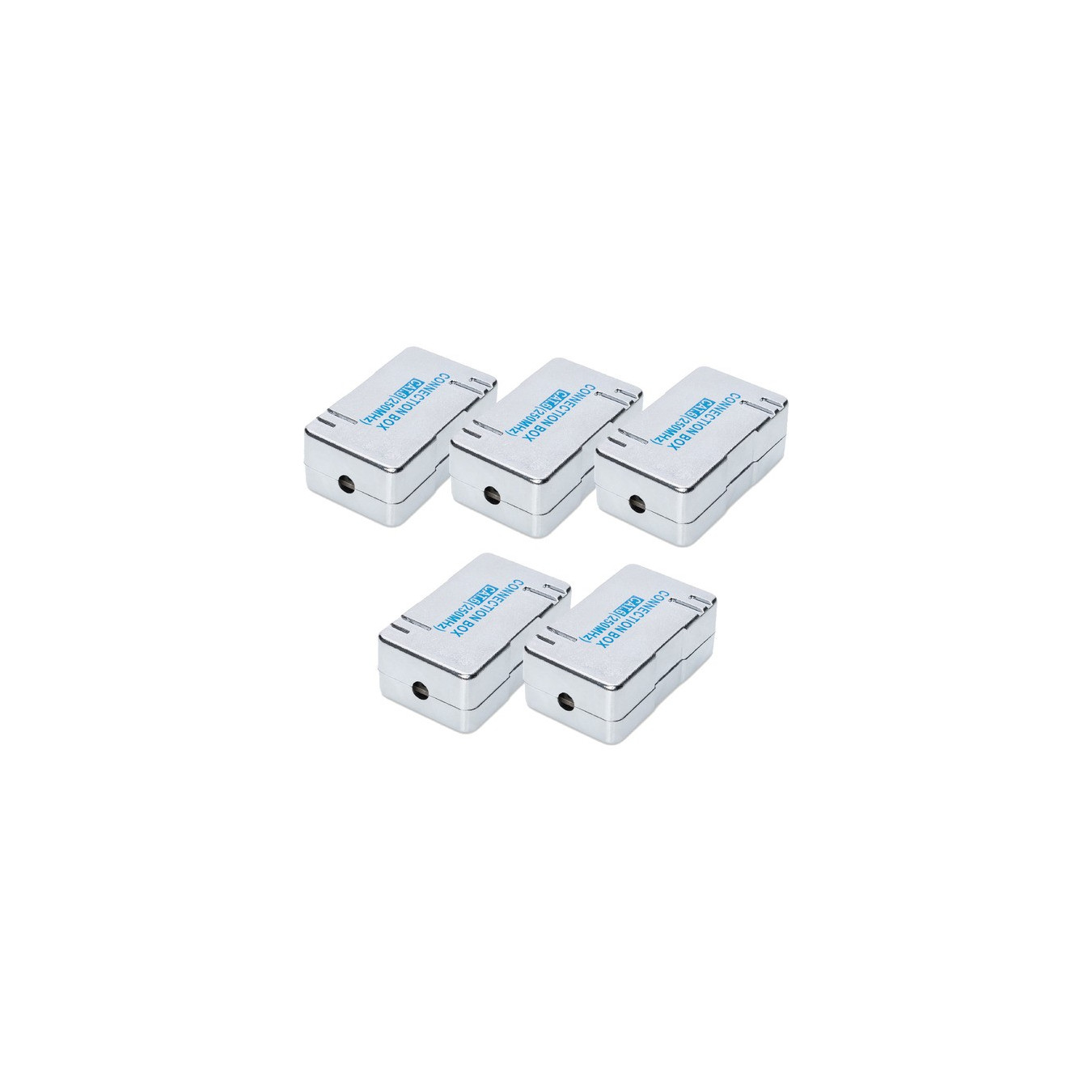

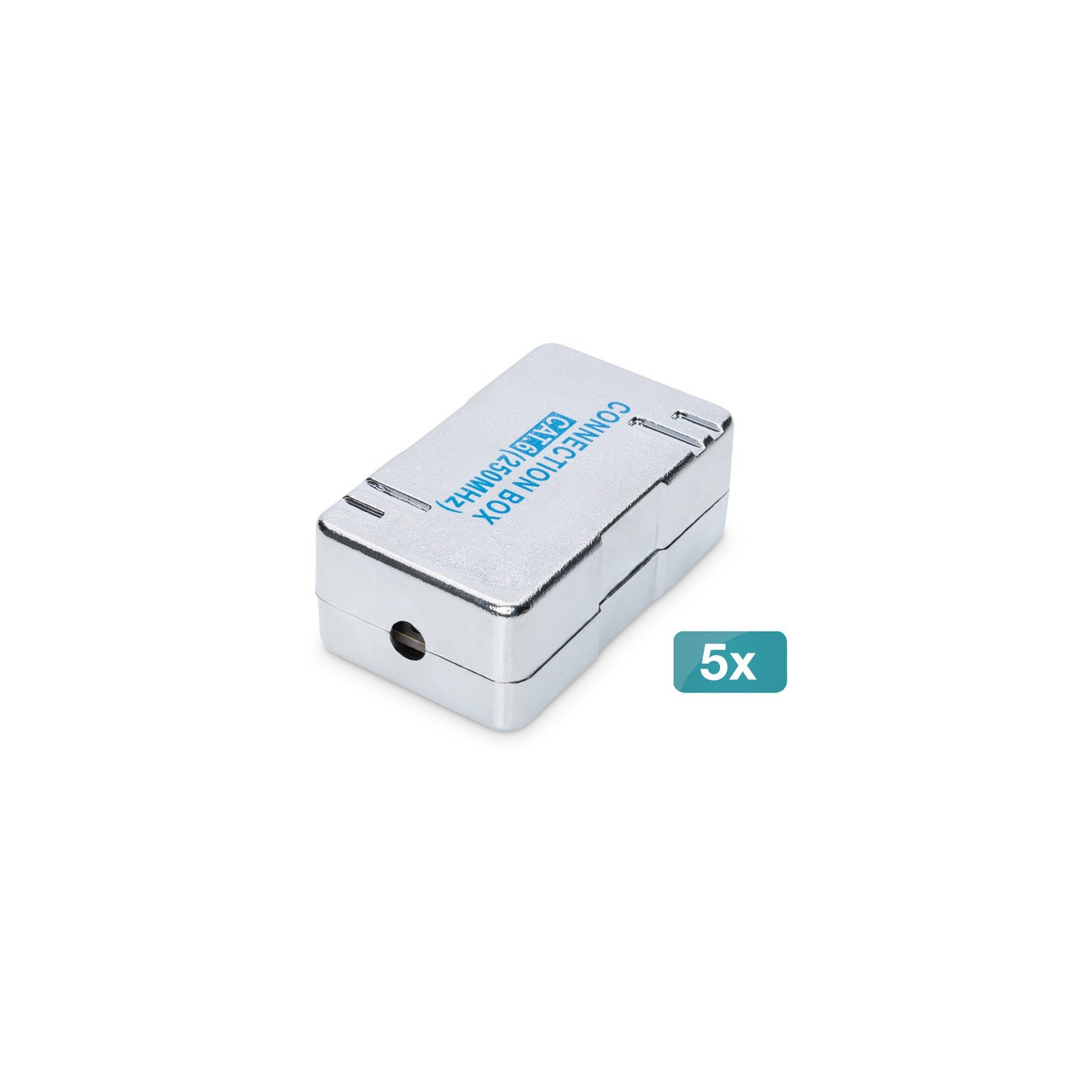

CAT 6 connection module for twisted pair cables - 5 pieces, adapter
The DIGITUS® connection module is used to connect or extend twisted pair cables.
Item no.: 100159983
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS® connection module is used to connect or extend twisted pair cables.
| Typ | Adapter |
| EAN | 4016032494829 |
| Manufacturer no. | DN-93903-5 |
| Area | network |
| Category - Cable | Cat.6 |
| Feature | Transmission property: Category 6 | Areas of application: Up to 250 MHz, 1GBase-T | Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C | Suitable for installation in parapet channels, flush-mounted & surface-mounted | Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B | Geeignet zur Verbindung von Installationskabeln - Verlängerung von Kabeln, ersetzen von Kabelstrecken | Integrated strain relief for installation cables | Suitable for cable AWG 22-26 average | Housing material: ABS UL-94V-0 |
| More information | Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact | RJ-45 Shielding: Nickel Plated Bronze | LSA insulation displacement terminal: Krone LSA+, UL 94V-0, galvanized phosphor bronze | PCB: FR4, UL 94V-0 | Physical properties: Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) | Core intake: 22-26 AWG solid and stranded conductors | Insulation resistance: > 500 MOhm | Contact resistance: < 20 MilliOhm | Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) |
