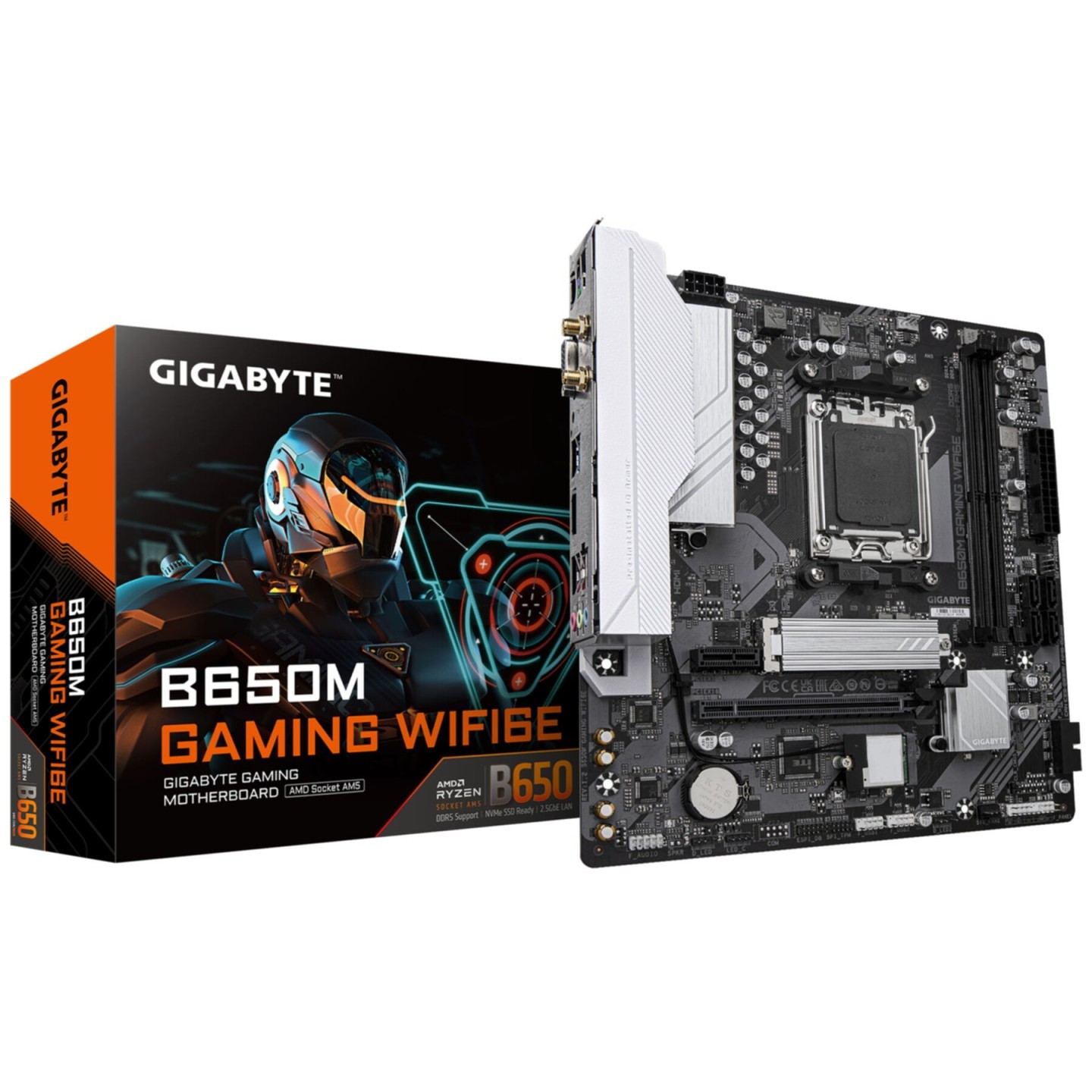

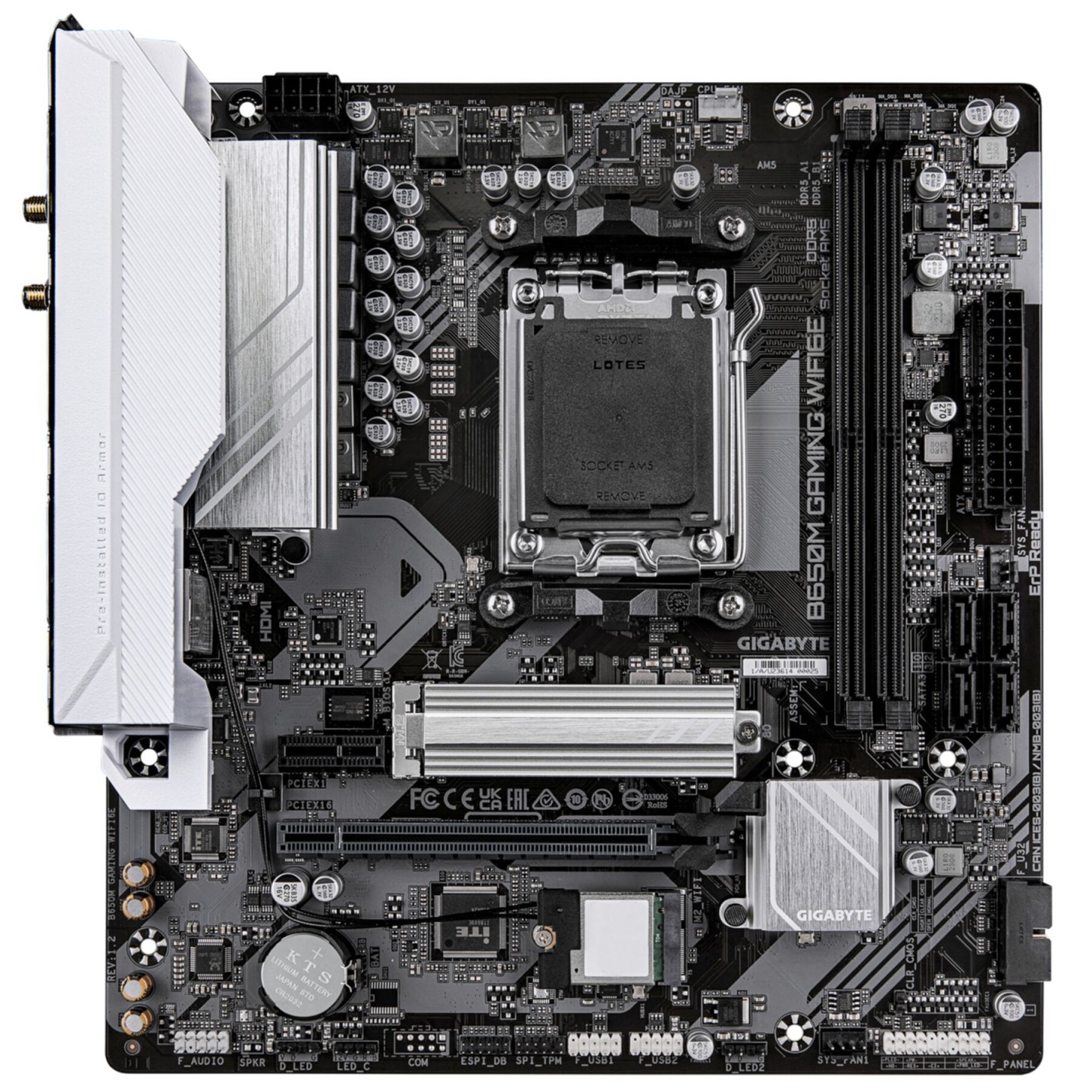

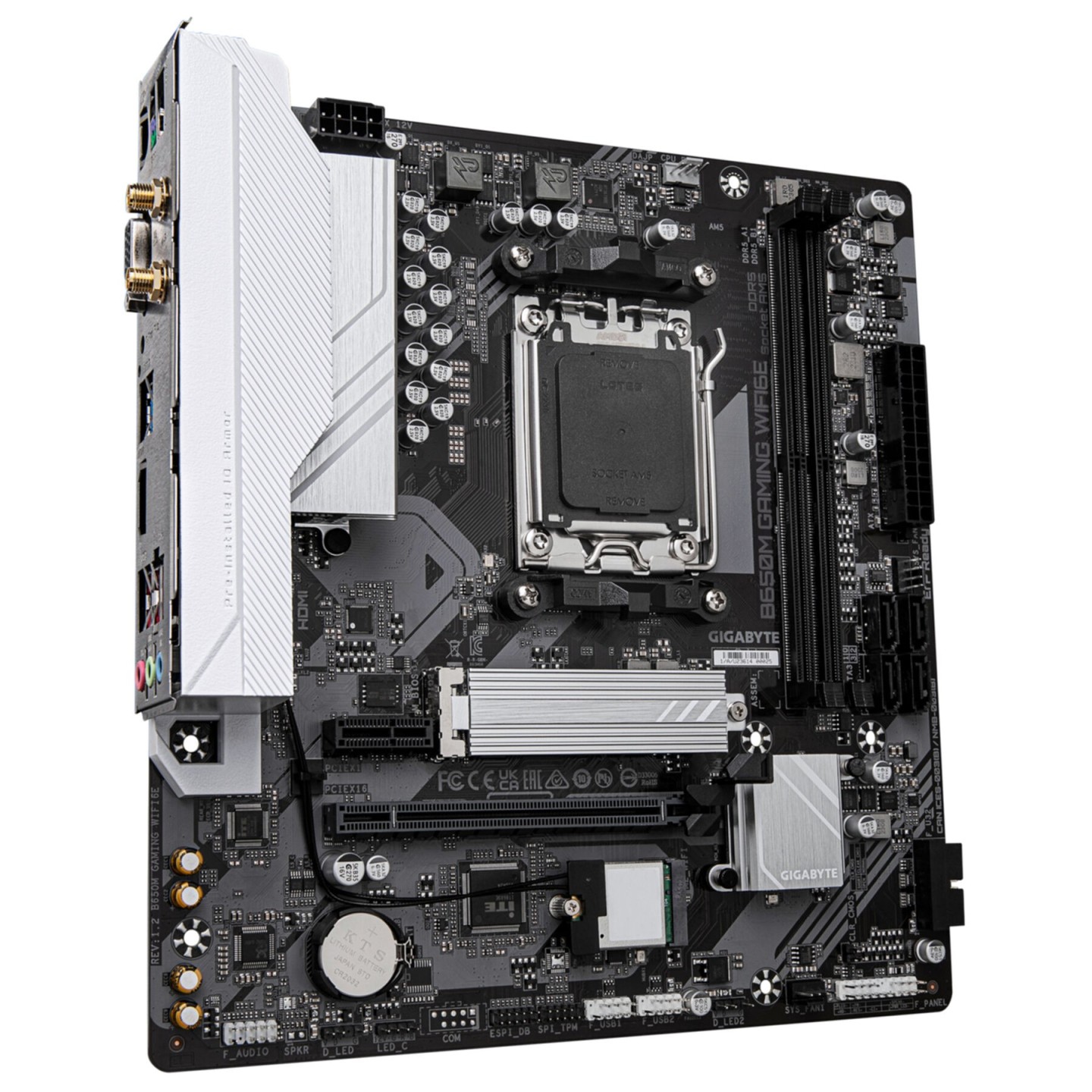

GIGABYTE B650M GAMING WIFI6E AM5 Micro-ATX Motherboard B650 DDR5 Wi-Fi 6E (Boxed)
AM5 Micro-ATX B650 motherboard supports AMD Ryzen 7000/8000/9000. DDR5 4xDIMM up to 256GB, 2x PCIe 4.0 M.2, 4x SATA, Wi-Fi 6E, 2.5GbE LAN, HDMI/DisplayPort. EZ-Latch PCIe slot.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
Experience top-tier performance with the GIGABYTE B650M GAMING WIFI6E, an AM5 Micro-ATX motherboard built for AMD Ryzen 7000/8000/9000 series processors. Featuring the AMD B650 chipset, it delivers dual-channel DDR5 support across 4 DIMM slots (up to 256GB at 6400MHz+ with EXPO), ensuring smooth multitasking and gaming.
Connectivity shines with Wi-Fi 6E (RTL8852CE) supporting 2.4/5/6GHz bands for gigabit speeds, Bluetooth 5.3, and Realtek 2.5GbE LAN. Storage options include 2x PCIe 4.0 M.2 slots, 4x SATA III ports with RAID 0/1/10. The PCIe 4.0 x16 slot features EZ-Latch for easy GPU installation. Audio is handled by Realtek ALC897 7.1-channel, with multiple USB ports including rear USB 3.2 Gen1.
- ✅ AMD Socket AM5 for Ryzen 7000/8000/9000 series
- ✅ DDR5 memory up to 256GB (EXPO support)
- ✅ Wi-Fi 6E + Bluetooth 5.3 + 2.5GbE LAN
- ✅ 2x M.2 PCIe 4.0 + 4x SATA III (RAID support)
- ✅ 3x RGB/ARGB headers for lighting customization

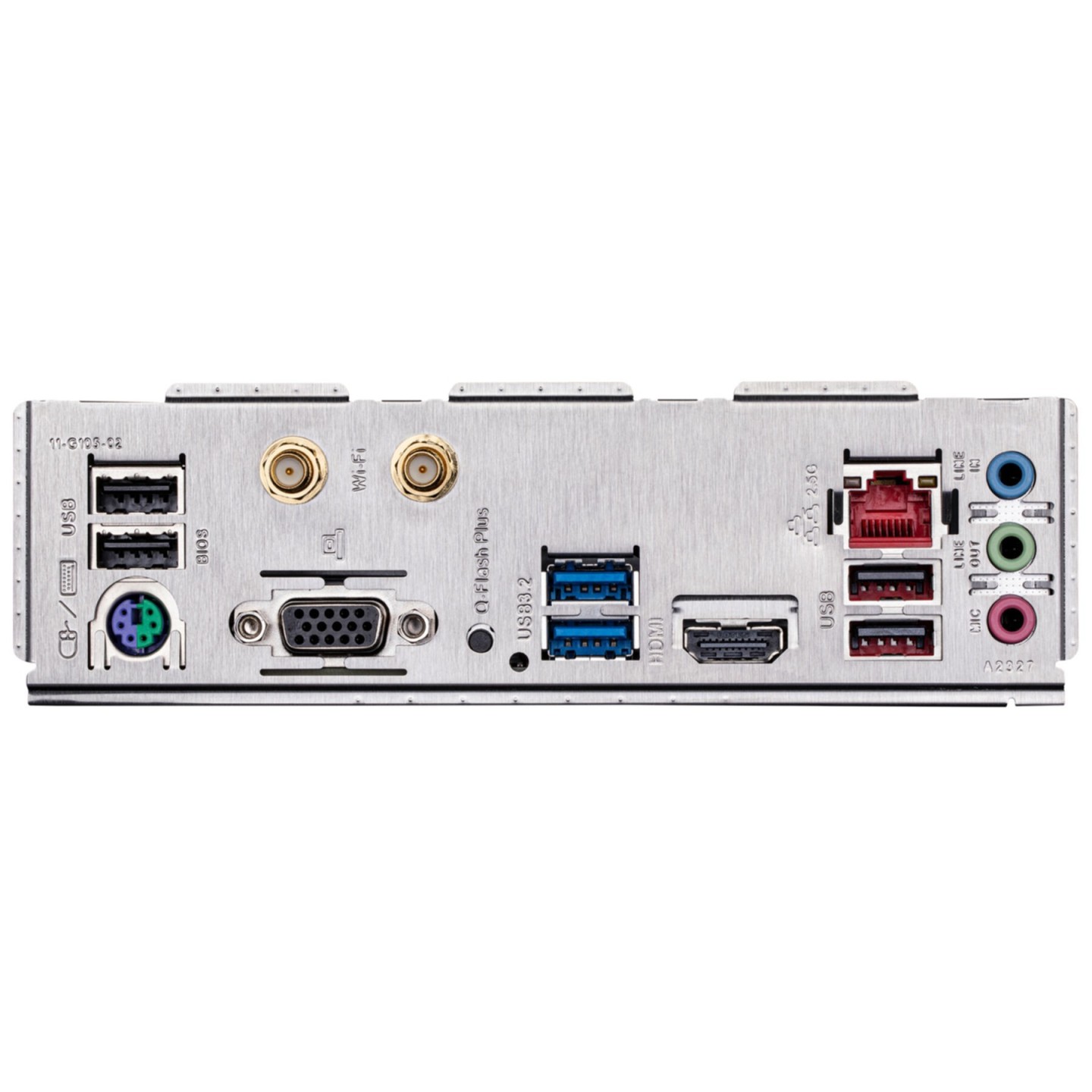

- ✅ HDMI 2.1, D-Sub video outputs
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Audio output channels | 7.1 channels |
| RAID levels | 0, 1, 10 |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.21 kg |
| Warranty period | 3 year(s) |
