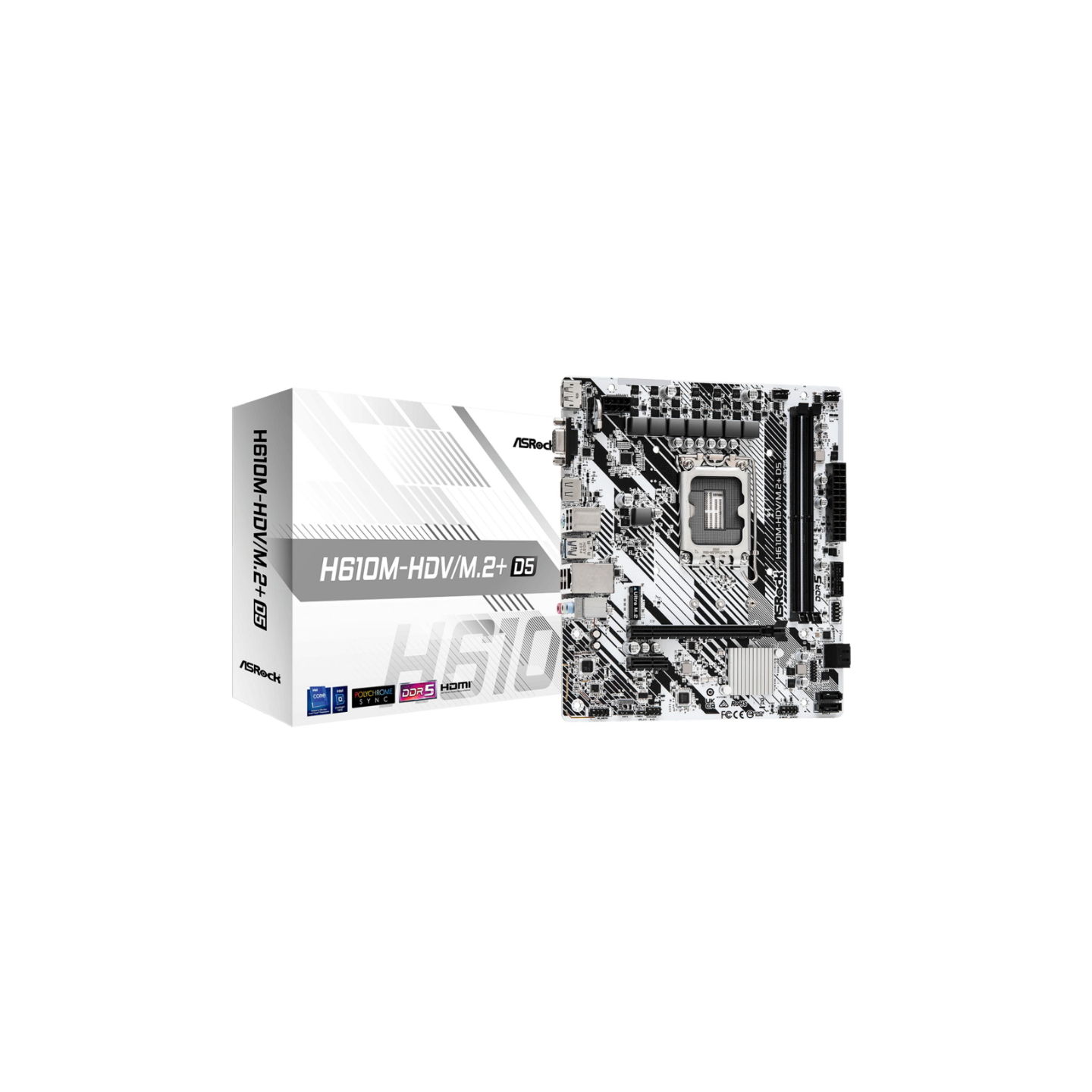

ASRock H610M-HDV/M.2+ D5 LGA1700 Micro-ATX DDR5 PCIe4.0 (Boxed)
Micro-ATX LGA1700 Intel H610 motherboard with DDR5 (2xDIMM up to 96GB/5600MHz+), M.2 PCIe Gen3x4 (32Gb/s), PCIe4.0 x16, 4xSATA, USB-C, HDMI/DP/D-Sub, RGB header, GbE LAN, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |

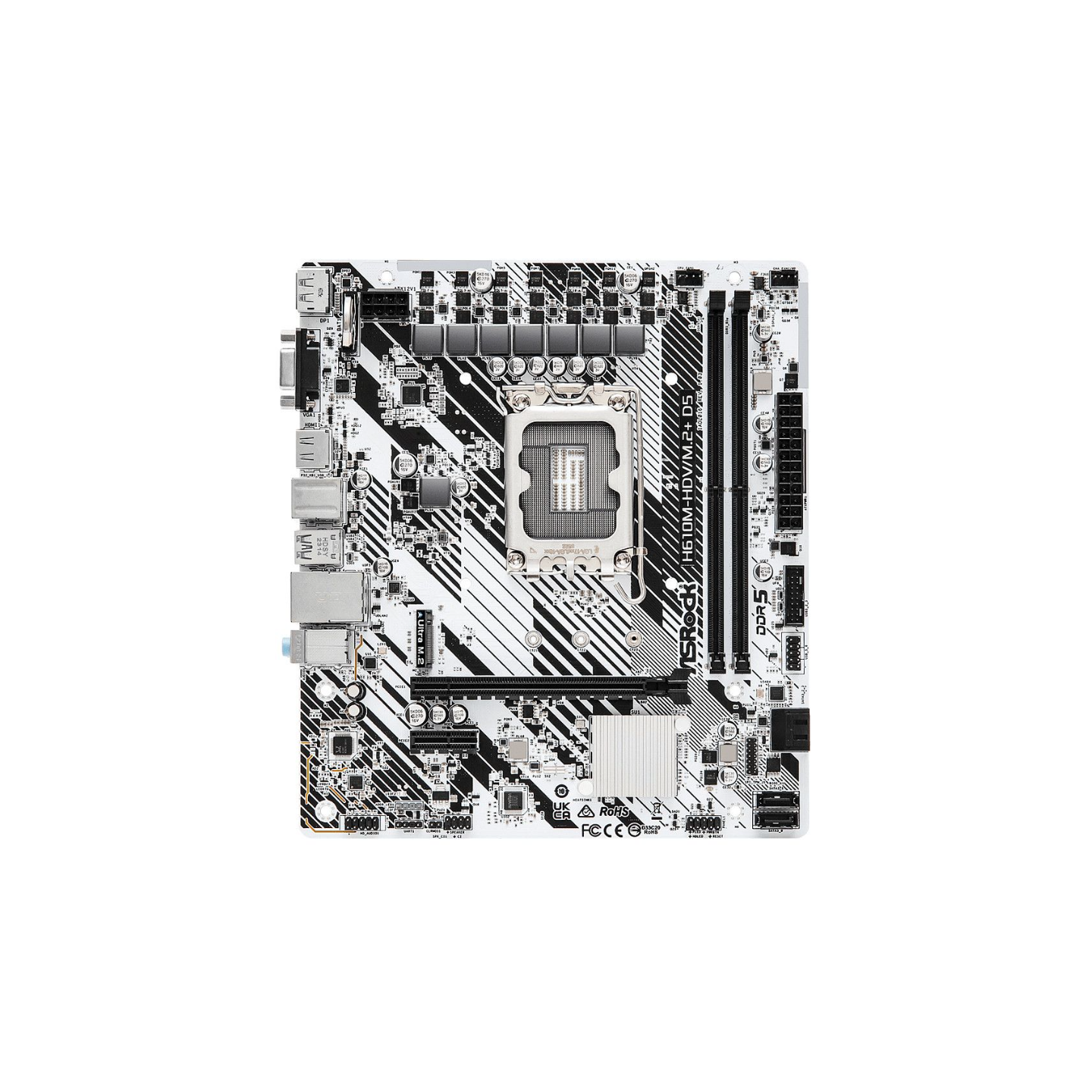

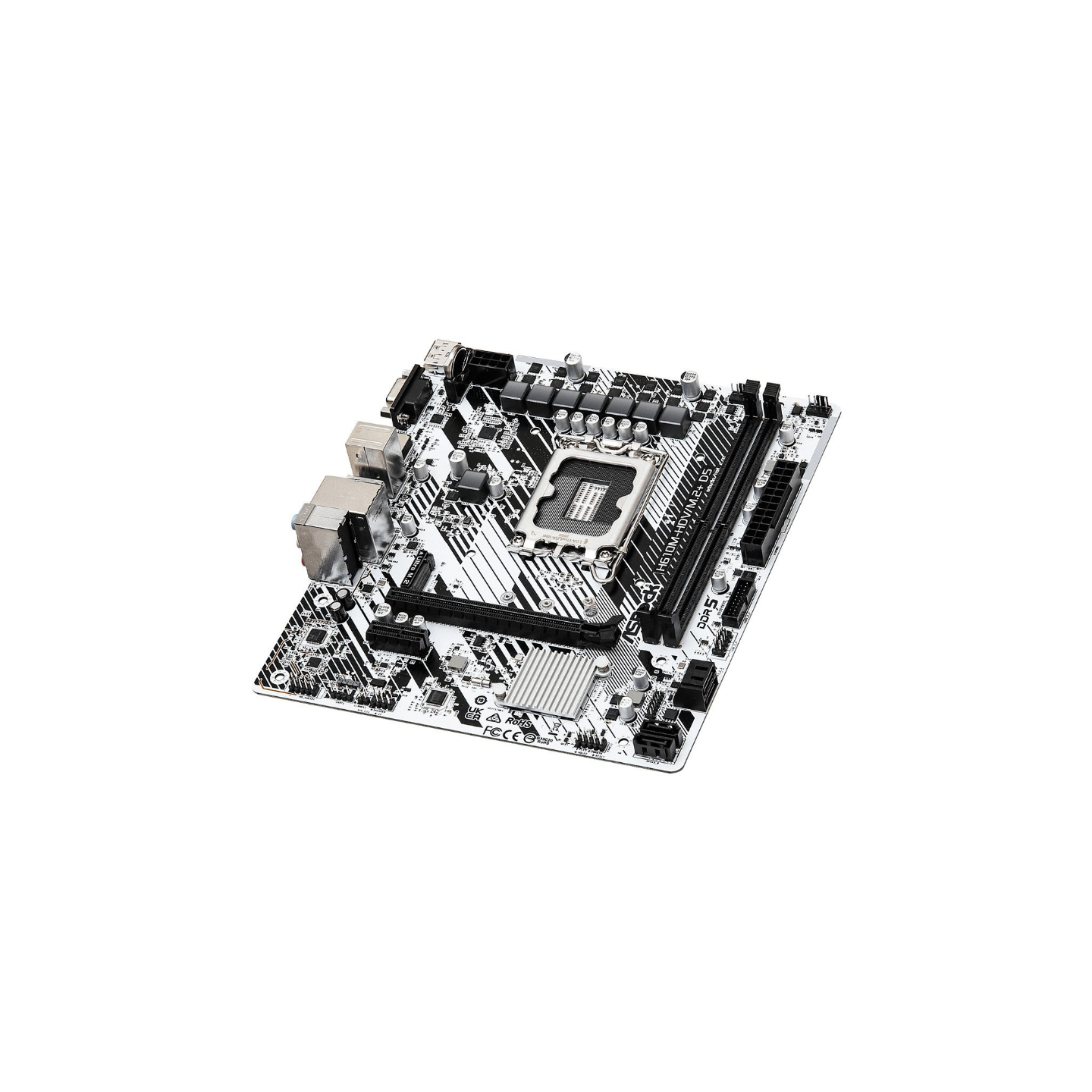

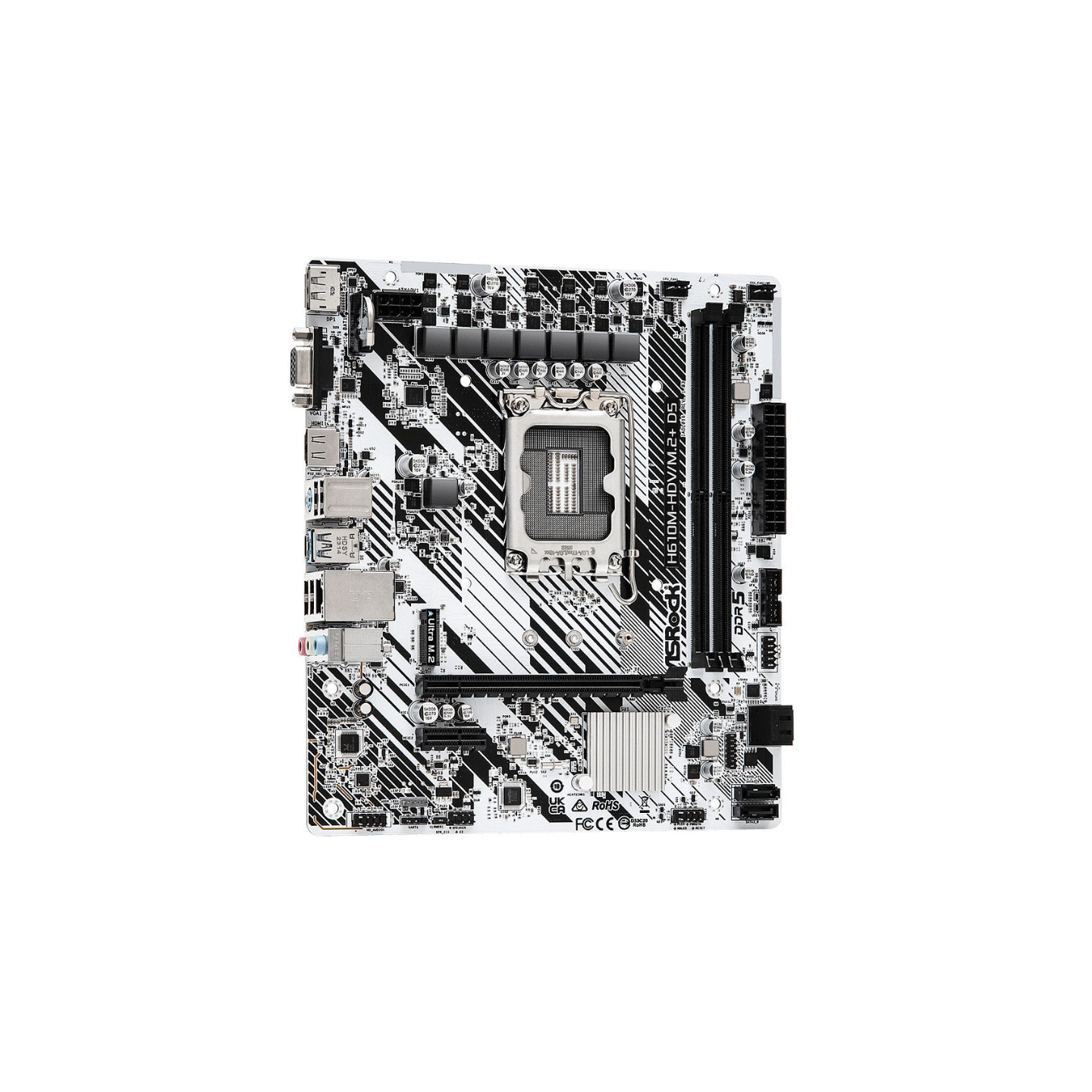

ASRock H610M-HDV/M.2+ D5 is an entry-level Micro-ATX motherboard for Intel 12th/13th/14th Gen Core processors (LGA1700). Featuring the Intel H610 chipset, it supports DDR5 memory up to 96GB across 2 DIMM slots with speeds up to 5600MHz+(OC) for efficient multitasking and future-proofing.
It includes a 6+1+1 power phase design for stable CPU power delivery, Polychrome RGB header for customizable lighting sync, Ultra M.2 slot (PCIe Gen3 x4, 32Gb/s), PCIe 4.0 x16 graphics slot, 4x SATA III ports, rear USB 3.2 Gen1 Type-C (5Gbps), and triple display outputs: HDMI (4K@60Hz), DisplayPort 1.4, D-Sub. Additional features include Realtek RTL8111H Gigabit LAN, Realtek ALC897 7.1-channel HD audio, and Auto Driver Installer for easy setup.
- Supports Intel Core i9/i7/i5/i3/Pentium/Celeron (LGA1700)
- DDR5 Dual-Channel, Non-ECC, up to 96GB
- 1x M.2 (PCIe Gen3x4), 4x SATA3

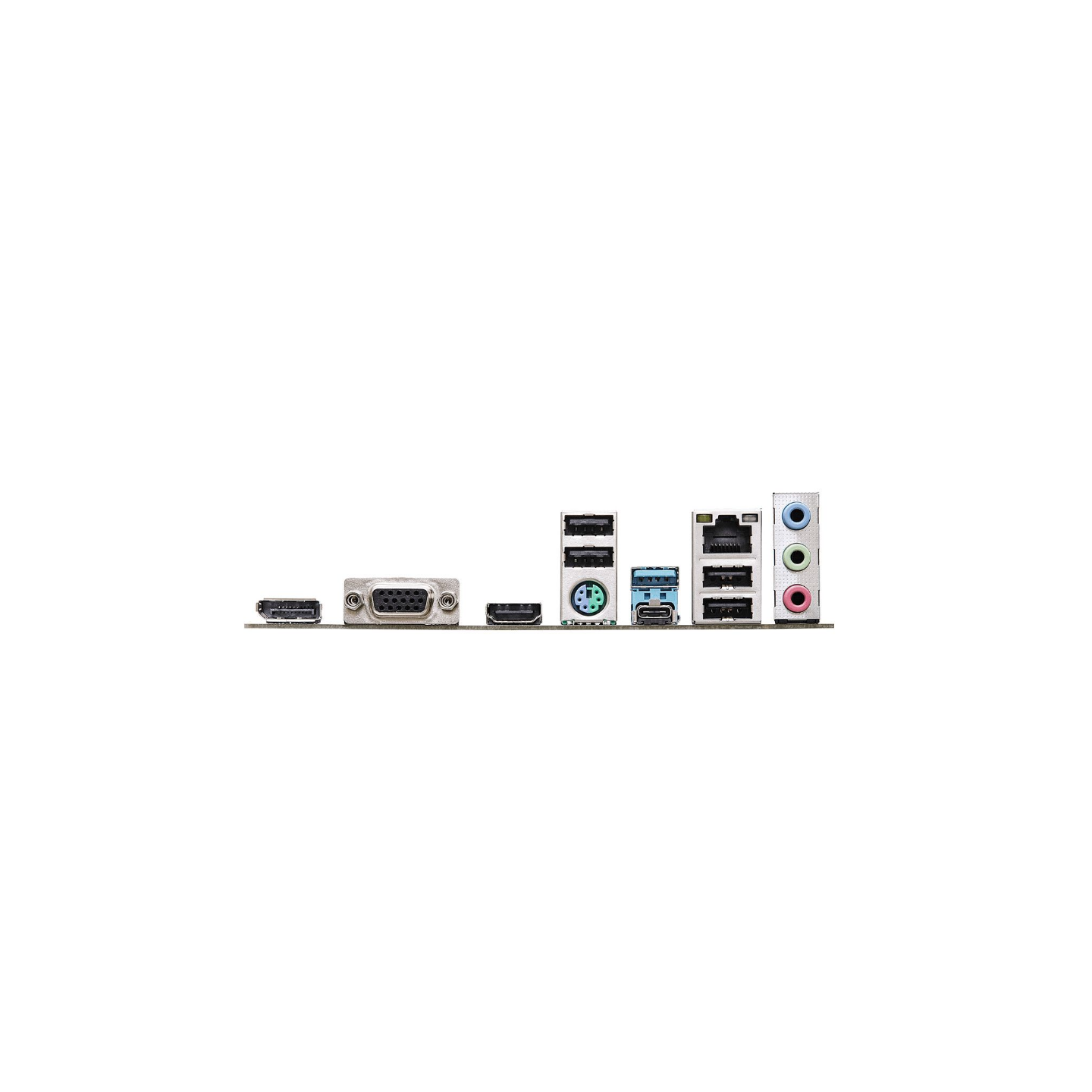

- Graphics: HDMI, DP 1.4, VGA
- USB: 1x Type-C, 1x Type-A (Gen1 rear), headers for more
- ARGB header, PS/2 combo port
- Dimensions: 22.0 x 19.3 cm
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported storage drive interfaces | SATA III |
| Number of SATA III connectors | 4 |
| M.2 slots | 1 (PCIe Gen3 x4, 32Gb/s) |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Width | 220 mm |
| Depth | 193 mm |
| Power Phase Design | 6+1+1 |
| RGB Headers | 1x 3-pin 5V ARGB |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
