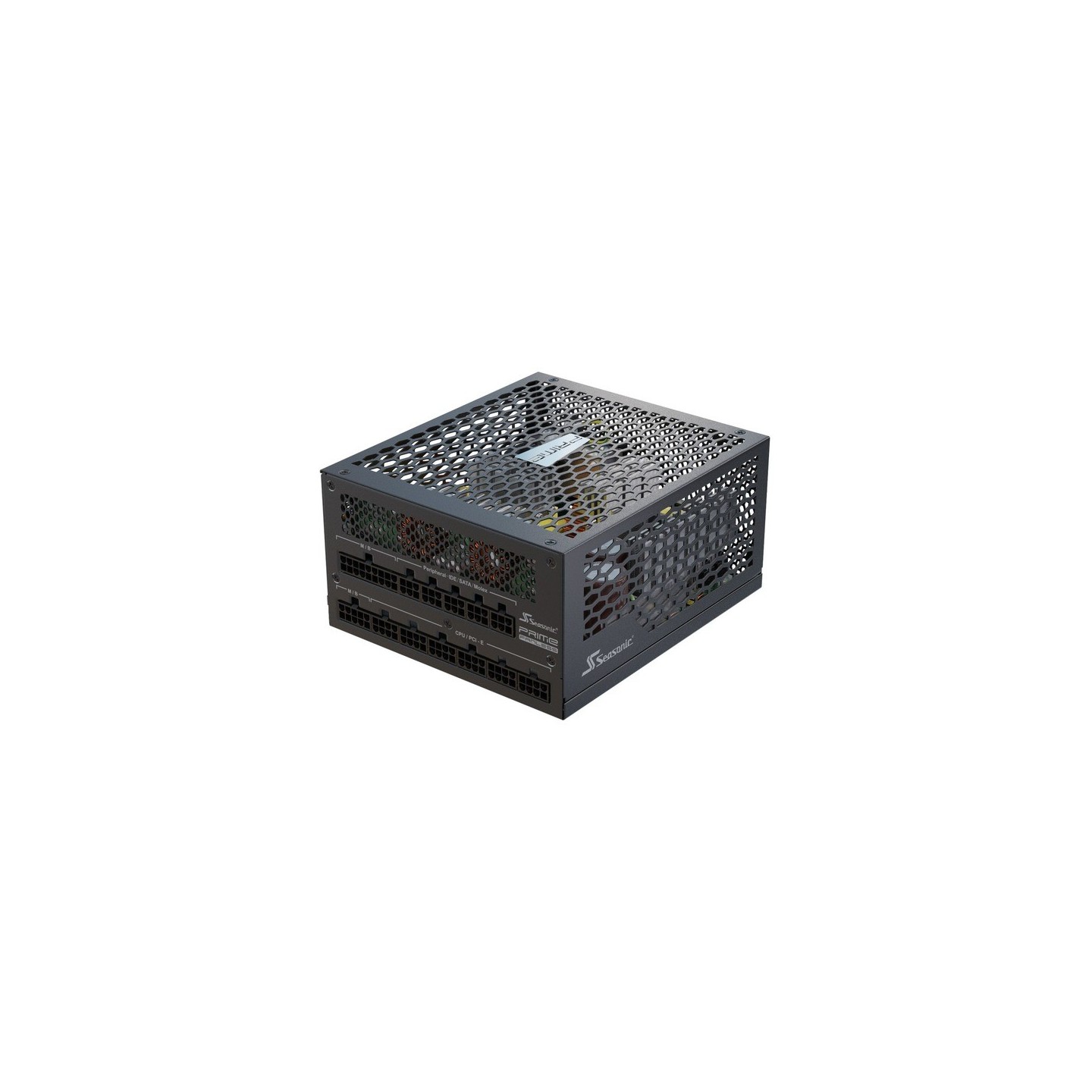

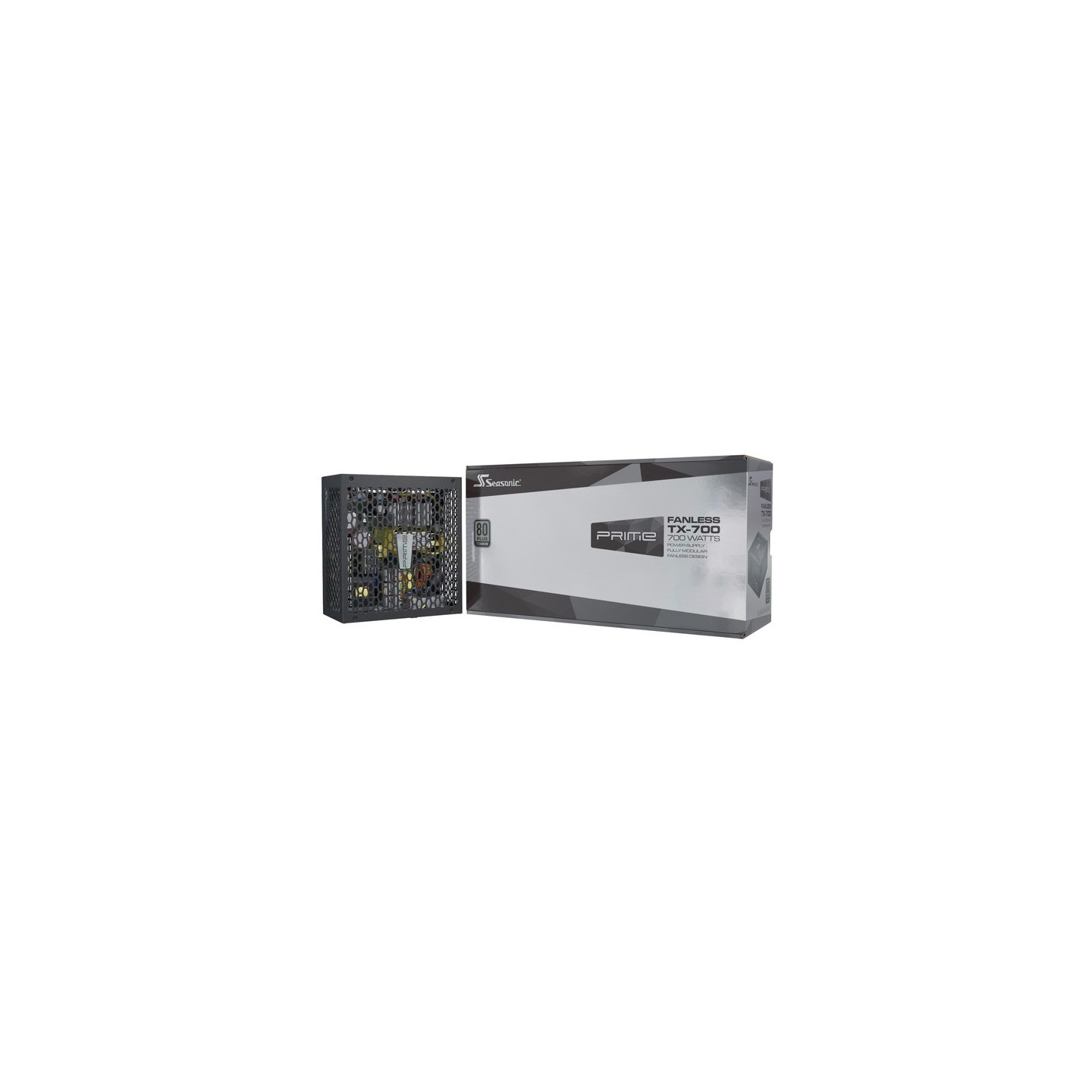

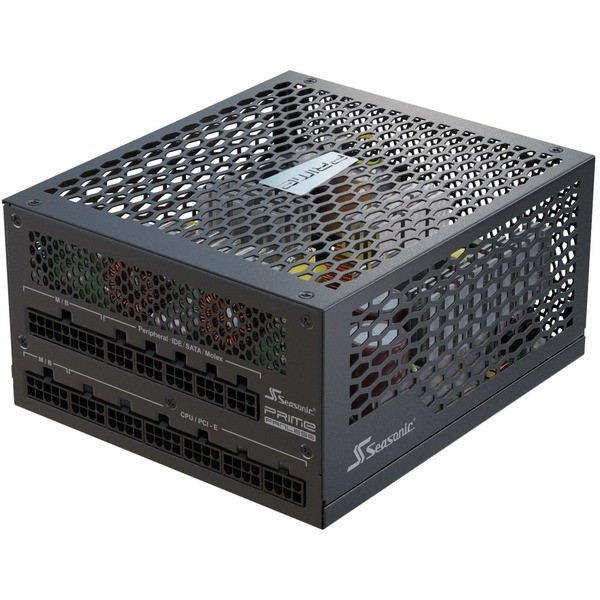

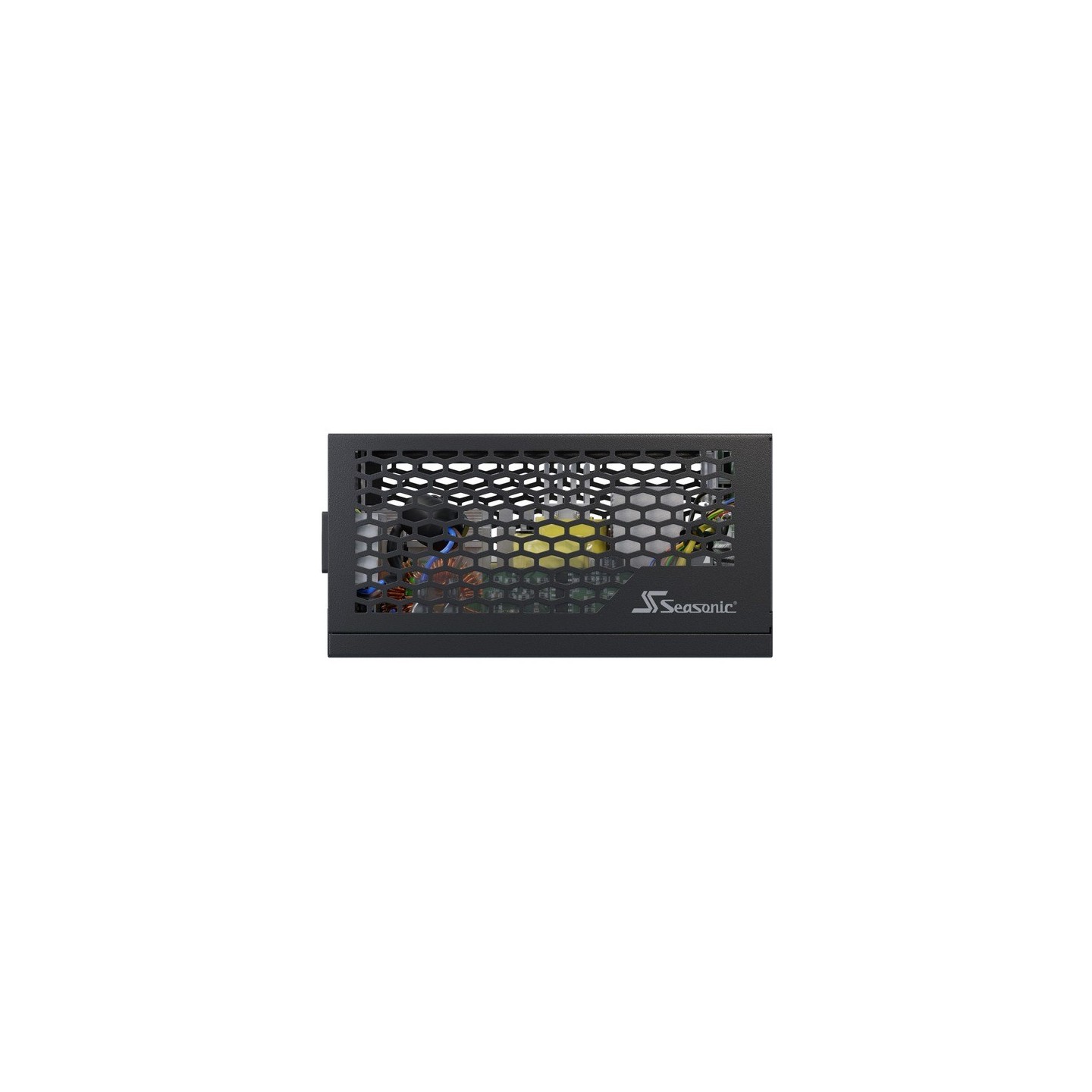

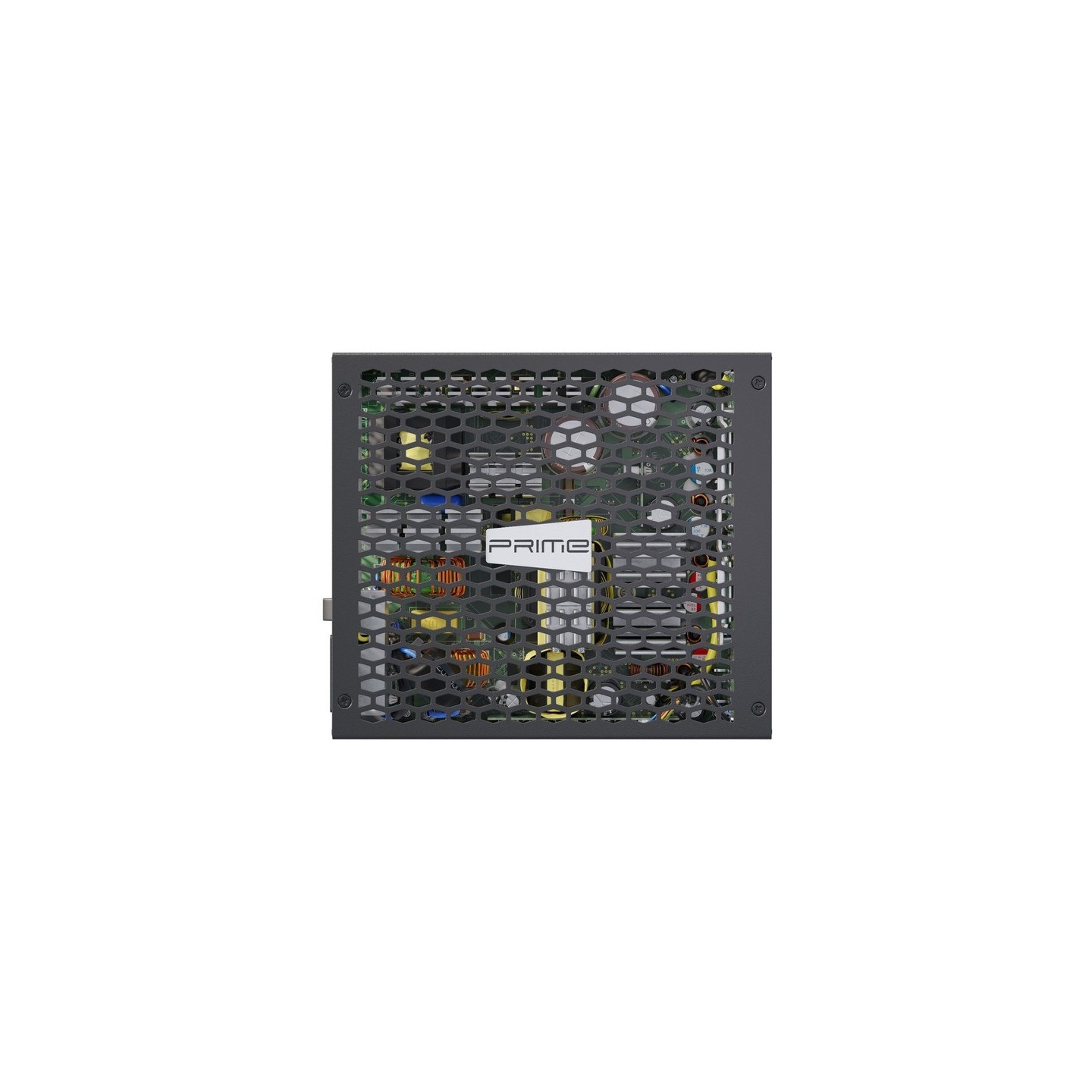

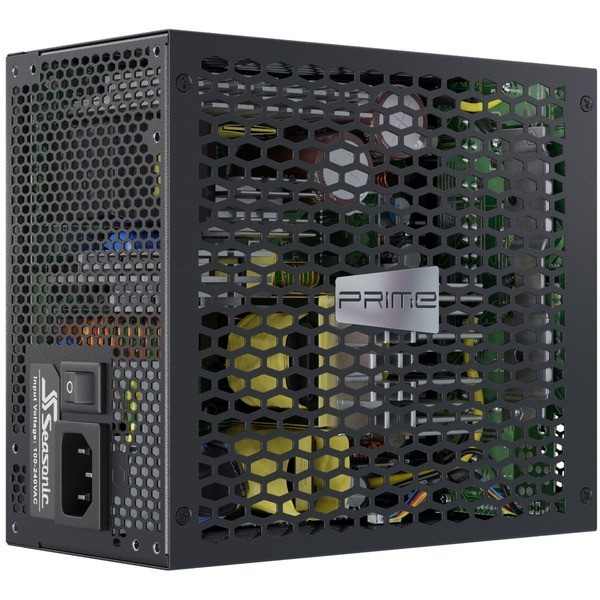

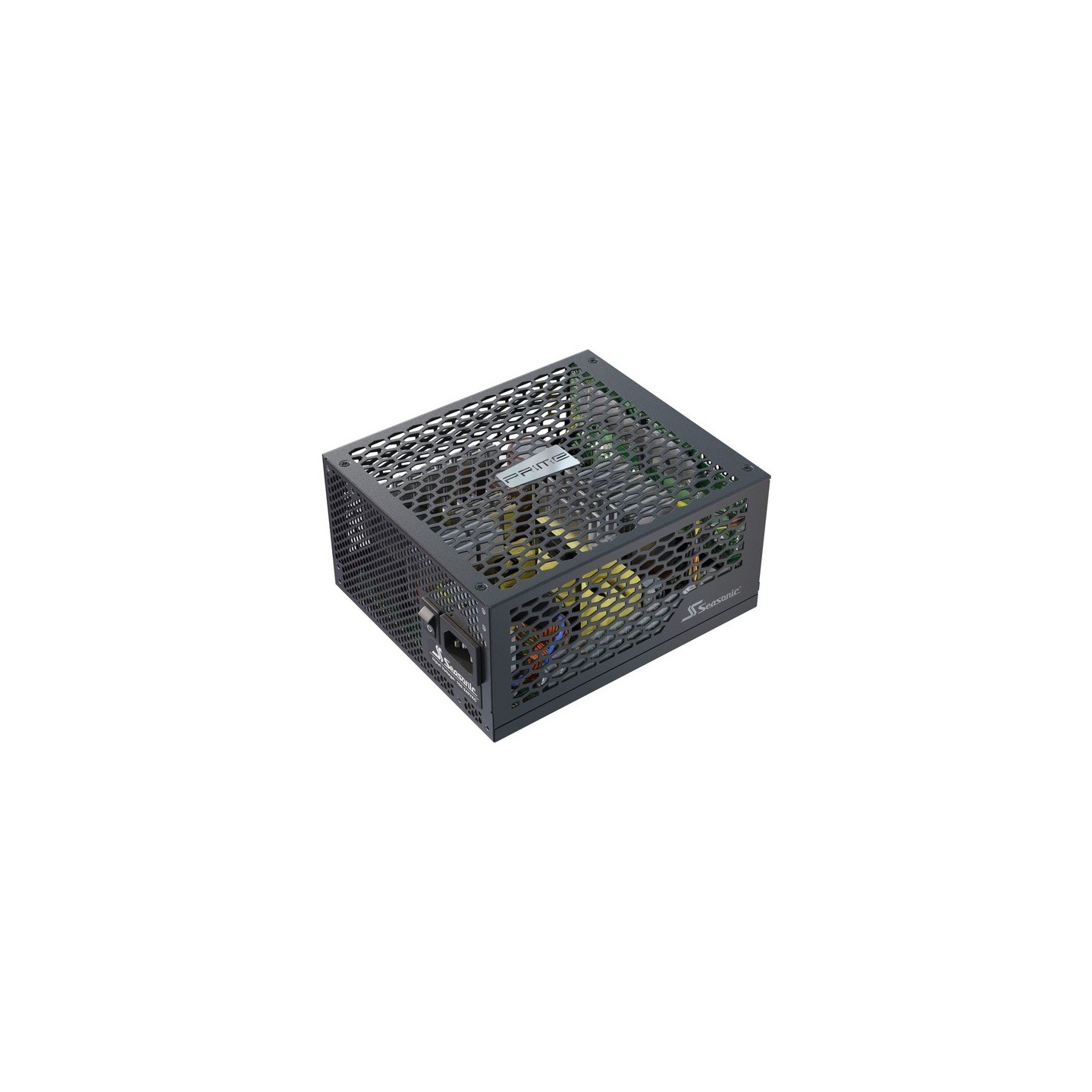

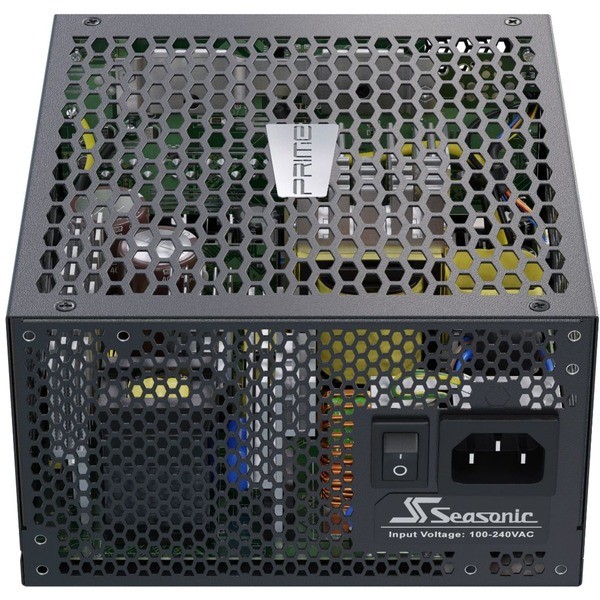

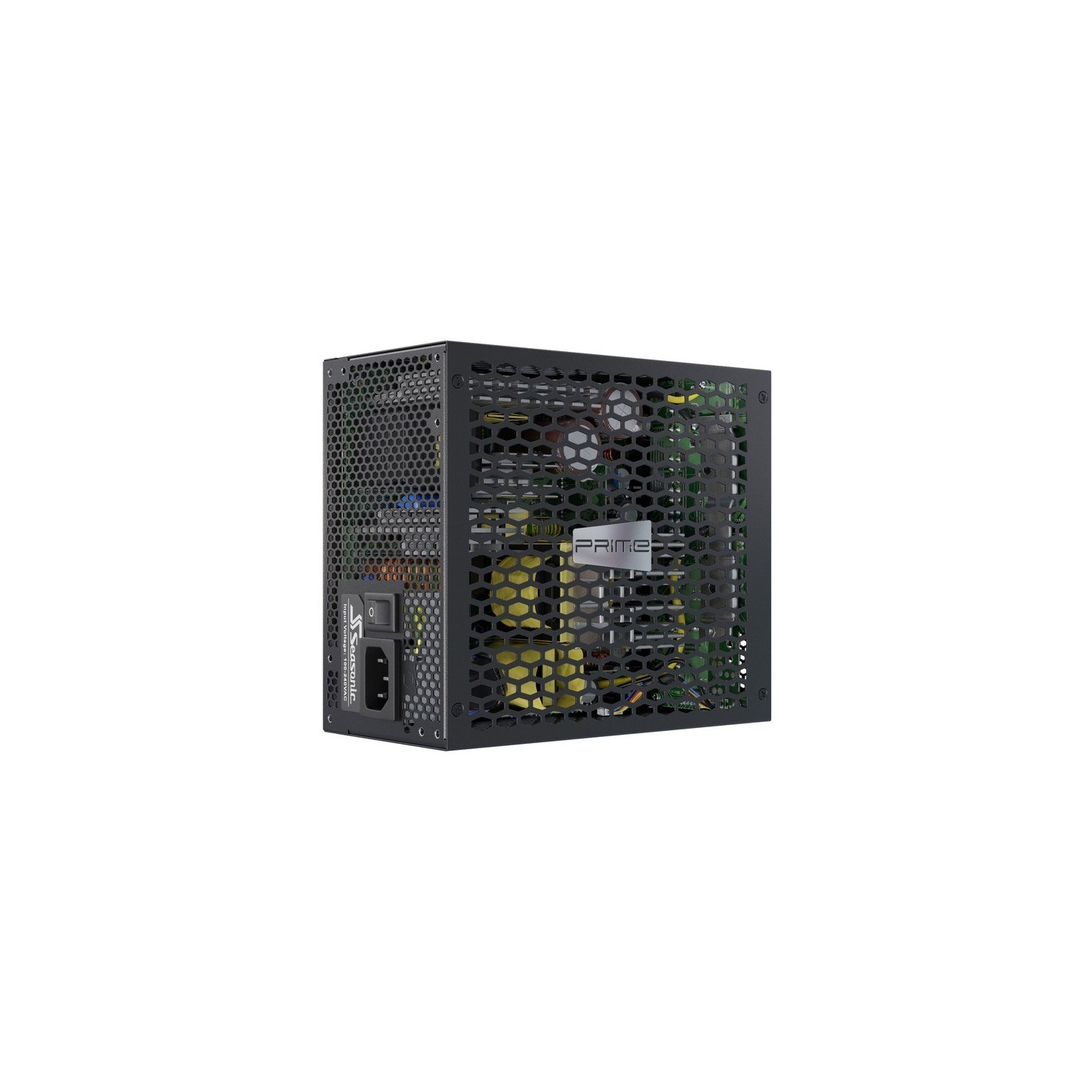

Seasonic PRIME Fanless TX-700 700W 80+ Titanium Fanless PSU SSR-700TL (Boxed)
Seasonic PRIME Fanless TX-700 is a silent 700W 80 PLUS Titanium PSU with fully modular cables. Fanless design eliminates noise, delivers 696W on single 12V rail. Ideal for high-end quiet PC builds with 12-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Titanium |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

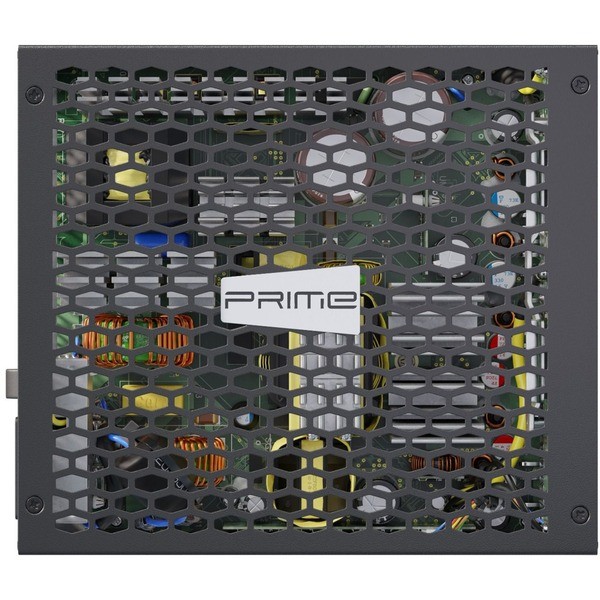

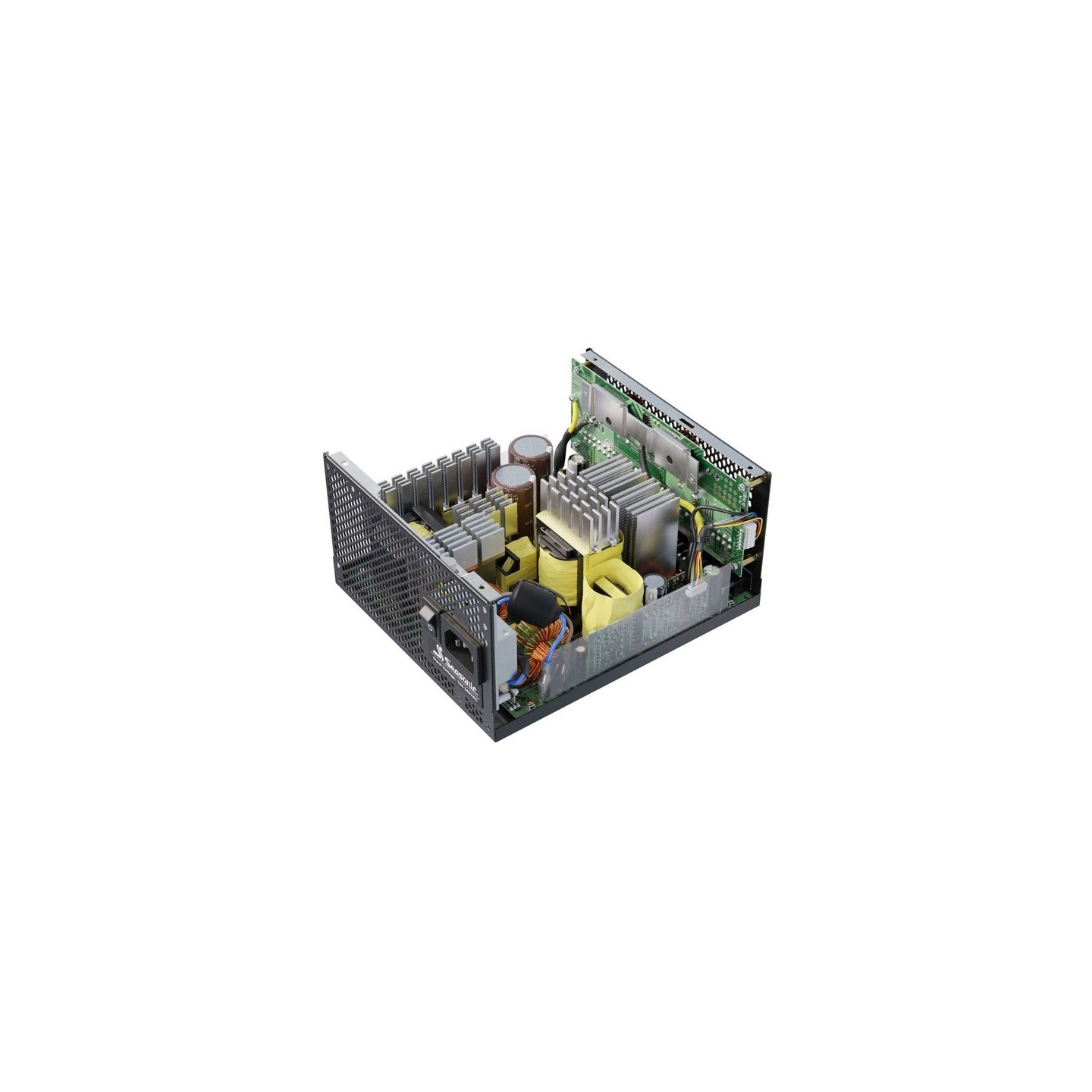

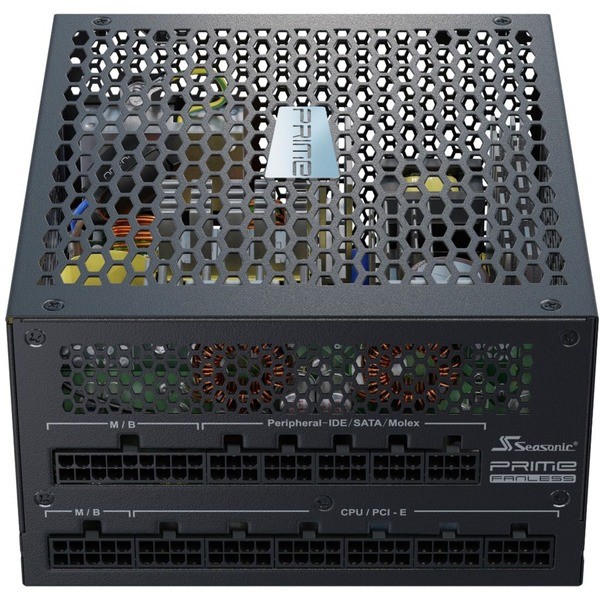

The Seasonic PRIME Fanless TX-700 (SSR-700TL) is a premium 700W power supply designed for silent operation. Completely fanless, it uses advanced heat dissipation technology to eliminate noise while maintaining excellent thermal performance even under heavy loads up to 47°C.
Certified 80 PLUS Titanium with up to 94% efficiency at 50% load, it features a single powerful 12V rail (58A/696W), micro tolerance load regulation (<0.5% on 12V), and full protection suite. Fully modular cables improve airflow and cable management. Includes 2x 4+4-pin EPS/ATX12V for CPUs and 4x PCIe 6+2-pin for GPUs, plus 10x SATA and 5x Molex connectors.
- Fanless passive cooling - 0dB noise
- 80 PLUS Titanium certified - 94% peak efficiency
- Fully modular design with flat black cables
- 2x EPS12V + 4x PCIe 6+2-pin connectors
- 12-year warranty, premium Japanese capacitors
- ATX 2.4 compliant, Cybenetics A++ noise rating
| Type | PC power supply |
| Color | Black |
| EAN | 4711173876175 |
| Manufacturer no. | PRIME-TX-700 / SSR-700TL |
| Series | PRIME TX Fanless |
| Performance - Overall | 700 W |
| Standard | ATX12V 2.4 |
| PCIe | 5.1 |
| Design | ATX |
| Certification | 80 PLUS Titanium, Cybenetics Titanium / A++ |
| Current strengths - +3.3 V | 20 A |
| Current strengths - +5 V | 20 A |
| Current strengths - +12 V | 58 A |
| Current strengths - +5 Vsb | 2.5 A |
| Power factor correction | Active PFC |

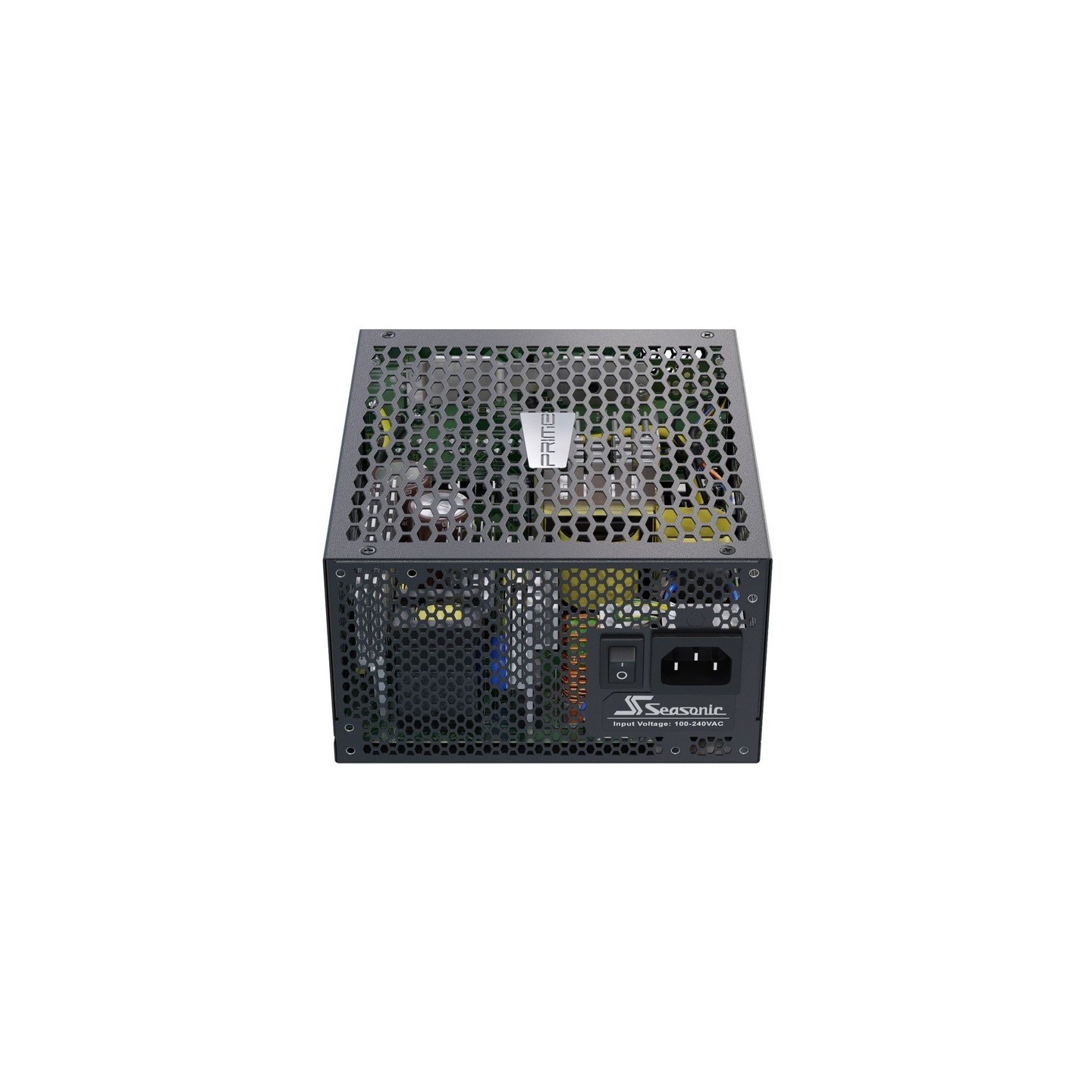

| Switch | 1x power switch |

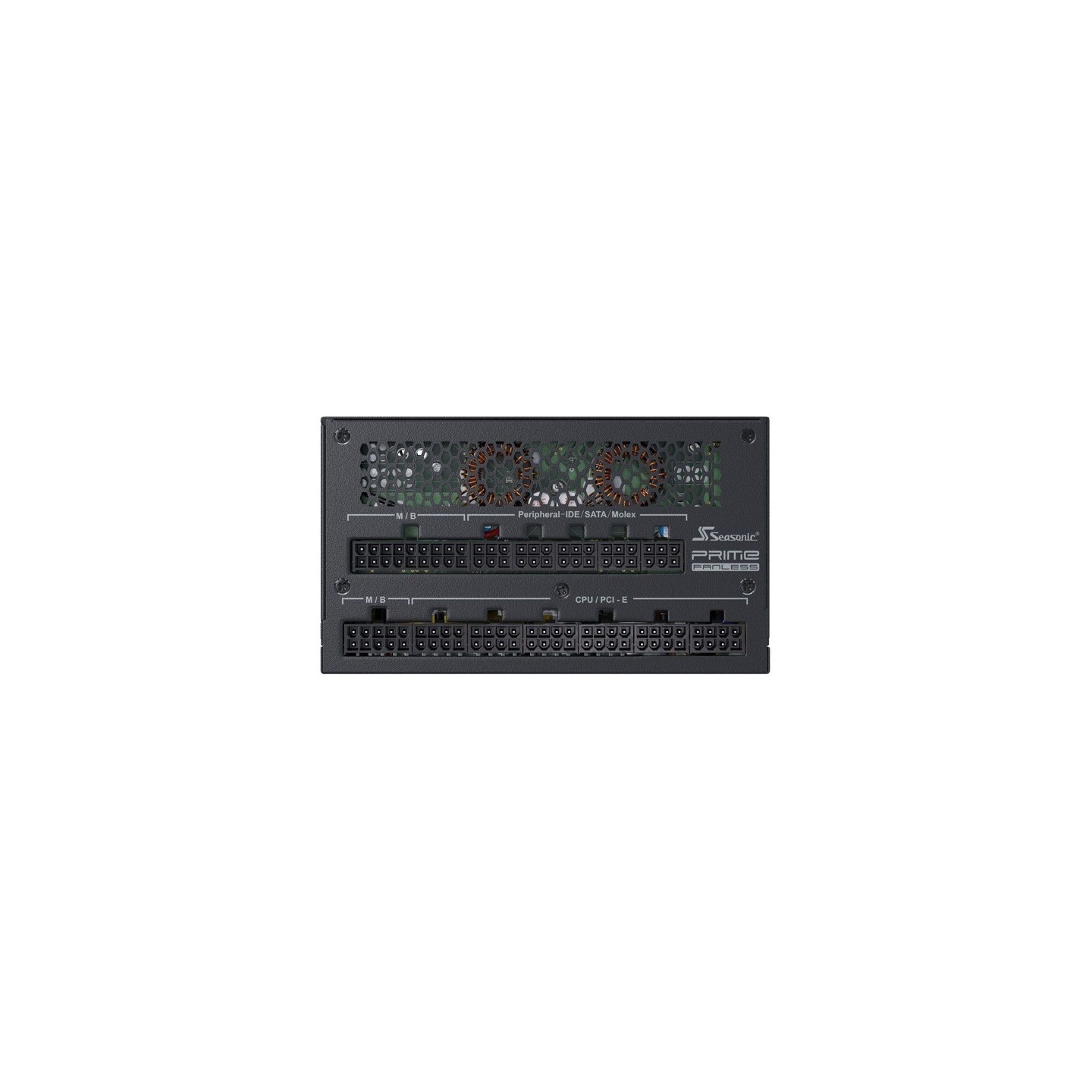

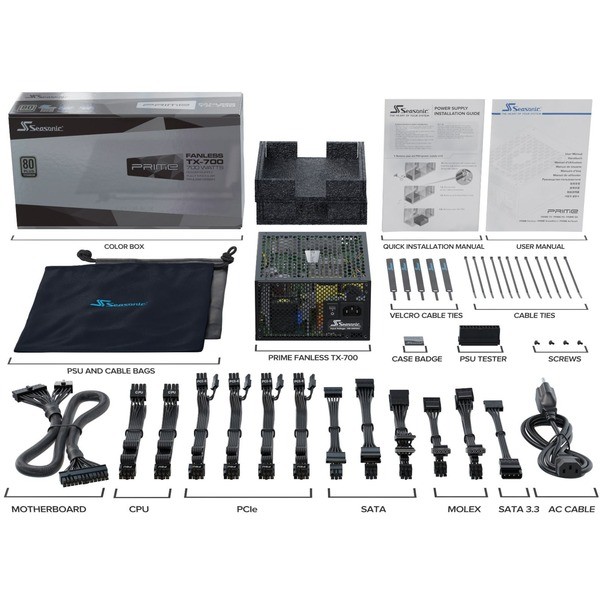

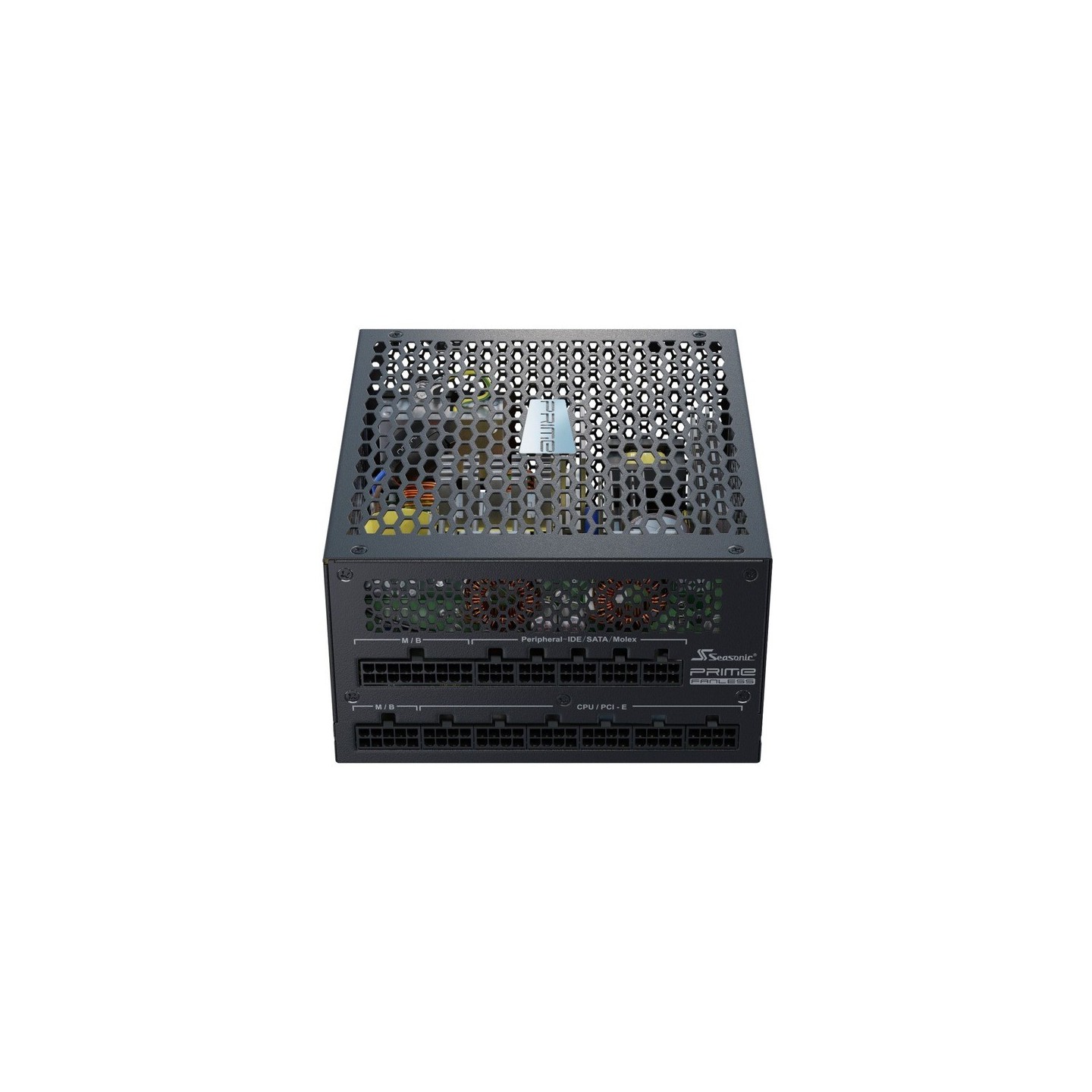

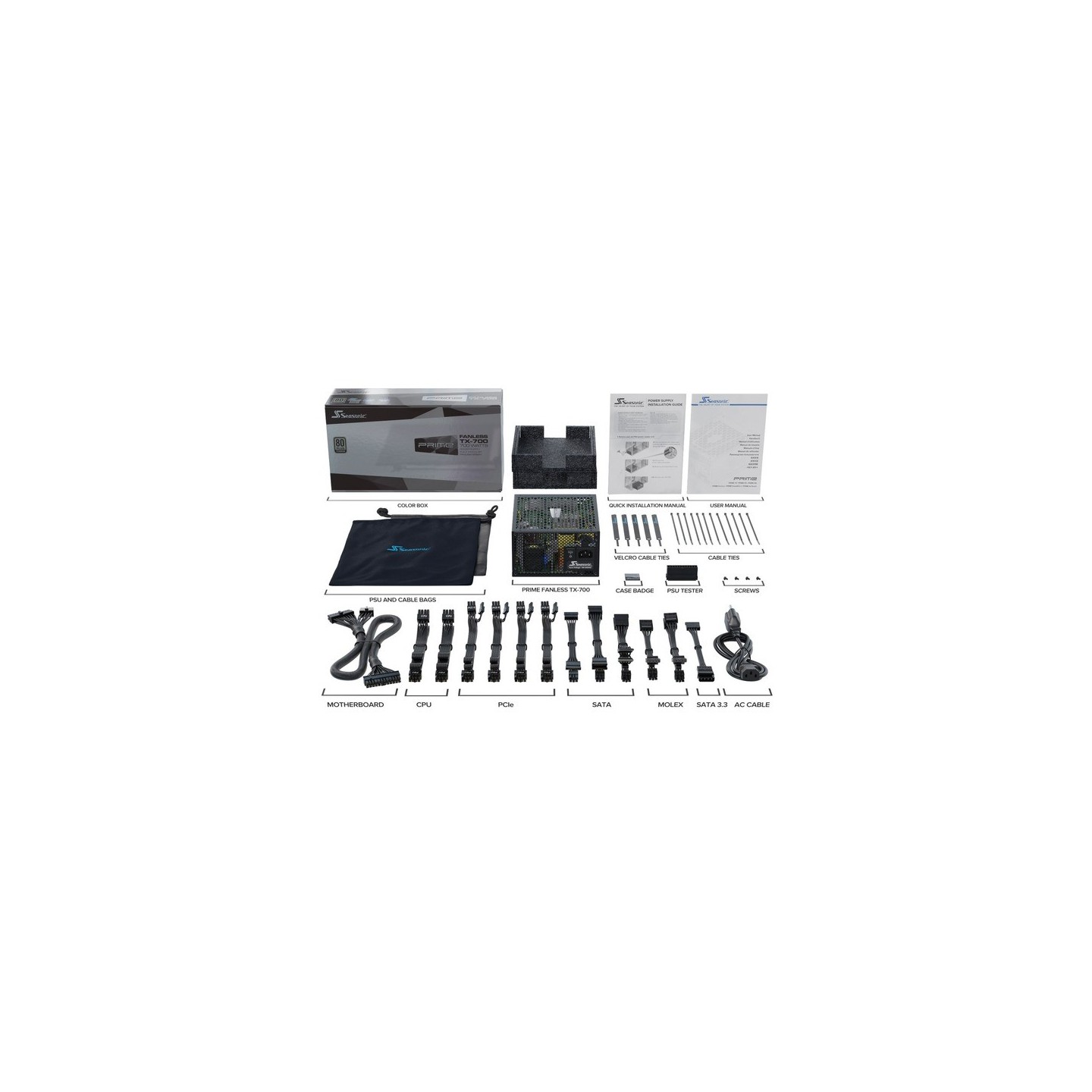

| Connections | 1x 24-Pin ATX12V, 2x 4+4-Pin EPS/ATX12V, 4x 6+2-Pin PCIe, 10x SATA, 5x 4-Pin Molex |
| Cable - Cable-Management | Fully modular |
| Cooling - Art | passive cooling (fanless) |
| Protective functions | OCP, OVP, UVP, OPP, SCP, OTP |
| Dimensions (unit) | Width: 150mm x Height: 86mm x Depth: 170mm |
| Weight (unit) | 3.4 kg |
| Warranty | 12 years |
| +12V Rail Power | 696 W |
