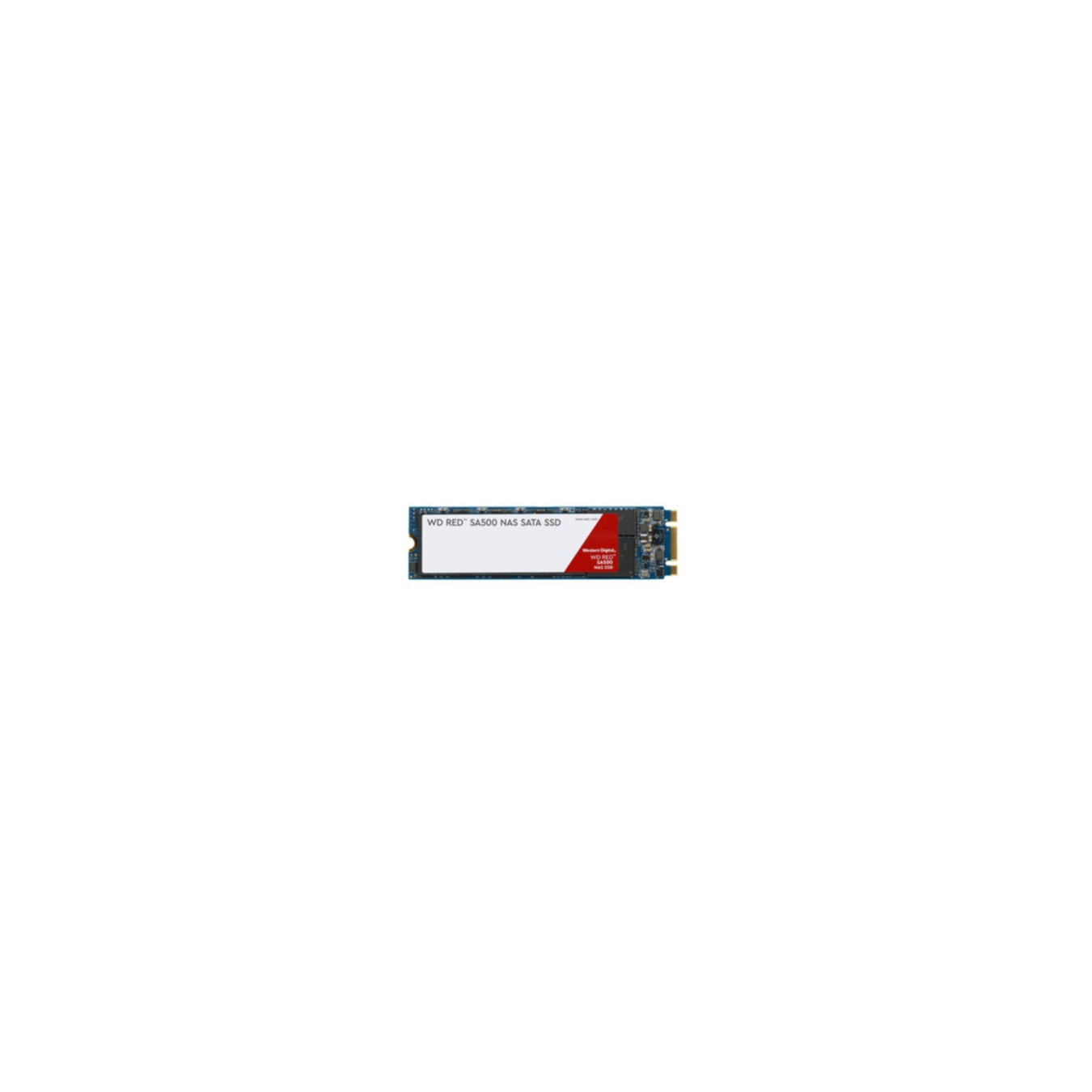

WD Red SA500 WDS200T1R0B - 2TB M.2 2280 SATA III SSD, 3D NAND, 560/530 MB/s
2TB M.2 2280 SATA III SSD (WD Red SA500) — 3D NAND, up to 560 MB/s read and 530 MB/s write; ideal for PC and laptop storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 2TB |
| Storage (SSD & HDD) - Interface | SATA III 6Gb/s |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - Sequential Read (Up to) | 550 MB/s |
| Storage (SSD & HDD) - Sequential Write (Up to) | 520 MB/s |
Supercharge your NAS
Boost your NAS system’s performance and responsiveness with the WD Red™ SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5” and M.2 form factors and capacities from 500GB up to 4TB1 (2.5” only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.
The Drive For NAS
Speed
Optimized for caching in NAS systems to rapidly access your most frequently used content
Endurance
For tough workloads demanded by NAS, giving you the reliability you need in a 24/7 environment
Flexible
Available in 2.5” and M.2 form factors so you can upgrade your existing NAS system or design a new one from scratch
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 530 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 85000 IOPS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 1300 |
| Certification | FCC, UL, TUV, KC, BSMI, VCCI |
| Operating voltage | 5 V |
| Power consumption (read) | 3 W |
| Power consumption (write) | 3.8 W |
| Power consumption (sleep) | 0.012 W |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 7 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 85 °C |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Harmonized System (HS) code | 84717070 |
