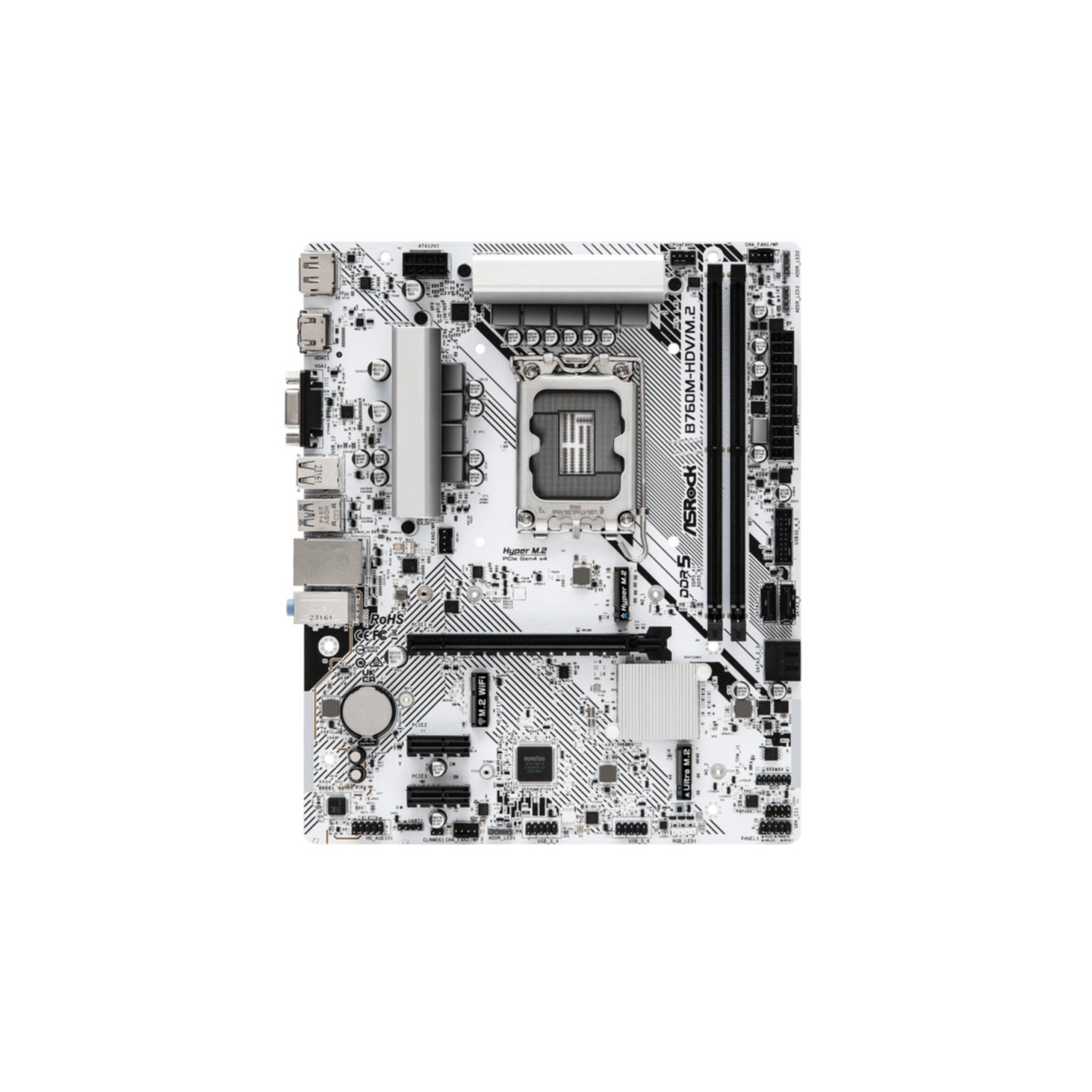

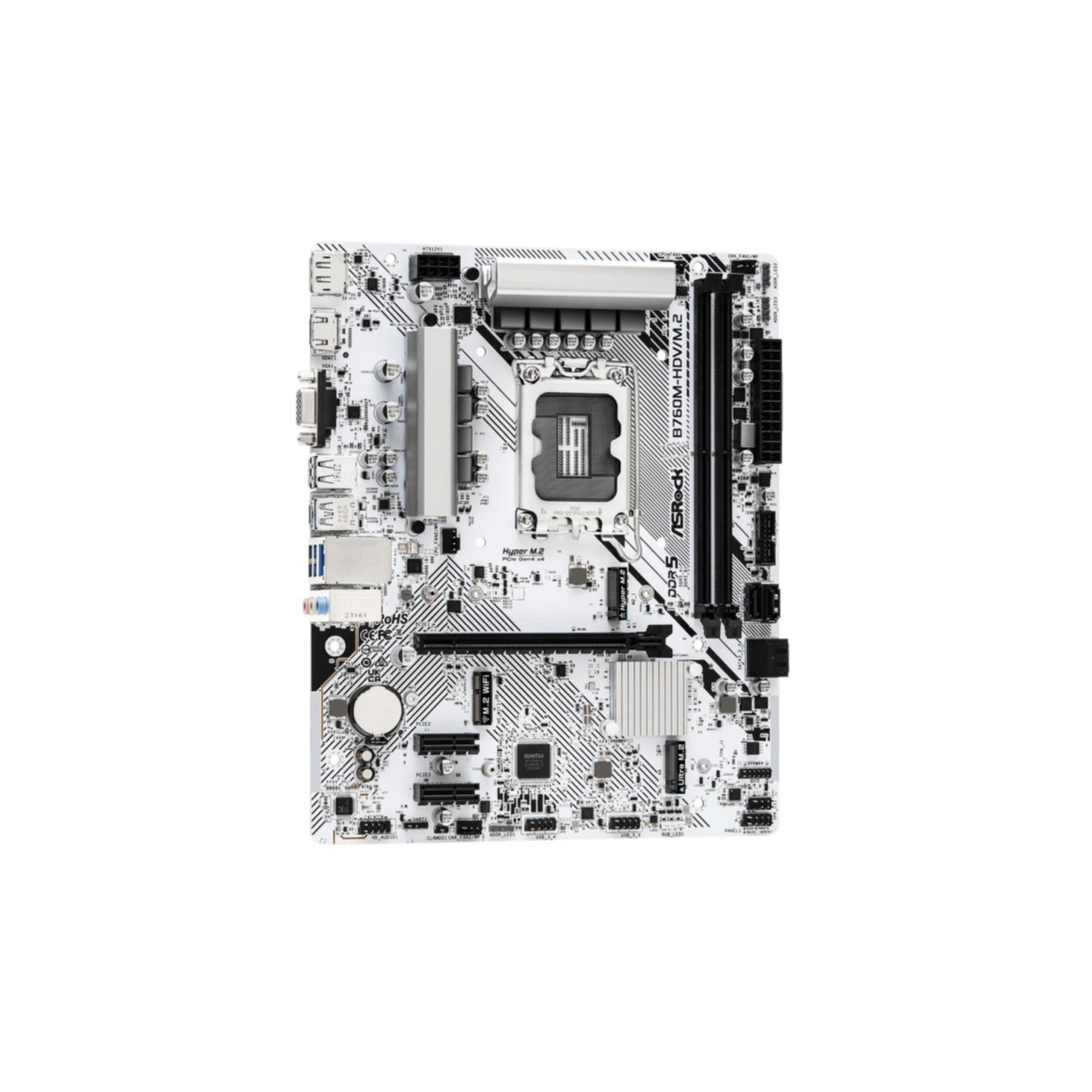

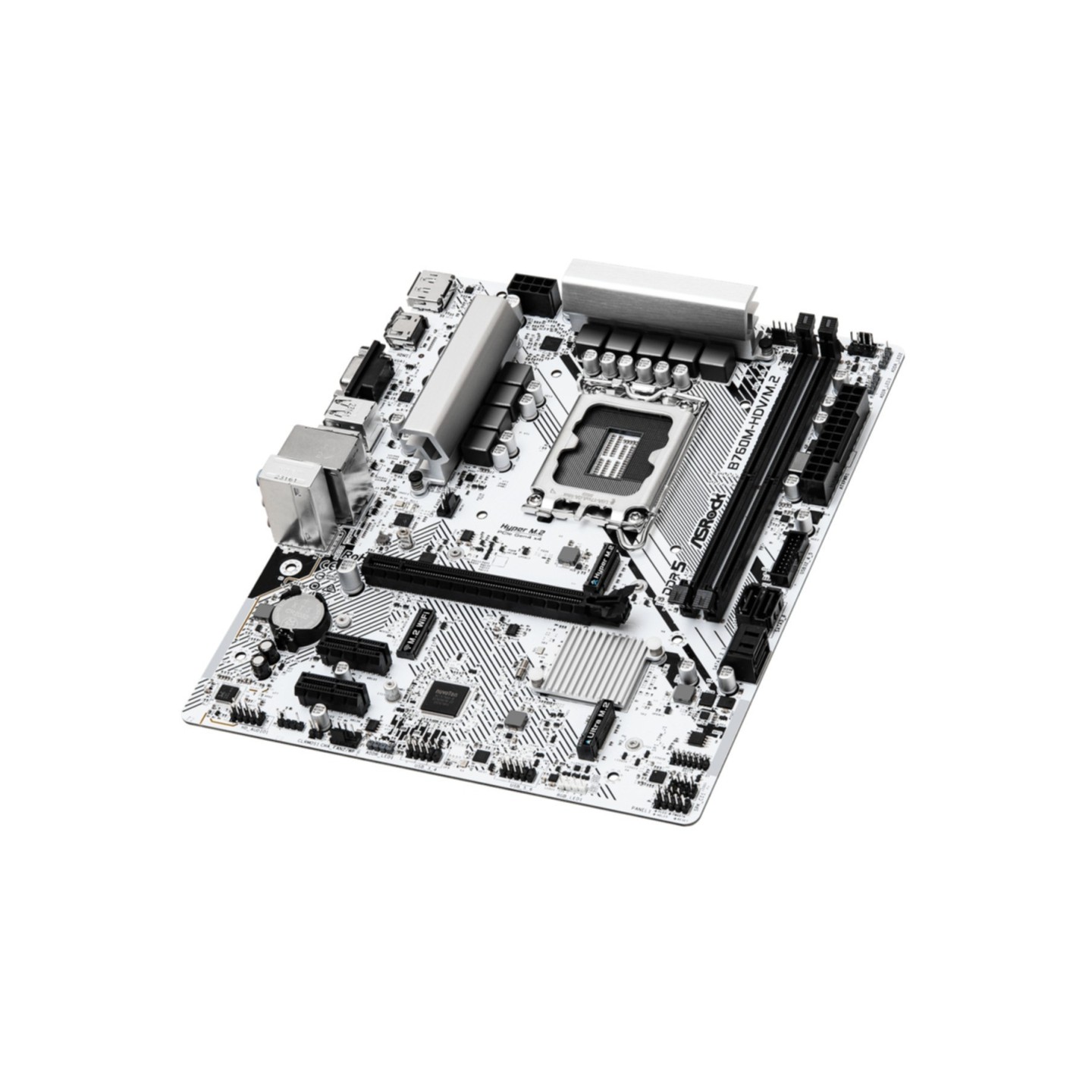

ASRock B760M-HDV/M.2 LGA1700 Micro-ATX Motherboard Intel B760 DDR5 PCIe4.0 (Boxed)
LGA1700 Micro-ATX motherboard with Intel B760 chipset, 7+1+1 power phase, DDR5 (up to 7200+ OC, 96GB), 2x M.2 (PCIe4x4 + PCIe3x4), Dragon 2.5G LAN, HDMI/DP/D-Sub, USB-C rear.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers and stable operation with 12th-14th Gen Intel Core processors (LGA1700).
DDR5 XMP & EXPO Support
Supports Dual Channel DDR5 up to 7200+(OC), 96GB max. Built with high-quality components for reliable overclocking using Intel XMP/AMD EXPO profiles on compatible modules. Includes 1x Hyper M.2 (PCIe Gen4x4), 1x Ultra M.2 (PCIe Gen3x4/SATA3), 4x SATA3 with RAID 0/1/5/10.

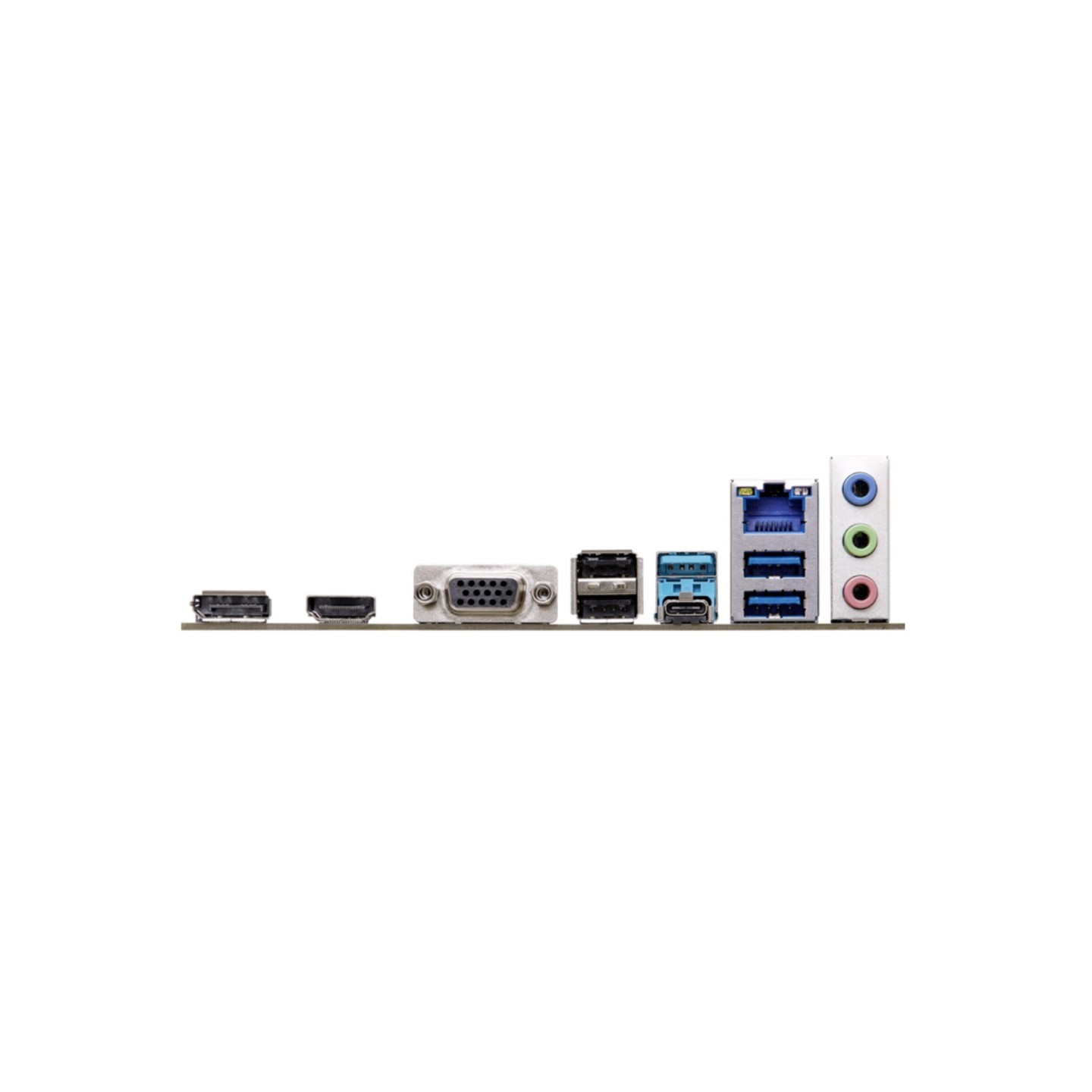

- Graphics: HDMI, DisplayPort 1.4, D-Sub for triple display options
- Networking: Dragon 2.5G LAN (Realtek), M.2 Key E for WiFi
- USB: 1x Type-C 3.2 Gen1 rear, 5x Type-A 3.2 Gen1 (3 rear/2 front), 6x USB 2.0
- Audio: Realtek ALC897 7.1 CH HD
- Expansion: 1x PCIe4.0 x16, 2x PCIe3.0 x1
- ASRock Auto Driver Installer for easy setup
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 12th/13th/14th Gen |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | Micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| ECC compatibility | Non-ECC |
| Number of M.2 (M) slots | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen1 Type-C ports | 1 (rear) |
| USB 3.2 Gen1 Type-A ports | 5 (3 rear, 2 front) |
| USB 2.0 ports quantity | 6 (2 rear, 4 front) |
| Ethernet LAN | Yes (Dragon 2.5G) |
| LAN controller | Realtek RTL8125BG |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| D-Sub ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Width | 244 mm |
| Depth | 201 mm |
| Power Phase | 7+1+1 |
| WiFi-AP antenna jack | Yes (M.2 Key E) |
