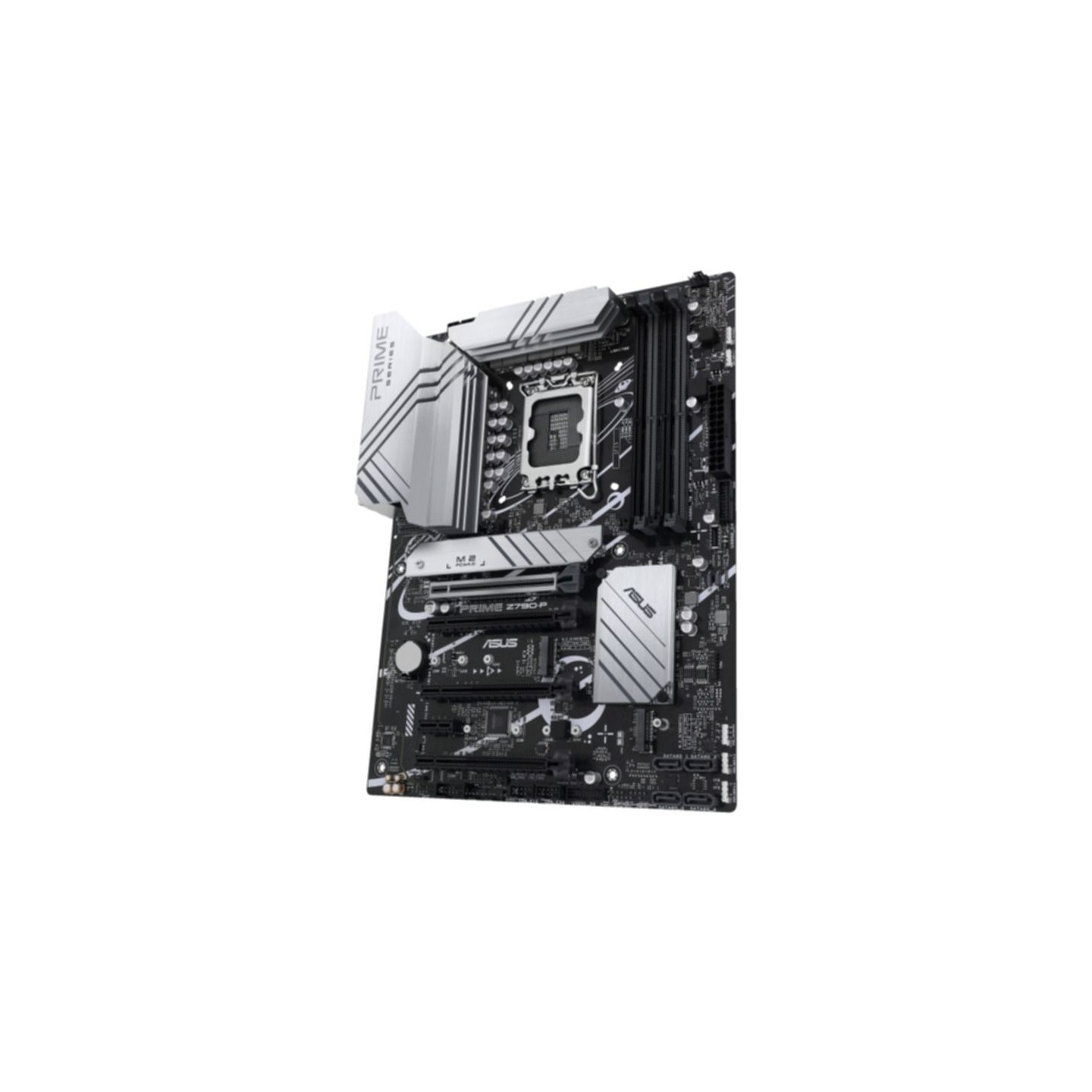

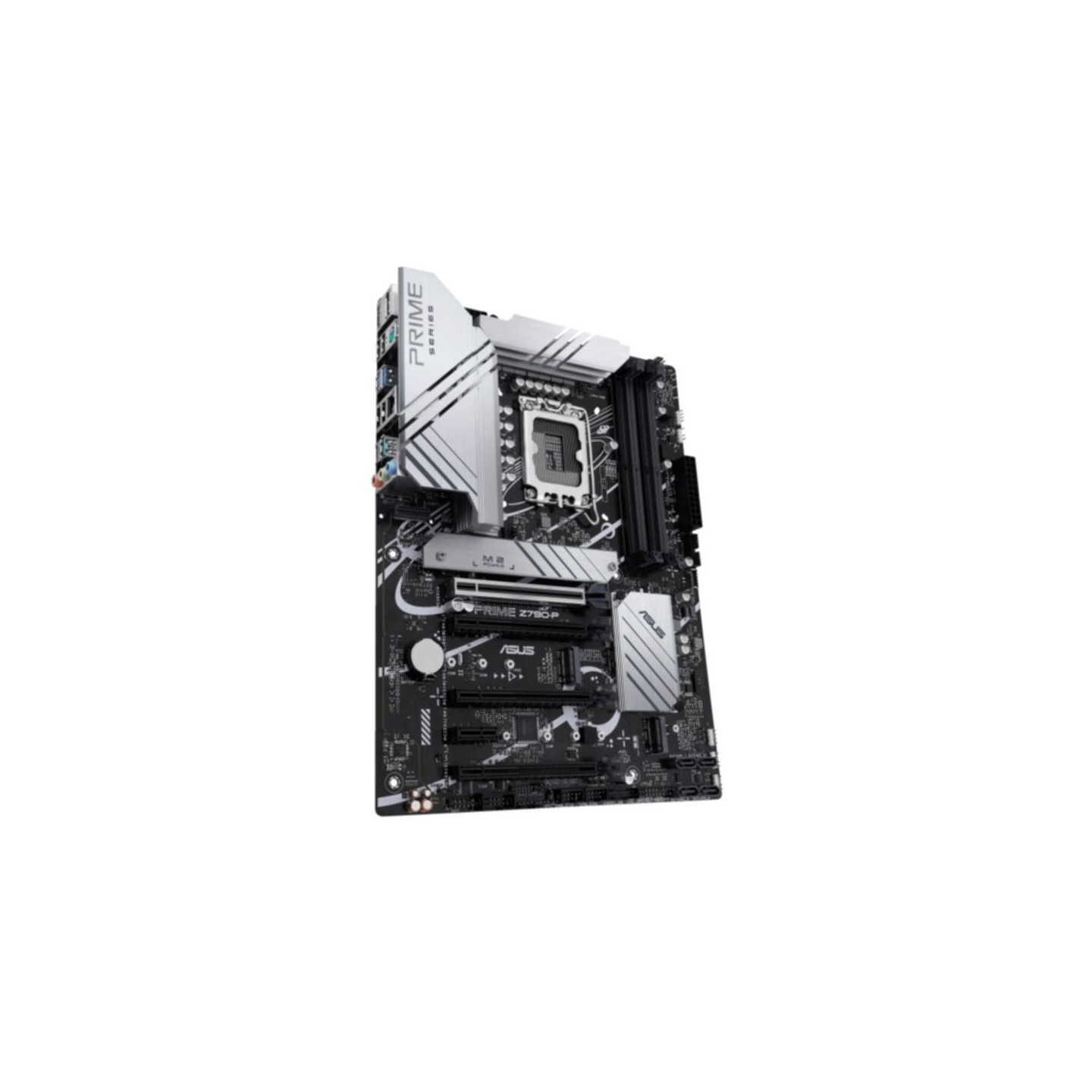

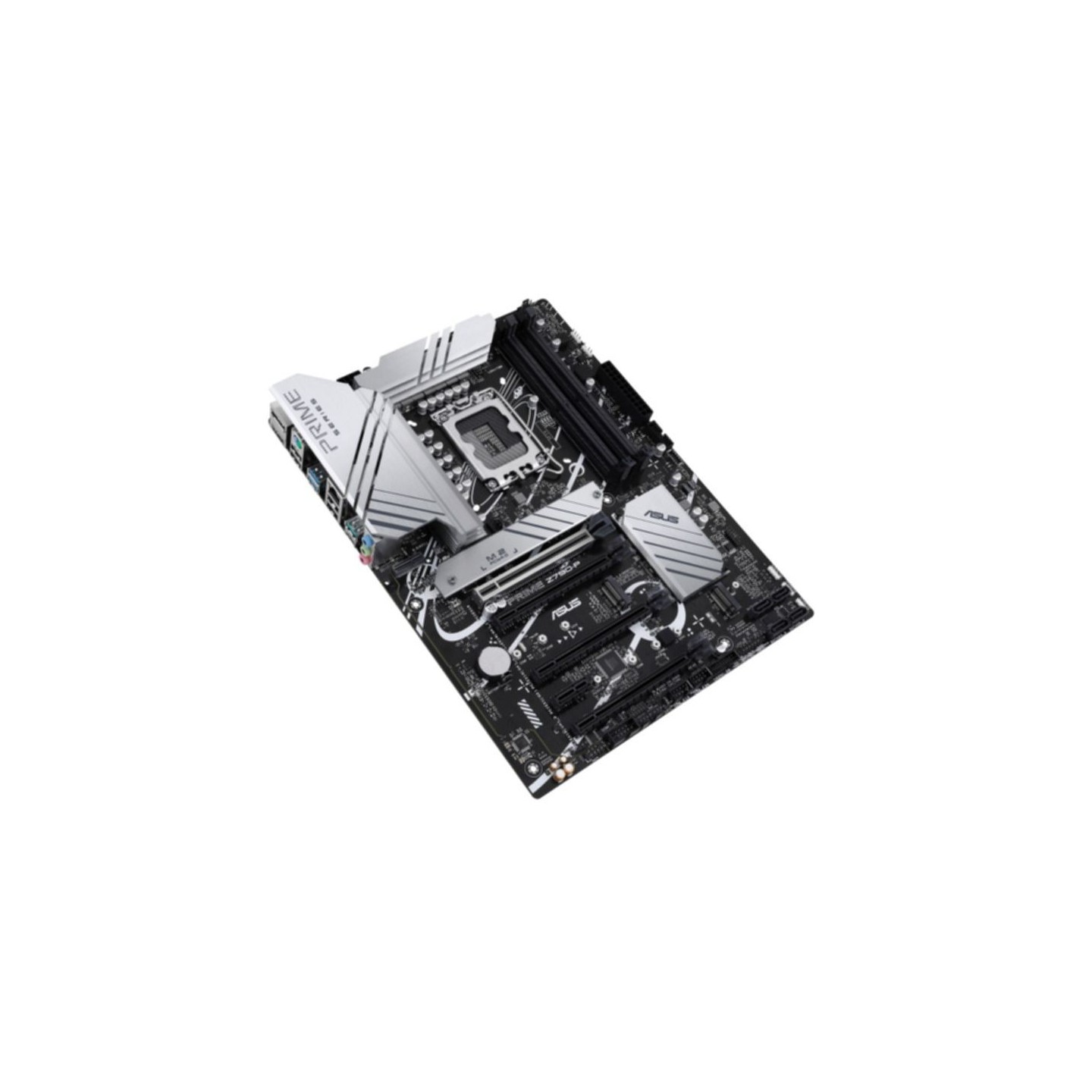

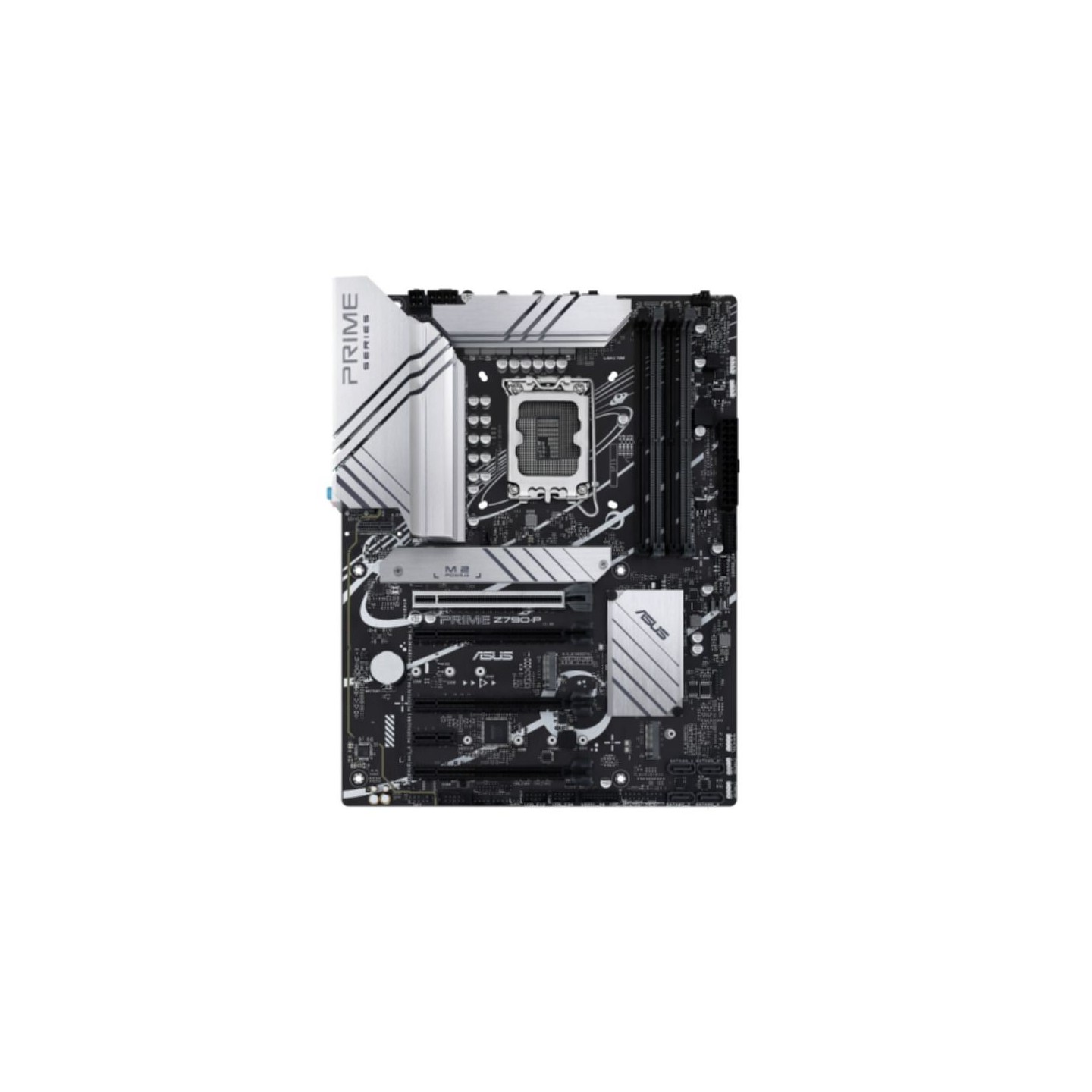

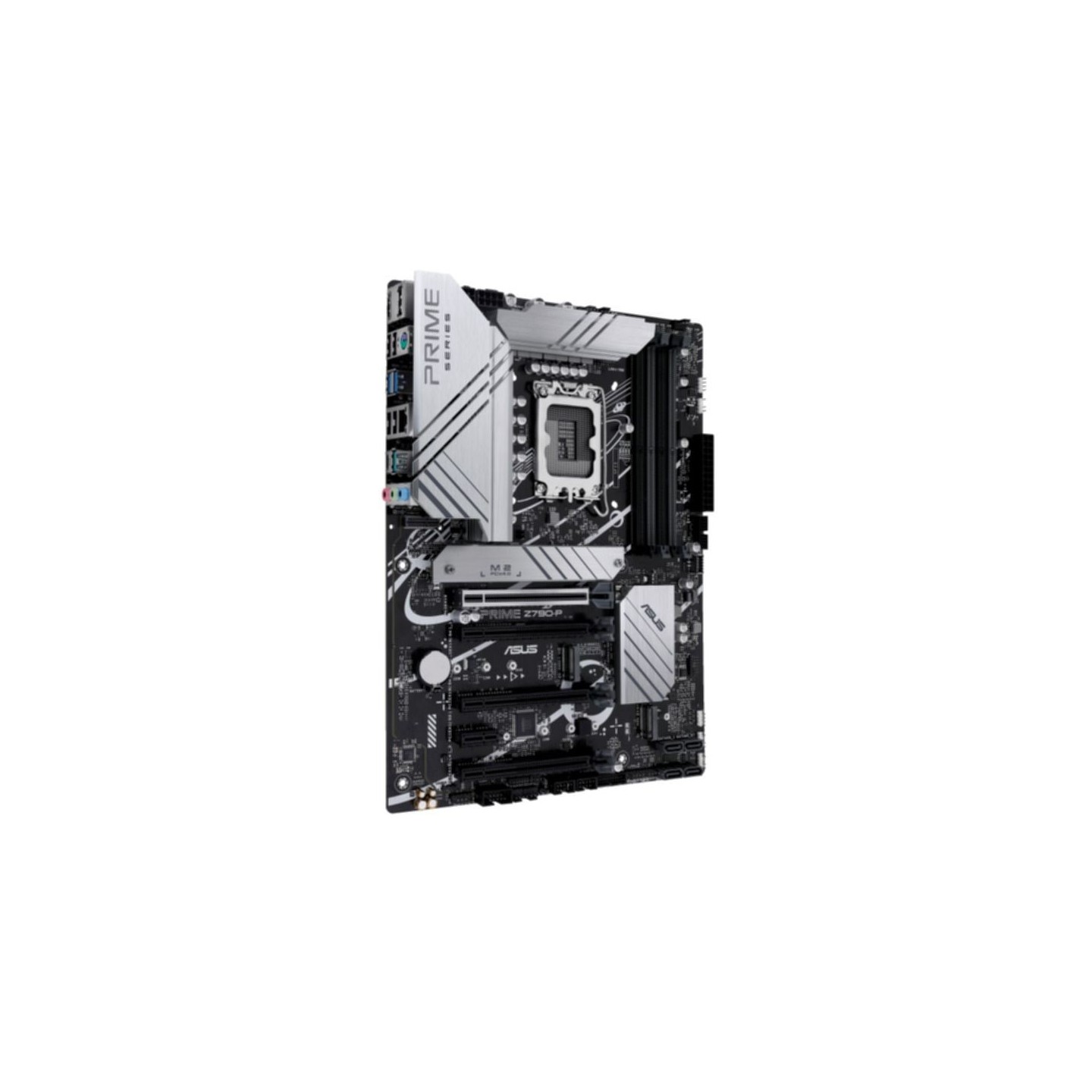

ASUS PRIME Z790-P LGA1700 ATX Motherboard Intel Z790 DDR5 192GB PCIe 5.0 (Boxed)
ASUS PRIME Z790-P: LGA1700 ATX Intel Z790 board. DDR5 to 192GB, PCIe 5.0 x16, 3x M.2, 4x SATA, 2.5Gb LAN, rear USB-C, HDMI 2.1. Robust VRM, comprehensive cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |
ASUS PRIME Z790-P is an ATX motherboard designed for 12th/13th/14th Gen Intel Core processors on LGA1700 socket with Z790 chipset. It unleashes full CPU potential through robust 14+1 power stages, ProCool connectors, and comprehensive cooling including VRM heatsinks and M.2 heatsink.
Key features include DDR5 support up to 192GB (4 slots), PCIe 5.0 graphics slot, three M.2 slots (PCIe 4.0), four SATA III ports with RAID 0/1/5/10, 2.5 Gigabit Ethernet, and rear USB 3.2 Gen 2x2 Type-C. Cooling is enhanced with hybrid fan headers, Fan Xpert 4, and multiple temperature sensors for optimal performance under load.
- ✅ LGA1700 for Intel Core i9/i7/i5/i3, Pentium, Celeron
- ✅ DDR5 up to 7200+ MHz (OC), OptiMem II
- ✅ 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1
- ✅ 3x M.2 PCIe 4.0, 4x SATA 6Gb/s

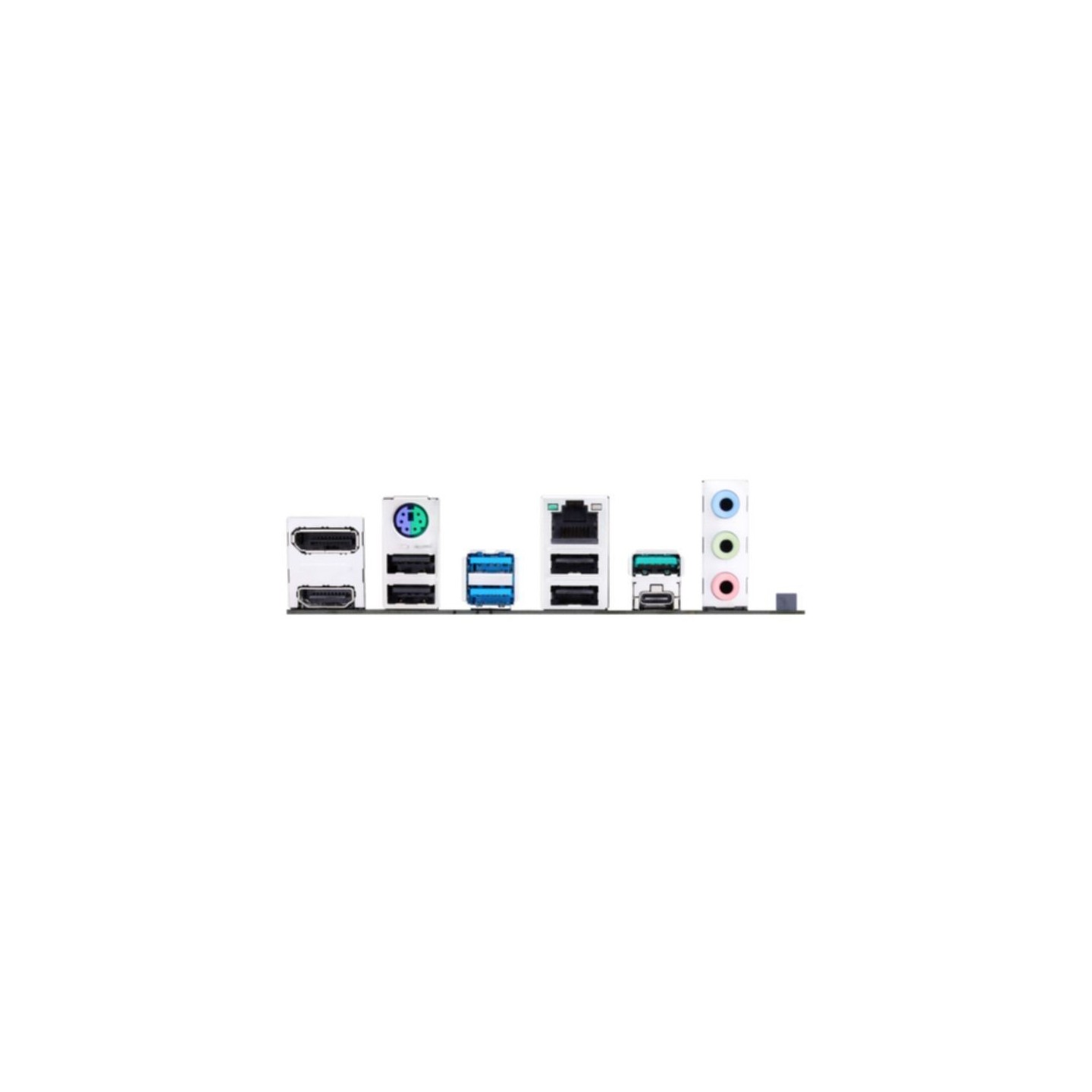

- ✅ Rear I/O: HDMI 2.1, DP 1.4, 1x USB-C 3.2 Gen2x2, 2.5GbE
- ✅ No WiFi (unlike WIFI variant), 7.1 audio, Aura Sync RGB
- ✅ UEFI BIOS, Q-LED diagnostics, Windows 11 ready
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 7200 MHz |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Width | 305 mm |
| Depth | 234 mm |
| RAID levels | 0, 1, 5, 10 |
| Wi-Fi | No |
