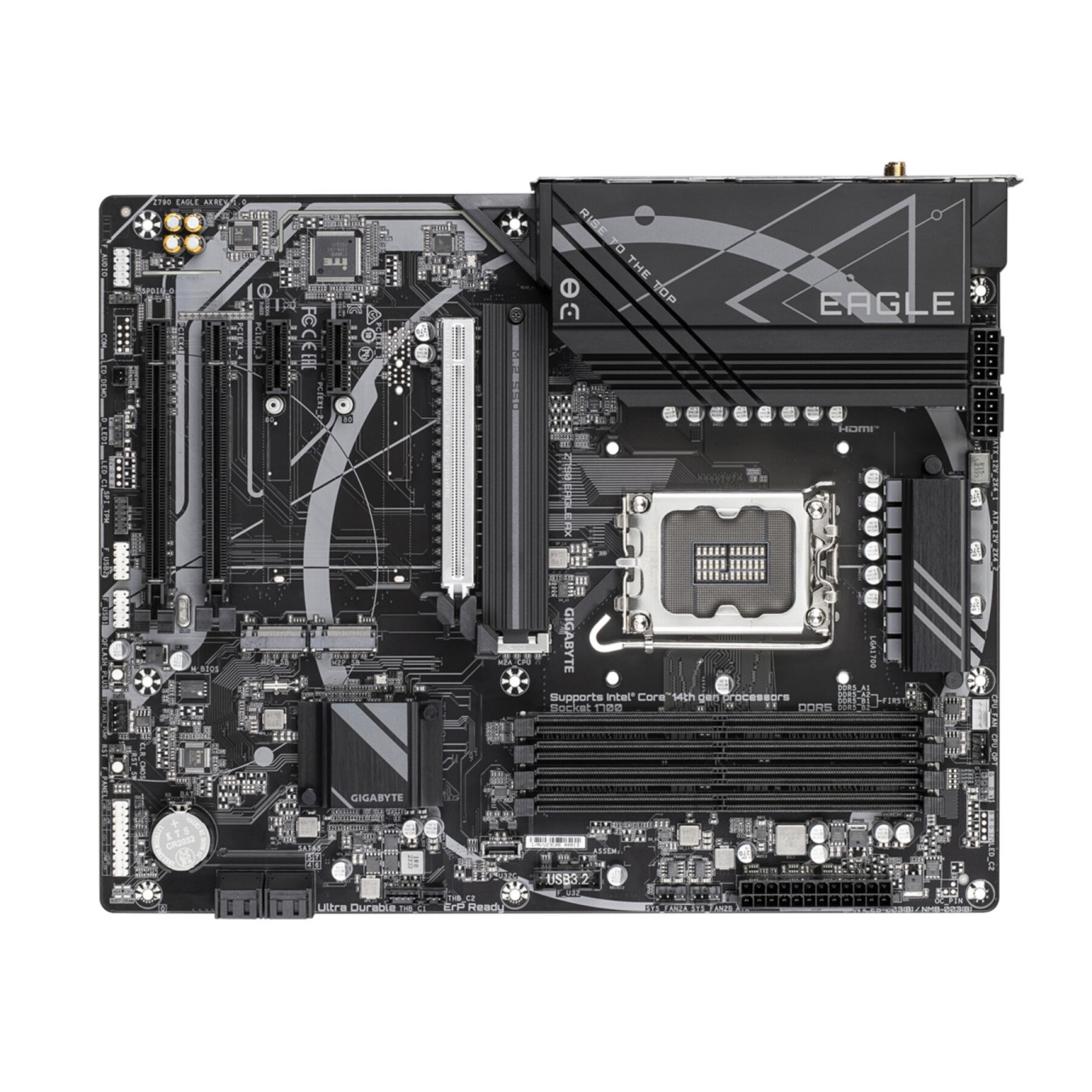

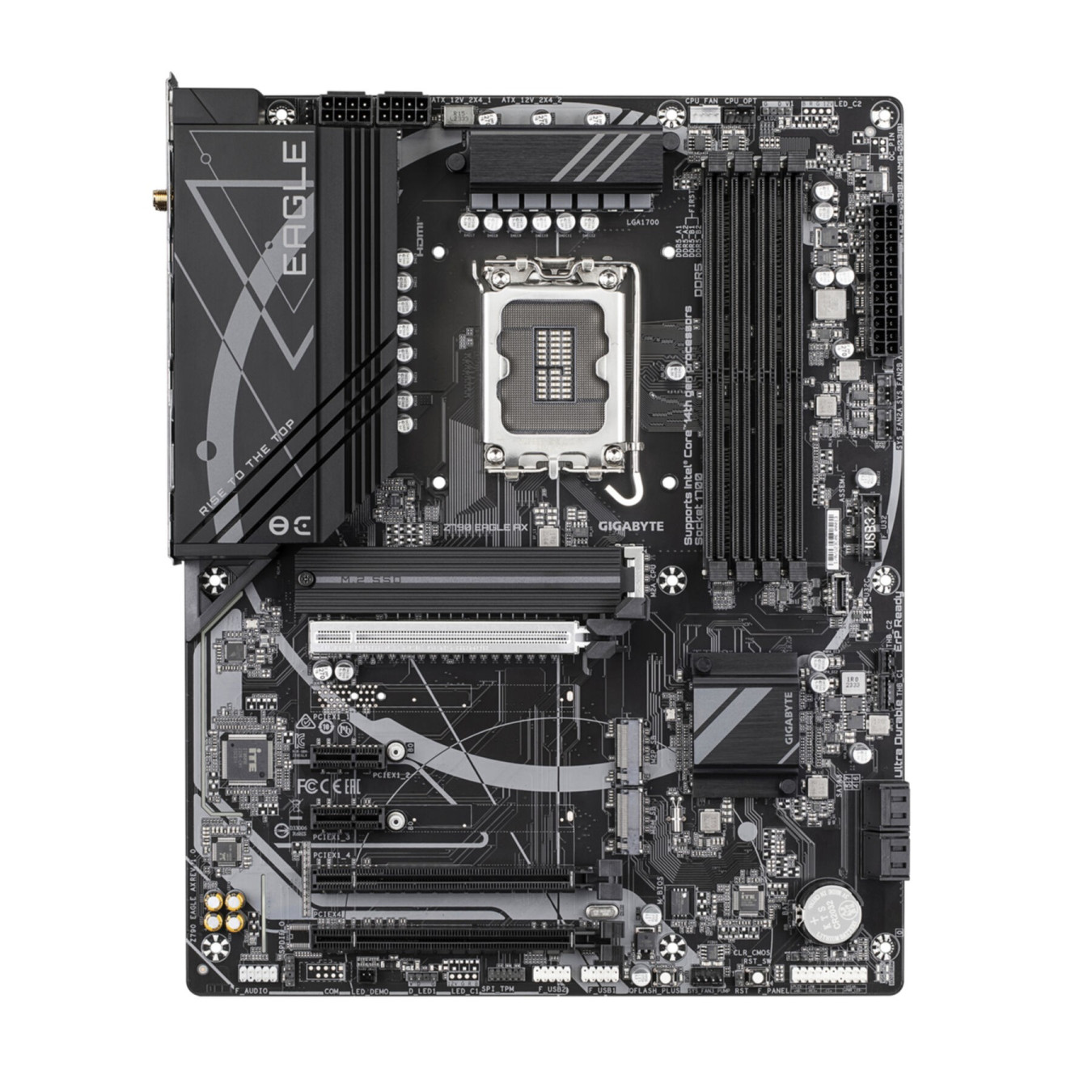

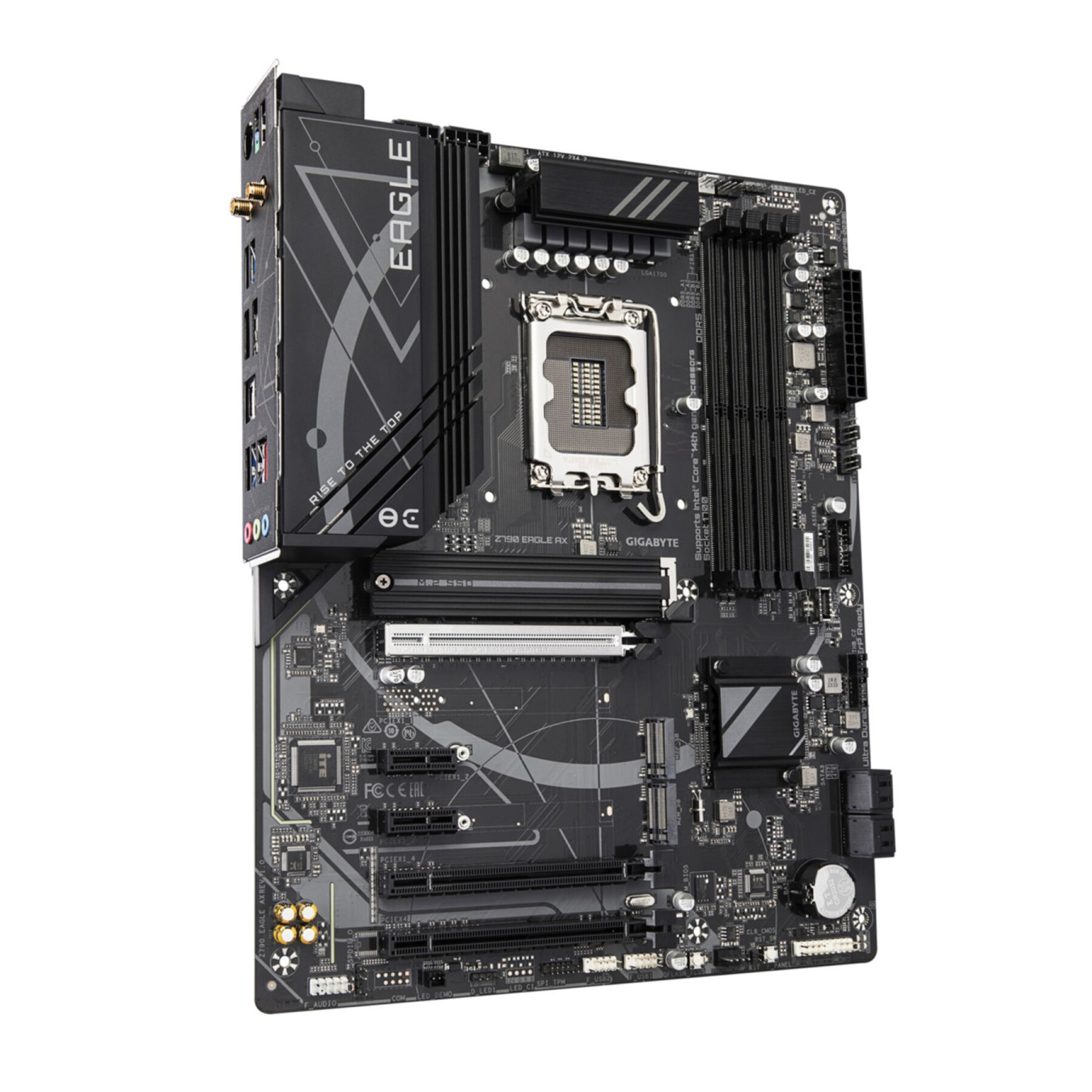

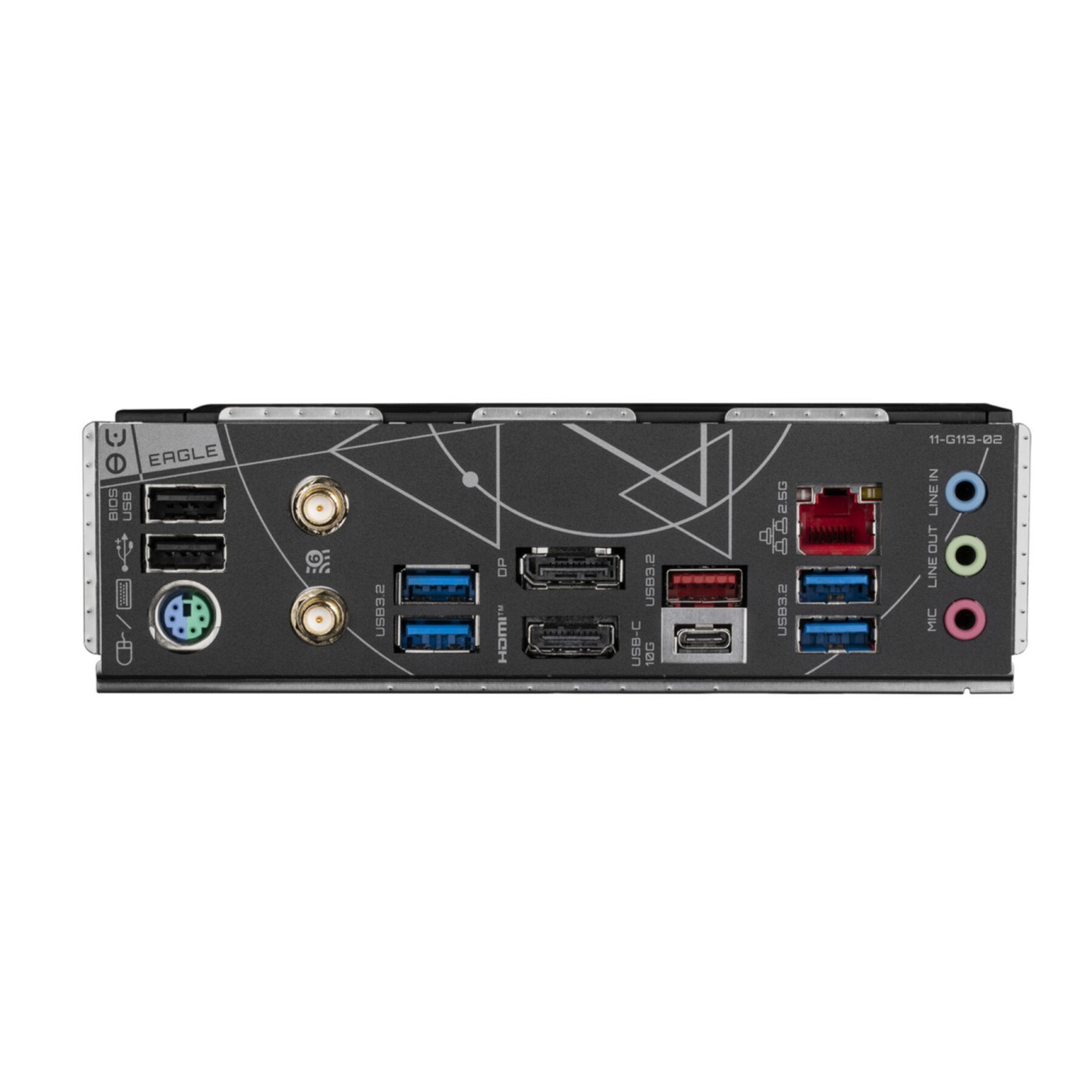

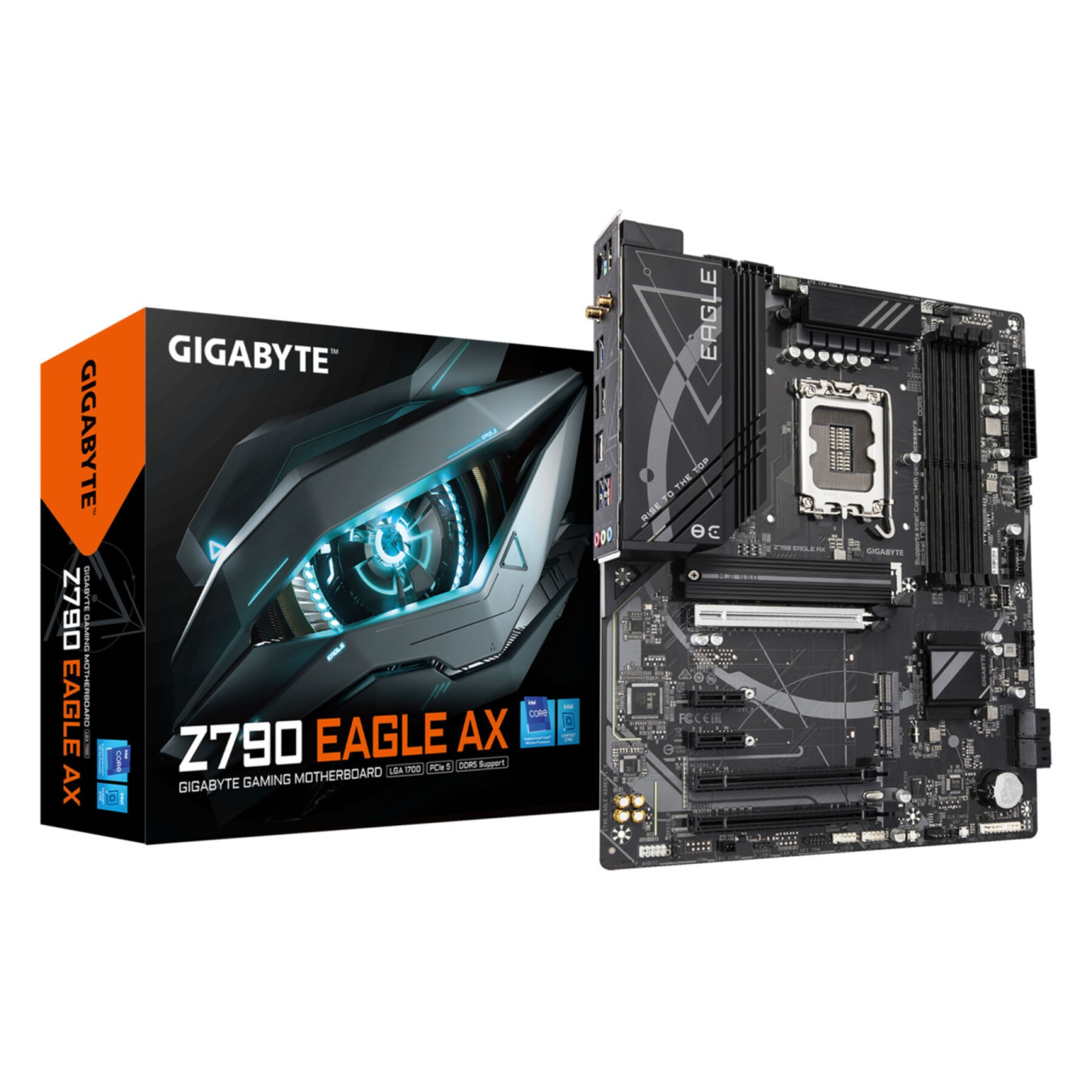

Gigabyte GA-Z790 EAGLE AX - ATX LGA1700 Motherboard, Intel Z790, DDR5, 4 DIMM, 192GB Max, 2.5GbE, HDMI/DP - Black
ATX LGA1700 motherboard with Intel Z790 chipset, DDR5 support up to 192GB (4 DIMM), PCIe 4.0, 2.5Gb Ethernet, HDMI & DisplayPort, front USB-C header.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel Z790 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - USB-C | Front Panel Type-C header |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Sockel | LGA 1700 |
| Chipsatz | Intel Z790 Express |
| BIOS | 256 Mbit |
| Formfaktor | ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 192 GB |
| Memory slots | 4 |
| Storage type | DDR5-SDRAM |
| RAM Takt | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
| Speicher Kanäle | Zweikanalig |
| Controller in CPU | ja |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 1 |
| USB 3.0 | 4 |
| USB 2.0 | 2 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 2 |
| SATA 3 | 4 |
| M.2 | 3 |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 1 |
| Sound-Chip | Realtek ALC897 |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| Farbe | schwarz |
