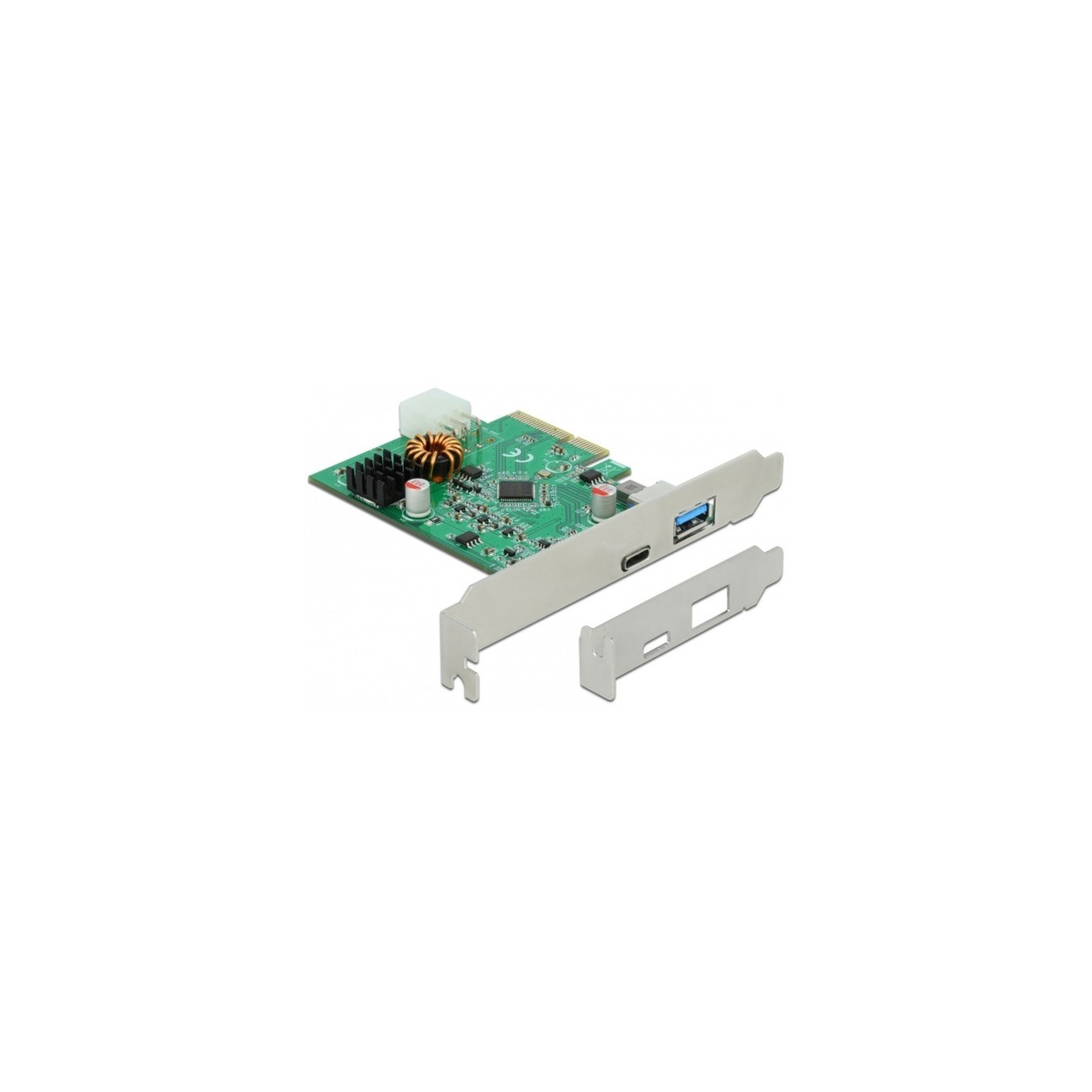

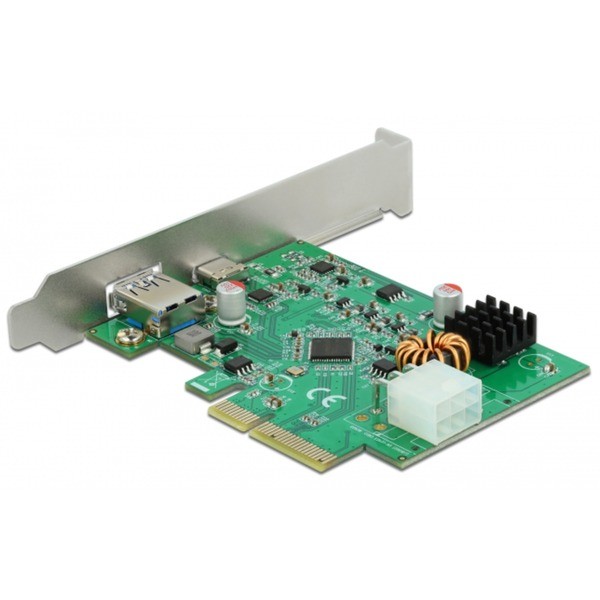

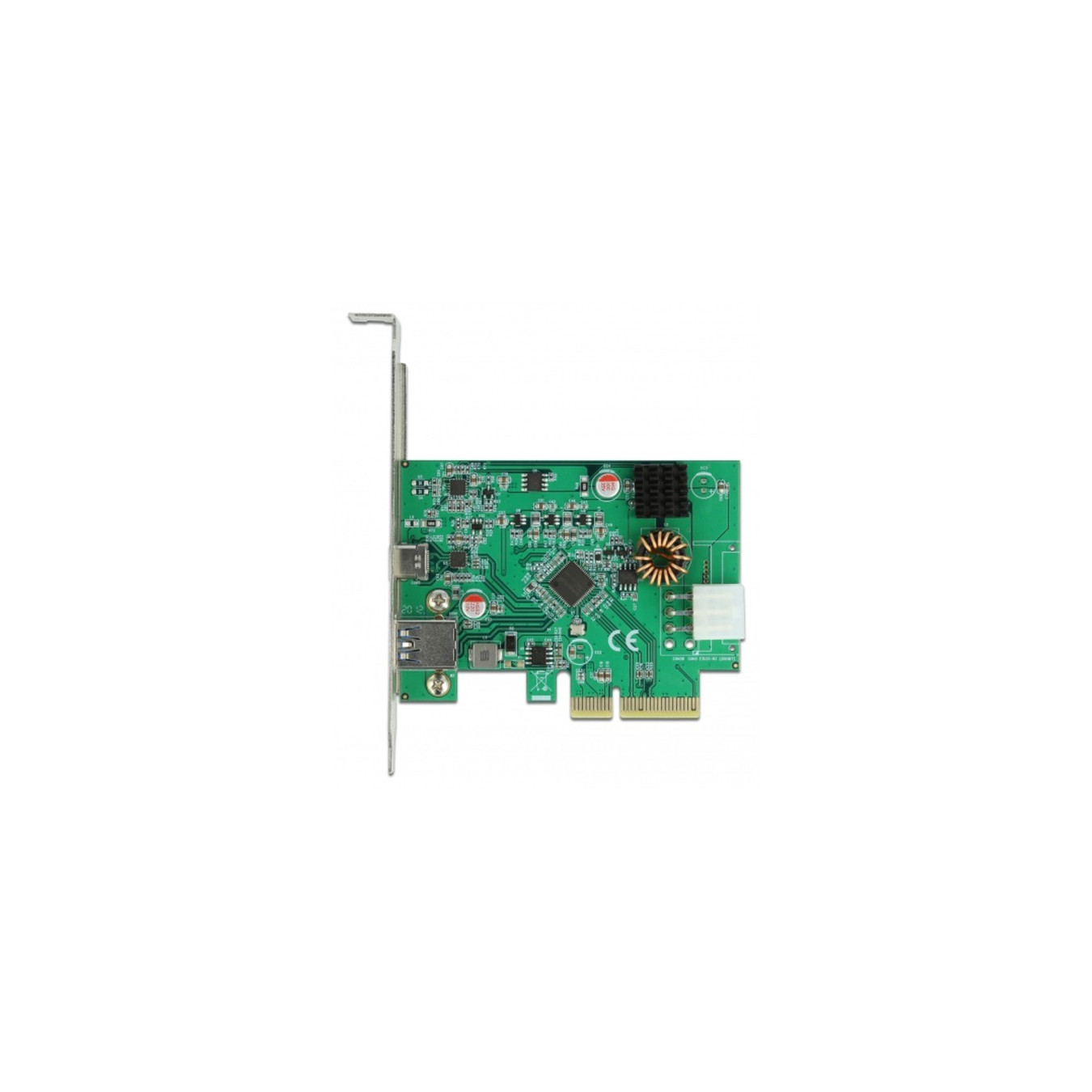

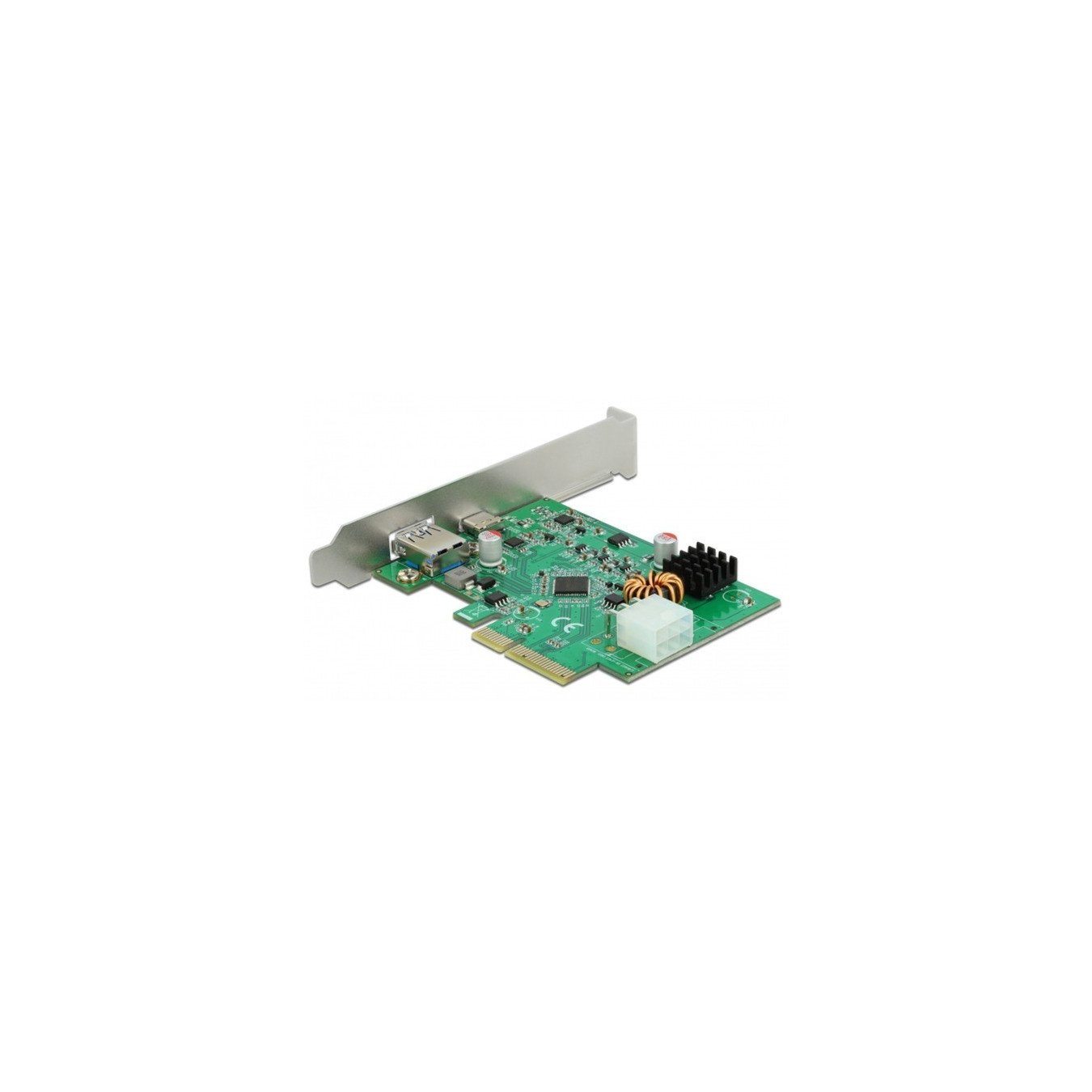

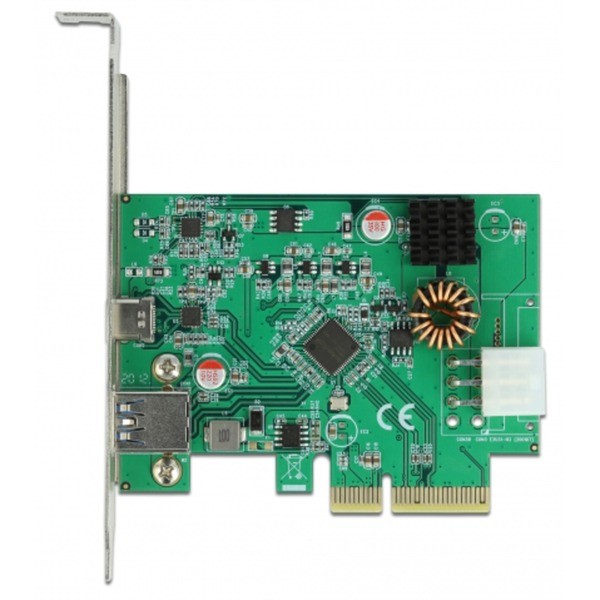

DeLOCK PCIe x4 to 1x extern USB-C 3.2 Gen 2 + USB-A 3.2 Gen 2, USB-Controller
The Delock PCI Express card expands the PC with two external USB 3.2 ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external h...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card expands the PC with two external USB 3.2 ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The USB Type-C port supports the Power Delivery function. This allows connected devices such as: B. Smartphones, tablets and even notebooks can be charged.
| Typ | USB-Controller |
| EAN | 4043619890019 |
| Manufacturer no. | 89001 |
| Controller Art | USB 3.2 (10 Gbit/s) |
| slot | PCIe x4 Version 2.0 |
| Chip | Asmedia ASM3142, ASM1543 |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s), PCIe x4 |
| Data throughput | 10 GBit/s |
| Connections - external | 1x USB A, 1x USB C |
| directly usable devices | 2 |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Feature | SuperSpeed USB 10 Gbit/s, SuperSpeed USB 5 Gbit/s, Hi-Speed 480 Mbit/s, Full-Speed 12 Mbit/s, Low-Speed 1.5 Mbit/s, backwards compatible with USB 3.0, USB 2.0, USB 1.1, power supply via the 6-pin power connector, electrical power per port: USB Type-C™: max. 30 watts (20 V / 1.5 A), USB Type-A: max. 4.5 watts (5 V / 0.9 A) |
| Notice | 1 x 6 pin power socket |
