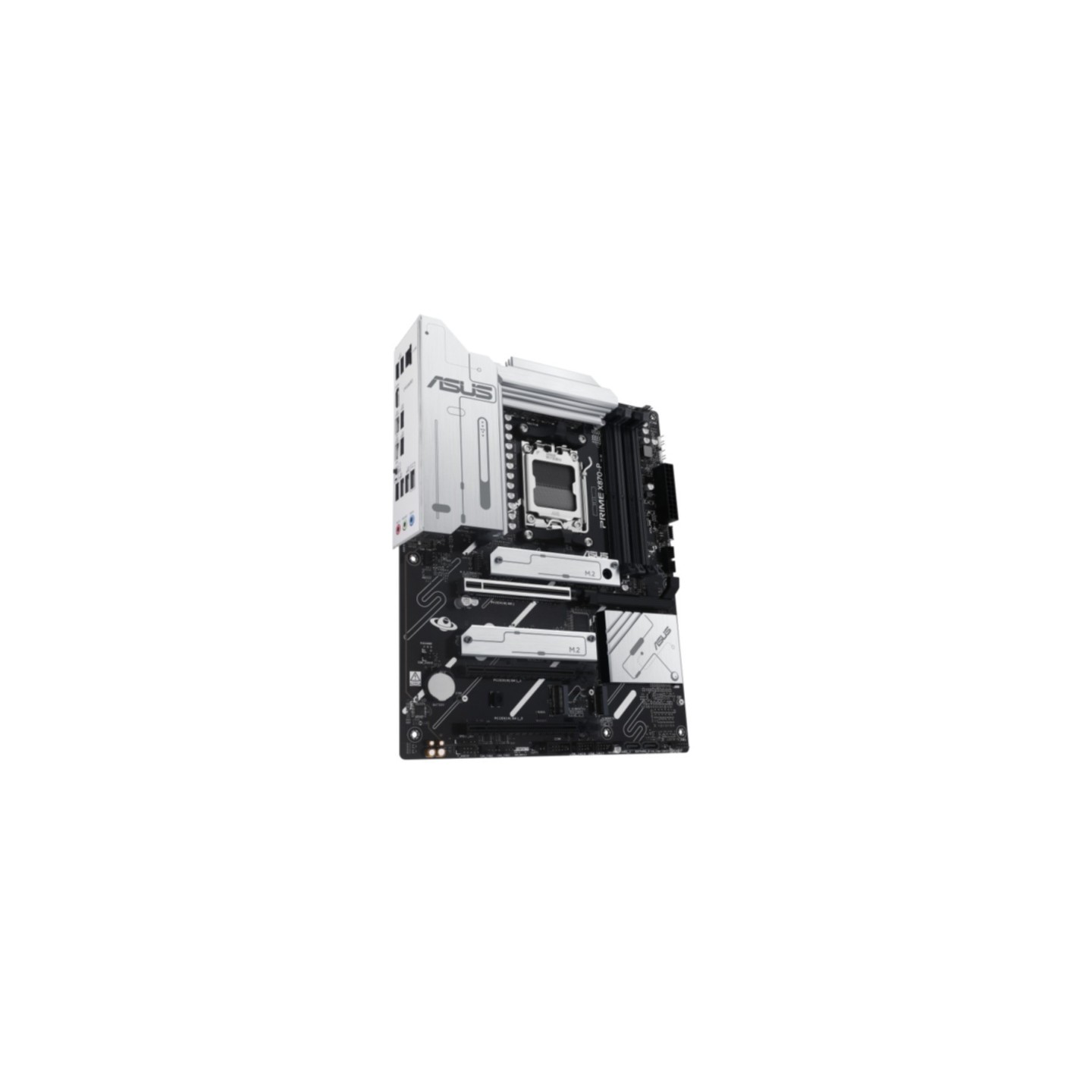

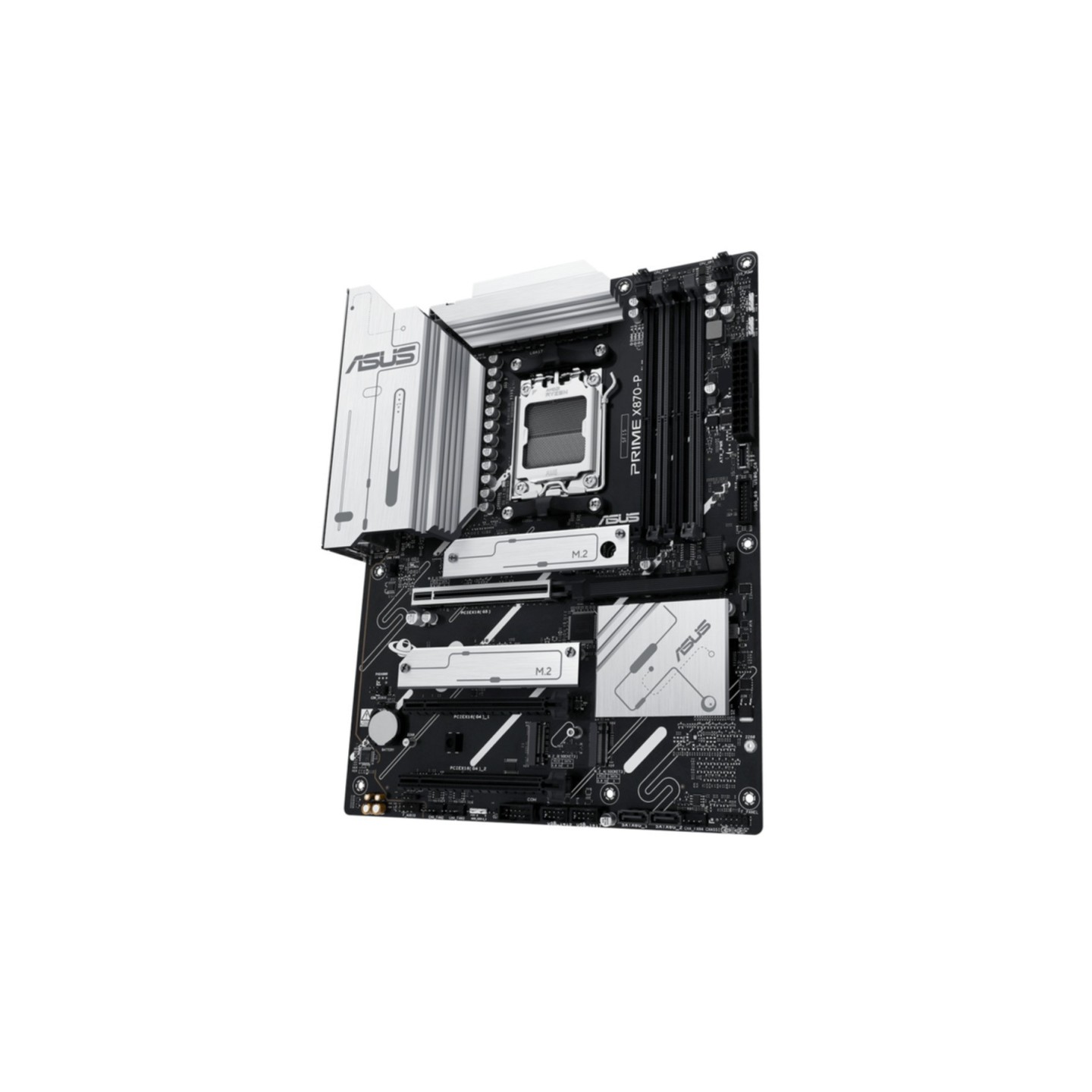

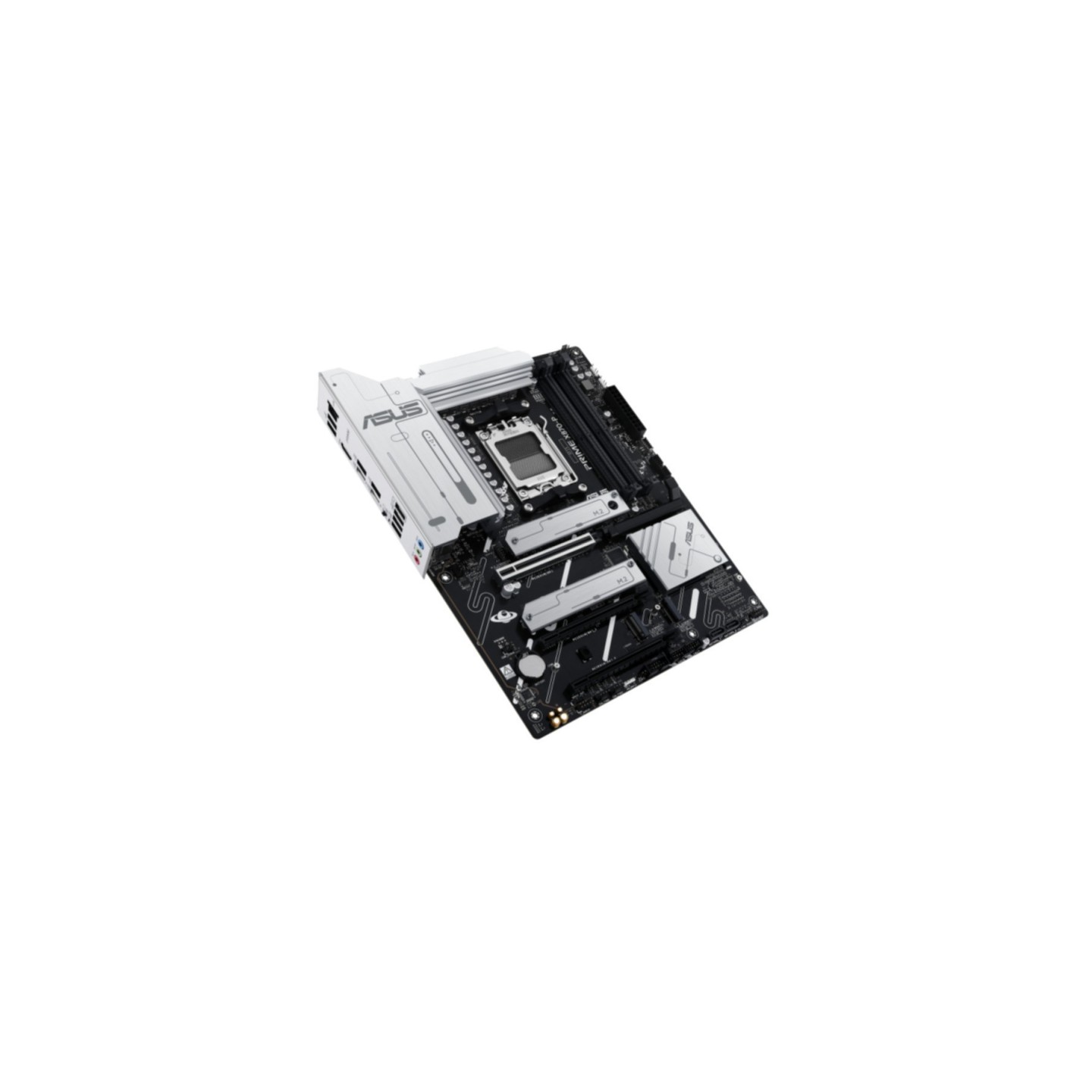

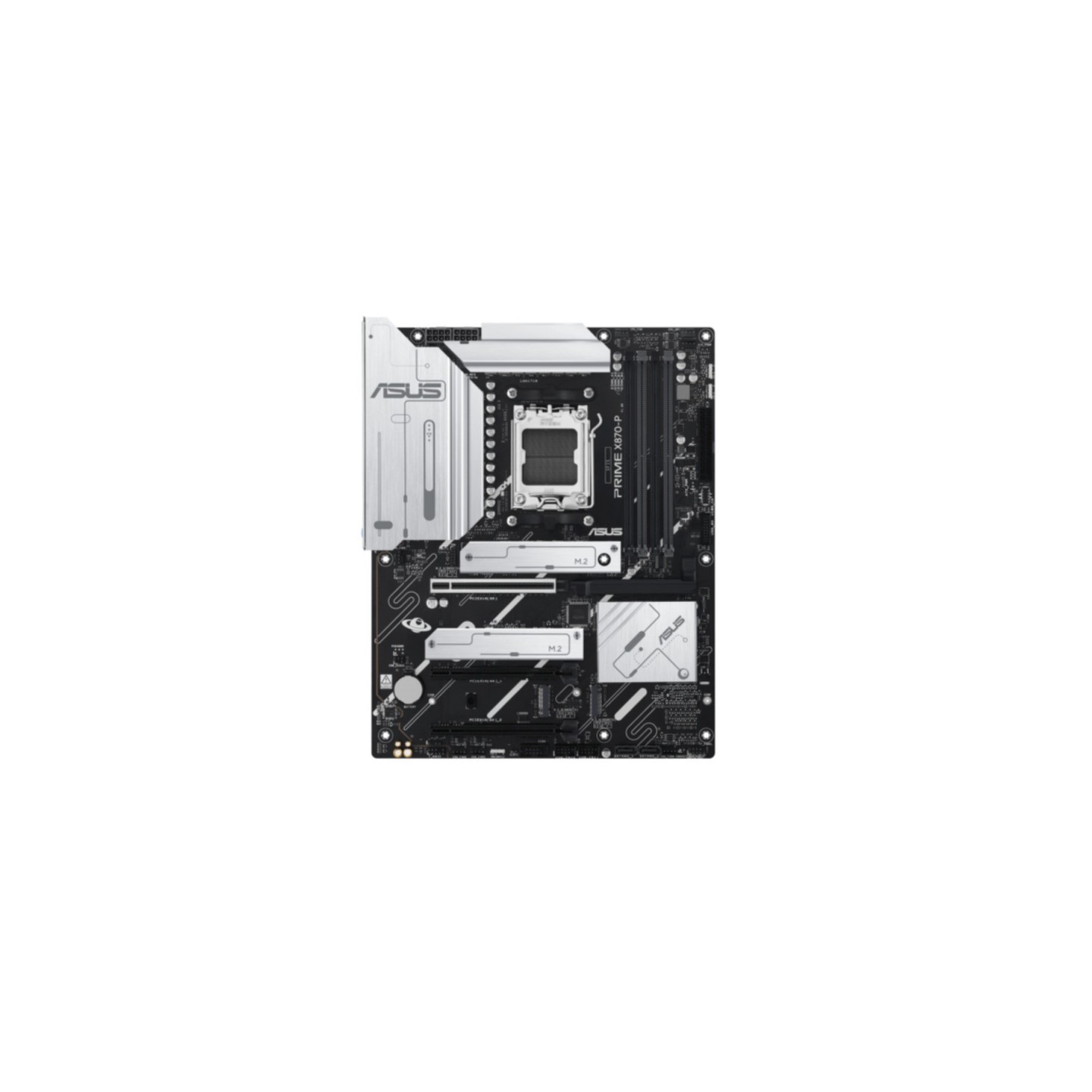

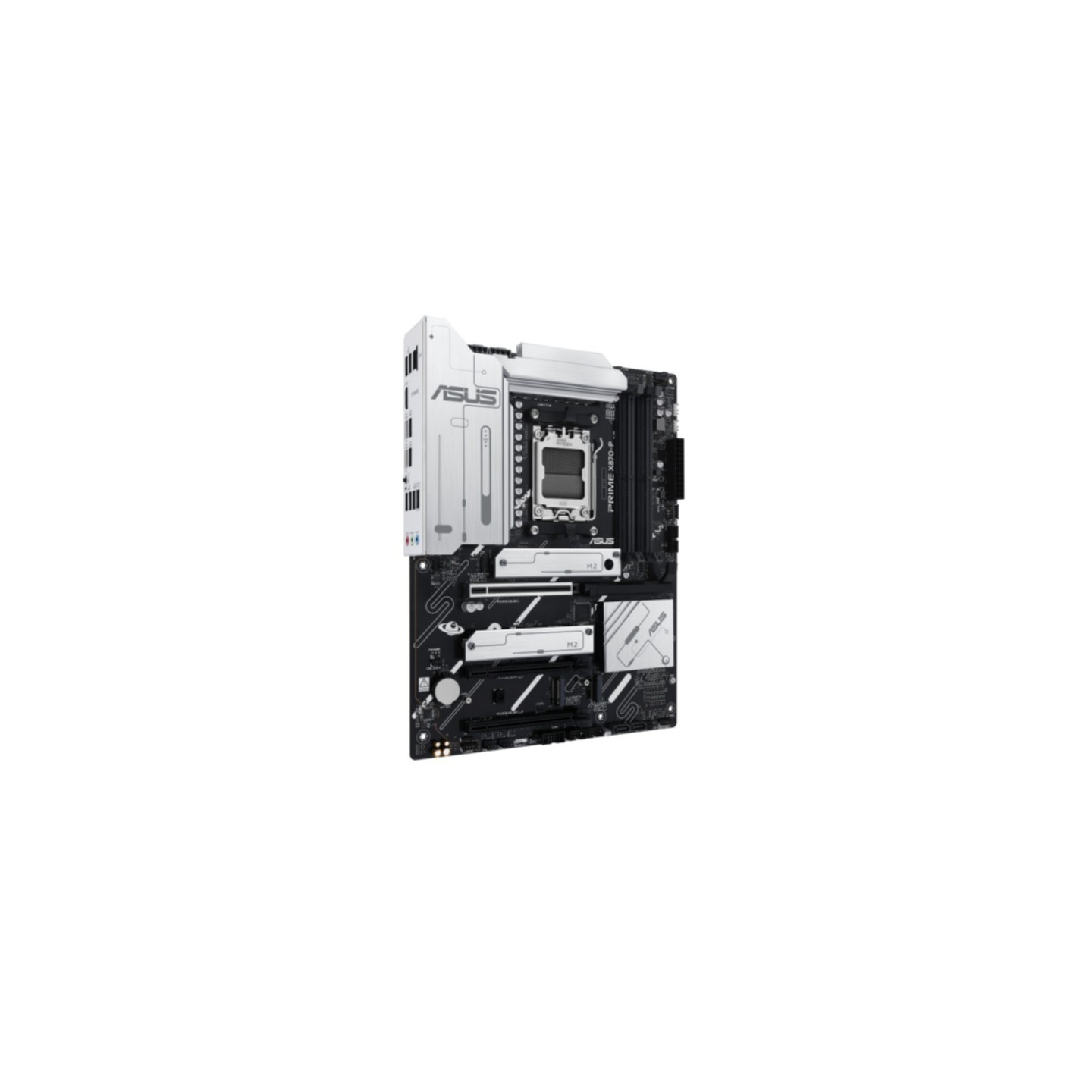

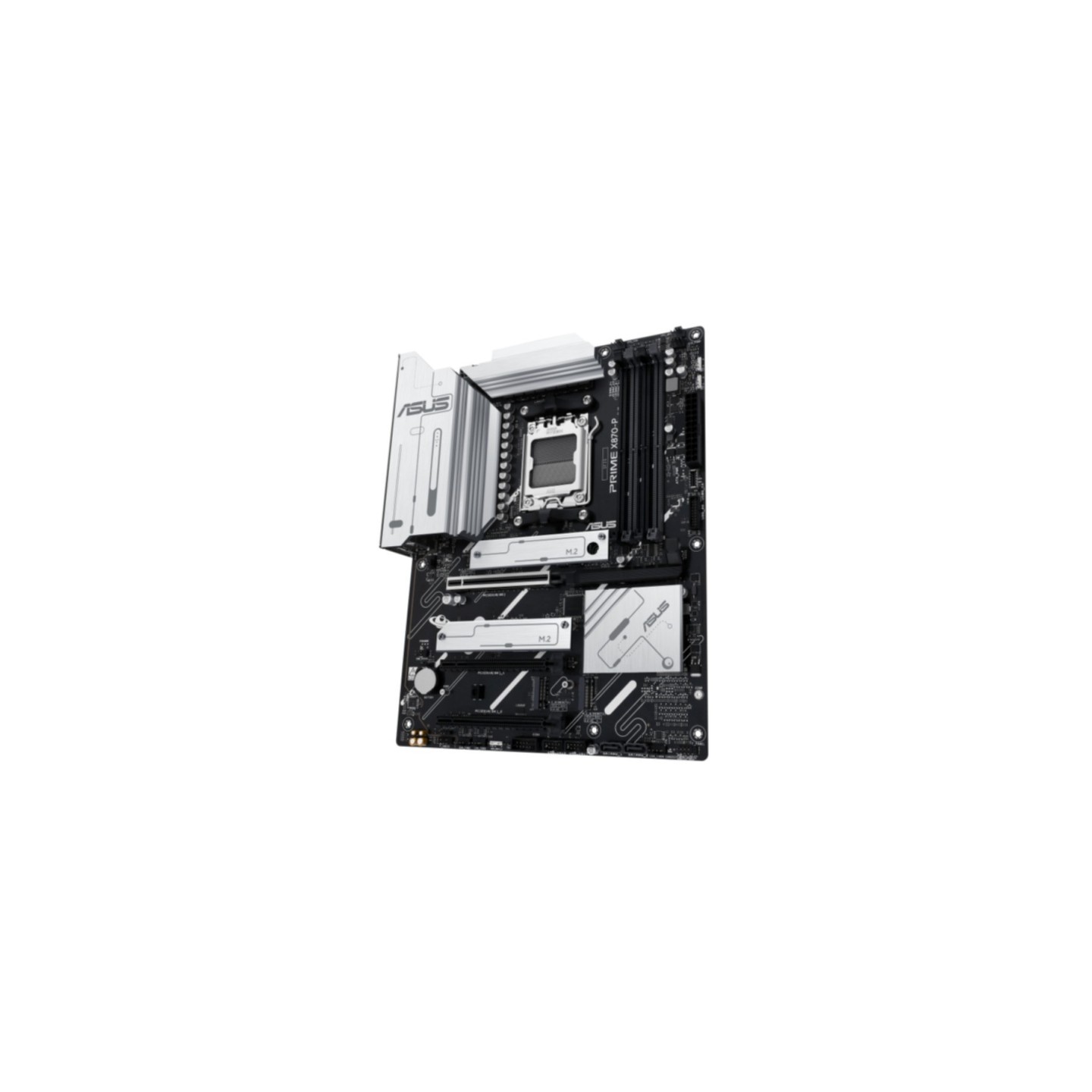

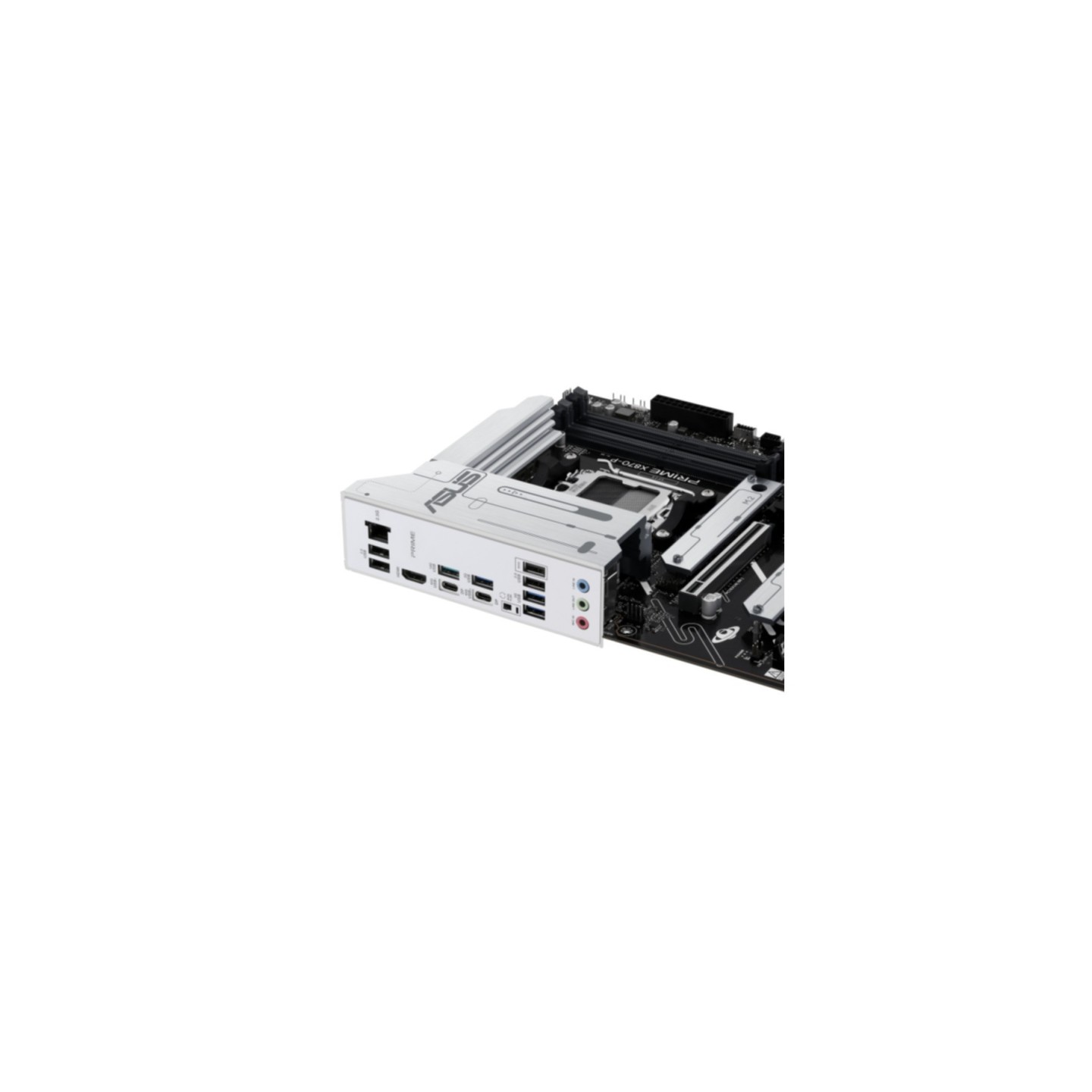

ASUS PRIME X870-P AM5 ATX MB AMD X870 DDR5-8000+ 192GB PCIe5 USB4 2.5G LAN (Boxed)
AM5 ATX motherboard for Ryzen 7000/8000/9000 Series. Supports 4x DDR5 up to 8000MHz+(OC), 192GB max, 4x M.2 slots (1x PCIe5), PCIe 5.0 x16, 2x USB4 Type-C (40Gbps), 2.5Gb LAN, HDMI 2.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 2 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |
The ASUS PRIME X870-P is a feature-packed AM5 ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors. It delivers robust power with a 14+2+1 (80A) VRM design, ensuring stability for high-core-count CPUs and overclocking. Comprehensive cooling includes multiple heatsinks, AI Cooling II, and Fan Xpert 4 for optimal thermal performance under heavy loads.
Memory and storage shine with 4x DDR5 DIMM slots supporting up to 192GB at 8000MHz+(OC) via EXPO and AEMP profiles. It features 4x M.2 slots—one PCIe 5.0 (128Gbps), two PCIe 4.0 (64Gbps), one PCIe 3.0—plus 2x SATA III. Connectivity includes 2x USB4 Gen2x2 Type-C (40Gbps), PCIe 5.0 x16 slot, 2.5Gb Ethernet, and HDMI 2.1. DIY-friendly with Q-Release, Q-Latch, BIOS FlashBack, and pre-mounted I/O shield.
- Robust 14+2+1 80A power stages for Ryzen stability
- DDR5 up to 8000MHz+ with EXPO/AEMP support
- 4x M.2 (PCIe 5.0/4.0/3.0) + 2x SATA III
- 2x USB4 (40Gbps), PCIe 5.0 GPU slot, 2.5Gb LAN
- AI Cooling II, Aura Sync RGB headers, UEFI BIOS tweaks
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 8000 MHz |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| HDMI version | 2.1 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.5 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Weight | 1.44 kg |
