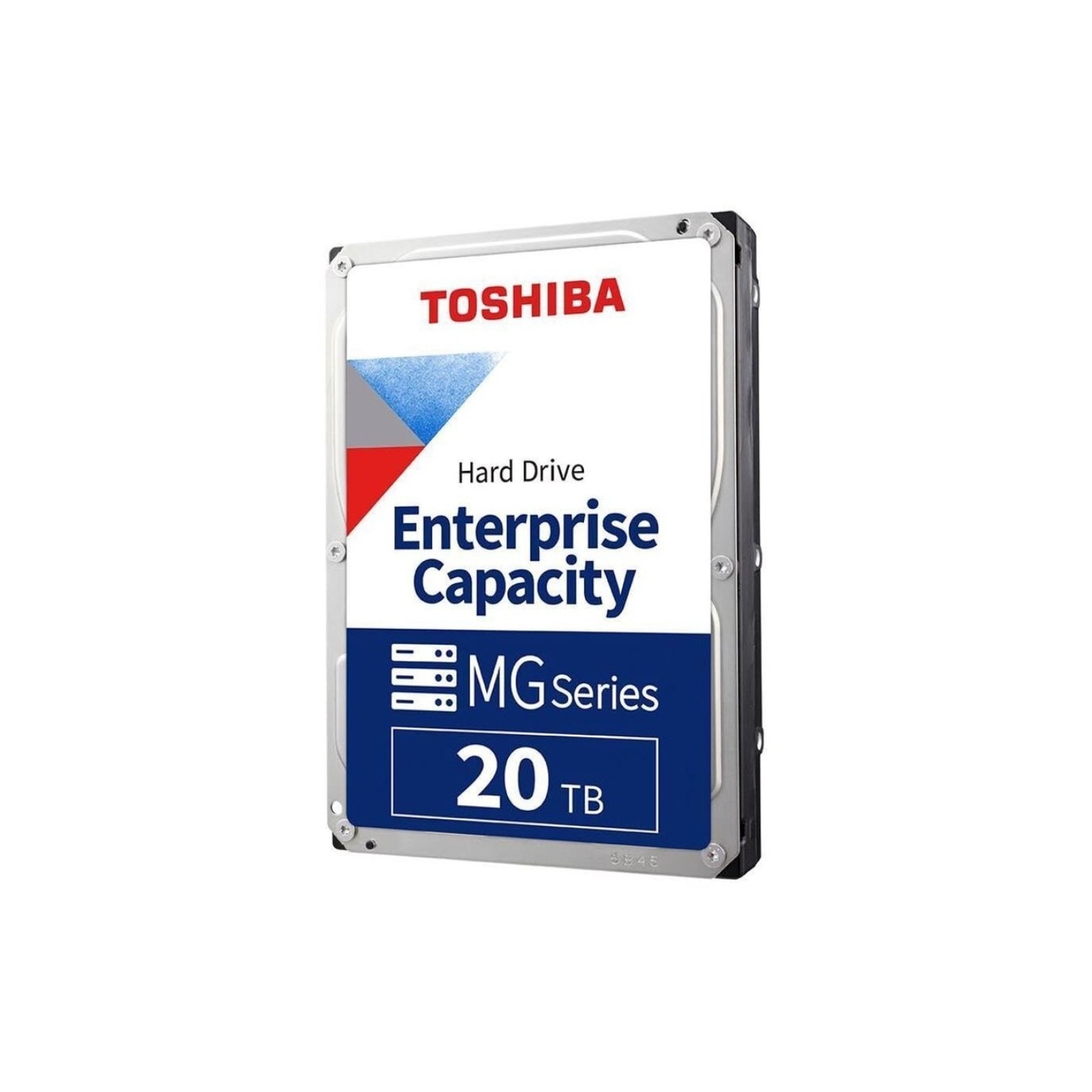

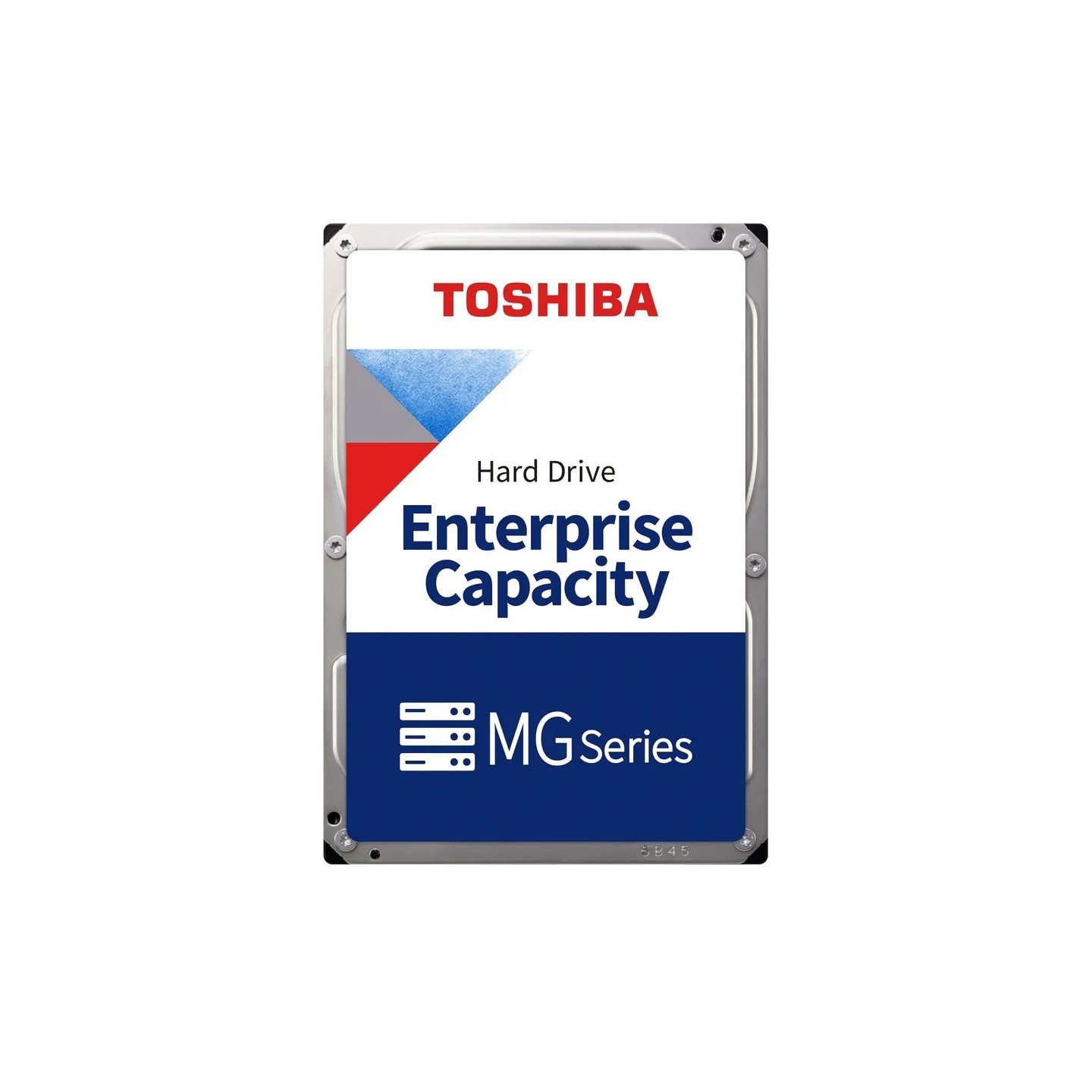

Toshiba MG10 MG10ACA20TE 20TB 3.5" SATA III 7200 RPM Enterprise HDD
20TB Toshiba MG10ACA20TE Enterprise HDD with 7200 RPM, 512MB cache, SATA III 6Gb/s interface, helium-sealed 10-disk design, FC-MAMR technology, 268 MiB/s sustained transfer, 550 TB/year workload, 5-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 20TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
Enterprise-Grade Cloud-Scale Storage
The Toshiba MG10 Series MG10ACA20TE delivers 20TB of Conventional Magnetic Recording (CMR) capacity using Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. Featuring a fourth-generation, 10-disk helium-sealed design, this drive achieves 2TB per disk density while maintaining exceptional reliability. The industry-standard 3.5-inch form factor with 7200 RPM performance integrates seamlessly into cloud-scale storage infrastructure, business-critical servers, and file/object storage solutions.
Reliability and Performance
With a 512MB cache buffer and SATA 6.0 Gbit/s interface, the MG10ACA20TE delivers maximum sustained data transfer speeds of 268 MiB/s. The drive includes Toshiba Persistent Write Cache Technology for data-loss protection during sudden power-loss events (512e models). Rated for 24/7 continuous operation with a 550 TB/year workload capacity and 2,500,000-hour MTTF, this enterprise-class drive provides unsurpassed data reliability and application compatibility.
Optimized Total Cost of Ownership
The helium-sealed mechanics reduce aerodynamic drag, delivering a lower operational power profile (9.3W typical) and excellent power efficiency (W/TB) for superior TCO. The drive supports both 512e and 4Kn Advanced Format Sector Technology options, providing flexibility for diverse storage environments.
- 20TB formatted capacity with CMR technology
- 7200 RPM spindle speed for consistent performance
- 512MB cache buffer for improved data access
- SATA III 6Gb/s interface for standard drive bay compatibility
- Helium-sealed 10-disk design for superior storage density
- FC-MAMR technology for optimized capacity and reliability
- 24/7 operation rated with 550 TB/year workload limit
- 5-year limited warranty included
| Capacity | 20TB |
| Form Factor | 3.5 inch |
| Interface | SATA 6.0 Gbit/s |
| Spindle Speed | 7200 RPM |
| Cache Buffer | 512 MB |
| Recording Technology | Conventional Magnetic Recording (CMR) with FC-MAMR |
| Maximum Sustained Data Transfer Rate | 268 MiB/s |
| Disk Design | 10-disk helium-sealed |
| Data Density | 2 TB per disk |
| Power Consumption (Typical) | 9.3 W |
| Mean Time To Failure (MTTF) | 2,500,000 hours |
| Workload Rating | 550 TB/year |
| 24/7 Operation | Yes |
| Data Protection | Toshiba Persistent Write Cache Technology (512e models) |
| Advanced Format Support | 512e or 4Kn |
| Warranty | 5 years limited |
| Bare Drive Weight | 907 g (2 lbs) |
| Bare Drive Dimensions (W×H×D) | 10.16 cm × 2.54 cm × 14.73 cm (4in × 1in × 5.8in) |
| Model Number | MG10ACA20TE |
| Series | MG10 |
| Type | Enterprise Hard Drive |
