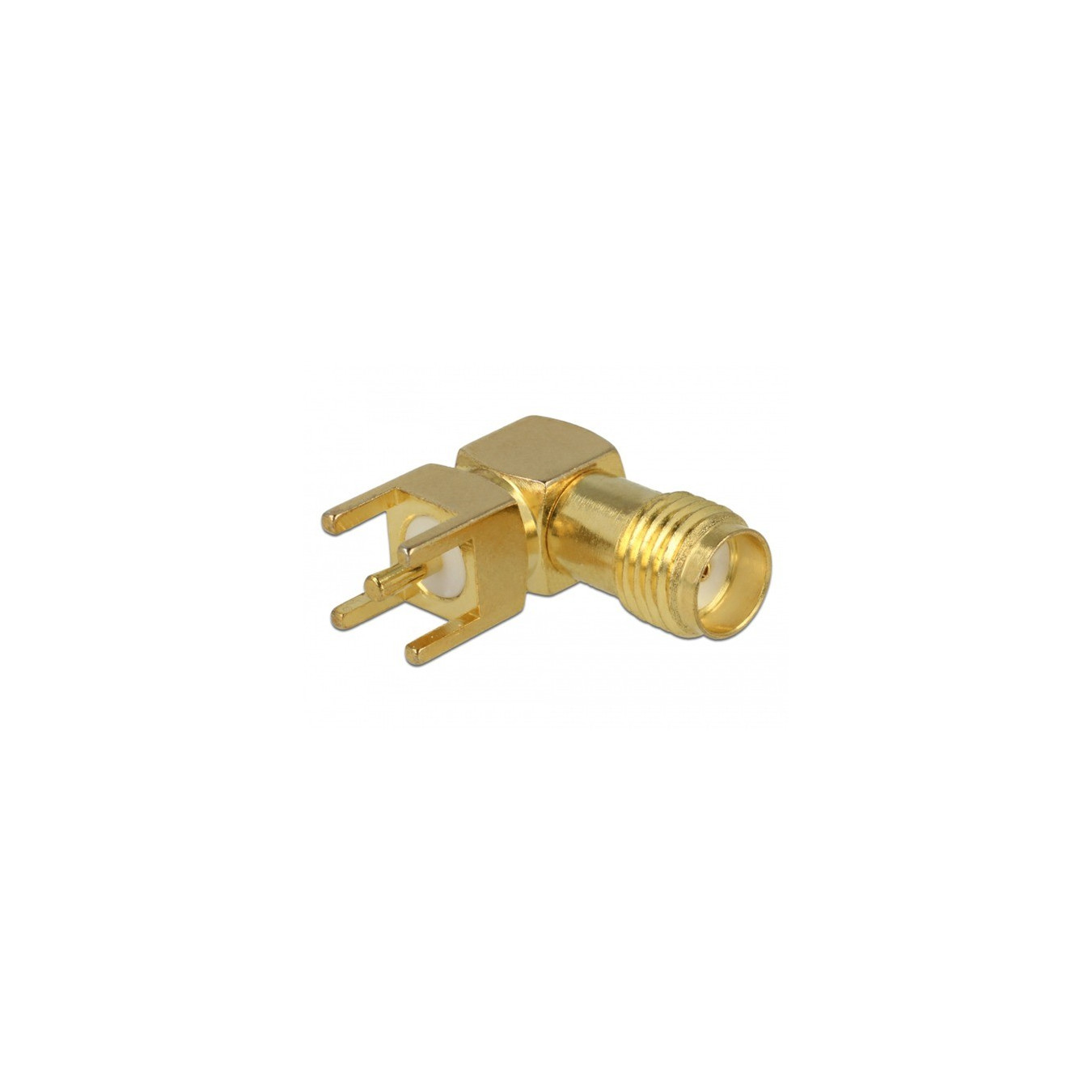

SMA socket 90° PCB
The Delock socket 65849 is suitable for soldering mounting on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Item no.: 1454227
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock socket 65849 is suitable for soldering mounting on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
| Typ | socket |
| Color | gold |
| EAN | 4043619658497 |
| Manufacturer no. | 65849 |
| Manufactured in | China |
| Operating temperature | -55 °C to 165 °C |
| Feature | Pins gold-plated brass, insulation: PFTE, housing: gold-plated brass |
| More information | Connection: 1x SMA socket 90°, frequency range 0 - 6 GHz, impedance 50 Ohm, VSWR 1.2 thread type 1/4" - 36 UNS - 2A, thread length 5mm, voltage strength 500V / 50Hz, soldering mounting: 5 soldering points |
| Notice | System requirements: Suitable board for mounting the SMA connector |
| Dimensions | Width: 15.3mm x Height: 14mm x Depth: 6mm |
| Weight | 20 Gramm |
