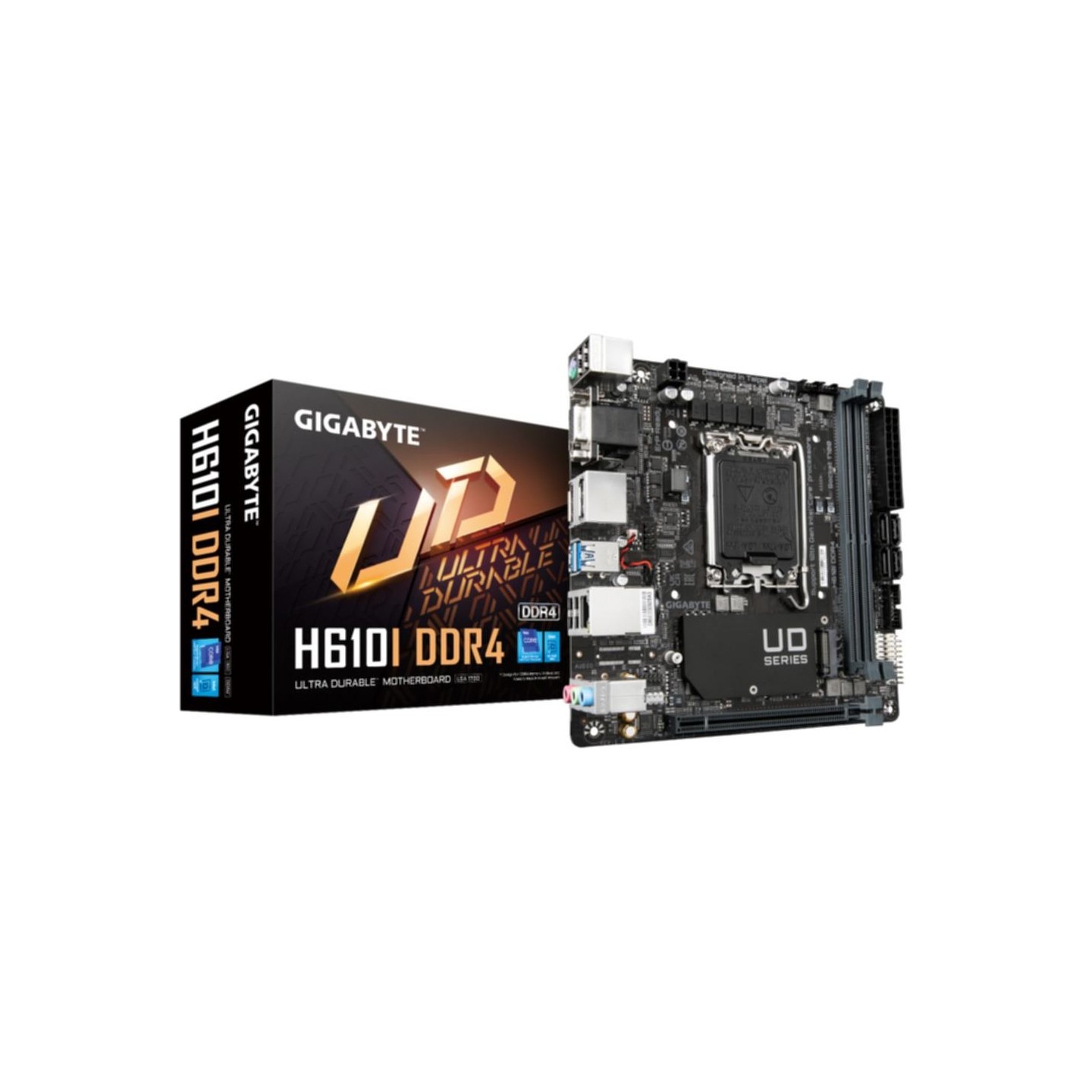

Gigabyte H610I DDR4 LGA1700 Mini-ITX Motherboard - 64GB Max (Boxed)
Gigabyte H610I DDR4 is a compact Mini-ITX LGA1700 motherboard with Intel H610 chipset. Supports 12th/13th Gen Intel CPUs, dual-channel DDR4 up to 64GB@3200MHz, PCIe 4.0 x16, 1x M.2 PCIe 3.0, 4x SATA, GbE LAN. Ideal for SFF builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Mini-ITX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

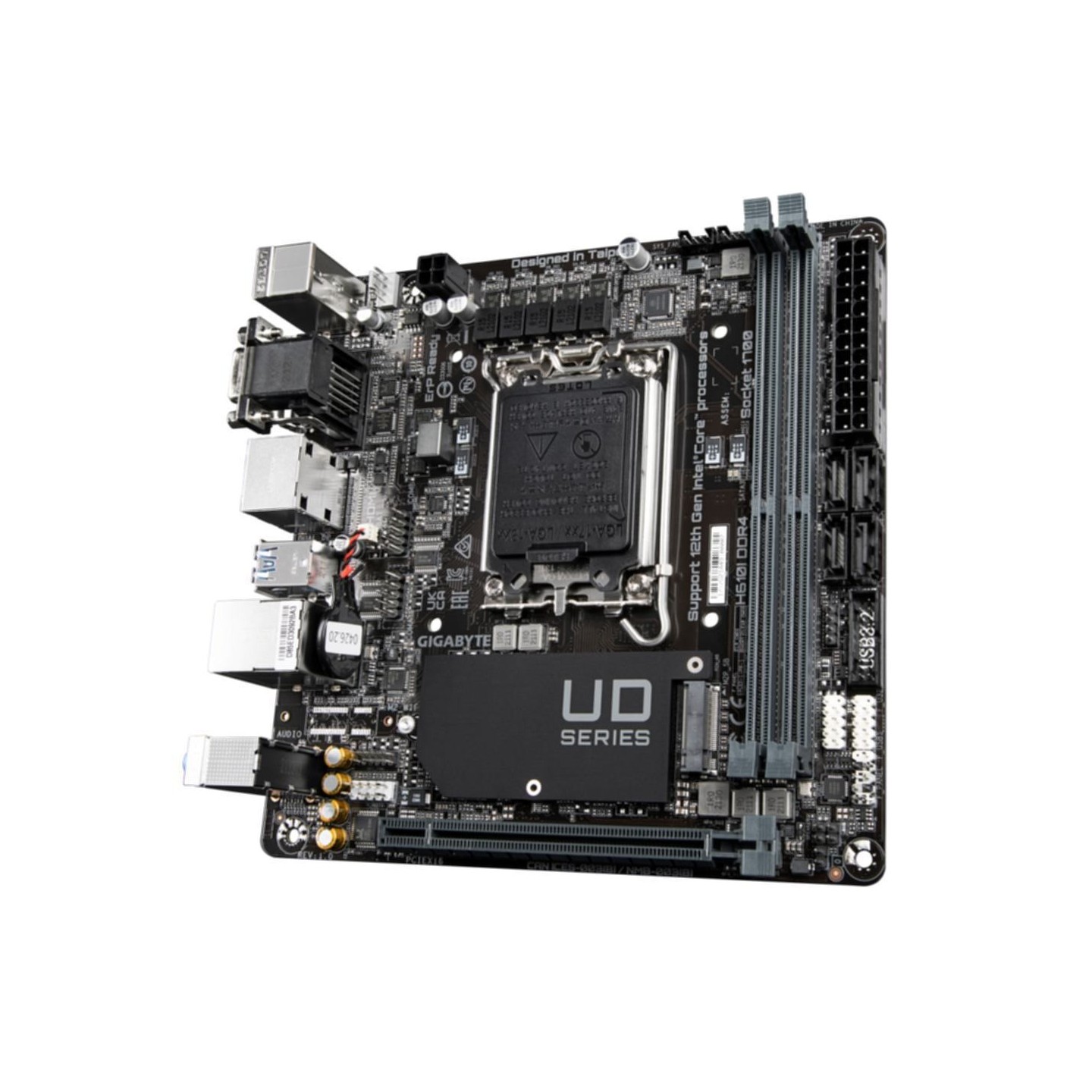

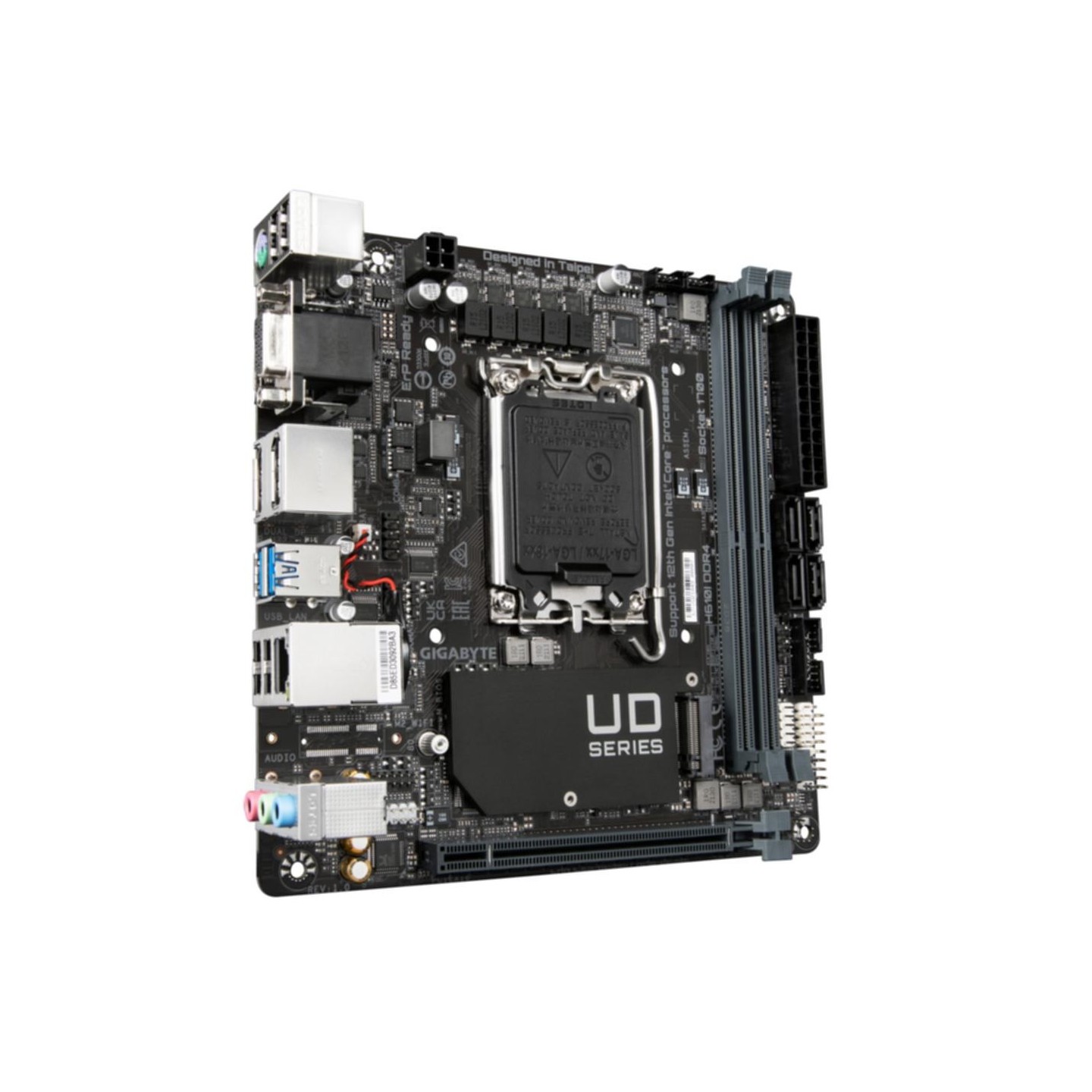

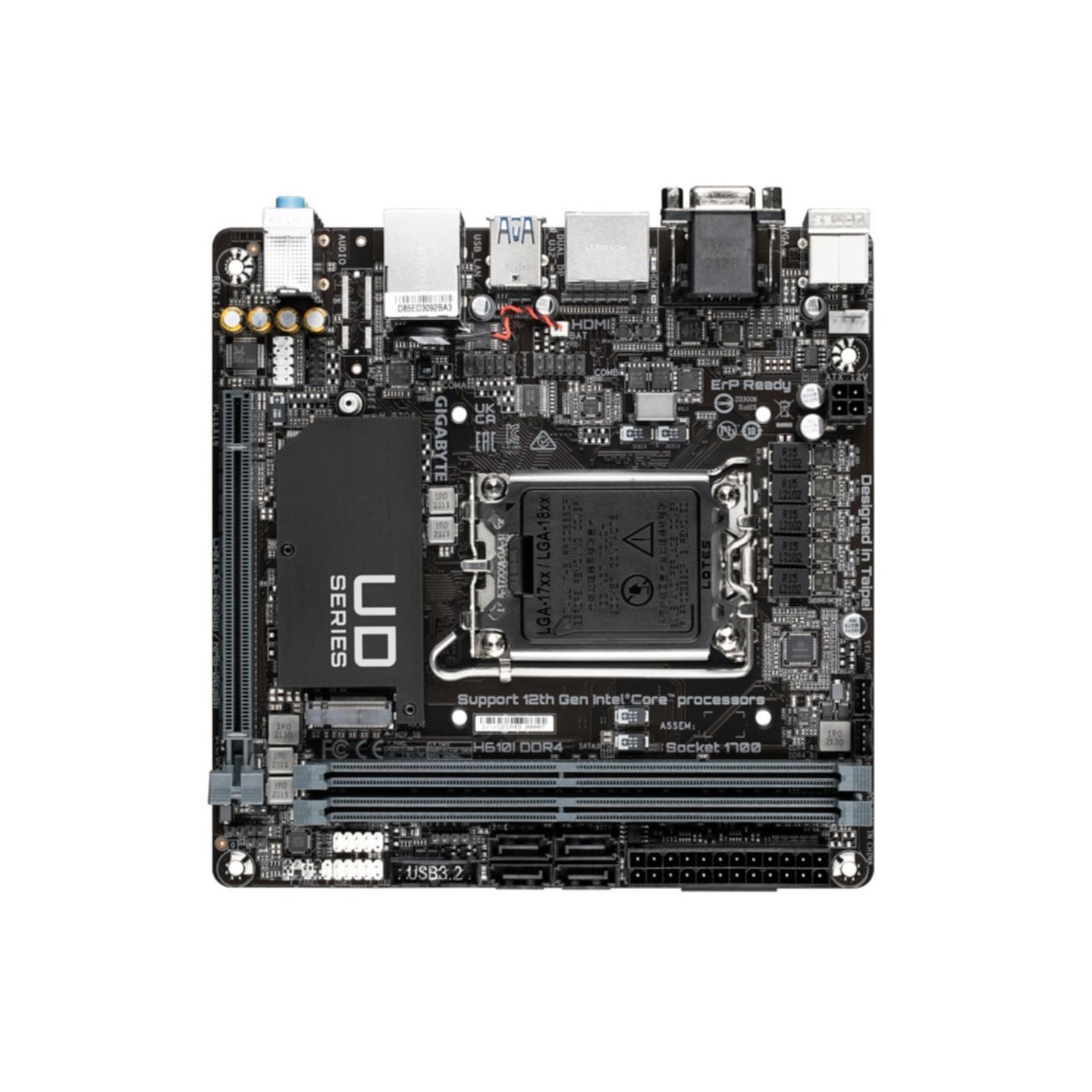

The Gigabyte H610I DDR4 (rev. 1.0) is an entry-level Mini-ITX motherboard designed for compact LGA1700 systems supporting Intel 12th, 13th, and compatible 14th Gen Core processors. Featuring the Intel H610 chipset, it delivers reliable performance for small form factor PCs, home servers, or budget gaming builds with a 4+1+1 hybrid digital VRM design using 60A DrMOS for stable power delivery even under moderate loads.

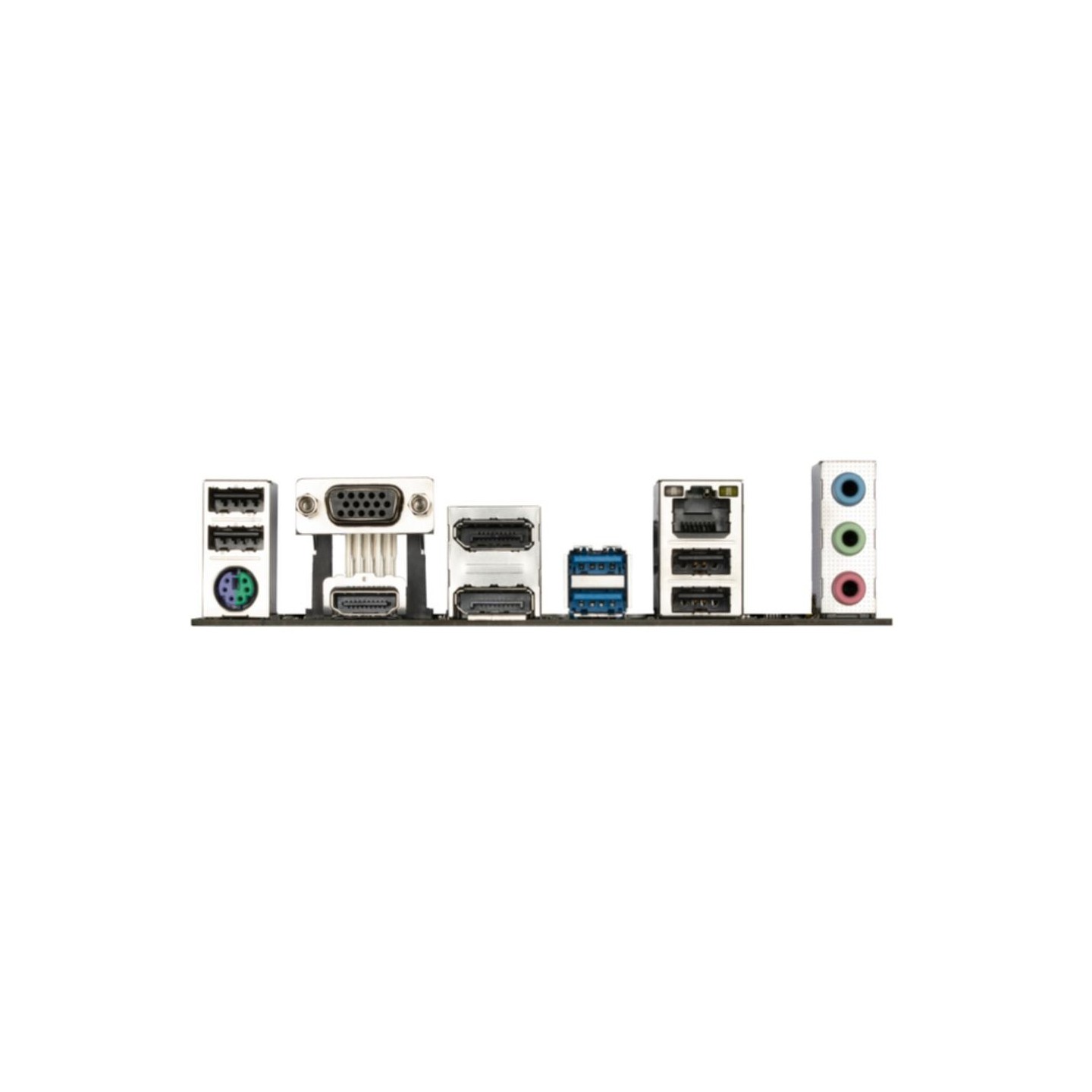

Key connectivity includes 1x PCIe 4.0 x16 slot for GPUs, 1x PCIe 3.0 x4 M.2 for NVMe SSDs, 4x SATA III ports, Intel GbE LAN with cFosSpeed acceleration, and comprehensive rear I/O: 2x USB 3.2 Gen1 Type-A, 4x USB 2.0, HDMI 2.0, 2x DisplayPort 1.2, VGA, plus Realtek ALC897 7.1-channel HD audio with premium capacitors. Smart Fan 6 provides precise cooling control with multiple headers supporting up to 24W fans.
- Memory: 2x DDR4 DIMM, dual-channel, up to 64GB (32GB/single), 3200MHz OC
- Expansion: PCIe 4.0 x16, M.2 PCIe 3.0 x4
- Networking: 1x Gigabit Ethernet (no WiFi)
- Audio: 7.1-channel ALC897
- Form Factor: Mini-ITX (17x17cm), UEFI BIOS with CPU optimization profiles
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | mini ITX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3000, 3200 MHz |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 slots | 1 (PCIe 4.0) |
| Ethernet LAN | Yes (Gigabit) |
| Wi-Fi | No |
| Audio output channels | 7.1 channels (Realtek ALC897) |
| HDMI ports quantity | 1 (version 2.0) |
| DisplayPorts quantity | 2 (version 1.2) |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| VRM Design | 4+1+1 Phases Hybrid Digital (60A DrMOS) |
| Product colour | Black |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 35 mm |
| Package width | 222 mm |
| Package depth | 180 mm |
| Package height | 65 mm |
| Package weight | 711 g |
| Warranty period | 3 year(s) |
