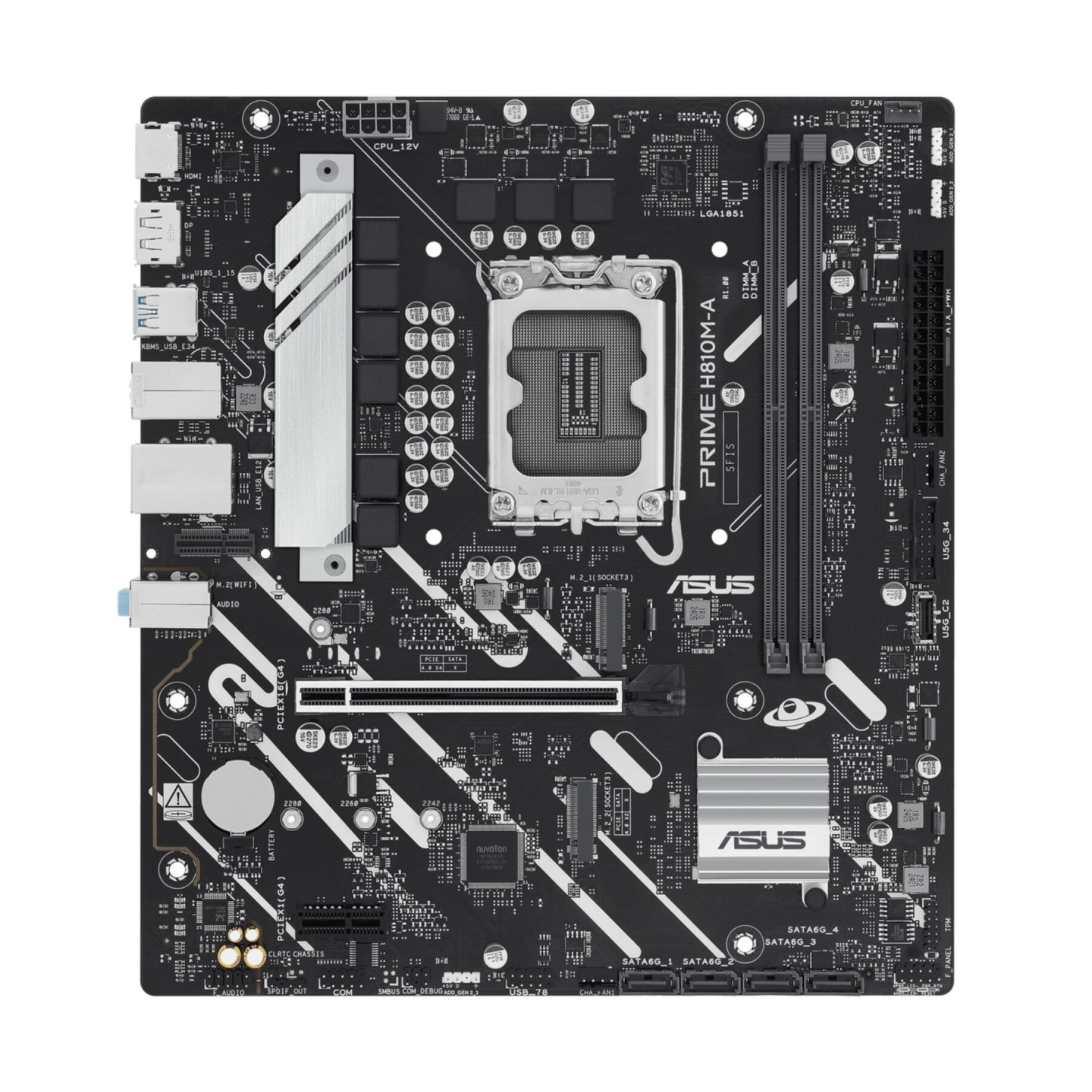

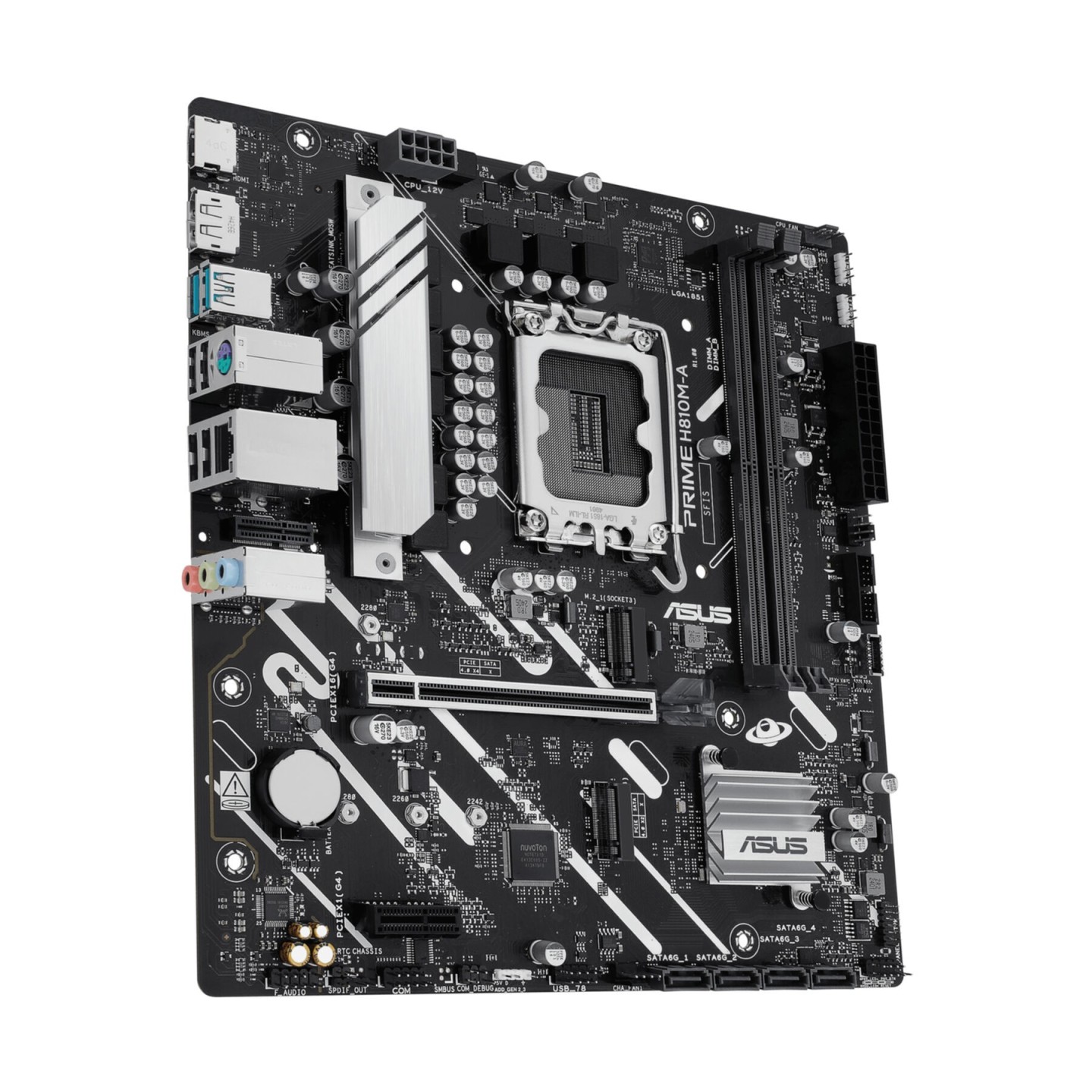

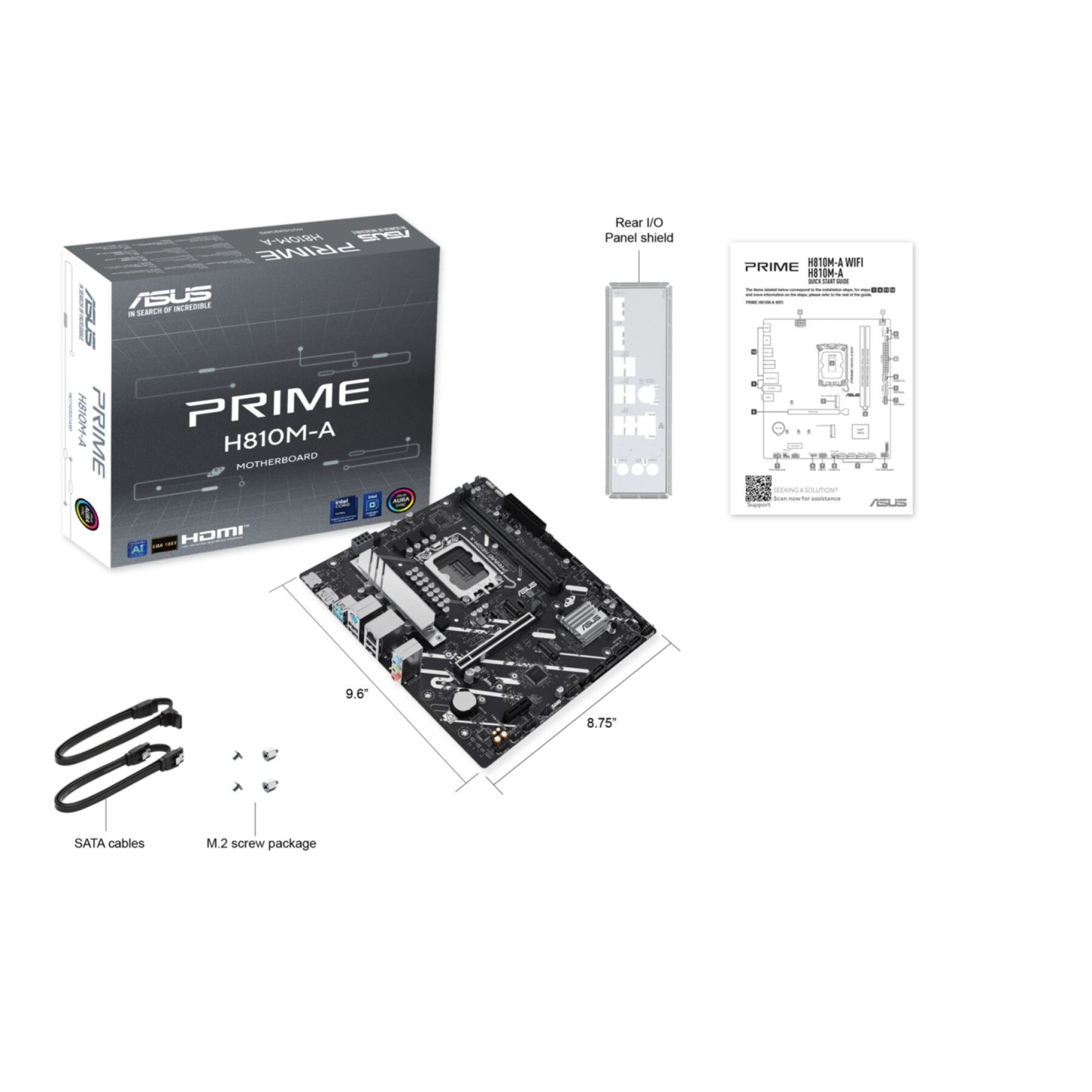

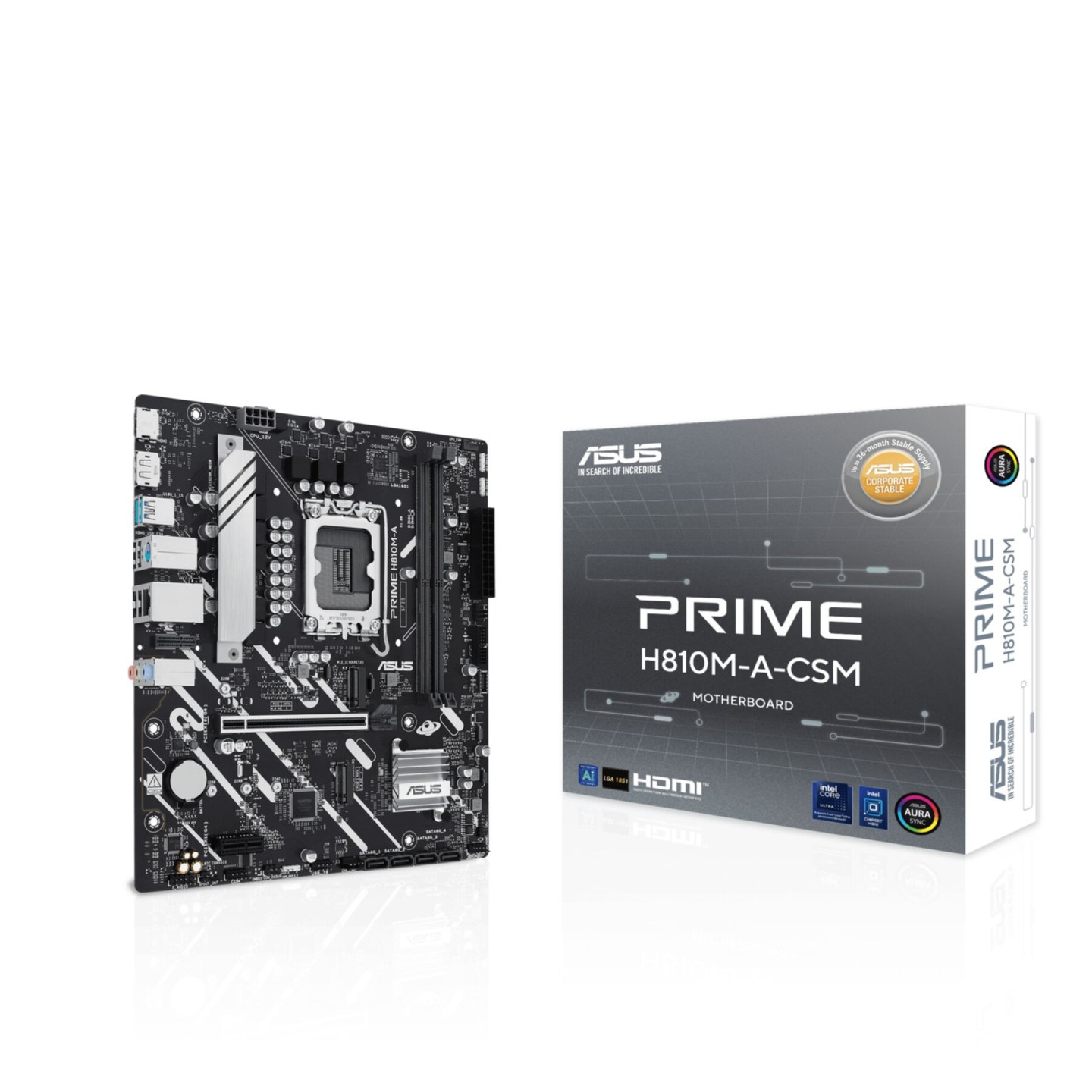

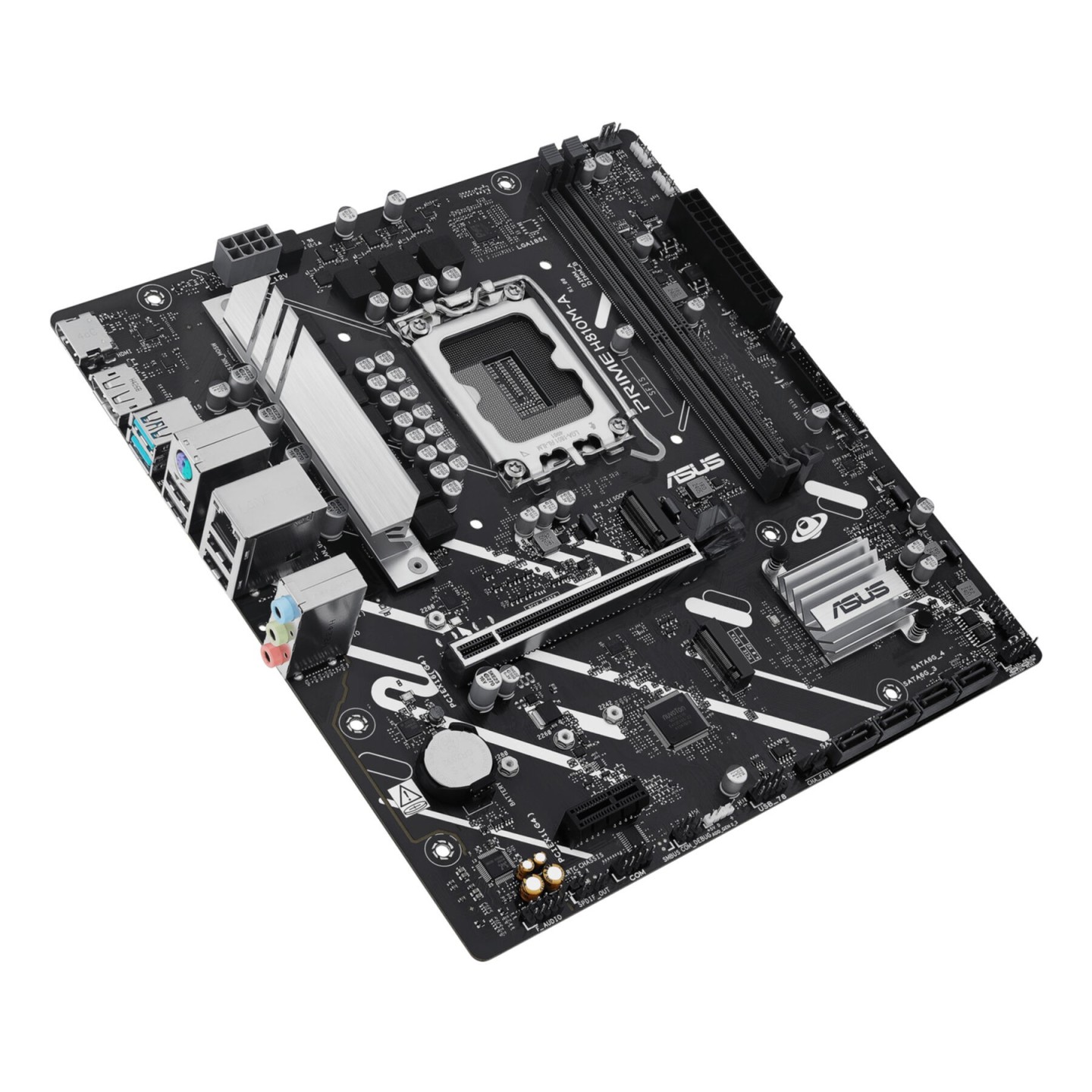

ASUS PRIME H810M-A CSM - H810M-A (LGA1851) Micro-ATX Motherboard, Intel H810, Up to 128GB, AI-Ready (Boxed)
Micro-ATX ASUS PRIME H810M-A CSM motherboard for Intel Core Ultra Series 2 (LGA1851), H810 chipset, 128GB DDR5, 2x PCIe4.0 M.2, CSM support, AI-ready, no WiFi.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1851 |
|---|---|
| Motherboards - Chipset | Intel H810 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |
The ASUS PRIME H810M-A CSM is a Micro-ATX motherboard designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket and H810 chipset. It features robust 6+1+1+1 phase power delivery, comprehensive cooling with hybrid fan headers, and ASUS Corporate Stable Model (CSM) program offering 36-month lifecycle and Control Center Express software for IT management.
Equipped with 2x DDR5 DIMM slots supporting up to 128GB at 6400MT/s (XMP), DIMM Fit optimization, dual PCIe 4.0 M.2 slots (64Gbps + 32Gbps), 4x SATA III, Intel I219-V 1Gb Ethernet, Realtek 7.1 audio, HDMI 2.1, DisplayPort 1.4, rear 2x USB 10Gbps Type-A + front USB 5Gbps Type-C header. Includes 3x Addressable Gen2 RGB headers, SafeSlot Core+, Q-LED diagnostics.
- CSM Features: 36-month support, ASUS Control Center Express for monitoring, updates, endpoint management
- Connectivity: PCIe 4.0 x16 + x1 slots, no WiFi/Bluetooth
- Customization: UEFI BIOS, Armoury Crate, Aura Sync RGB
- DIY Friendly: Q-LED Core, front panel connectors, 1x COM
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Motherboard chipset | Intel H810 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 6400 MHz |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN | Yes |
| LAN controller | Intel I219V |
| Wi-Fi | No |
| Audio output channels | 7.1 channels |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Power source type | ATX |
