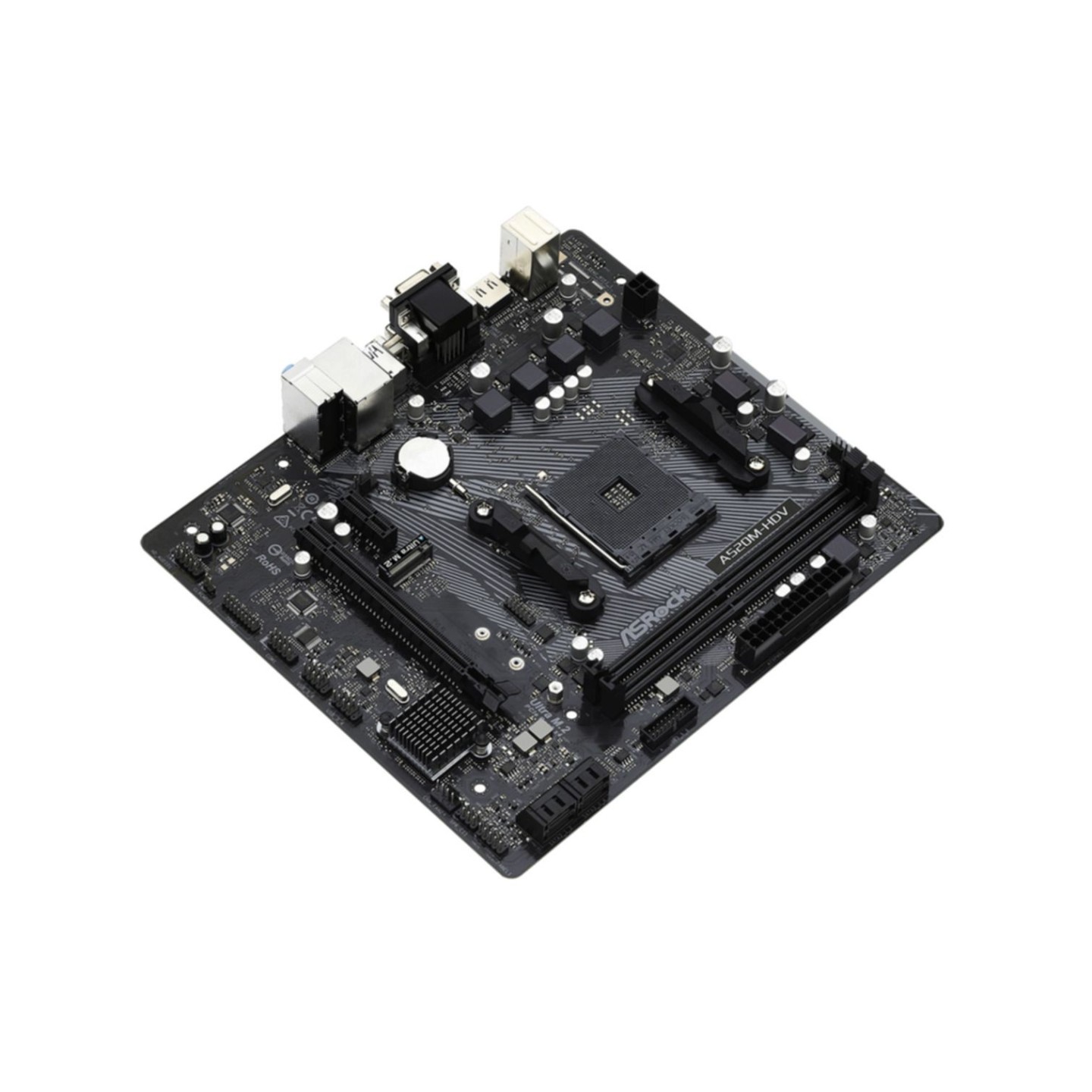

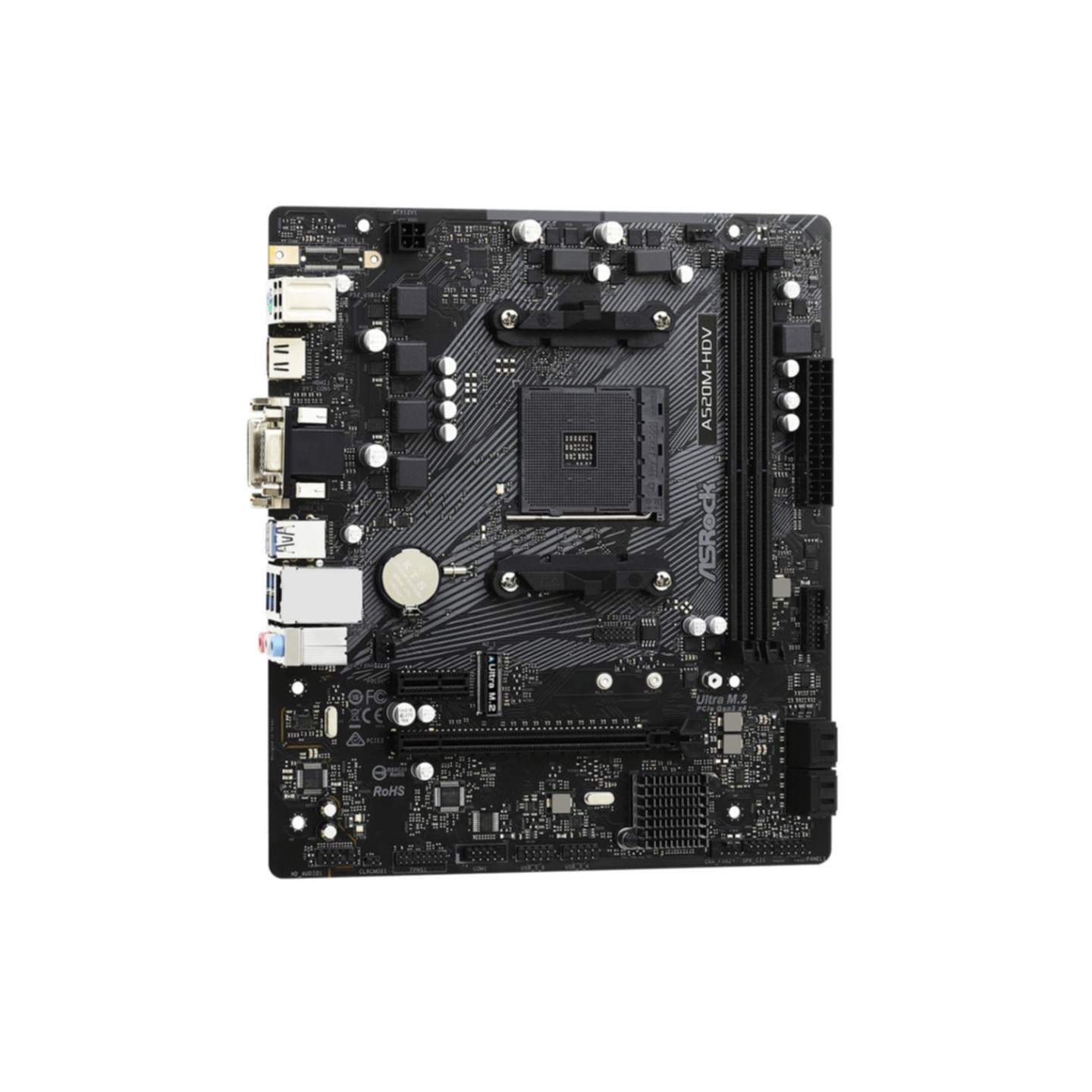

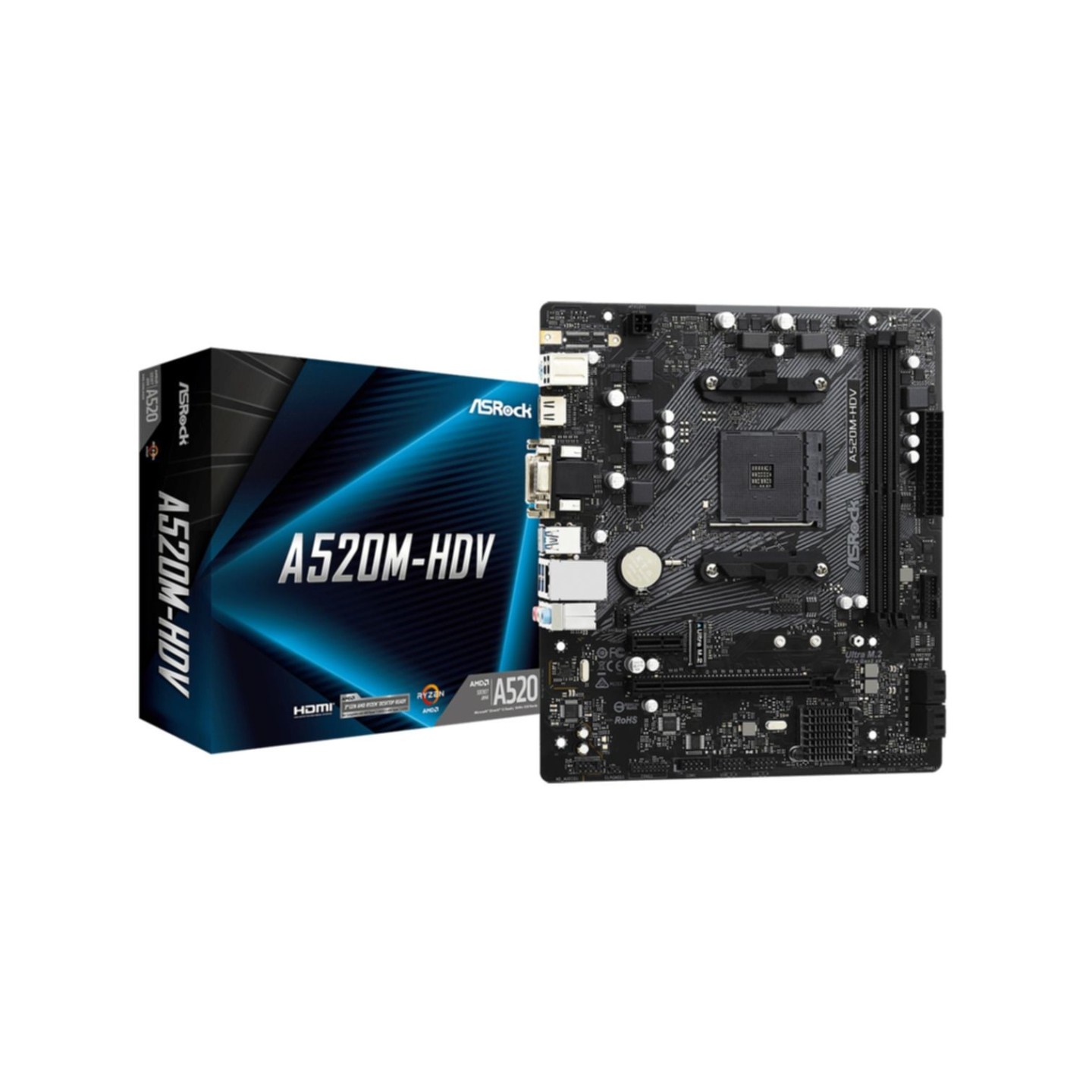

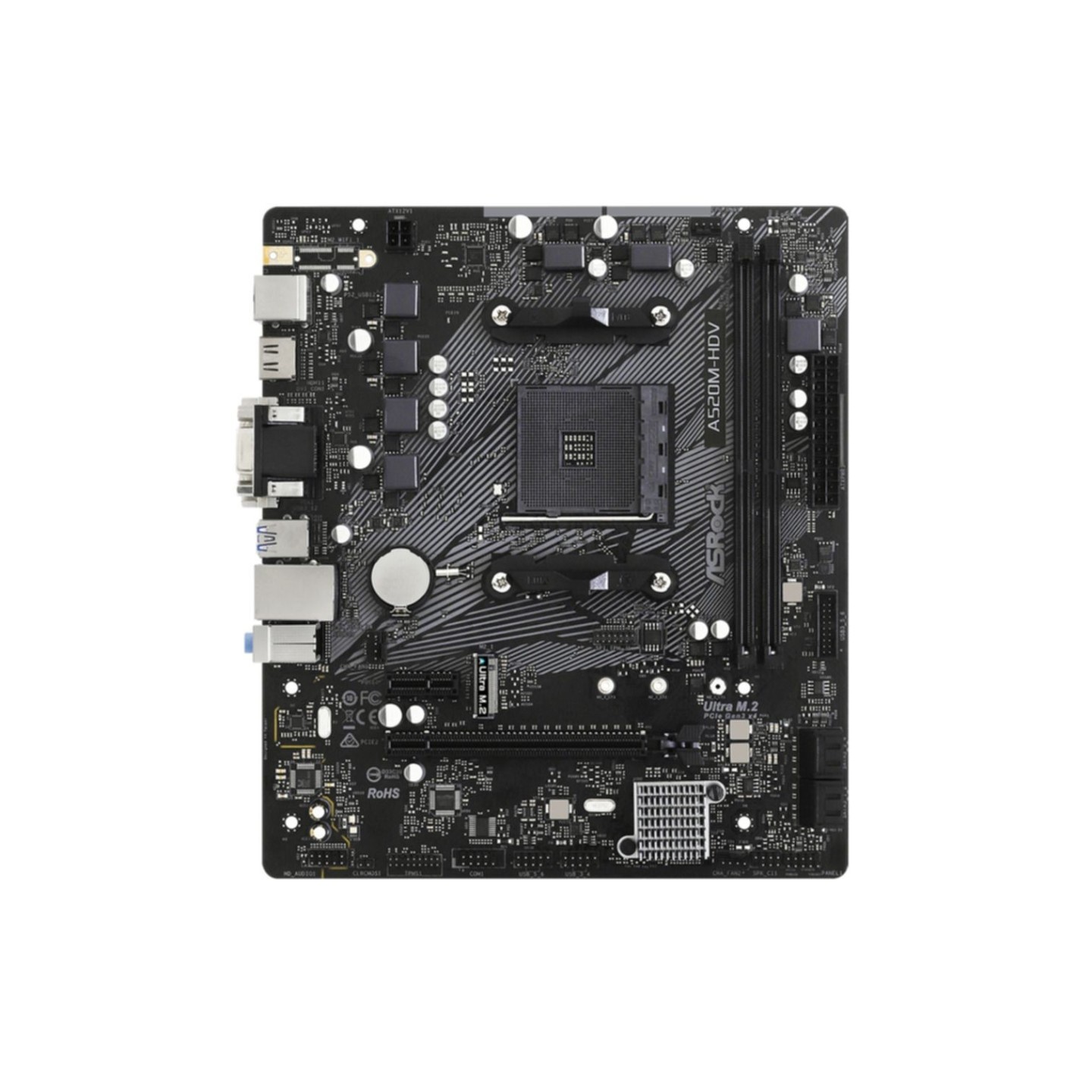

ASRock A520M-HDV - AM4 Micro-ATX Motherboard - DDR4 64GB Max - PCIe 3.0 - M.2 & 4x SATA3 - HDMI/DVI-D/VGA
AM4 Micro-ATX motherboard supports AMD Ryzen 3000/4000G/5000 series. DDR4 up to 64GB (4733+ OC), PCIe 3.0 x16, 1x M.2 (32Gb/s), 4x SATA3, HDMI/VGA/DVI-D, 4x USB 3.2 Gen1, Realtek GbE LAN, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
A520 Motherboard for Everyone
All essentials you need for computing with AMD Ryzen processors.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
PCIe Gen3 x4 Ultra M.2 pushes data speeds up to 32Gb/s and supports SATA3 6Gb/s modules for fast storage.

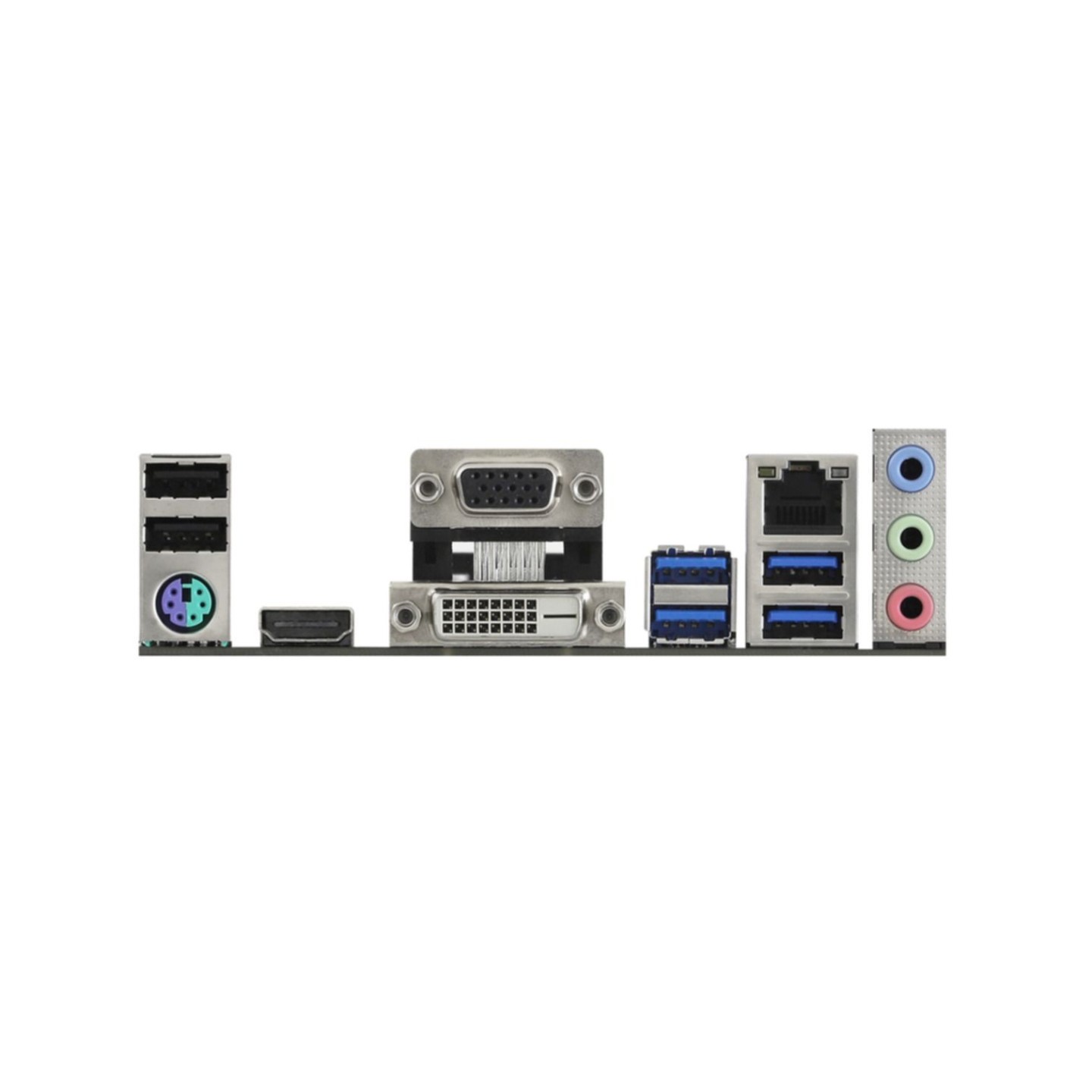

Graphics & Display
Supports HDMI 4K@60Hz, plus VGA (D-Sub) and DVI-D outputs for versatile connectivity. Requires CPU with integrated graphics.
- 7 Phase Power Design with Premium 50A Chokes
- High Density Glass Fabric PCB for humidity protection
- Sapphire Black PCB
- Full Spike Protection
- Supports DDR4 4733+ (OC), 2x DIMM slots up to 64GB
- 4x SATA3 + 1x M.2, PCIe 3.0 x16 slot
- Realtek Gigabit LAN, 7.1 CH HD Audio (ALC887)
- Live Update & APP Shop
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, 5000 G-Series |
| Motherboard chipset | AMD A520 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC compatibility | Non-ECC |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533, 4733+(OC) MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III ports | 4 |
| Number of M.2 slots | 1 (PCIe Gen3 x4 & SATA3) |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 (rear) |
| USB 2.0 ports quantity | 2 (rear) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Audio output channels | 7.1 channels |
| Audio codec | Realtek ALC887 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Power design | 6 Phase Power Design |
| BIOS type | UEFI AMI |
| Width | 230 mm |
| Depth | 201 mm |
| Wi-Fi | No |
