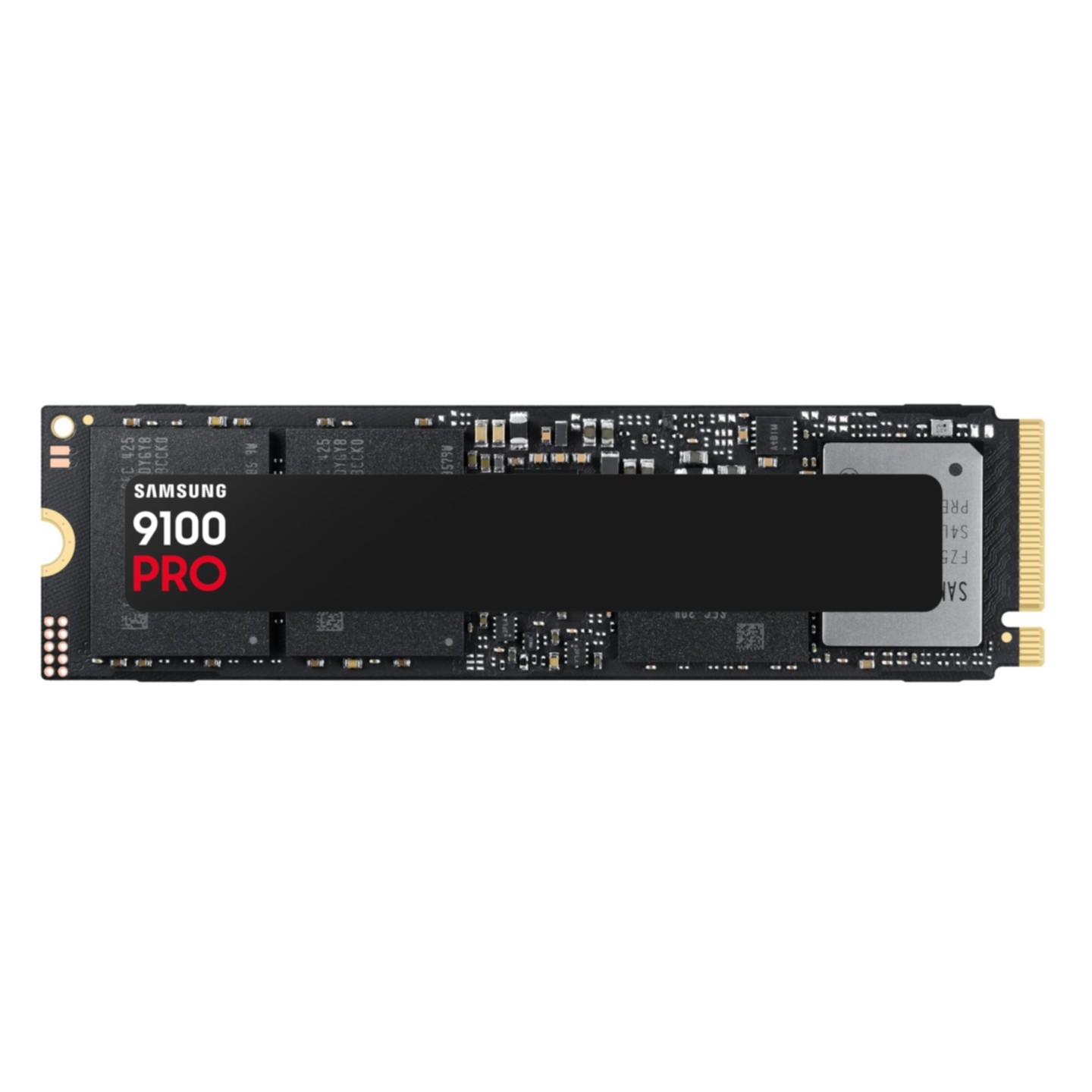

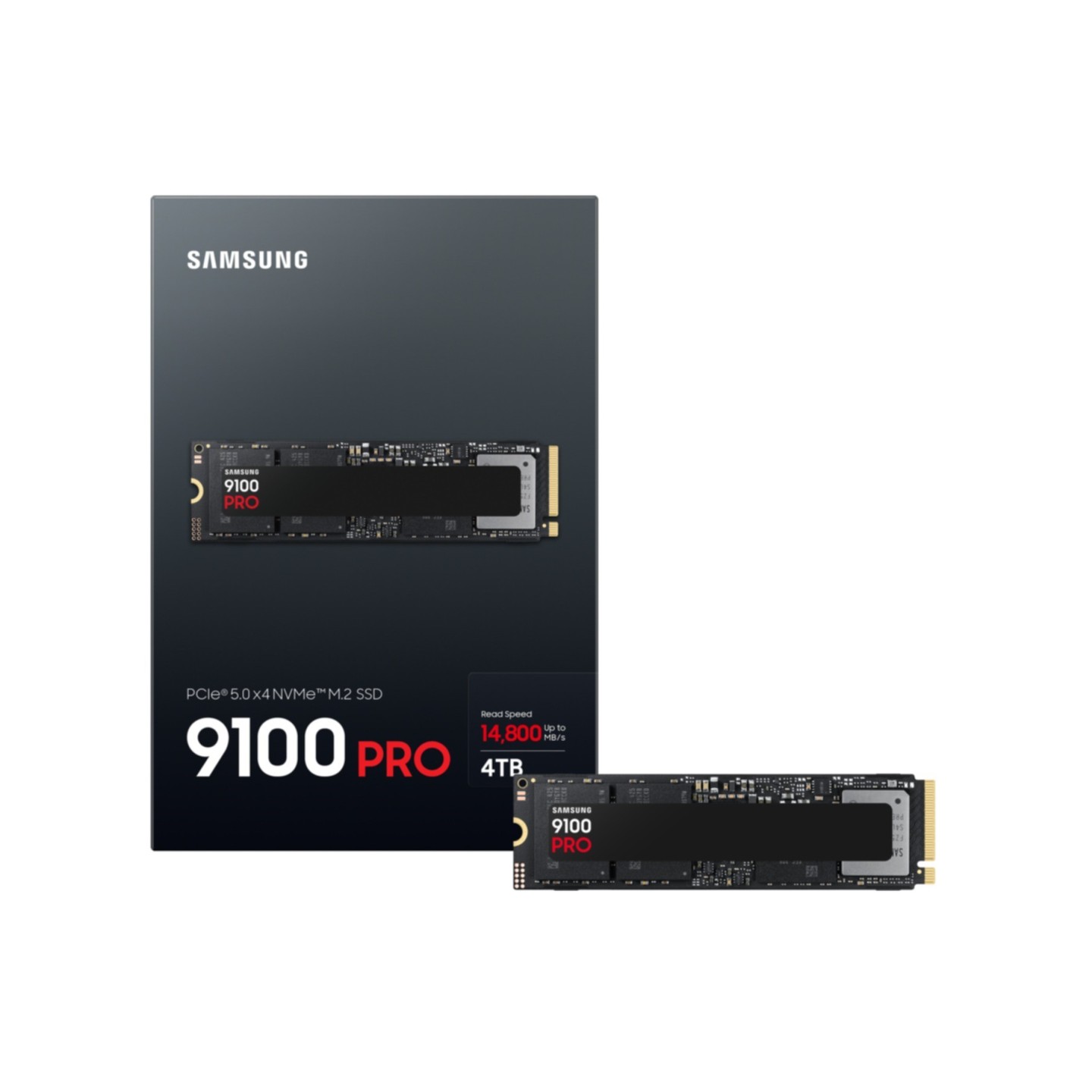

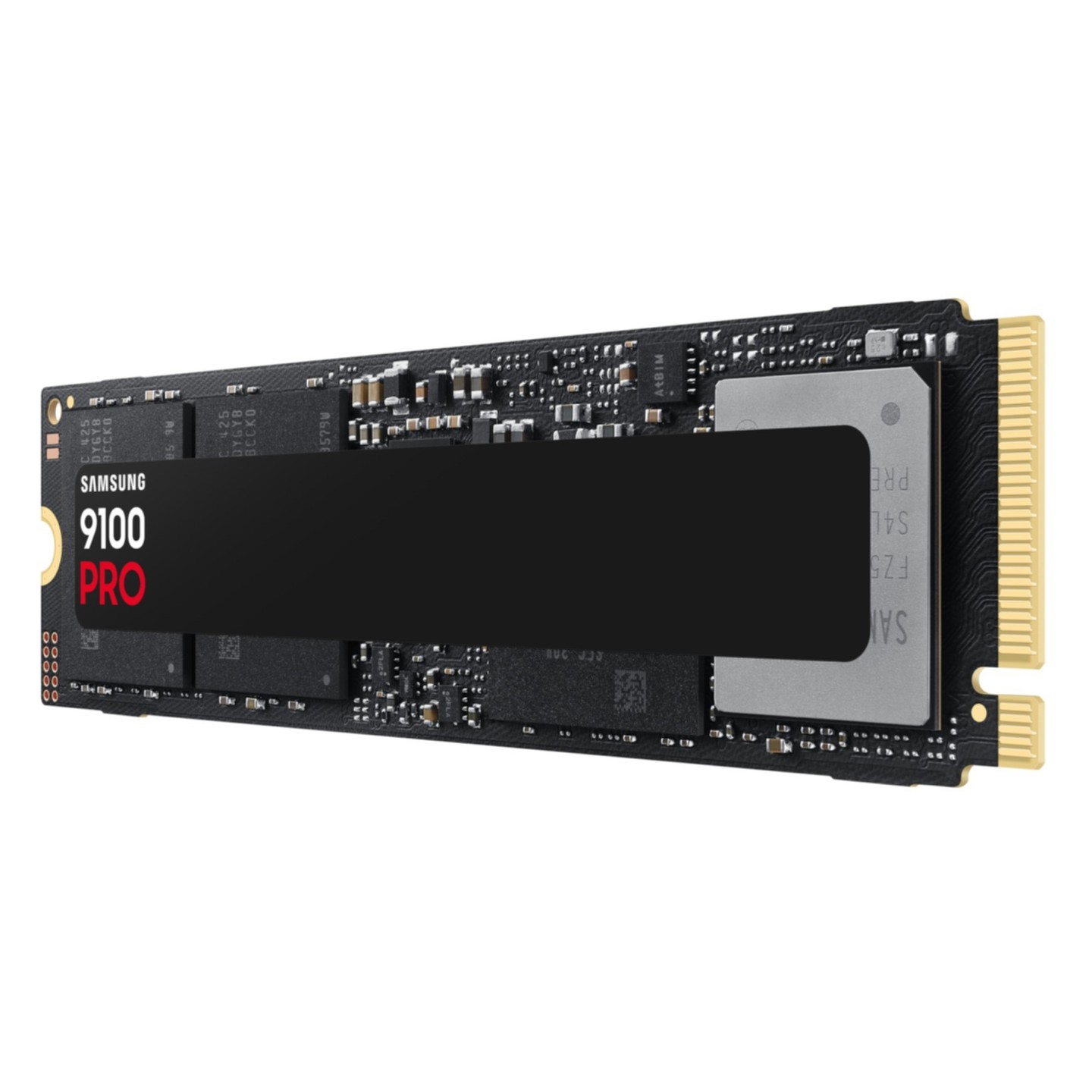

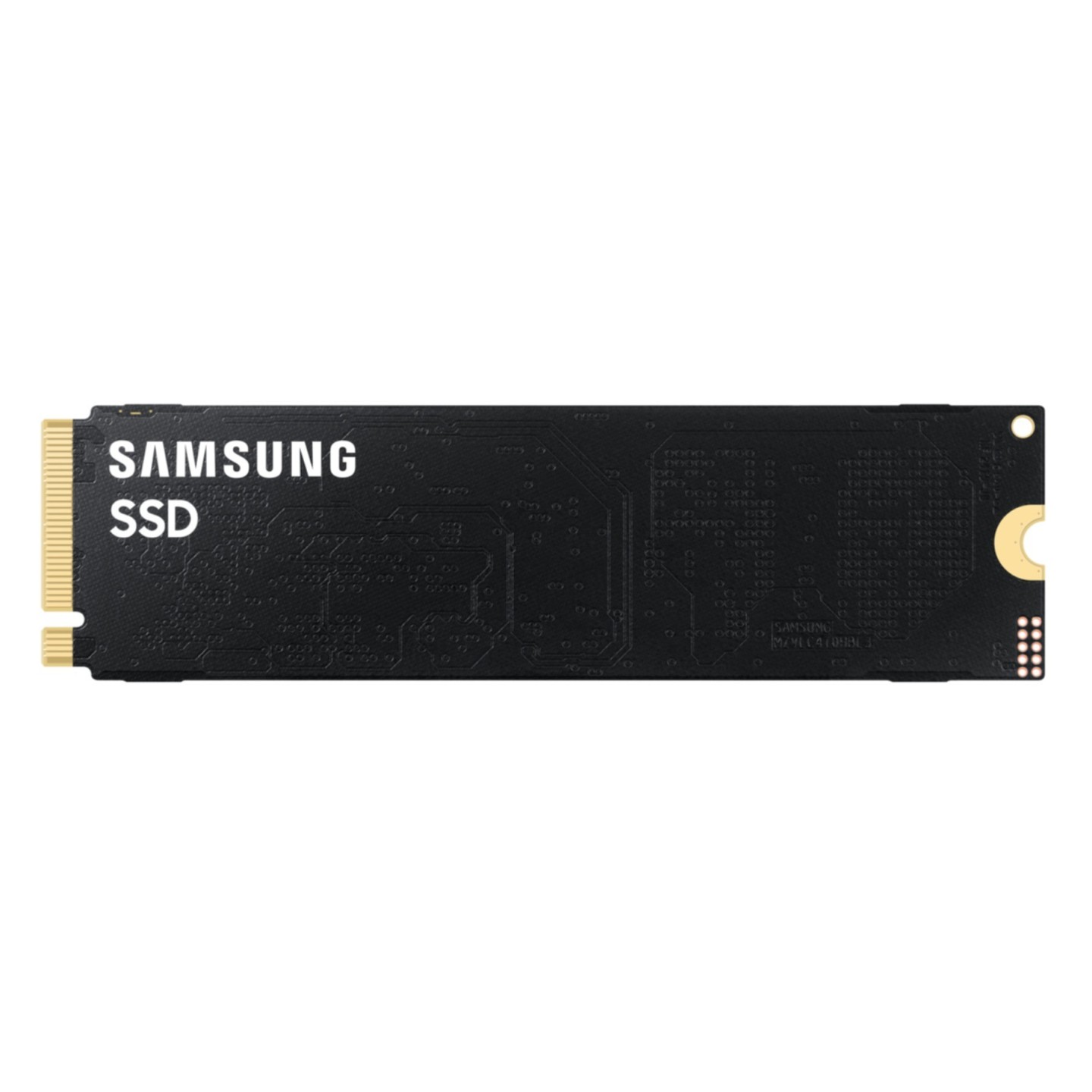

Samsung 9100 PRO 4TB - MZ-VAP4T0BW - M.2 2280 NVMe PCIe Gen5 x4 (Boxed)
4TB M.2 2280 NVMe SSD PCIe 5.0 x4: up to 14,800/13,400 MB/s read/write, 2.2M/2.6M IOPS. Samsung Presto controller, V8 V-NAND TLC, DRAM cache. Ideal for gaming, AI, content creation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 4TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Above 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 5.0 (Gen5) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung 9100 PRO MZ-VAP4T0BW is a cutting-edge PCIe 5.0 NVMe SSD delivering breakthrough performance with sequential read/write speeds up to 14,800/13,400 MB/s—twice as fast as the 990 PRO. Random speeds reach 2,200K/2,600K IOPS, powered by Samsung's 5nm Presto controller, V8 V-NAND TLC, and LPDD4X DRAM cache for superior handling of gaming, AI workloads, and content creation.
Featuring exceptional thermal efficiency with up to 49% better power efficiency over predecessors, it maintains peak performance without interruption. The single-sided M.2 2280 design suits PCs, laptops, and even PS5. Includes Samsung Magician software for optimization, data migration, health monitoring, and firmware updates. 5-year warranty and high TBW ensure reliability.
- ✅ PCIe 5.0 x4 interface with NVMe
- ✅ Up to 14,800 MB/s read, 13,400 MB/s write
- ✅ 2.2M/2.6M random IOPS
- ✅ DRAM cache & TurboWrite 2.0
- ✅ 256-bit AES encryption, S.M.A.R.T., TRIM
- ✅ No heatsink (bare drive)
| Security algorithms | 256-bit AES |
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | V-NAND TLC V8 |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Read speed | 14800 MB/s |
| Write speed | 13400 MB/s |
| Random read (4KB) | 2200000 IOPS |
| Random write (4KB) | 2600000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Operating voltage | 3.3 V |
| Width | 80.2 mm |
| Depth | 2.38 mm |
| Height | 22.1 mm |
| Weight | 9 g |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Warranty period | 5 year(s) |
| DRAM Cache | Yes (LPDD4X) |
| Controller | Samsung Presto (5nm) |
