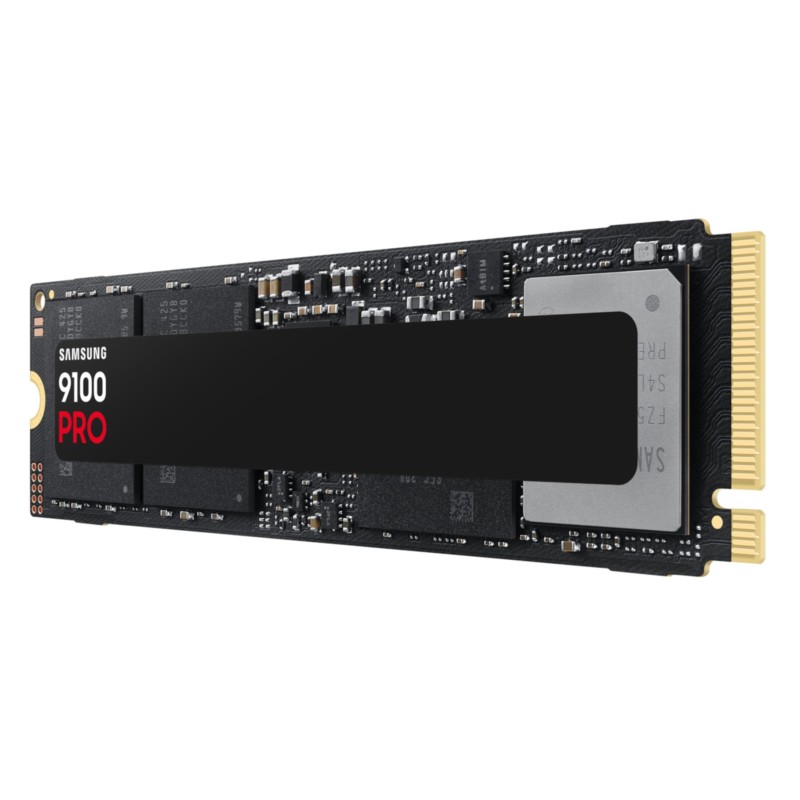

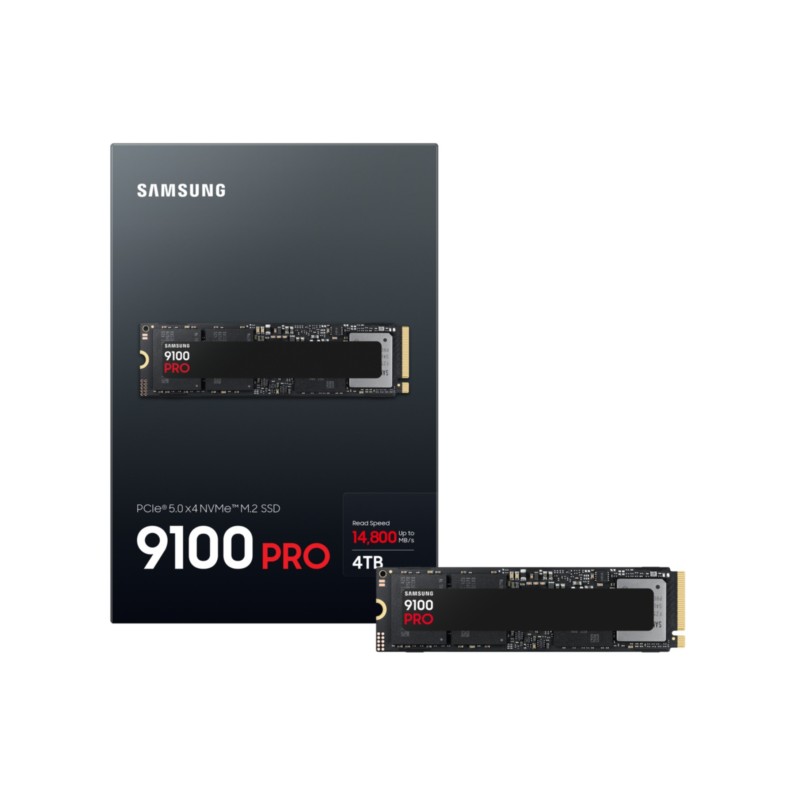

Samsung 9100 PRO - MZ-VAP4T0BW - M.2 2280 NVMe PCIe Gen5 x4 4TB
4TB M.2 NVMe SSD (PCIe 5.0 Gen5 x4) — up to 14,800/13,400 MB/s read/write, up to 2.2M/2.6M IOPS. Optimized for gaming, content creation and AI workloads.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 4TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen5 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen5 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.
Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.
Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.
Exceptional performance at your fingertips
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.
Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.
Advance your gameplay
Mega capacity with exceptional compatibility.
Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control.
| Security algorithms | 256-bit AES |
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | V-NAND TLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Read speed | 14800 MB/s |
| Write speed | 13400 MB/s |
| Random read (4KB) | 2200000 IOPS |
| Random write (4KB) | 2600000 IOPS |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Operating voltage | 3.3 V |
| Average power consumption (read) | 9 W |
| Average power consumption (write) | 8.2 W |
| Width | 80.2 mm |
| Depth | 2.38 mm |
| Height | 22.1 mm |
| Weight | 9 g |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Warranty period | 5 year(s) |
