ASUS ProArt X870E-Creator WiFi AM5 ATX MB DDR5 256GB 4xM.2 PCIe5 WiFi7 10G LAN (Boxed)
AM5 ATX motherboard w/ AMD X870E chipset, DDR5 up to 256GB, 4x M.2 (2x PCIe5), PCIe5 x16 slots, dual USB4, WiFi7, BT5.4, 10G+2.5G LAN for creators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870E |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Two-Tone |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The ASUS ProArt X870E-Creator WiFi is a premium AM5 ATX motherboard designed for content creators, supporting AMD Ryzen 9000/8000/7000 Series processors with robust 16+2+2 (80A) power stages for stability and overclocking. It features 4x DDR5 DIMM slots (max 256GB, 8000+MT/s OC, EXPO/AEMP), dual-channel architecture, ECC/Non-ECC support.
Storage includes 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) + 4x SATA 6Gb/s with RAID 0/1/5/10. Expansion: 2x PCIe 5.0 x16 (x16/x8x8) + 1x PCIe 4.0 x16 (x4). Connectivity shines with dual USB4 (40Gbps Type-C), 7x USB 10Gbps Type-A, WiFi 7 (802.11be 2x2, 320MHz), Bluetooth 5.4, Marvell 10Gb + Intel 2.5Gb Ethernet.

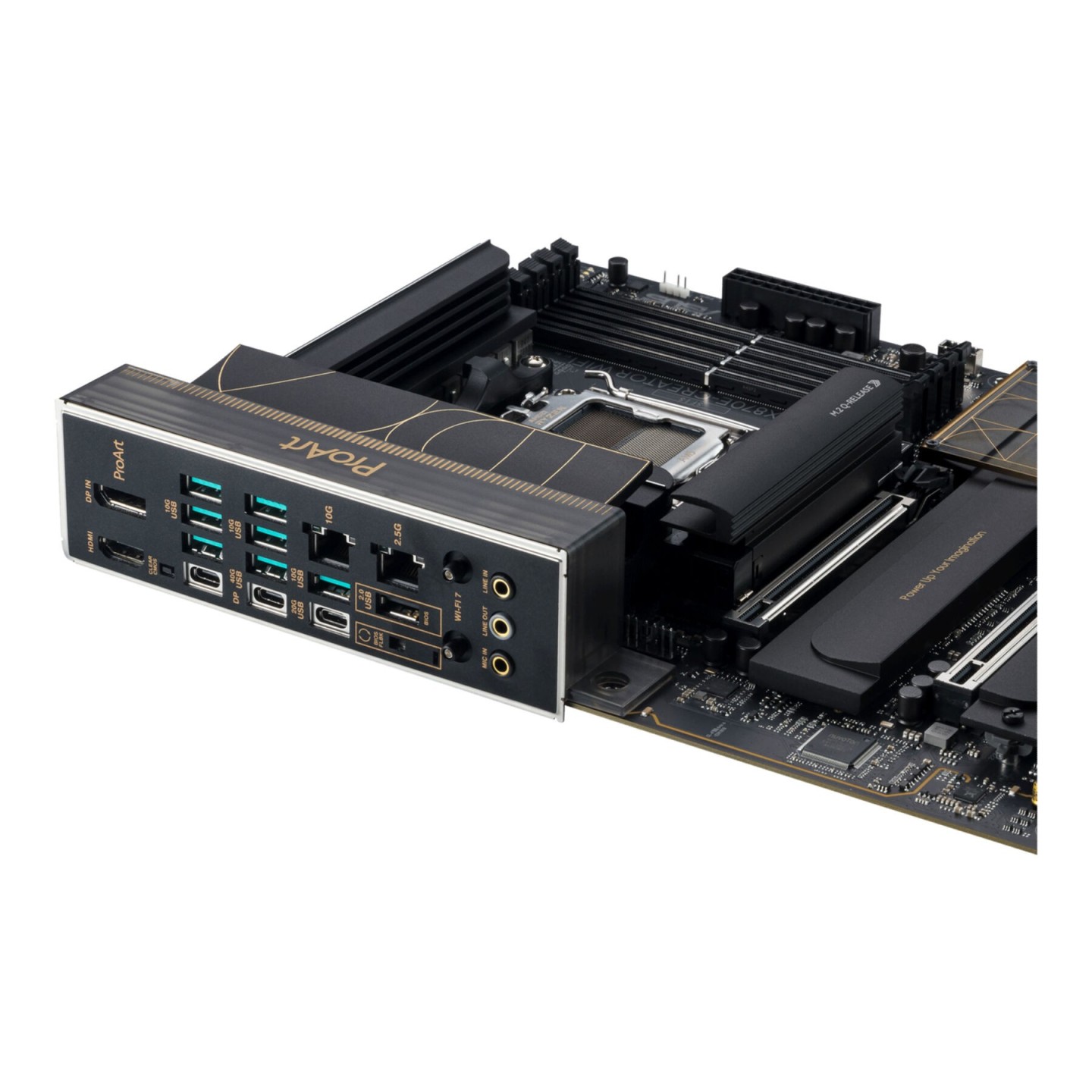

- Professional black/gold aesthetics with translucent I/O cover
- DisplayPort input for GPU-to-USB4 8K/dual 4K monitor output
- Realtek 7.1 audio, Q-Release Slim PCIe, BIOS FlashBack, Clear CMOS
- Windows 11 required for full features; MPN: 90MB1TB0-M0EAY0
| Manufacturer Part Number | 90MB1TB0-M0EAY0 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Width | 305 mm |
| Depth | 244 mm |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Memory Profile Support | AMD EXPO, AEMP |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Power Stages | 16+2+2 (80A) |
| RAID levels | 0, 1, 10, 5 |
| Windows operating systems supported | Windows 11 |
