CAT.6a Feldstecker, bis 4PPoE, IEEE802.3bt
The CAT.6a RJ-45 connector DN-93638 for field assembly is a modern and high-quality connector from DIGITUS that is not only characterized by its ease of use, but also always provid...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

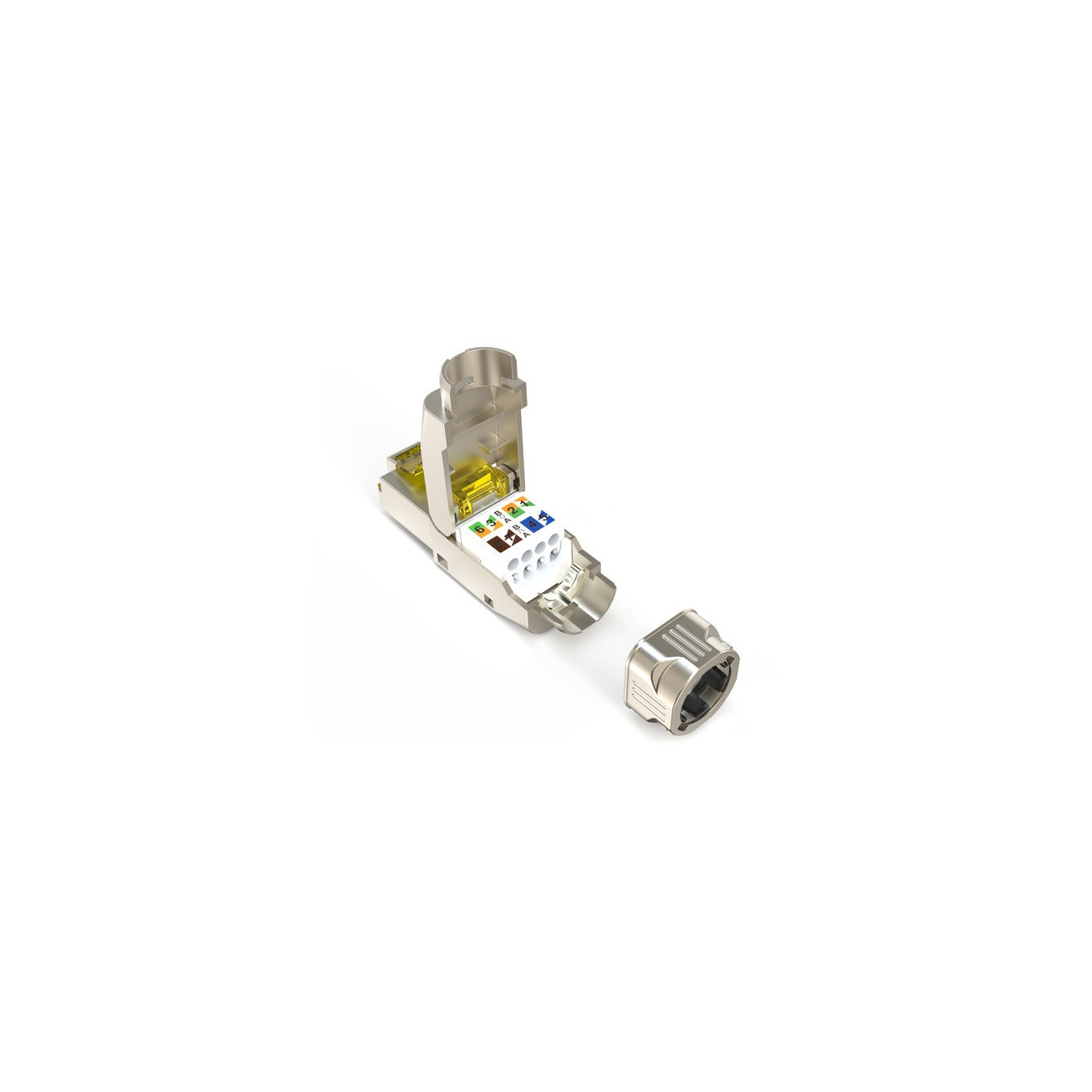

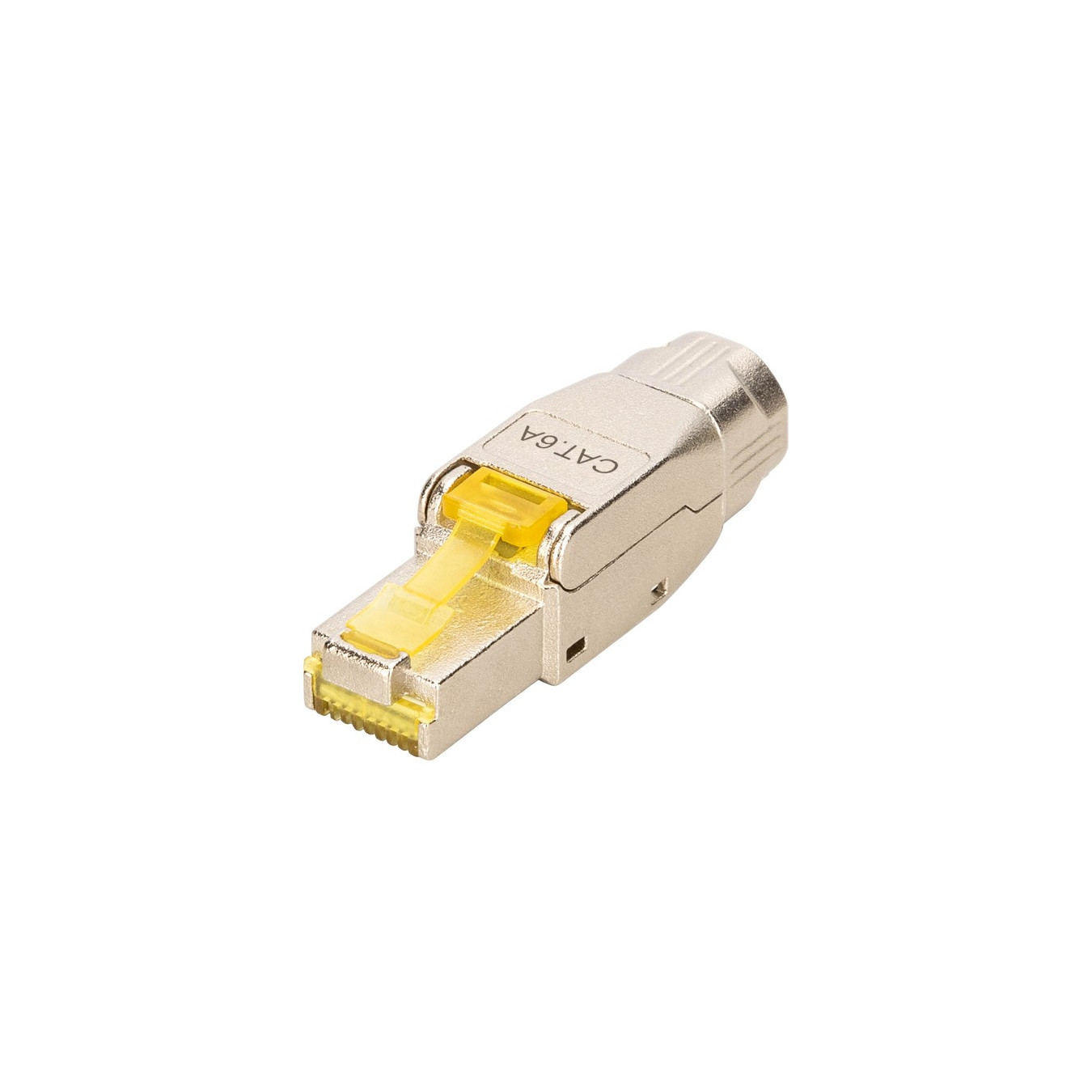

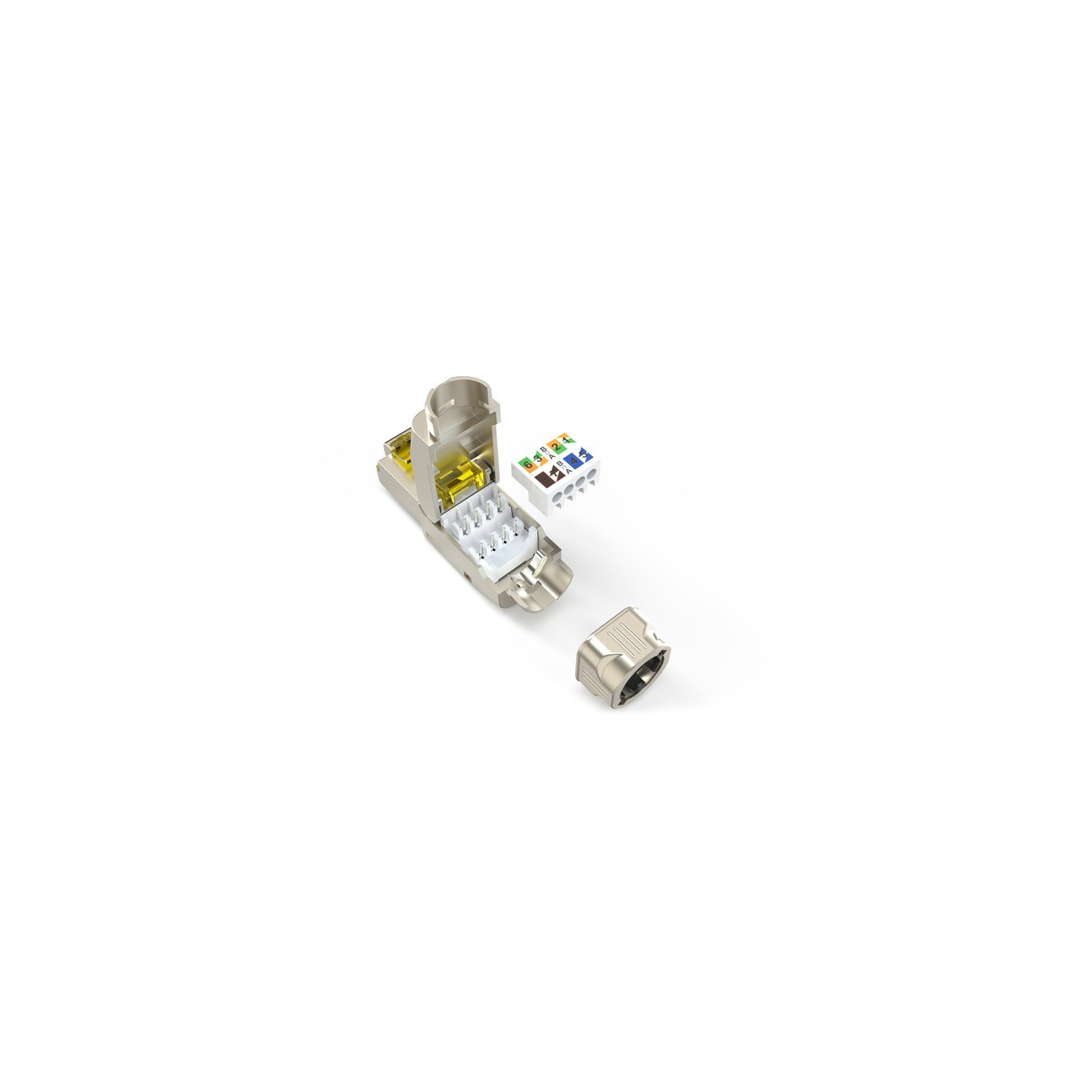

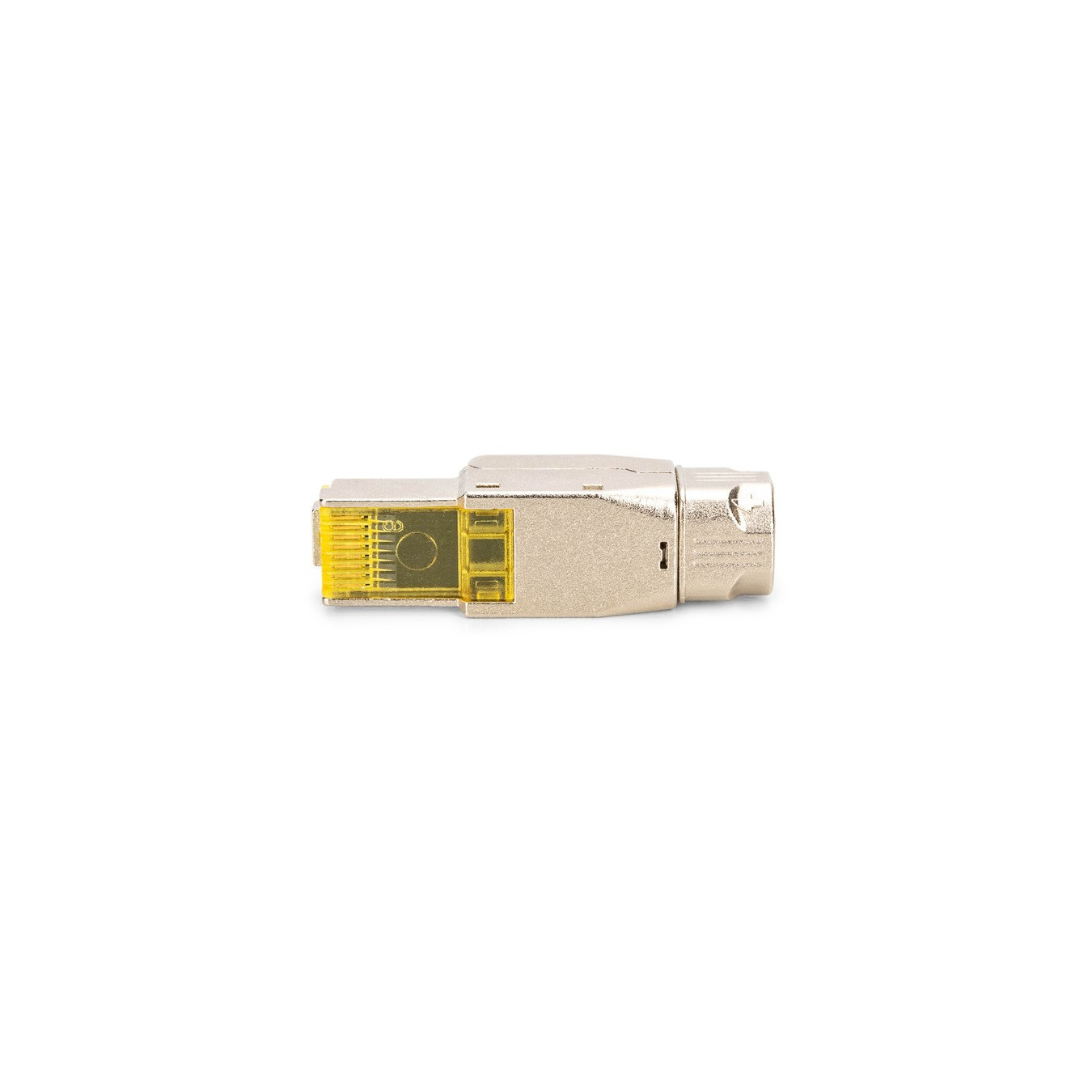

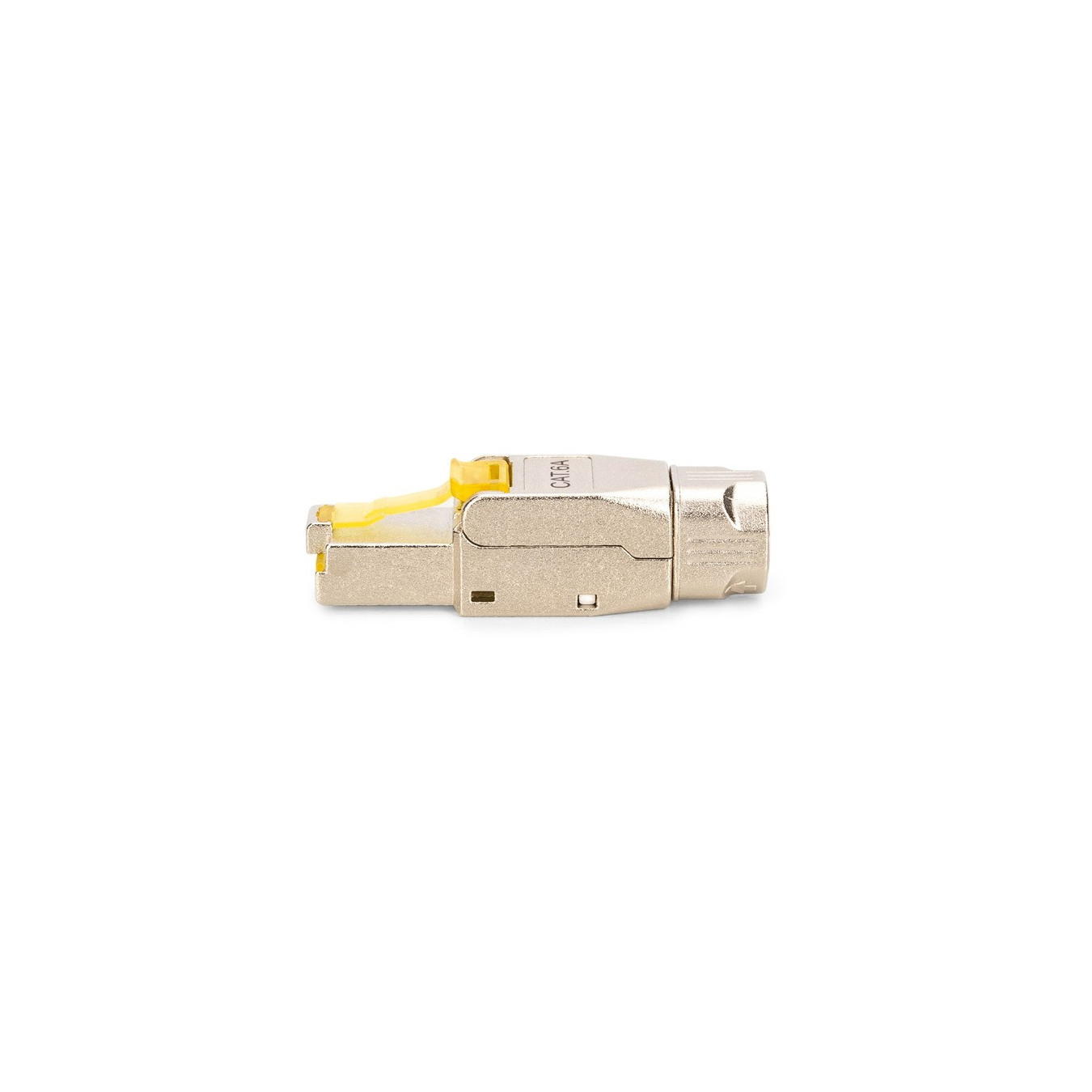

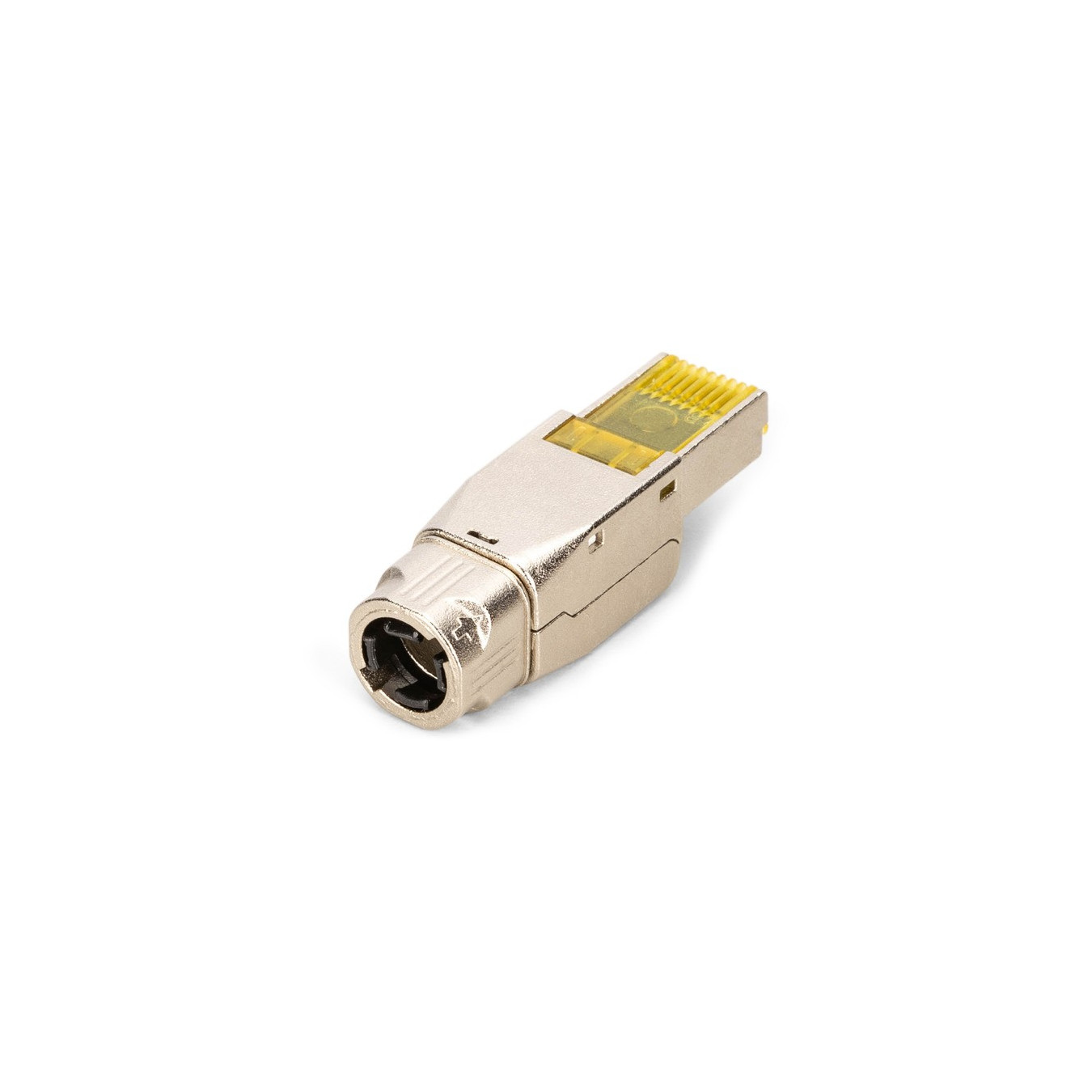

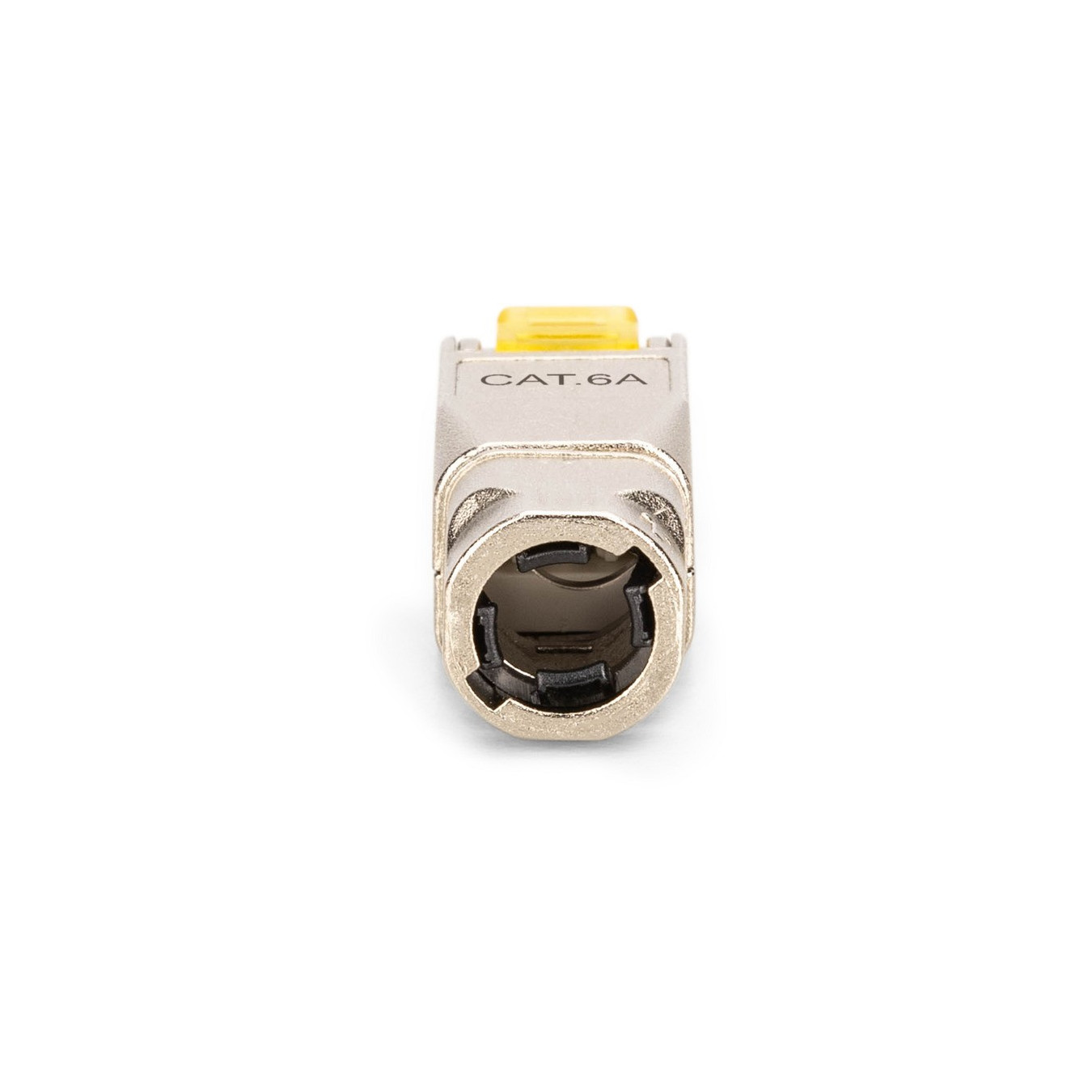

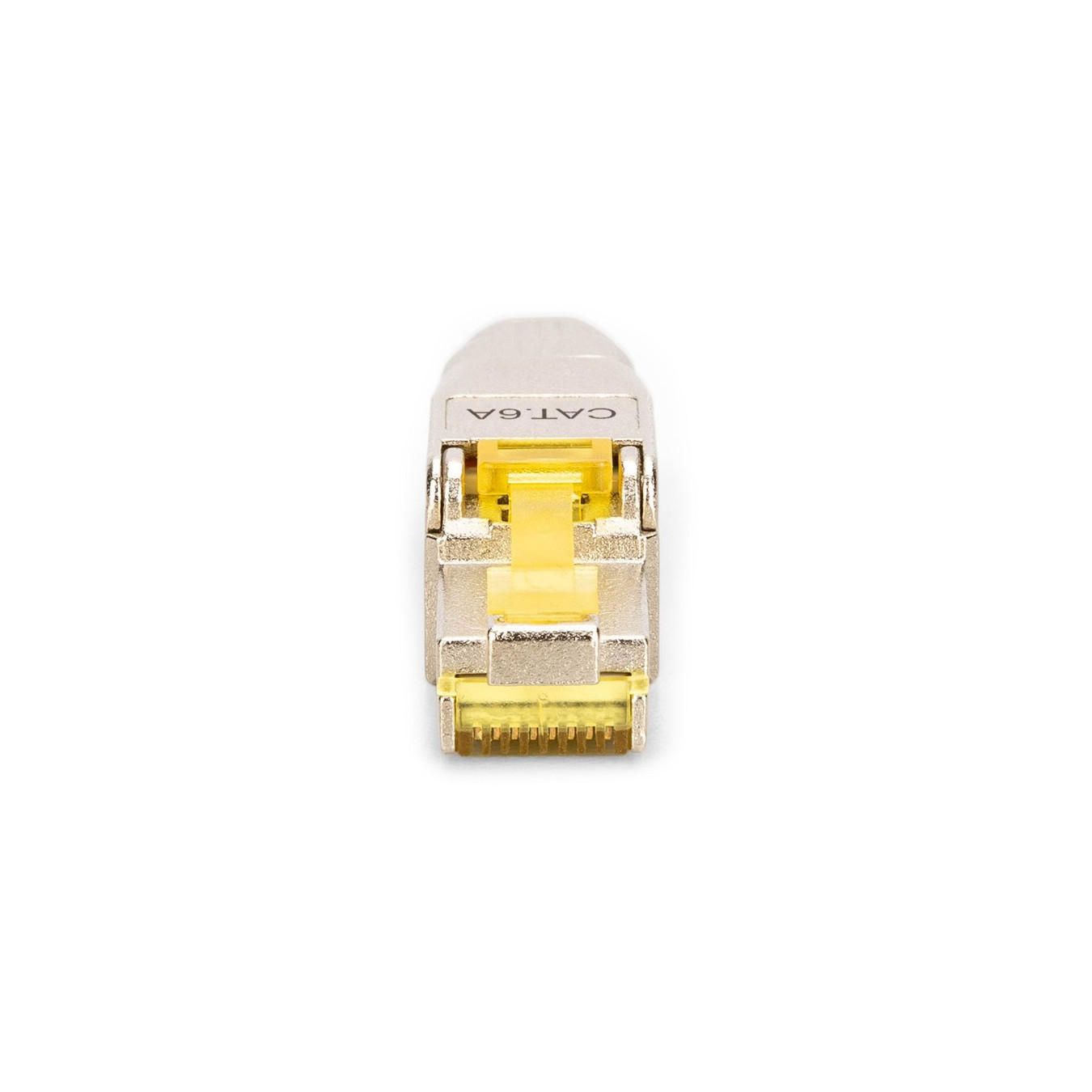

The CAT.6a RJ-45 connector DN-93638 for field assembly is a modern and high-quality connector from DIGITUS that is not only characterized by its ease of use, but also always provides reliable and time-saving support to the field assembly engineer in every use. The quick assembly in just 60 seconds without any special tools and the enormous flexibility make it the perfect choice for all locations. The connector is suitable for all networks, from voice to 10 Gigabit Ethernet. The robust materials are designed to last and withstand use in demanding environments.
| Typ | Plug |
| EAN | 4016032499367 |
| Manufacturer no. | DN-93638 |
| Manufactured in | China |
| Connection | RJ-45 (Stecker), Cat.6a |
| use | For patch cable AWG (27/7 - 22/1) |
| Number | 1 piece |
| Area | network |
| Characteristics | extern |
| Feature | Robust die-cast zinc housing, 360° shield contact, strain relief and cable fixation using a screw cap, suitable for PoE/ PoE+/ 4PPoE (IEEE 802.3af, 3at, 3bt) |
| More information | For conductor cross-sections AWG 27/7 - 22/1, stranded and solid wire, 10 Gigabit Ethernet, 500 MHz, 10GBaste-T, operating temperature -20°C to +70°C, cable installation via LSA insulation displacement terminal, color coded according to EIA/TIA 568 A&B |
| Accessories - available | Anti-kink grommet, wire manager with wiring information, cable ties, assembly instructions |
