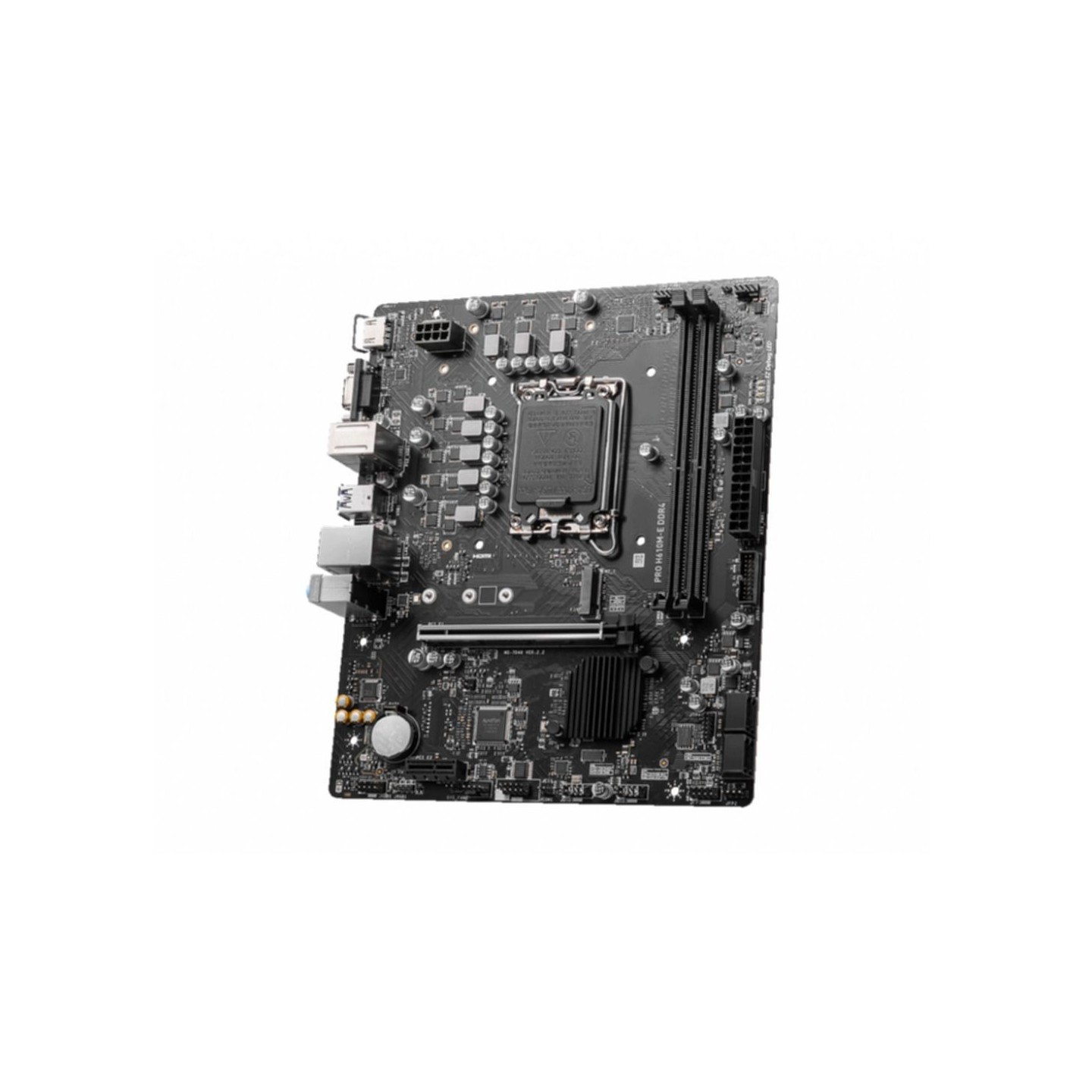

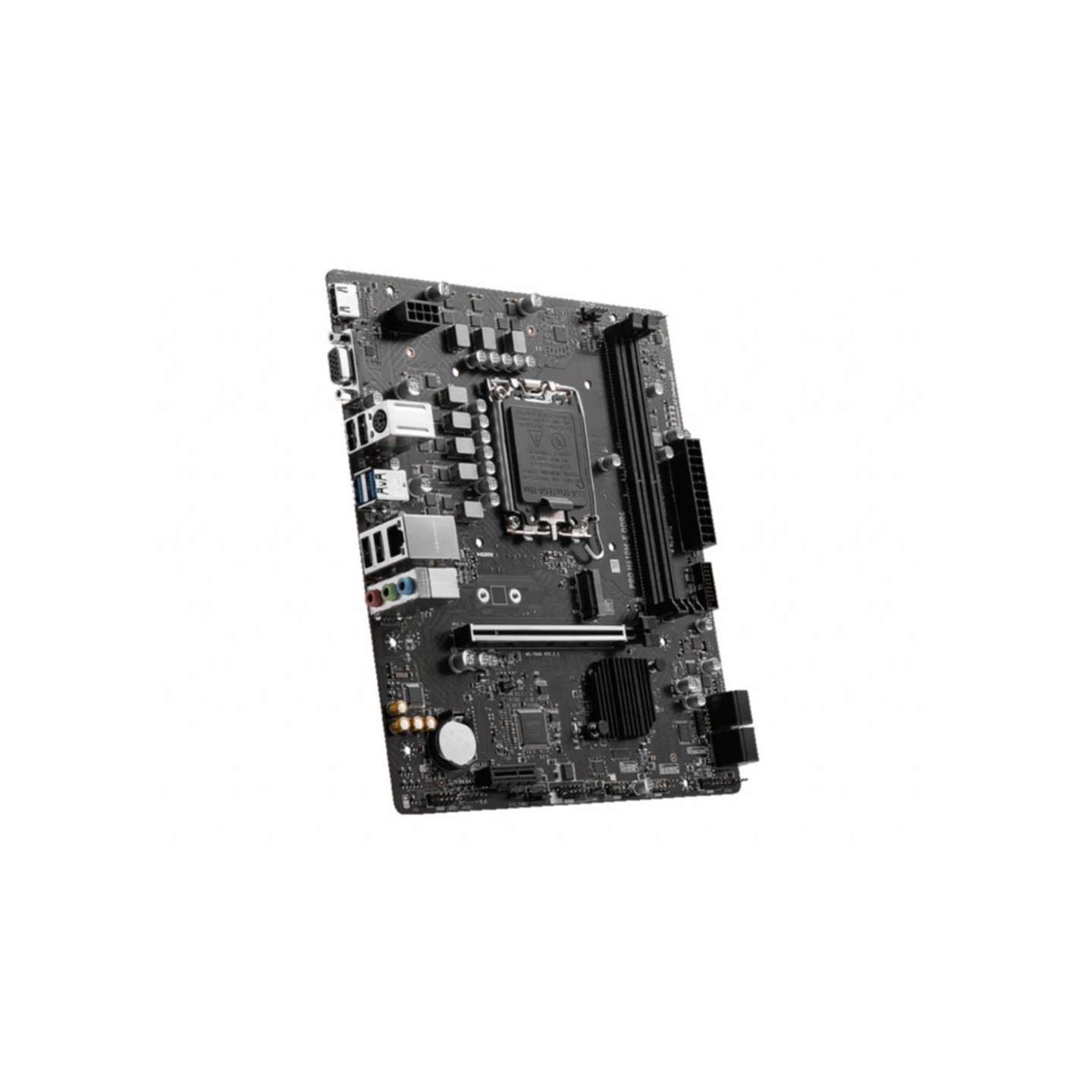

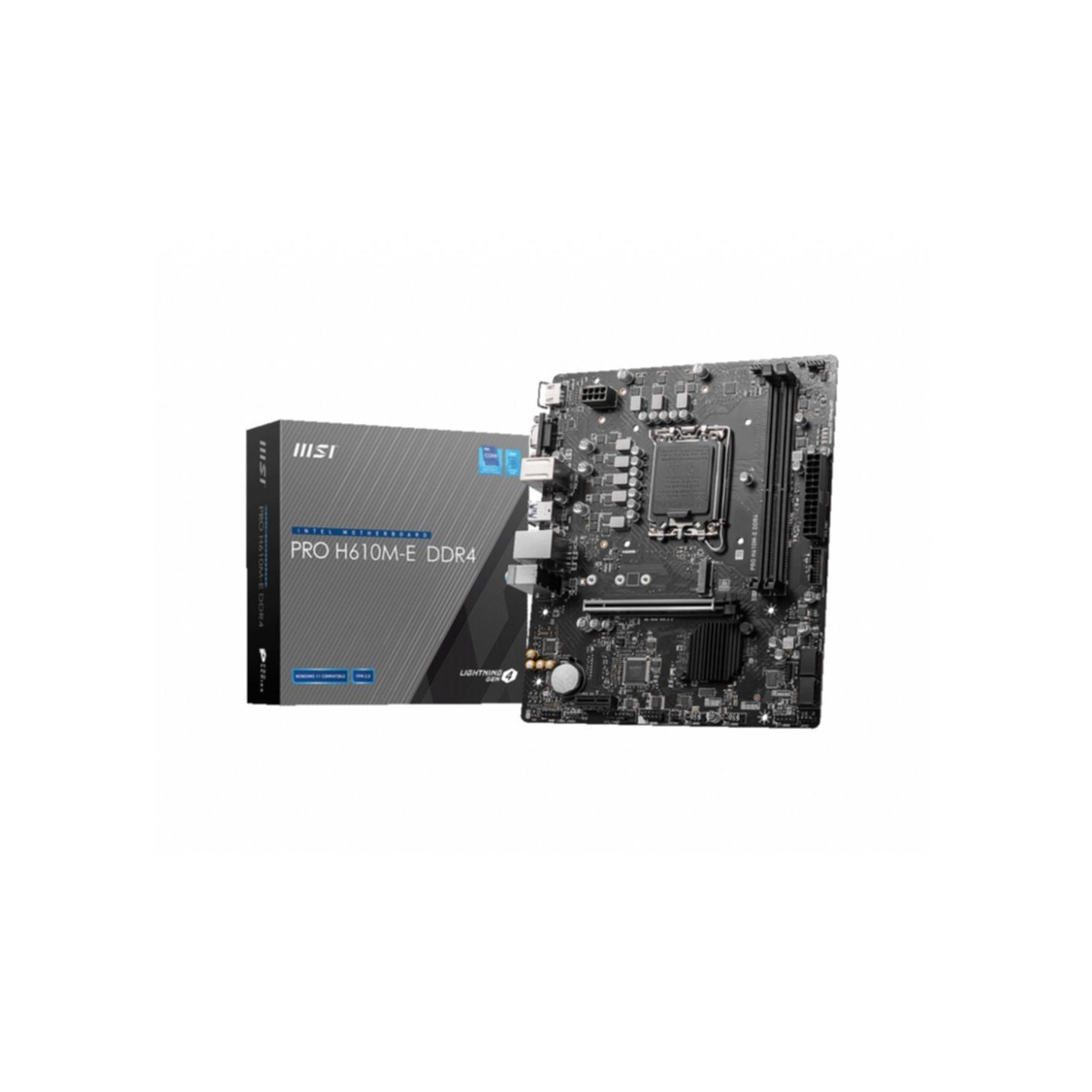

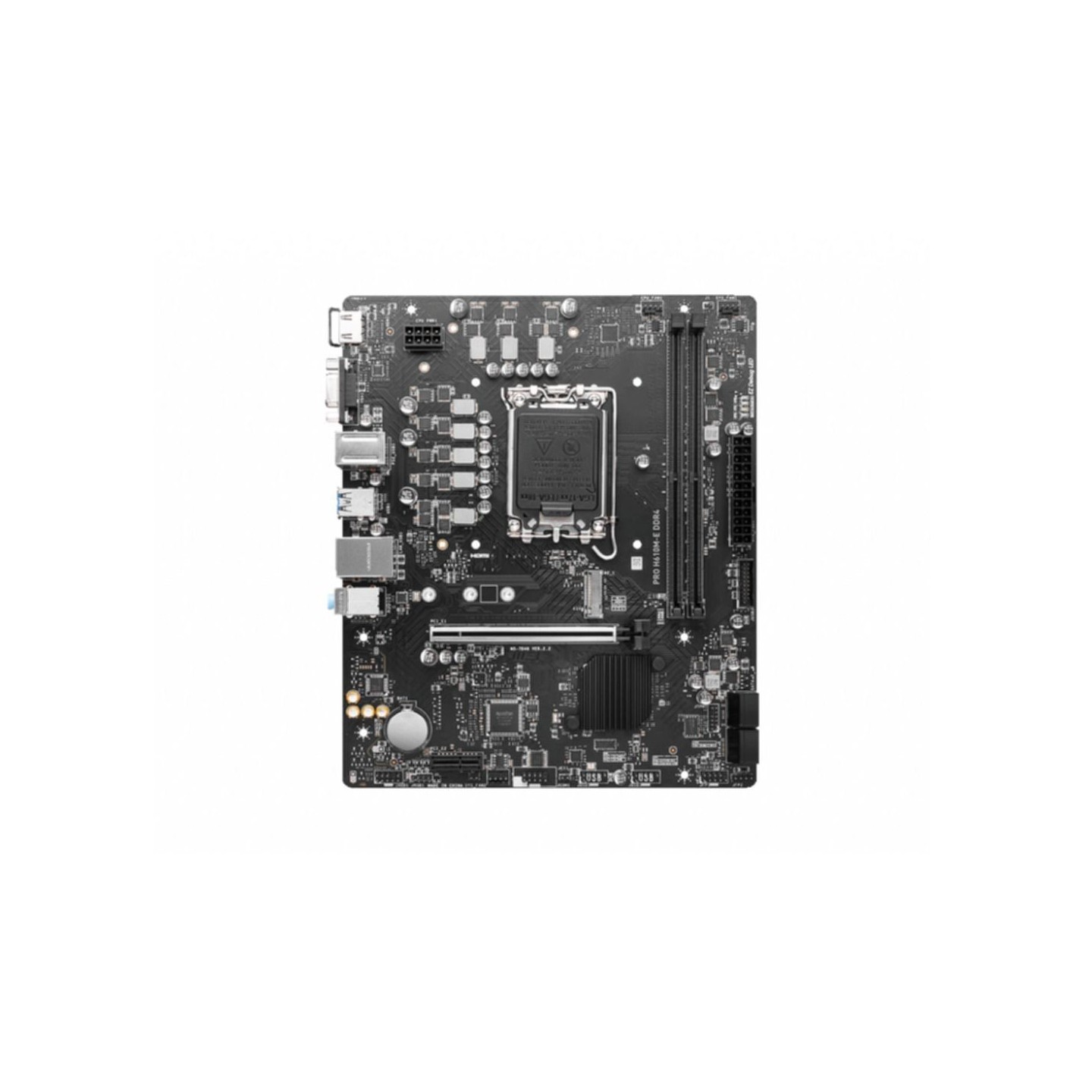

MSI H610M-E PRO DDR4 LGA1700 mATX MB Intel H610 2xDDR4-64GB HDMI2.1 (Boxed)
LGA1700 mATX motherboard with Intel H610 chipset, supports 14/13/12th Gen CPUs. 2x DDR4 up to 64GB 3200MHz, 1x M.2 PCIe3x4 + 4x SATA3, PCIe4.0 x16, HDMI2.1, GbLAN, 7.1 audio. No WiFi/RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The MSI PRO H610M-E DDR4 is a business-oriented micro-ATX motherboard designed for reliable performance in professional workflows. Featuring the Intel H610 chipset and LGA1700 socket, it supports Intel Core 14th/13th/12th Gen processors, Pentium Gold, and Celeron for stable, efficient operation.
Key technologies include Core Boost for optimized power delivery, Memory Boost for pure DDR4 signals up to 3200MHz (64GB max), and Lightning Gen4 PCIe x16 slot with steel armor for heavy GPUs. It offers 1x M.2 (PCIe 3.0 x4), 4x SATA III, Gigabit Ethernet, Realtek ALC897 7.1 audio, and comprehensive USB connectivity. User-friendly BIOS enables full fan control and easy setup.
- CPU Support: Intel 14/13/12th Gen (LGA1700)
- Memory: 2x DDR4 DIMM, Dual-channel, max 64GB @3200MHz
- Storage: 1x M.2 PCIe3x4, 4x SATA 6Gb/s
- Expansion: 1x PCIe4.0 x16, 1x PCIe3.0 x1

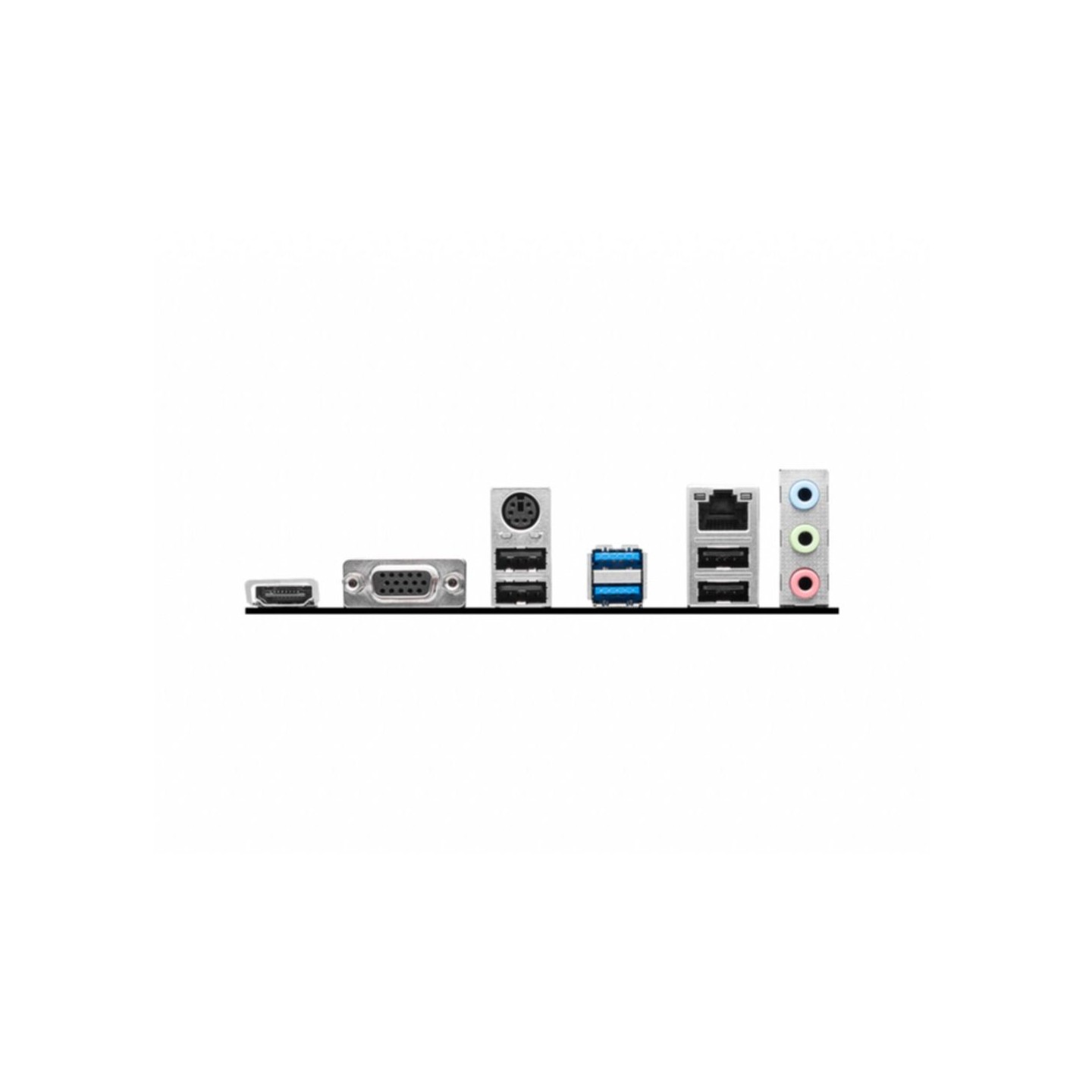

- I/O: HDMI 2.1, VGA, 2x USB3.2 Gen1, 4x USB2.0, GbLAN
- Audio: Realtek ALC897 7.1-channel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Number of SATA III connectors | 4 |
| M.2 slots | 1 (PCIe 3.0 x4) |
| Main Slot PCIe Version | PCIe 4.0 x16 (Steel Armor) |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN | Yes (Gigabit) |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| VRM Phases | 6+1+1 |
| BIOS type | UEFI AMI |
| Weight | 760 g |
| Height | 65 mm |
