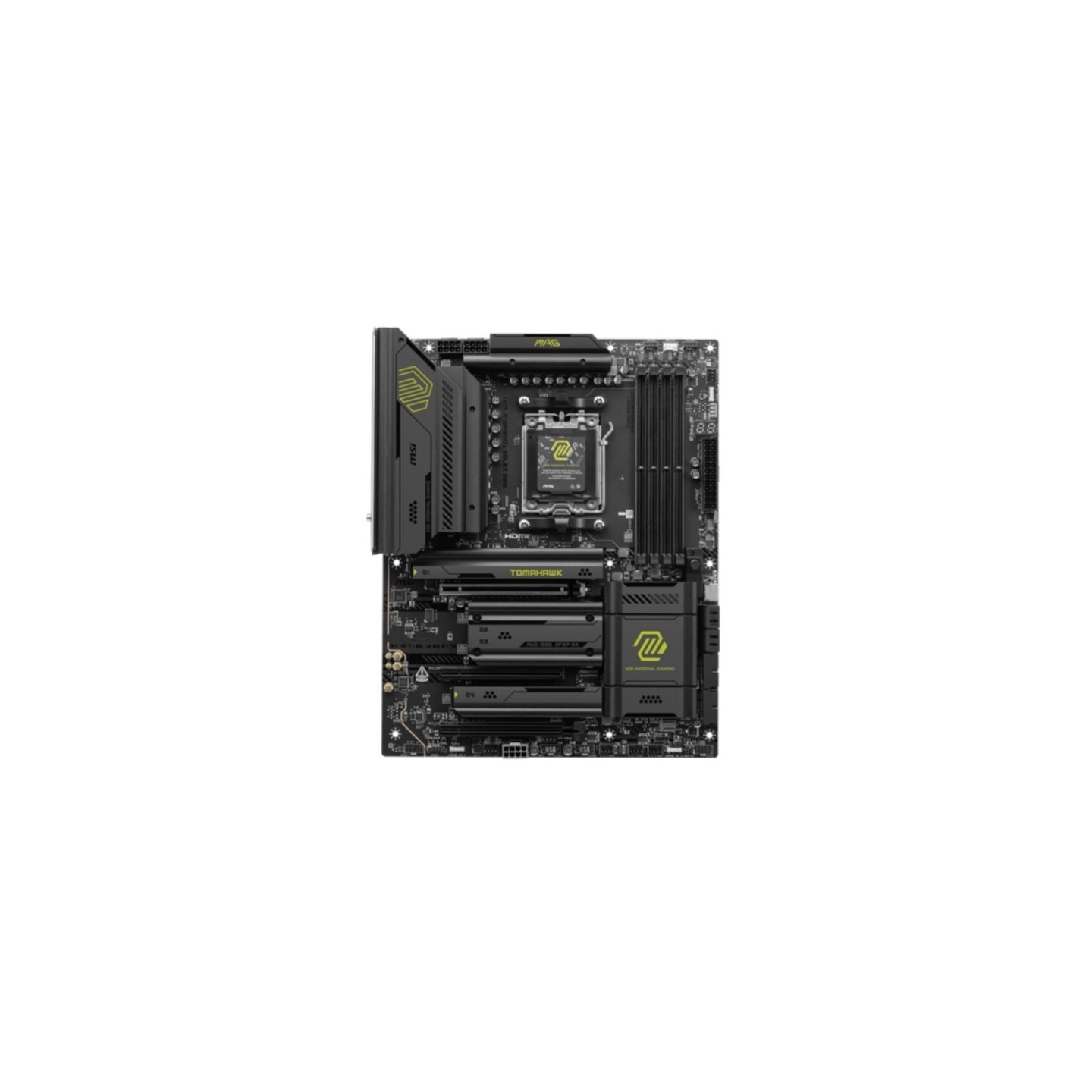

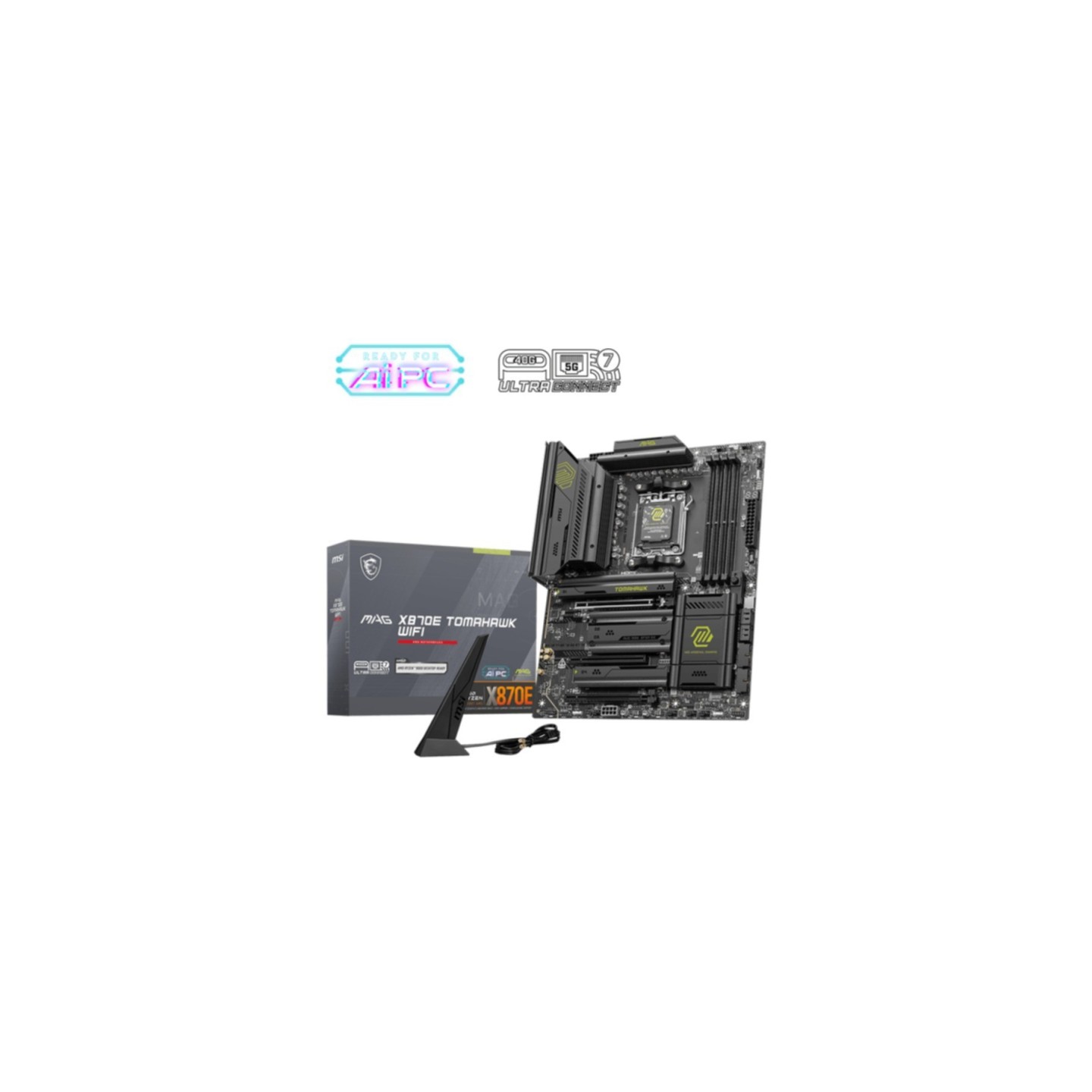

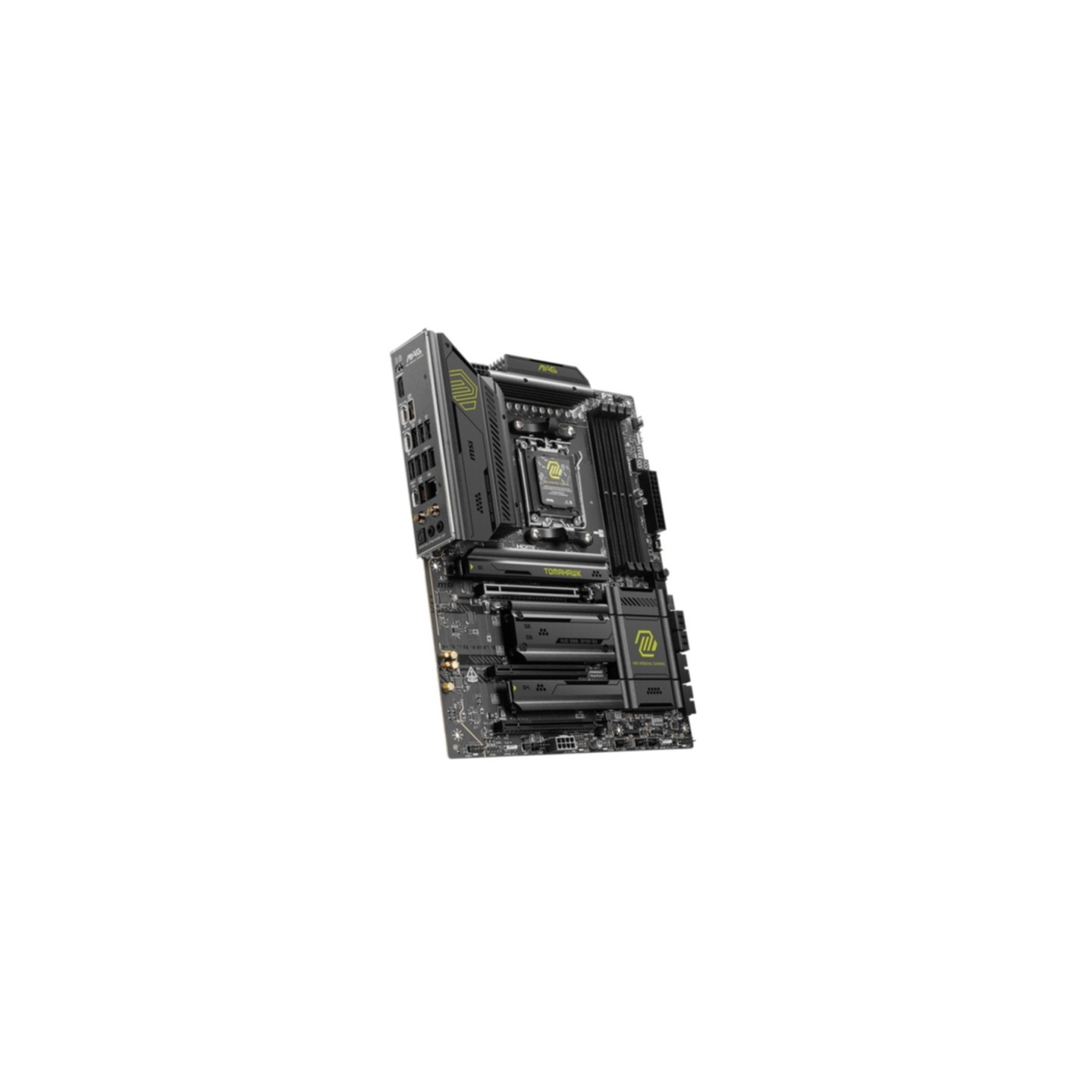

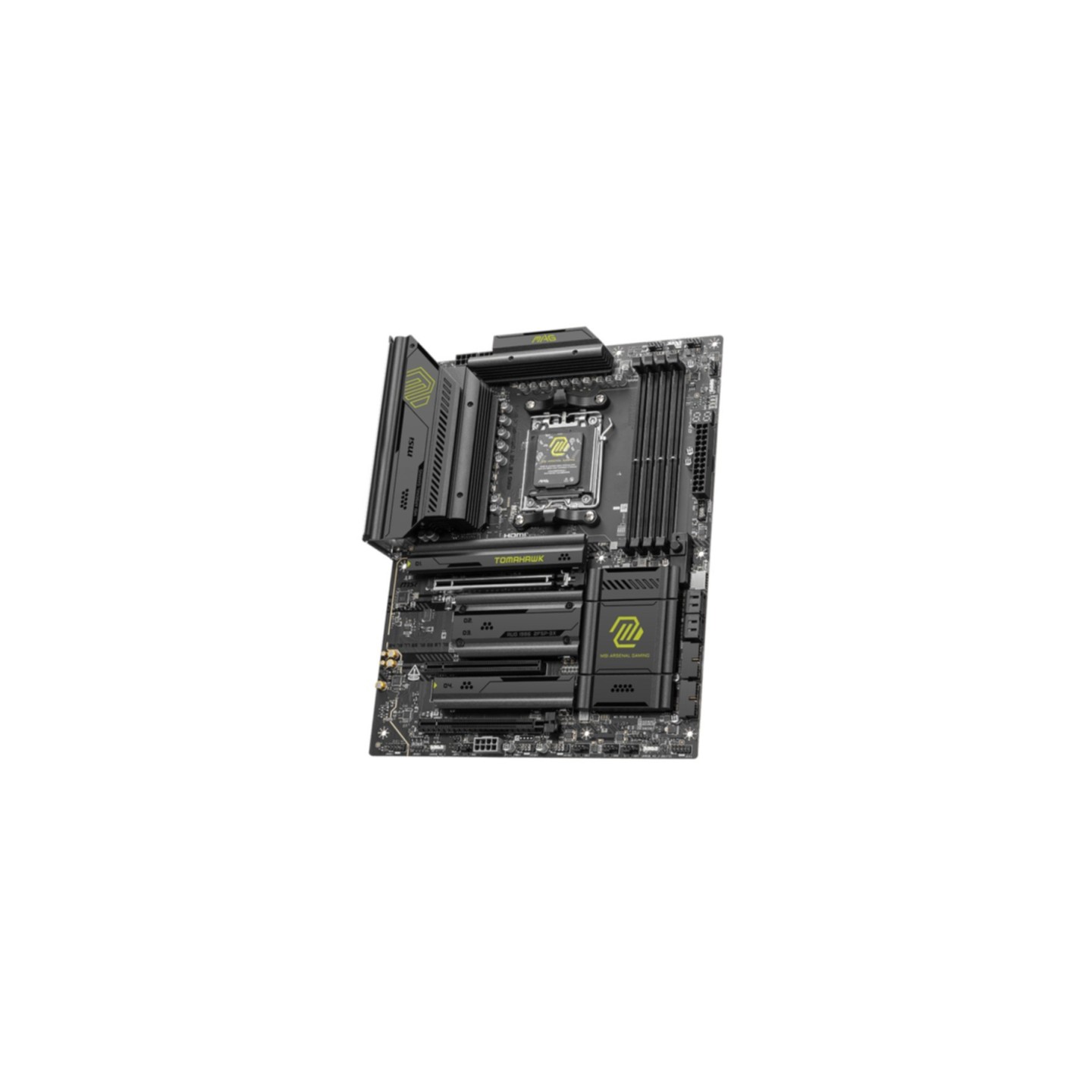

MSI MAG X870E TOMAHAWK WIFI AM5 ATX DDR5 256GB Wi-Fi7 PCIe5 (Boxed)
AM5 ATX gaming motherboard for AMD Ryzen 7000/8000/9000. DDR5 to 256GB (8400+MT/s), PCIe 5.0 x16 + M.2, Wi-Fi 7, 5G LAN, dual USB4 40Gbps, VRM 14+2+1, EZ DIY design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X870E |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
MSI MAG X870E TOMAHAWK WIFI
MAG X870E TOMAHAWK WIFI - высокопроизводительная игровая материнская плата ATX на чипсете AMD X870E с сокетом AM5 для процессоров Ryzen 9000/8000/7000 серий. Оснащена 4 слотами DDR5 до 256GB (до 8400+ MT/s), поддержкой PCIe 5.0 для GPU и M.2, двойным USB4 (40Gbps), Wi-Fi 7 (5.8Gbps), 5G LAN (Realtek 8126). VRM 14+2+1 с 80A SPS гарантирует стабильность под high-end CPU.
Задняя панель: 2x USB4 Type-C (40Gbps), 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 3x USB 5Gbps Type-A, 4x USB 2.0, HDMI 2.1, 2x DP 1.4. 4x M.2 (2x Gen5 x4 до 22110), 4x SATA III. Фронт: USB 20Gbps Type-C, 4x USB 5Gbps, 4x USB 2.0. Audio Boost 5 (7.1), EZ Debug LED, Supplemental PCIe Power.
- ✅ Wi-Fi 7 + Bluetooth 5.4 с EZ Antenna
- ✅ PCIe 5.0 x16 + Lightning Gen5 M.2
- ✅ 14+2+1 Duet Rail Power System
- ✅ Quad M.2 + 4x SATA6G
- ✅ USB4 40Gbps + 5G Super LAN
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8400 MHz |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 4 |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| VRM Phases | 14+2+1 |
| Width | 243.8 mm |
| Depth | 304.8 mm |
