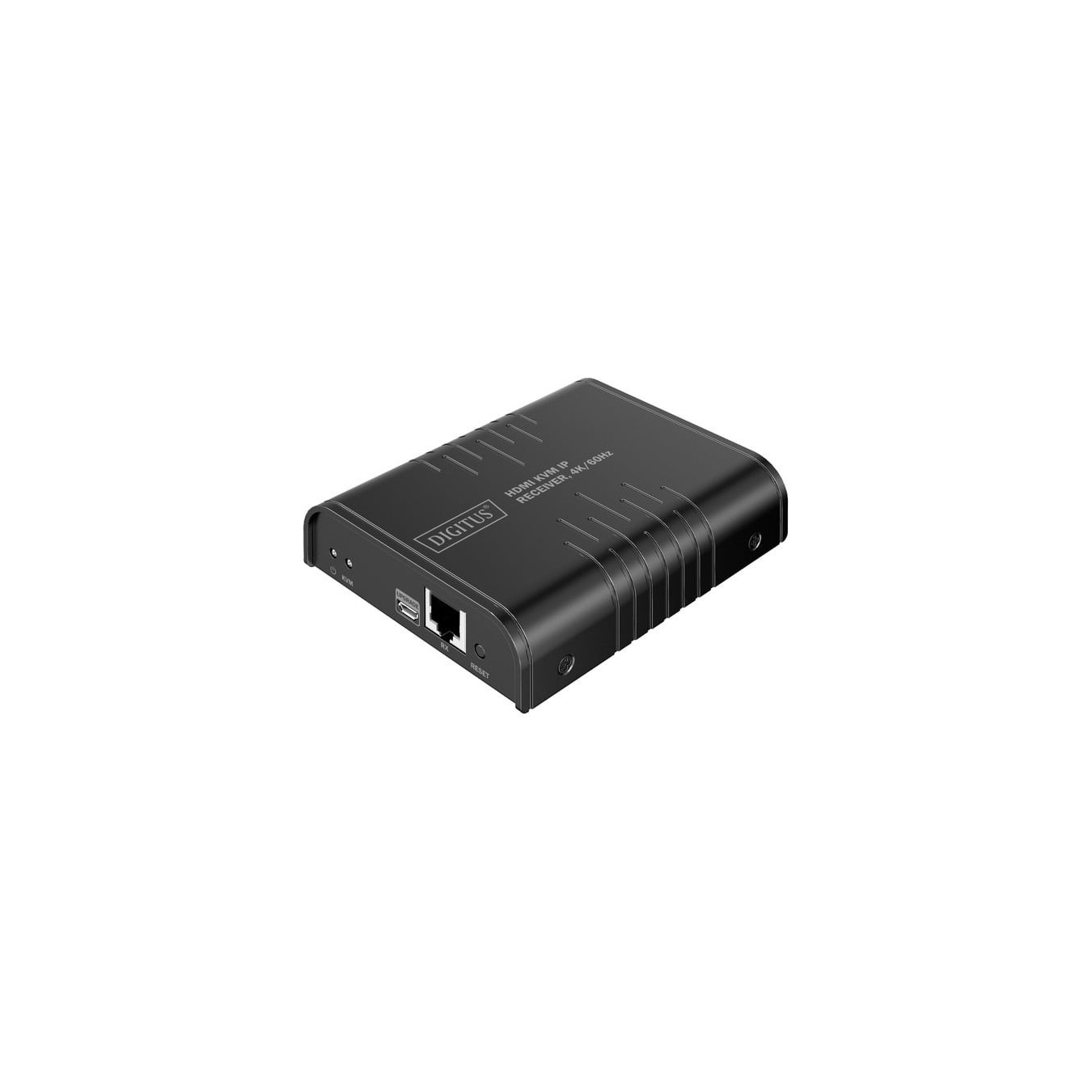

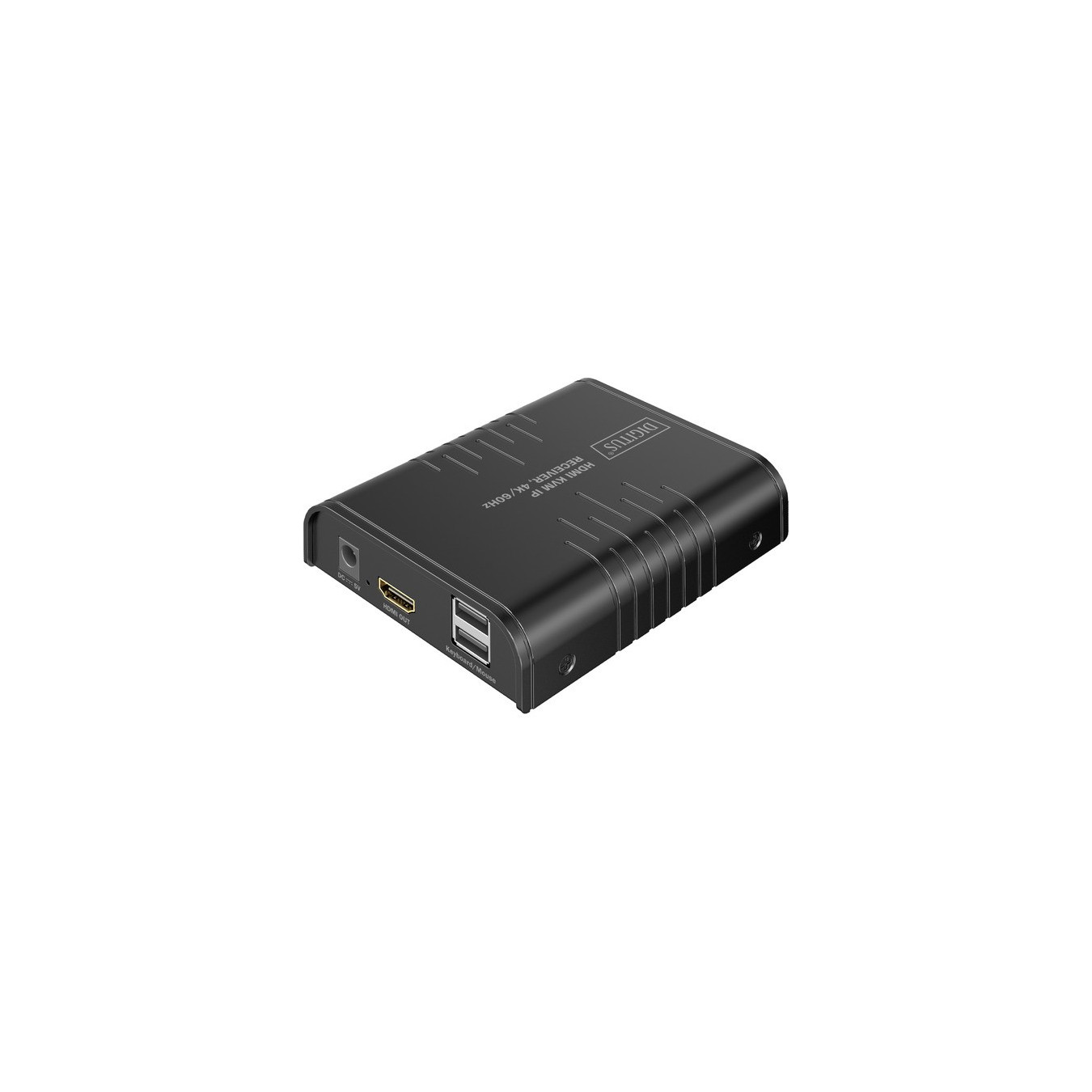

HDMI KVM IP Receiver, KVM-Switch
With the receiver units (DS-55356), the HDMI IP Extender Set (DS-55355) can be expanded to include additional receiver units.
Item no.: 100159547
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
With the receiver units (DS-55356), the HDMI IP Extender Set (DS-55355) can be expanded to include additional receiver units.
| Typ | KVM-Switch |
| Color | schwarz |
| EAN | 4016032501947 |
| Manufacturer no. | DS-55356 |

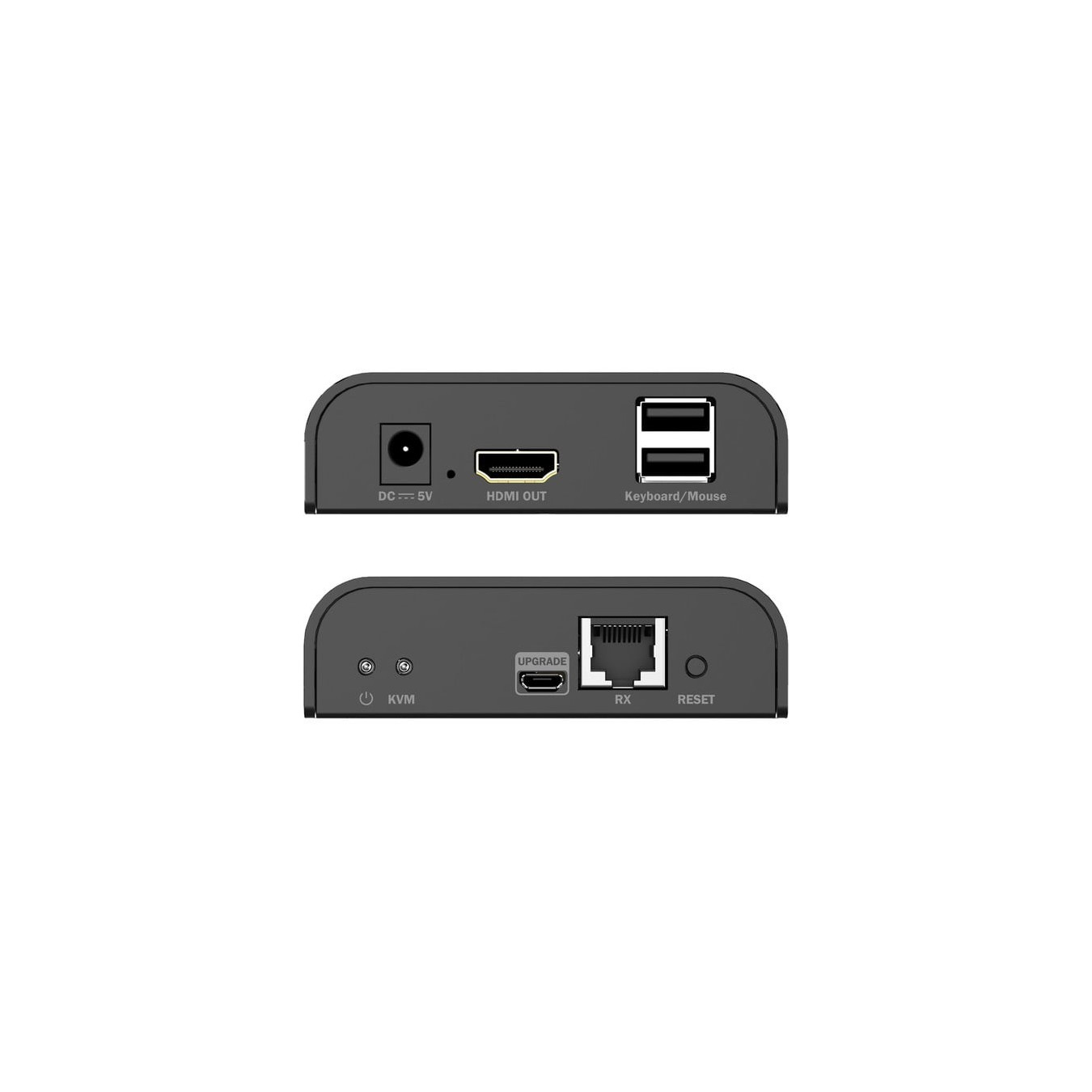

| More information | Receiver unit connections (RX): 1x HDMI output (4K/60Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 2x USB-A (2.0) - mouse, keyboard, touch display connection, 1x power supply connection (DC 5V/1A) - external power supply connection, 1x Micro USB - FW update port, 1x reset button, 2x status LED |
| Accessories - available | 1x power supply, EU plug (DC 5V/1A, 1.5 m), 1x user manual |
| Dimensions | Width: 89.5mm x Height: 26.3mm x Depth/Length: 109mm |
| Weight | 243 Gramm |
| Warnings and safety information | Safety instructions: If the device is powered by a plug-in power supply, make sure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current). Only use certified CAT5e or CAT6 cables to ensure stable signal transmission. For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables. Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly. To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference. Only operate the device within the specified temperature range. Do not use the device outdoors or in damp or wet environments Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance signal quality or system failure. |
