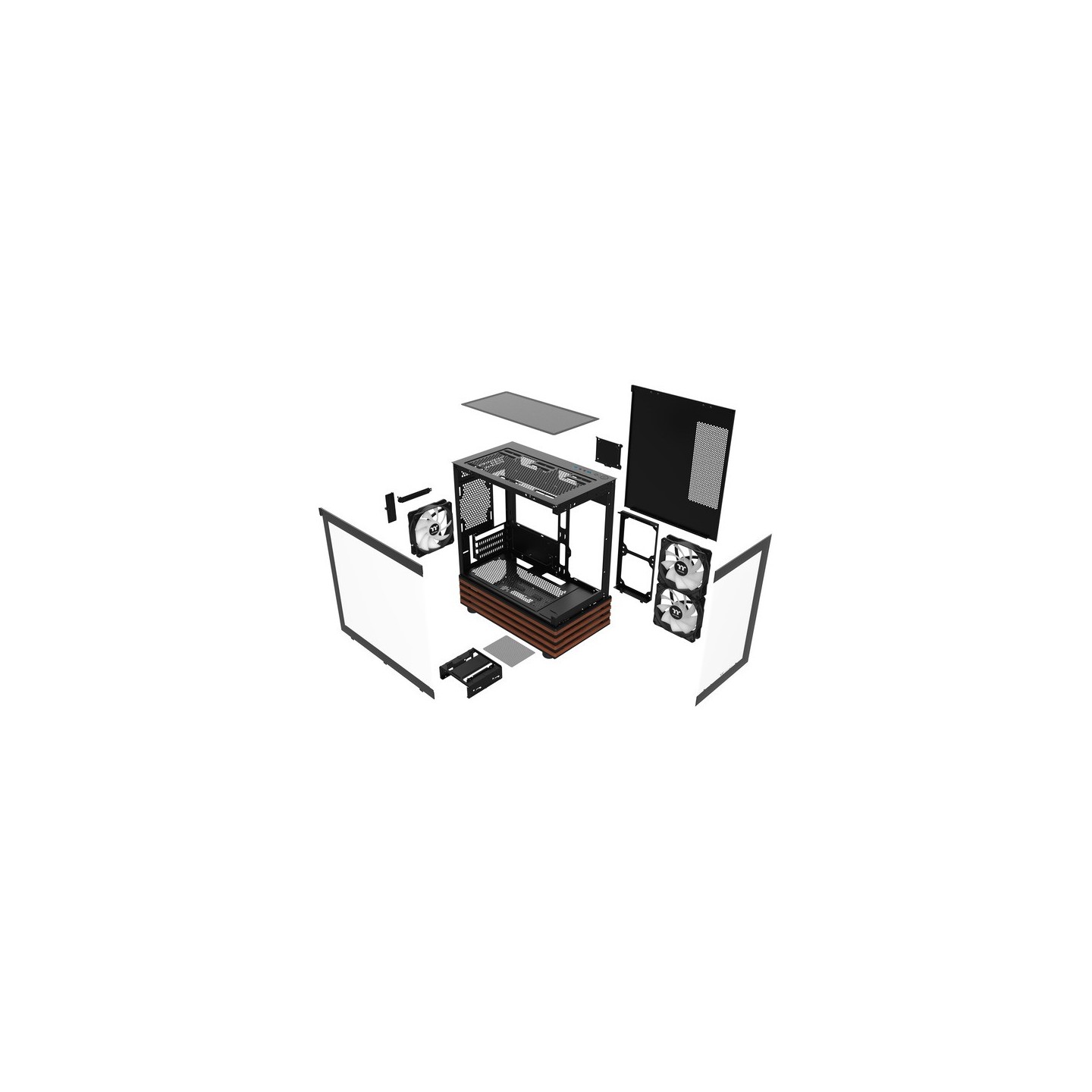

Thermaltake View 170 WS ARGB - µATX Mini Tower PC Case with Wood Accent - CA-1Z4-00M1WN-WS (Boxed)

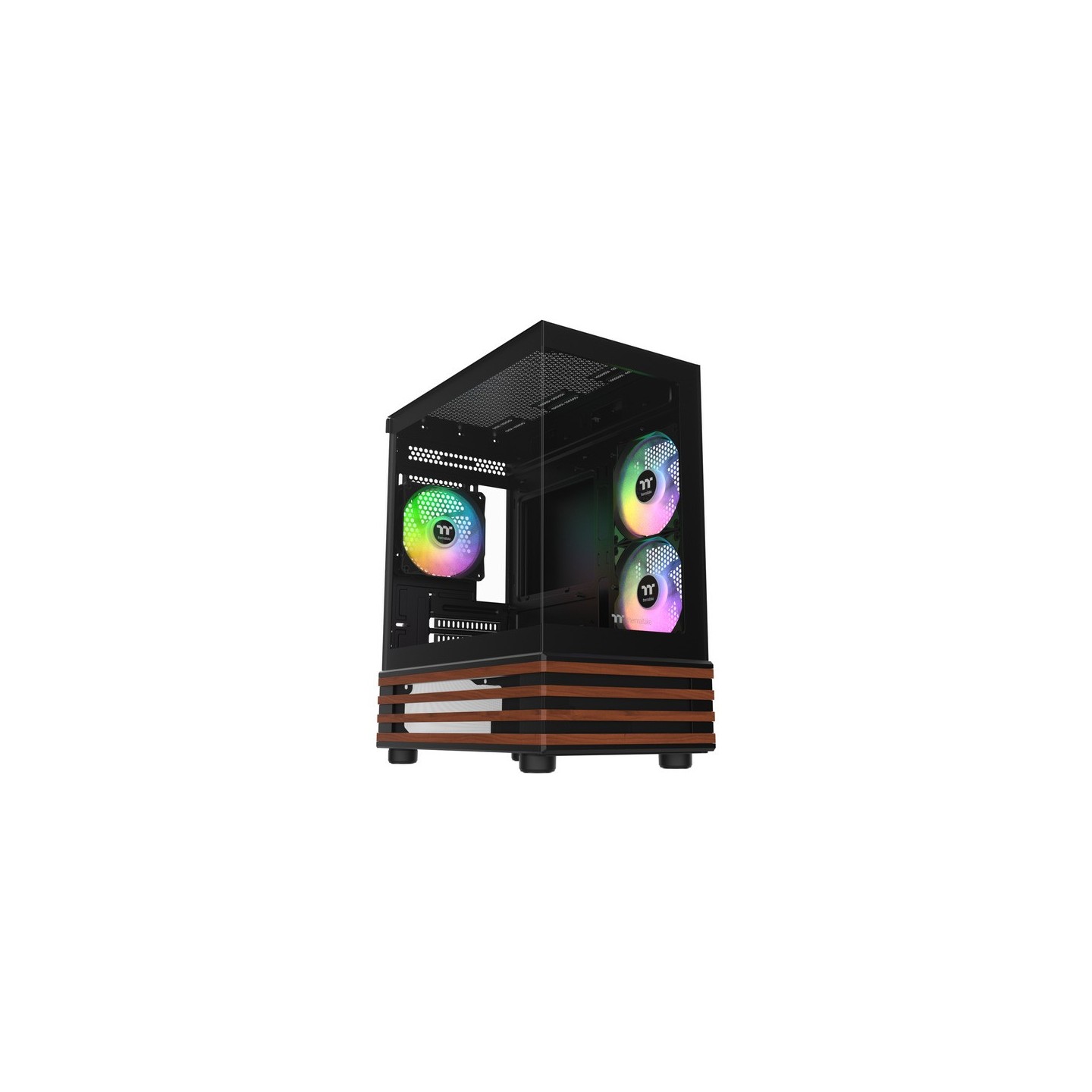

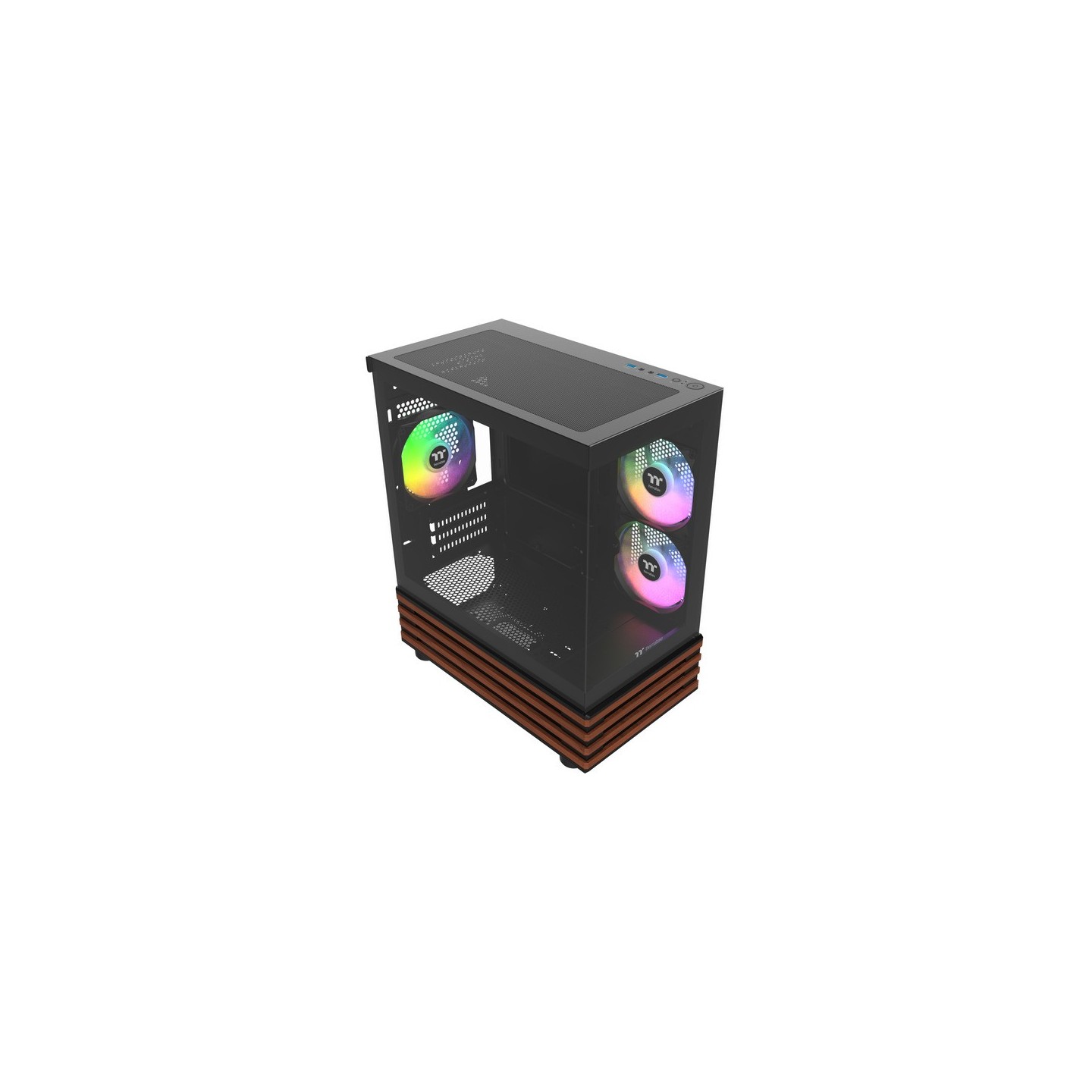

Thermaltake View 170 WS ARGB is a µATX mini tower with wood trim, tempered glass front/left panels, and 3x 120mm ARGB Lite fans (2 reverse side intake, 1 rear exhaust). Supports 280mm radiator, 340mm GPU, 160mm CPU cooler.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 331–360 mm |
| PC Cases - Color | Wood Accent |
| PC Cases - CPU Cooler Clearance | 170+ mm |

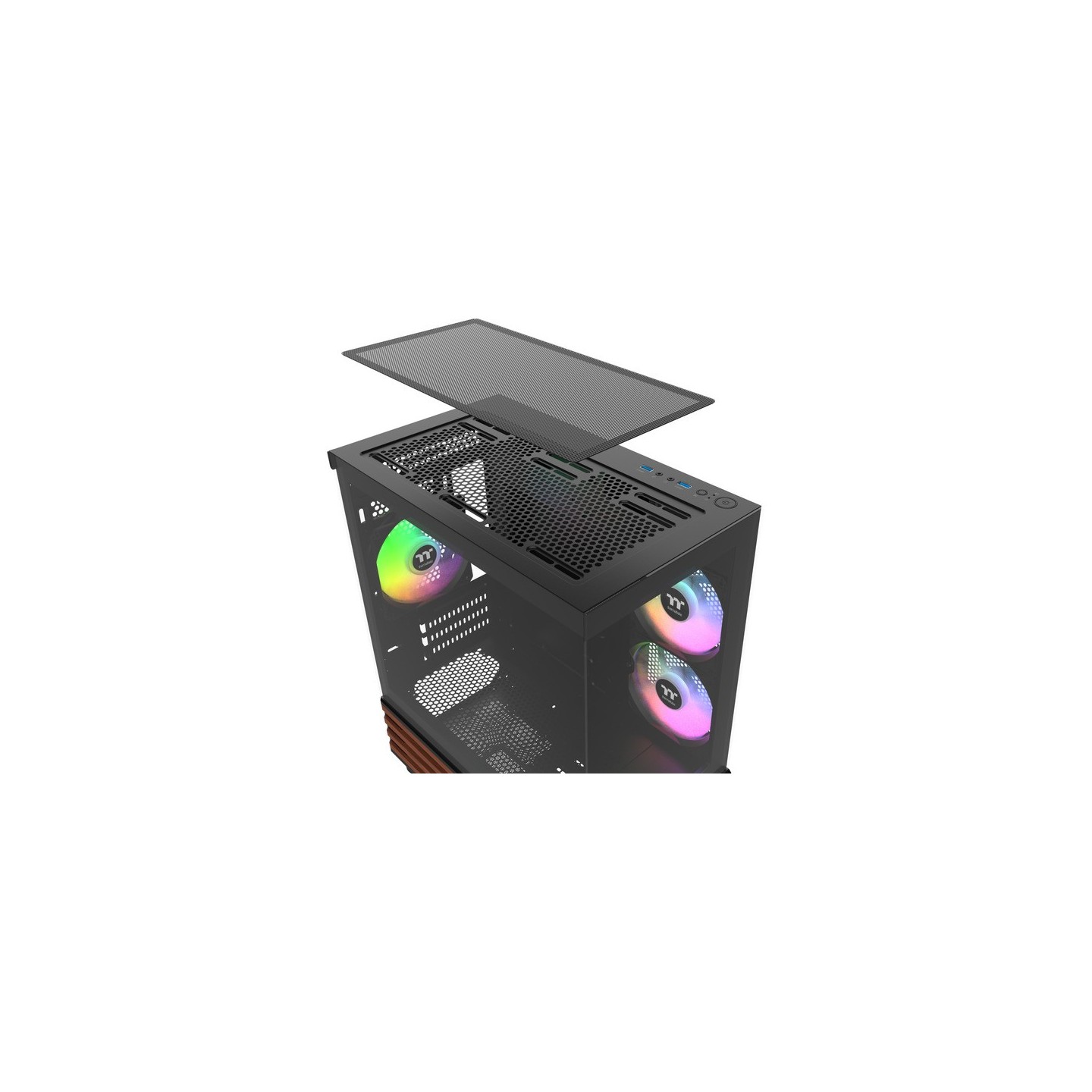

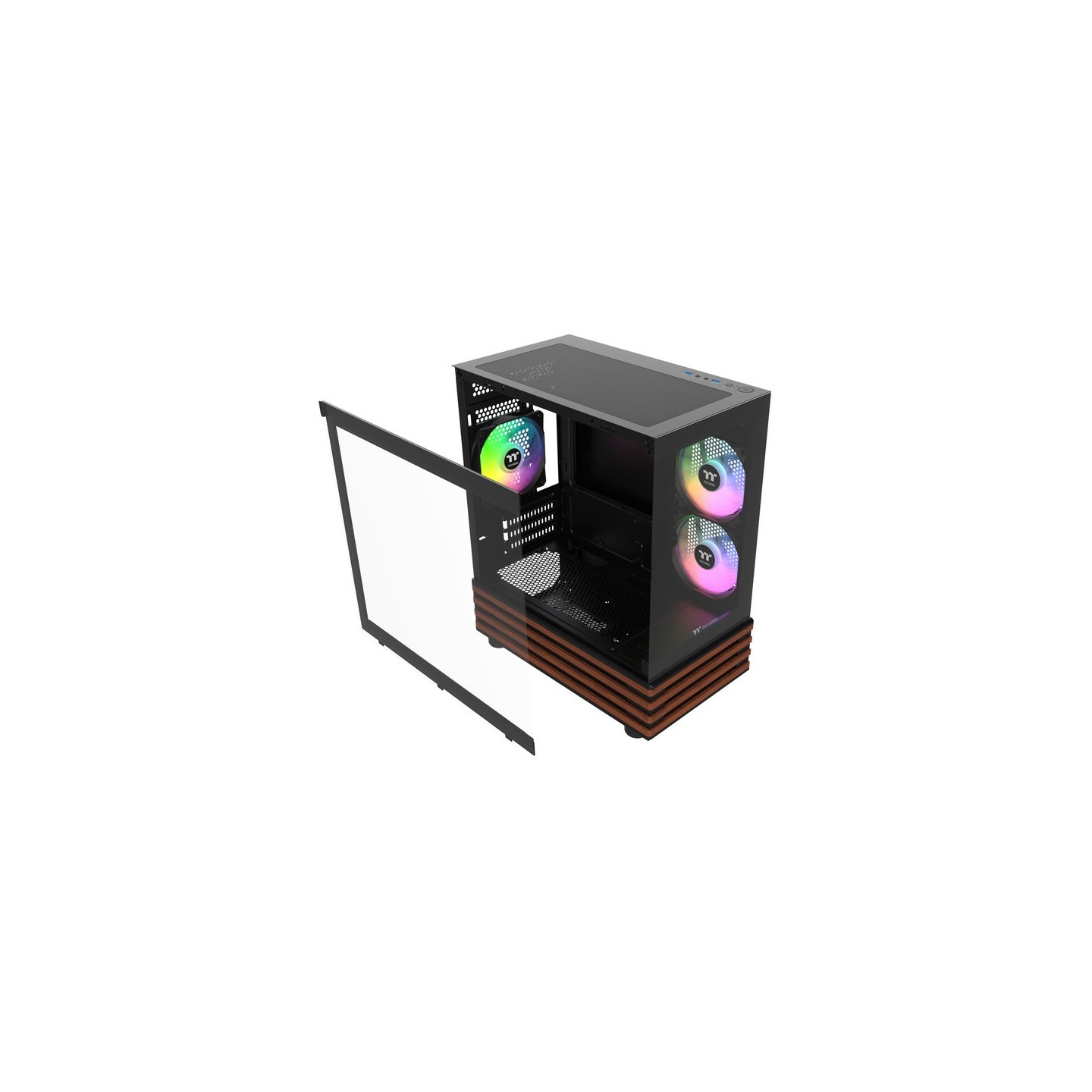

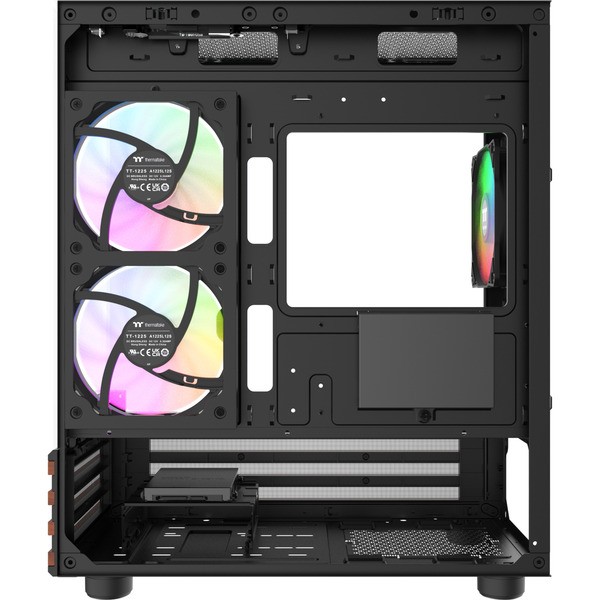

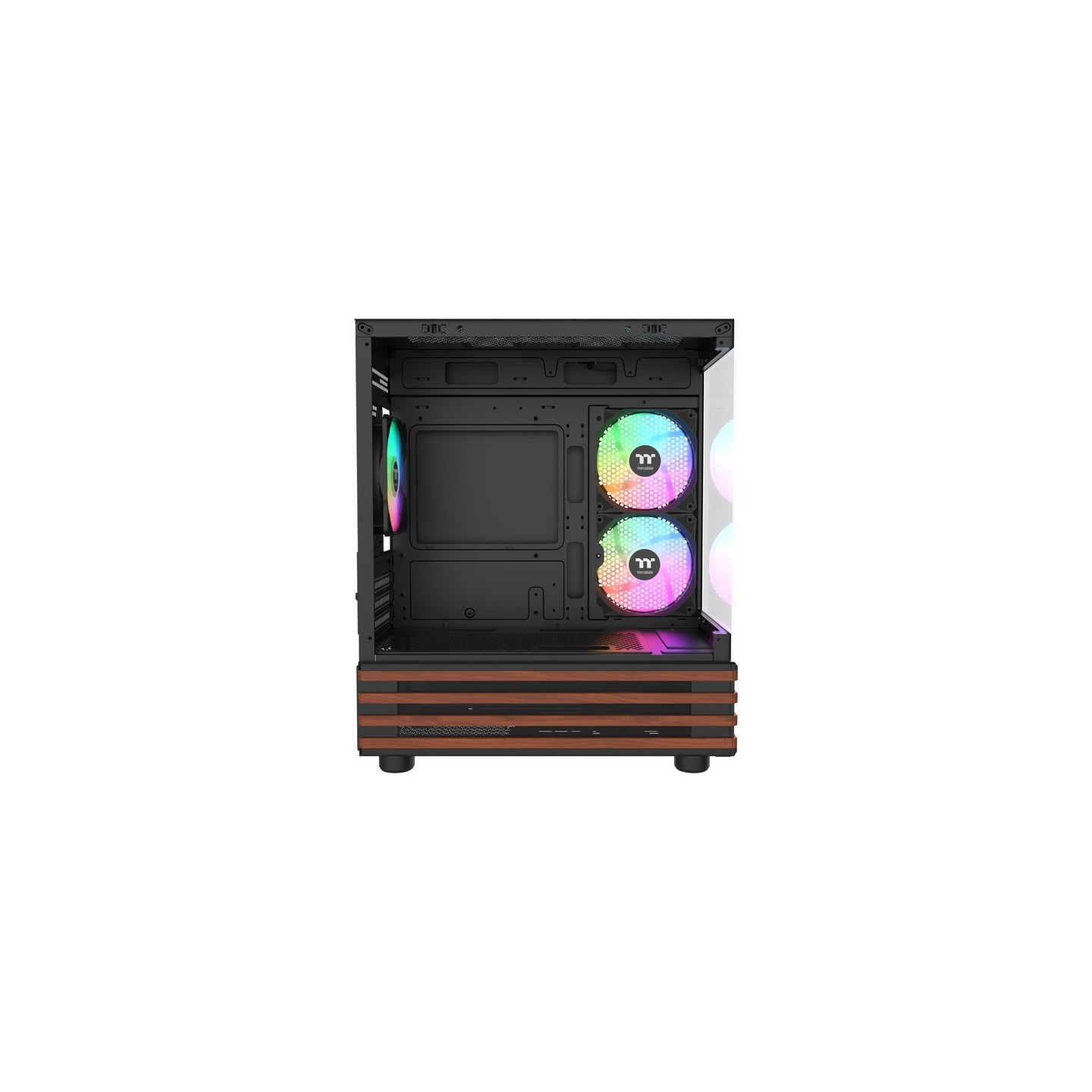

The Thermaltake View 170 WS ARGB Micro Chassis combines stylish wood accents with tempered glass front and left panels for stunning component visibility. Pre-installed with three 120mm ARGB Lite fans using hydraulic bearings—two reverse-blade fans on the motherboard side for intake and one at the rear for exhaust—it delivers excellent airflow from the start. RGB lighting syncs with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, and ASRock Polychrome software.

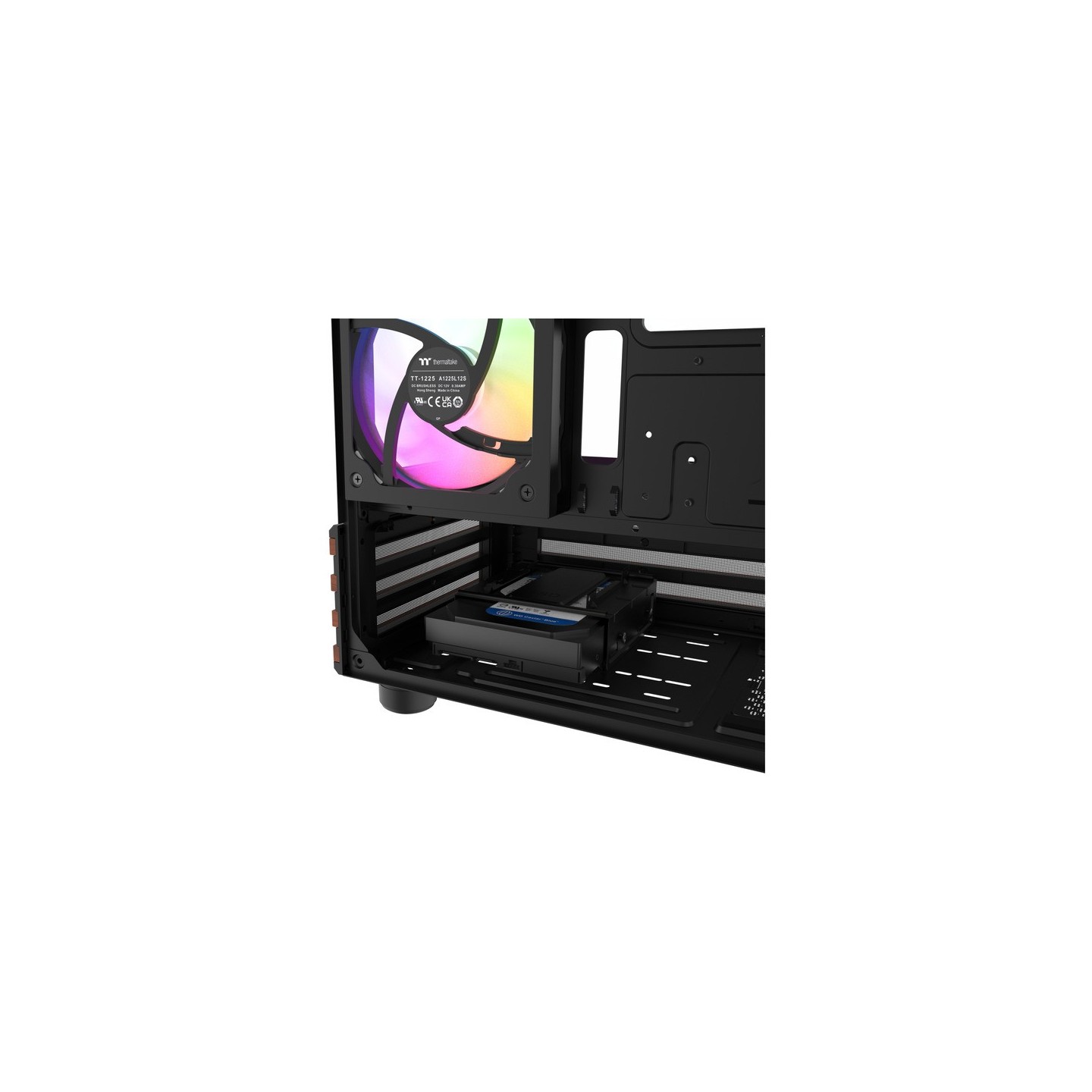

Designed for high expandability, it supports up to seven 120mm fans, a top-mounted 280mm/240mm radiator, CPU coolers up to 160mm tall, GPUs up to 340mm long, and PSUs up to 180mm. Storage options include up to two 2.5" SSDs or one 3.5" HDD. Front I/O features two USB 3.0 ports and HD audio for convenience. With a compact 35L volume, it's ideal for mATX builds seeking performance and aesthetics.
- Key Specs: µATX/Mini-ITX compatible, 4 expansion slots, 3mm tempered glass + steel/wood build
- Cooling: 3x ARGB fans included, max 280mm radiator
- Dimensions: 21.2 x 43.8 x 37.75 cm, 4.7kg (net)
- Warranty: Typically 3 years from Thermaltake
| Type | Tower case |
| Color | black/wood |
| EAN | 4711658545626 |
| Manufacturer no. | CA-1Z4-00M1WN-WS |
| Manufactured in | China |
| Serie | View |
| Design | Mini-Tower |
| Mainboard Formfaktor | µATX |
| Material | 3 mm Tempered Glass, Stahl, Holz |
| Window Kit | And |
| Internal dimensions - plug-in card length | maximal 340 mm |
| Drive bays - 3.5 inches | internally 1 piece |
| Slots - Full-Size | 4 pieces |

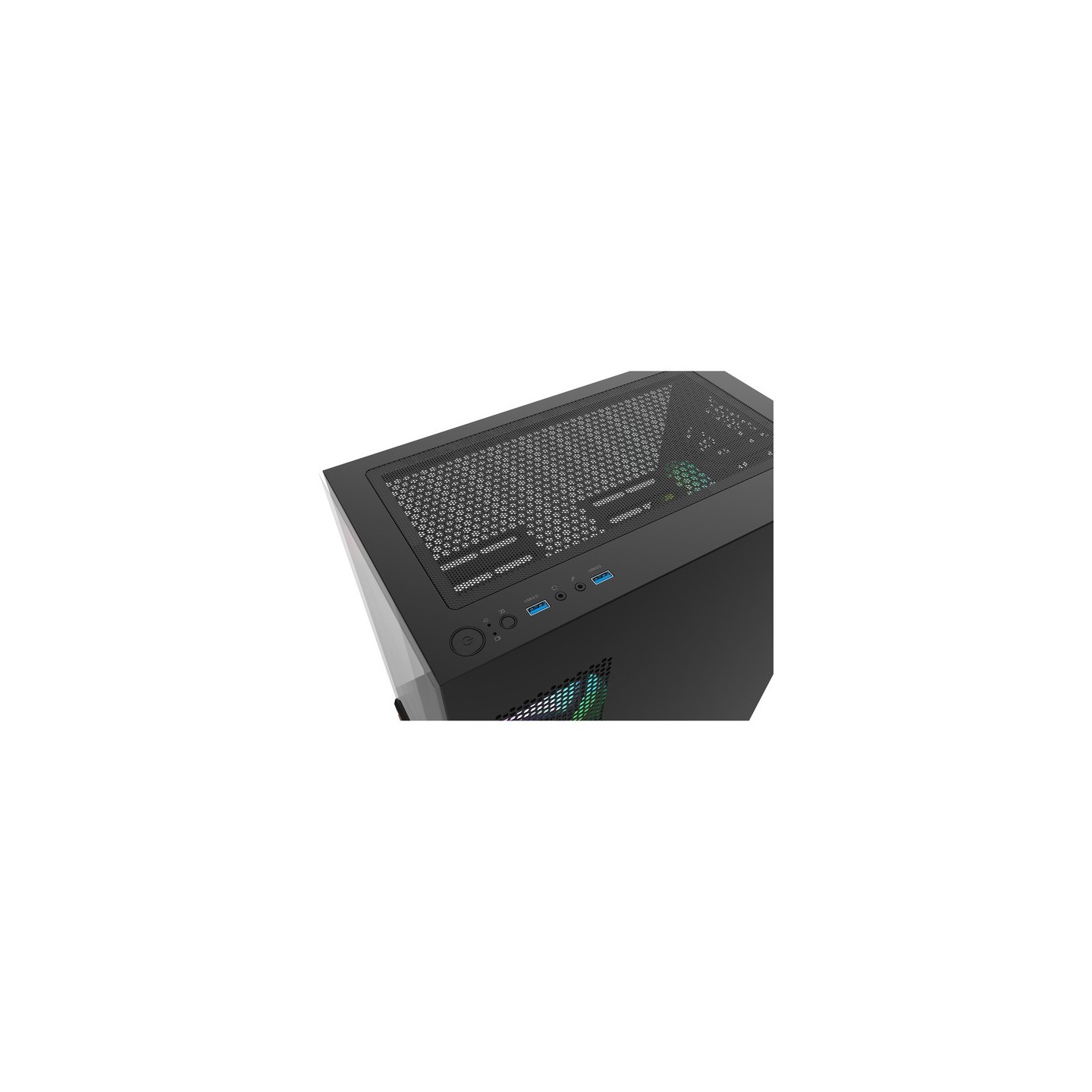

| Front connections | 1x Audio, 2x USB-A 3.2 Gen 1 (5 Gbit/s) |

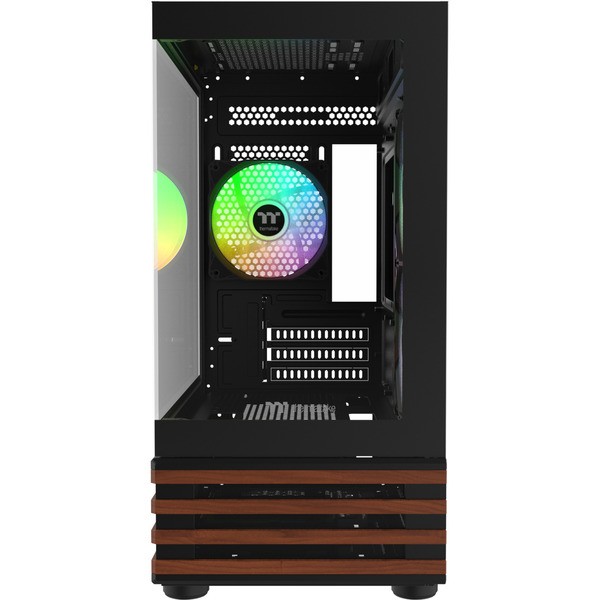

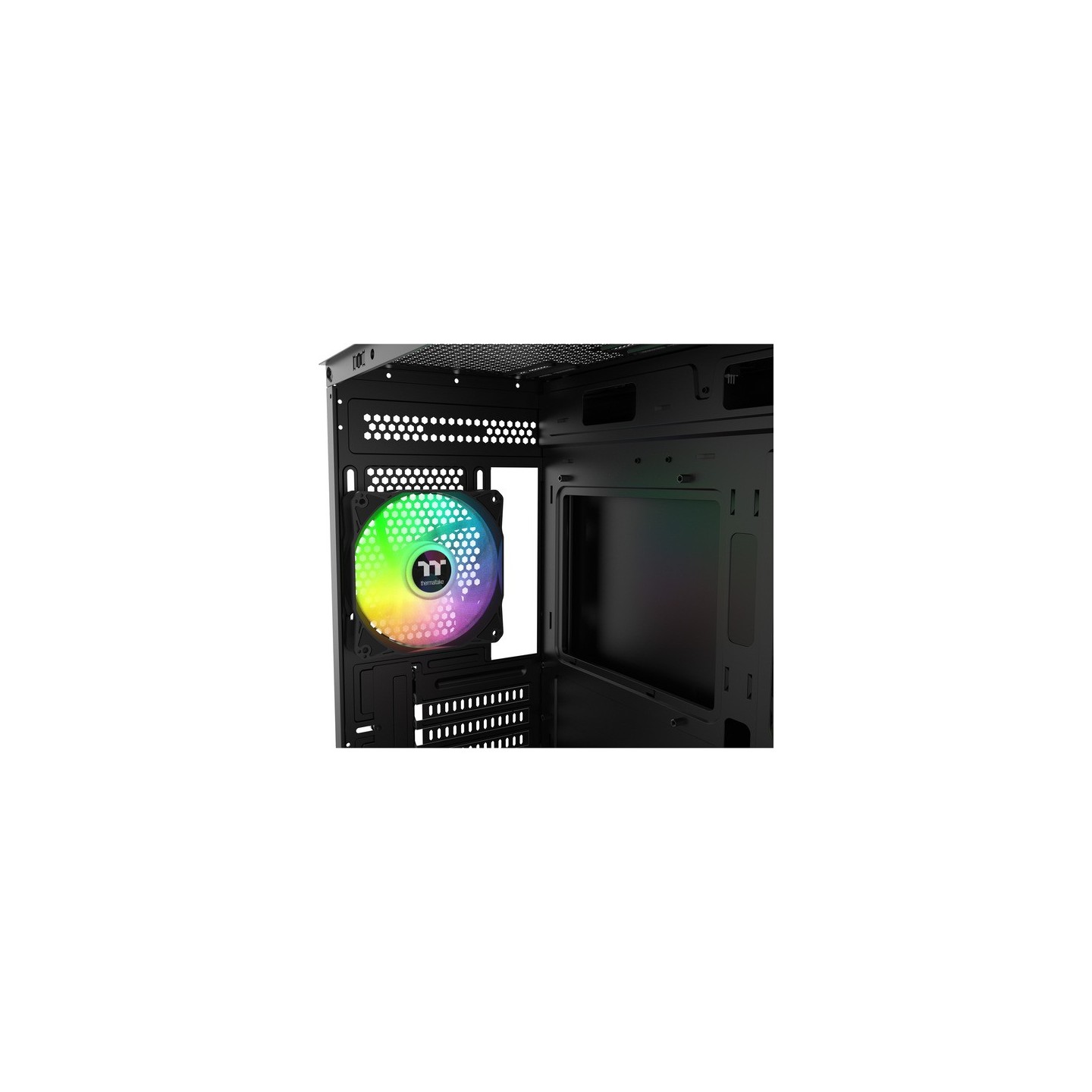

| back | 1 x 120 mm ARGB Lite fan pre-installed (1000 rpm, 22.3 dBA) |

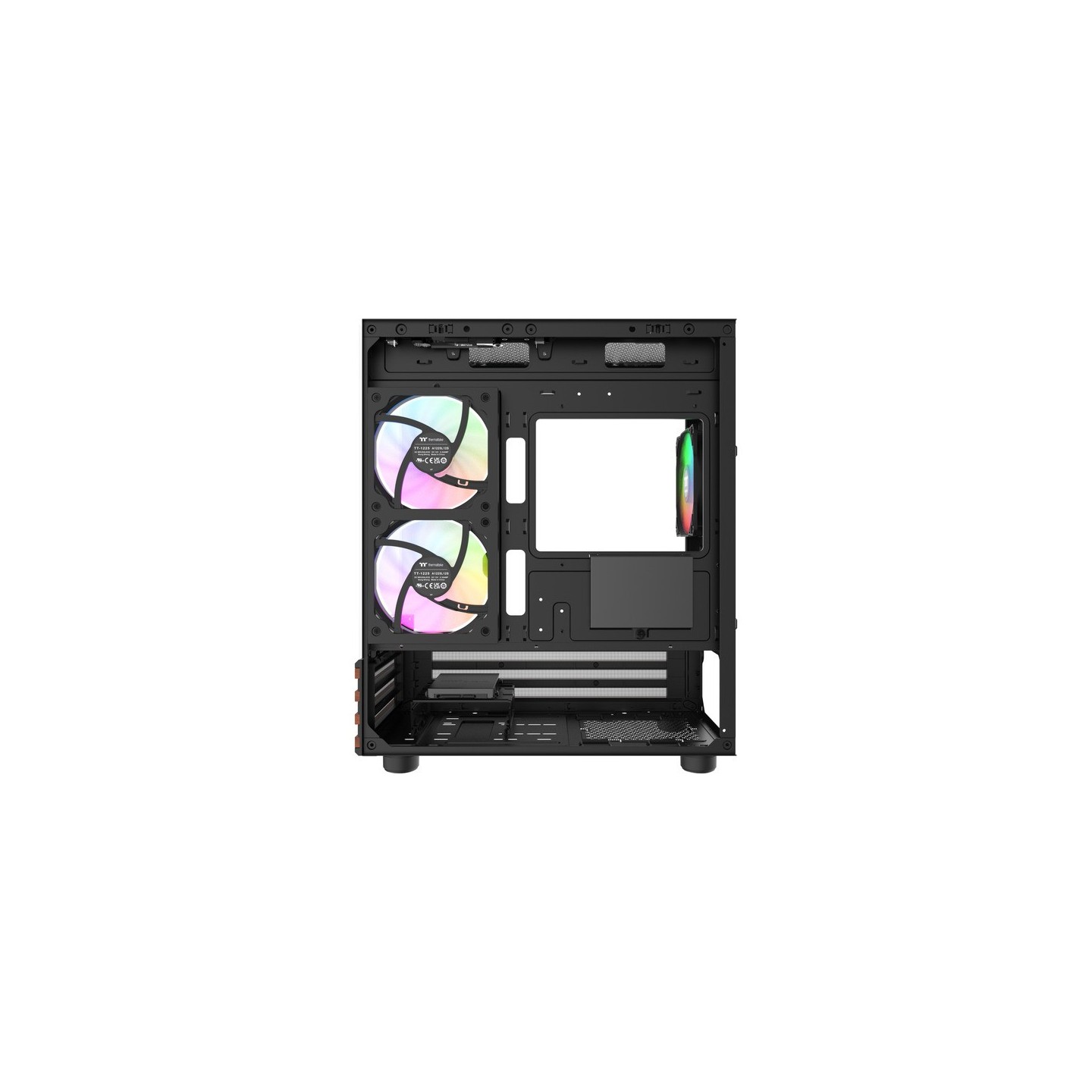

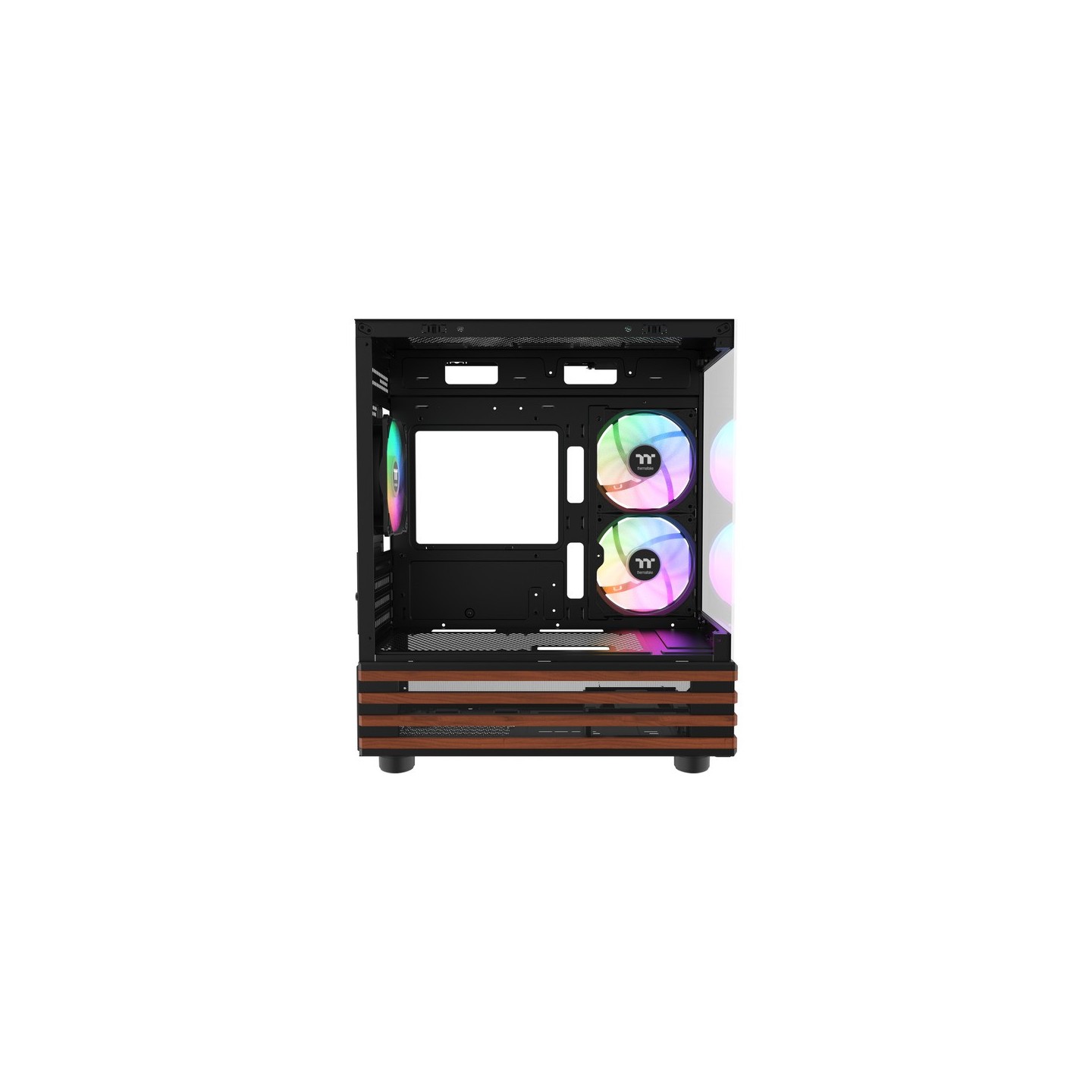

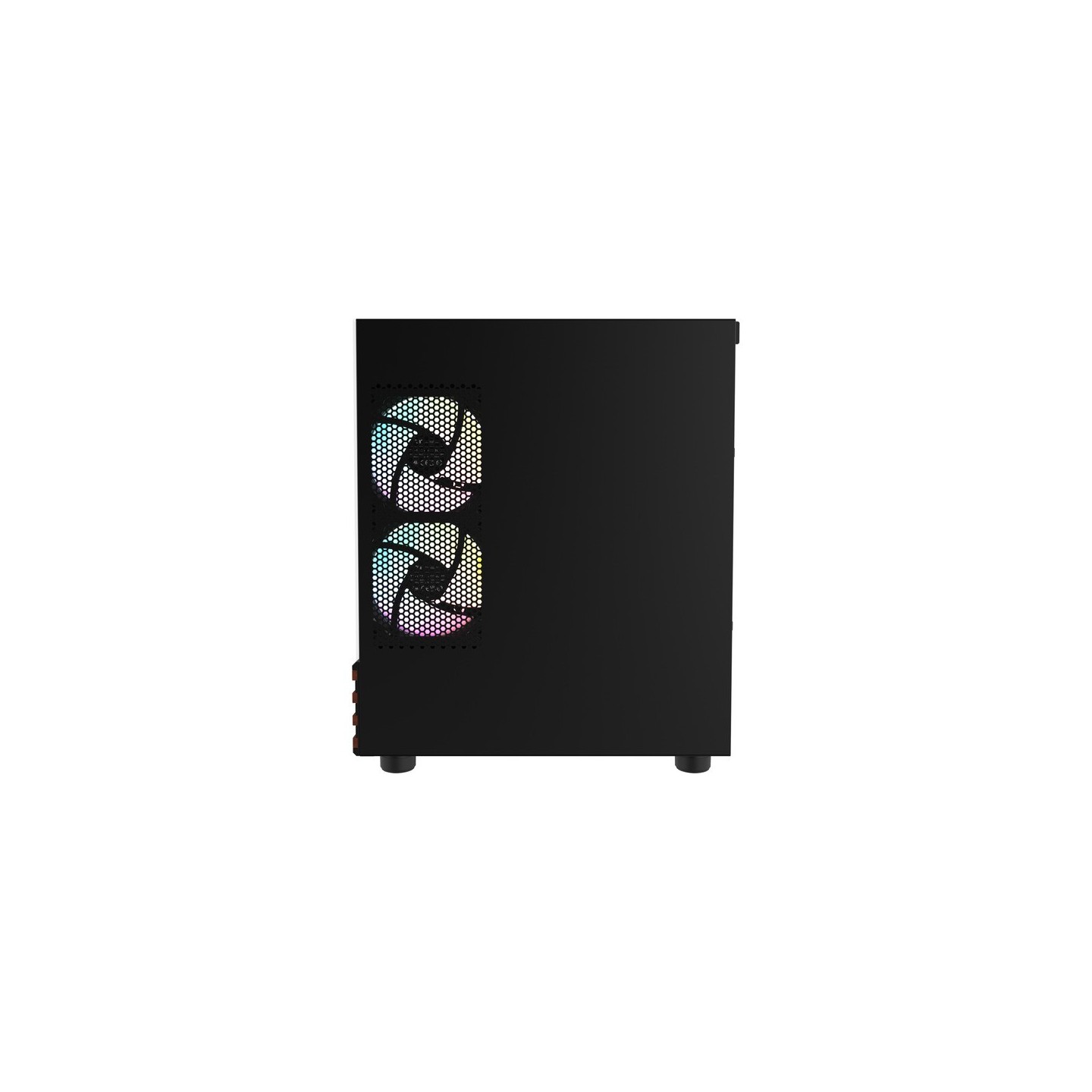

| Notes | Right: 2 x 120 mm ARGB Lite reverse fans pre-installed (1000 rpm, 21.9 dBA), Top: 2 x 120 mm fans can be installed, alternatively 2 x 140 mm fans can be installed, power supply cover: 2 x 120 mm fans can be installed |
| lighting | Yes, RGB |
| RGB connectors | addressable RGB Header |
| RGB-Standard | AURA Sync, Mystic Light, RGB Fusion, RGB LED |
| Water cooling possible | And |
| Rear connection of the mainboard | No |
| Volume | 35 l |
| Dimensions | Width: 21.2 cm x Height: 43.8 cm x Depth/Length: 37.75 cm |
| Weight | 4,7 kg |
| CPU Cooler Height | max 160 mm |
| Power Supply Length | max 180 mm |
| Max Fans | up to 7 x 120 mm |
