B550 GAMING WIFI, Mainboard
The MSI B550 GAMING WIFI is based on the AMD B550 chipset and supports AMD processors for Socket AM4. It has four DDR4 slots for up to 128 GB of memory. The MSI B550 GAMING WIFI's ...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

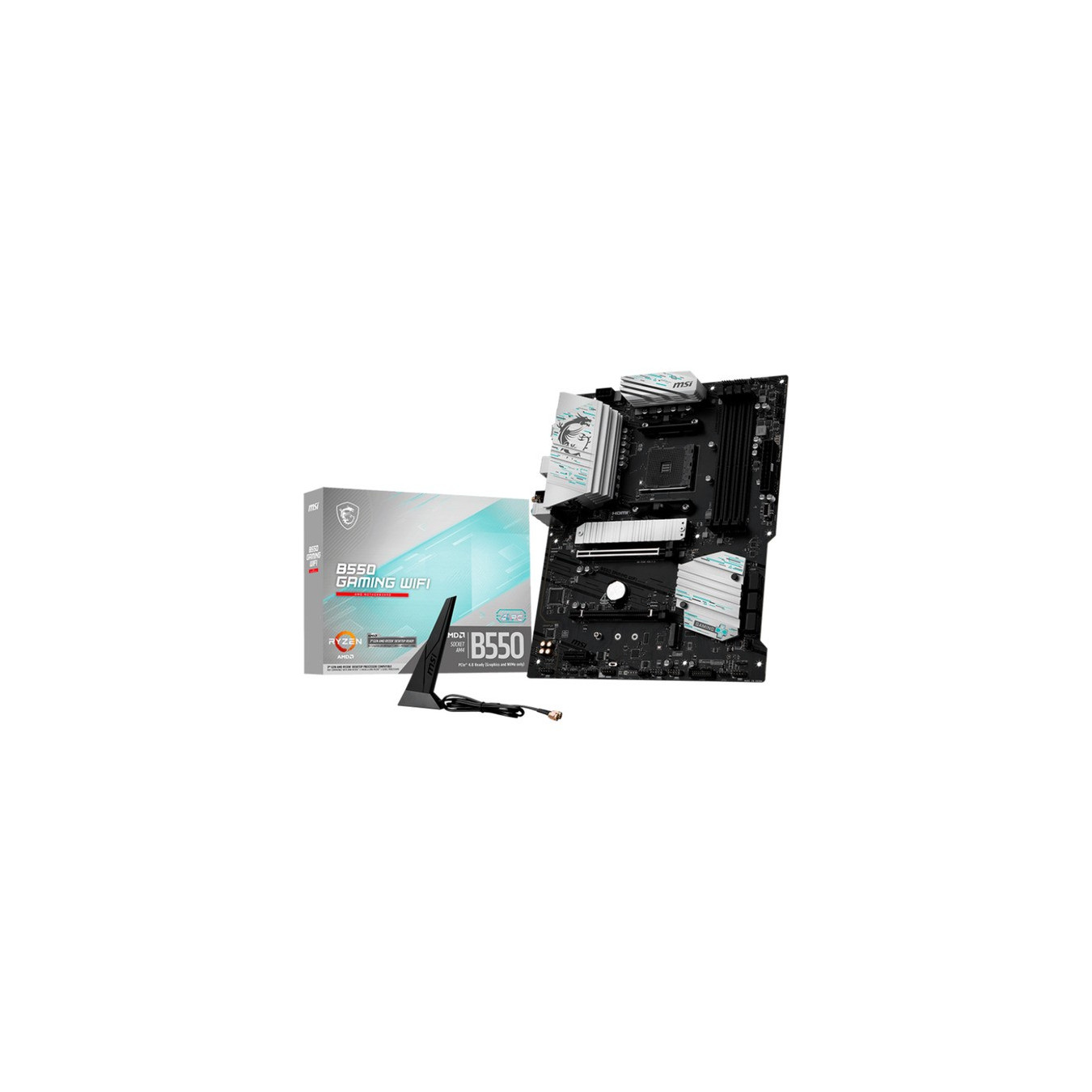

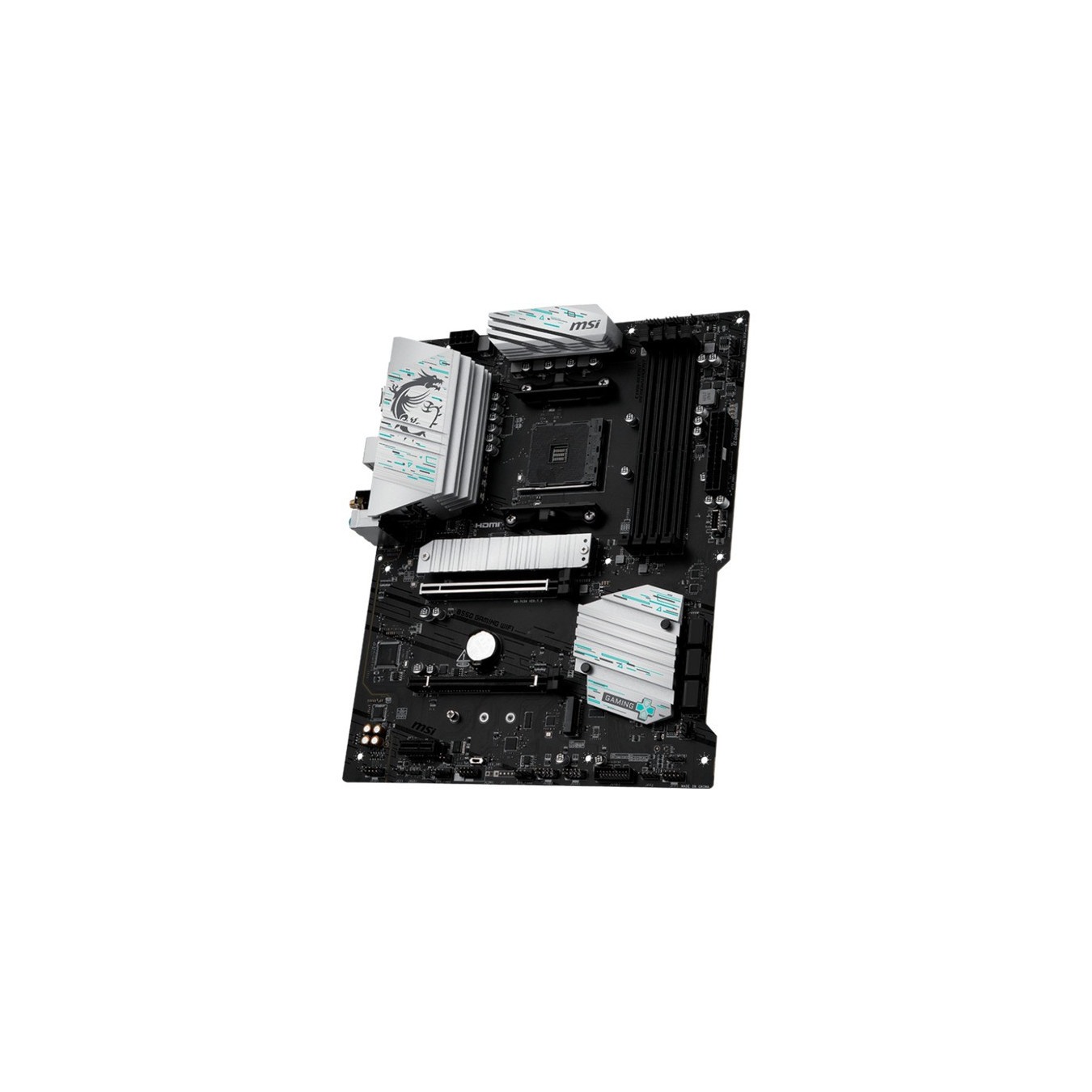

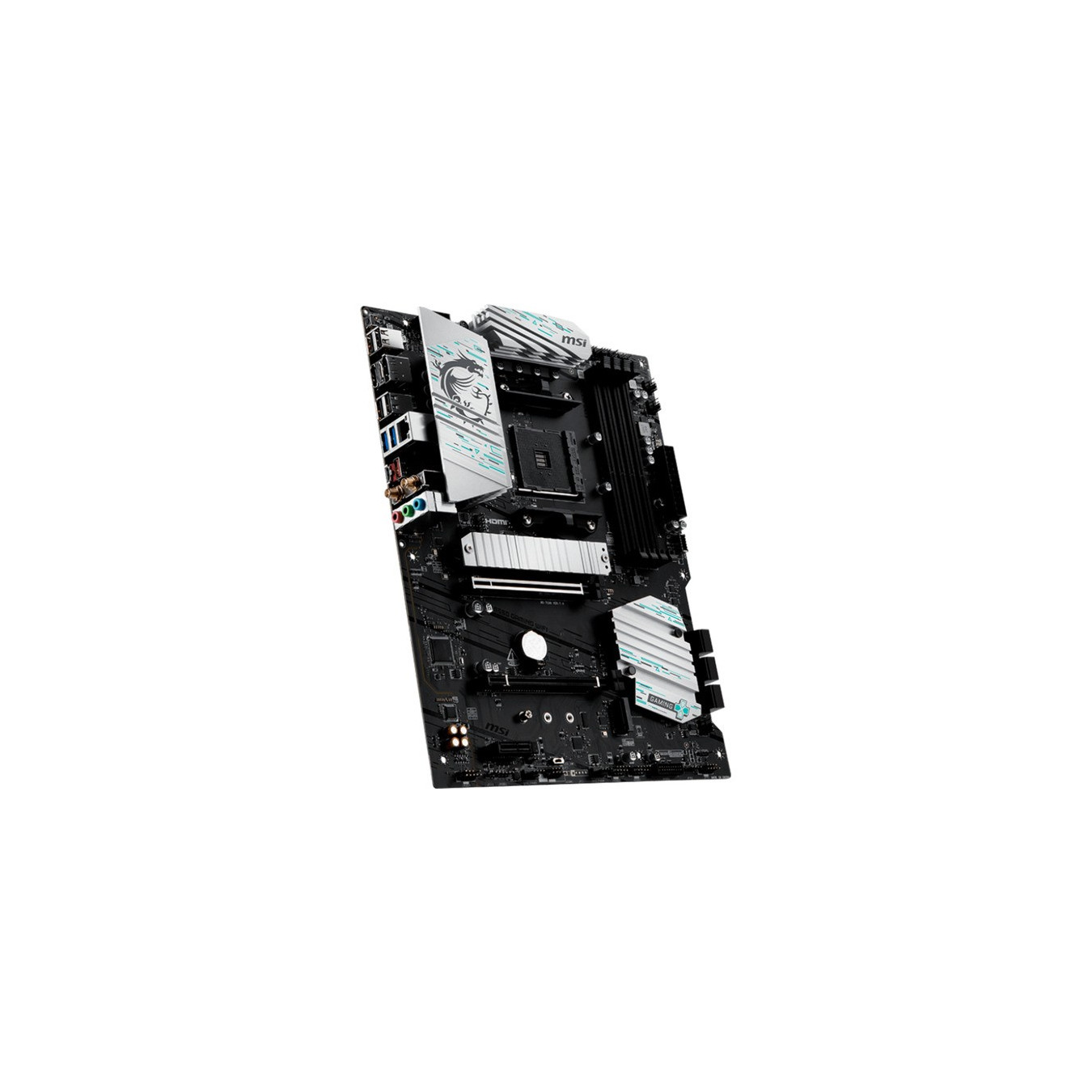

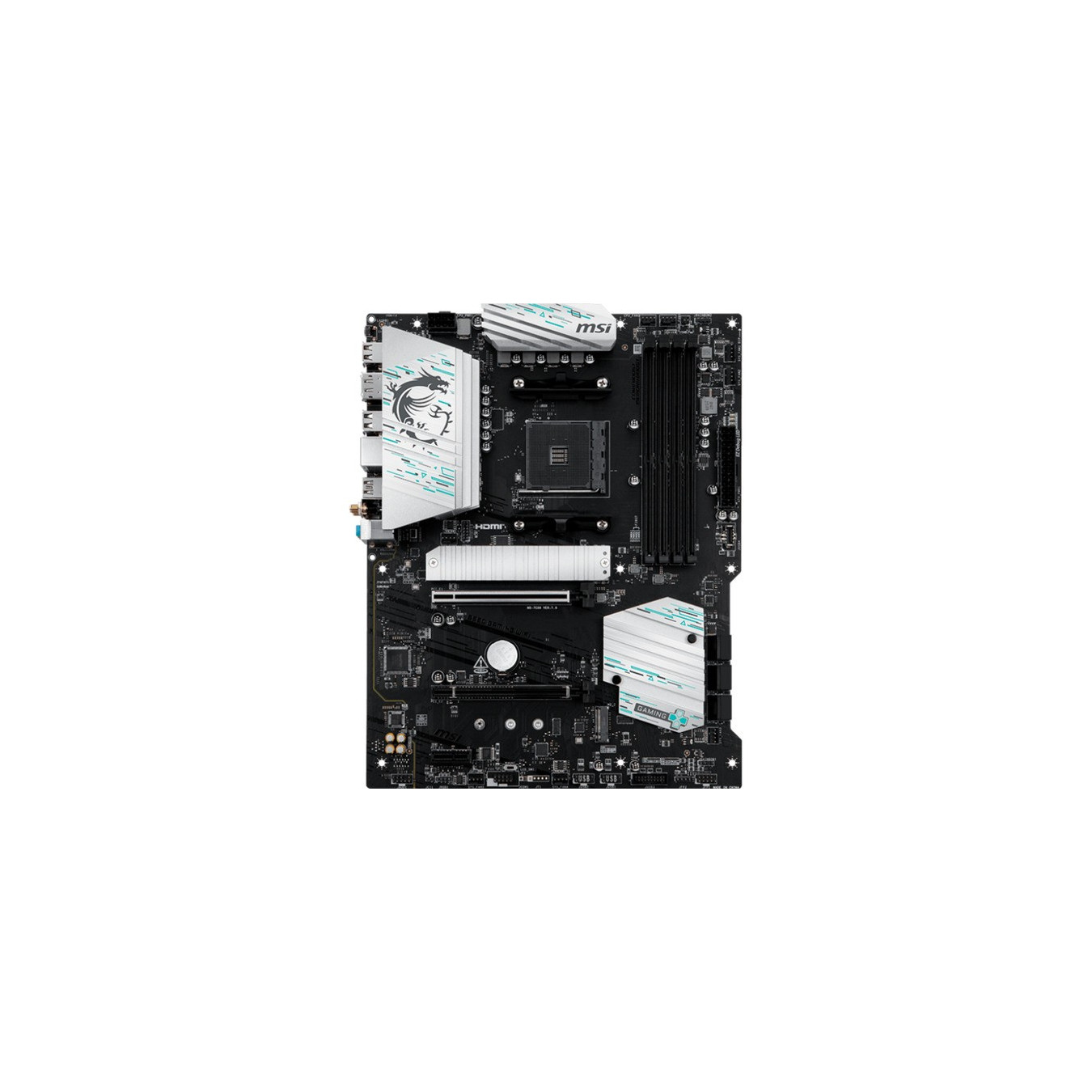

The MSI B550 GAMING WIFI is based on the AMD B550 chipset and supports AMD processors for Socket AM4. It has four DDR4 slots for up to 128 GB of memory. The MSI B550 GAMING WIFI's additional features include a CPU-dependent graphics solution, two PCIe 3.0 x16 slots and four PCIe 2.0 x1 slots. The MSI B550 GAMING WIFI also has 8-channel sound, a Gigabit LAN interface, WiFi 5, Bluetooth 5.0 as well as six SATA3, two M.2 and a number of USB interfaces.
| Typ | Mainboard |
| Color | black/silver |
| EAN | 4711377376143 |
| Manufacturer no. | 7C56-085R |
| base | AM4 |
| Max. supported CPUs | 1 |
| Processor - Supported Models | Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Vermeer), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Vermeer), Ryzen 7 5xxx (Cezanne), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxXT (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxx (Vermeer), Ryzen 9 5xxxX (Vermeer), Ryzen 9 5xxxXT (Vermeer) |
| Chipset | AMD B550 |
| Slots - PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x4) |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 128 GB |
| Ports (external) - USB-C 3.2 Gen 2 (10 Gbit/s) | 1 |
| Connectors (internal) - SATA | 6 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD B550 |
| directly usable RAID levels | 0, 1, 10 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek® ALC897 |
| LAN | Realtek® 8111H GbE LAN |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Accessories - available | Quick start instructions, 2x SATA cable, I/O shield |
| Dimensions | Width: 243.84mm x Height: 304.8mm |
