ASUS Pro WS W790E-SAGE SE (D) LGA4677 Intel W790 PCIe 5.0 IPMI EEB (Boxed)
Workstation motherboard: LGA4677 Intel Xeon W-3400/W-2400, W790 chipset, 8x DDR5 ECC up to 2TB OC, SSI EEB, 7x PCIe 5.0 x16, 3x M.2 PCIe 5.0/4.0, dual 10GbE+1GbE BMC IPMI, RAID.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 4677 |
|---|---|
| Motherboards - Chipset | Intel W790 |
| Motherboards - Form Factor | SSI EEB |
| Motherboards - Memory Type | ECC DDR5 RDIMM DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - Max Memory Capacity | 512 GB (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 8 |
| Motherboards - USB-C Support | Front Panel Type-C header Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
Performance, Productivity, Proven

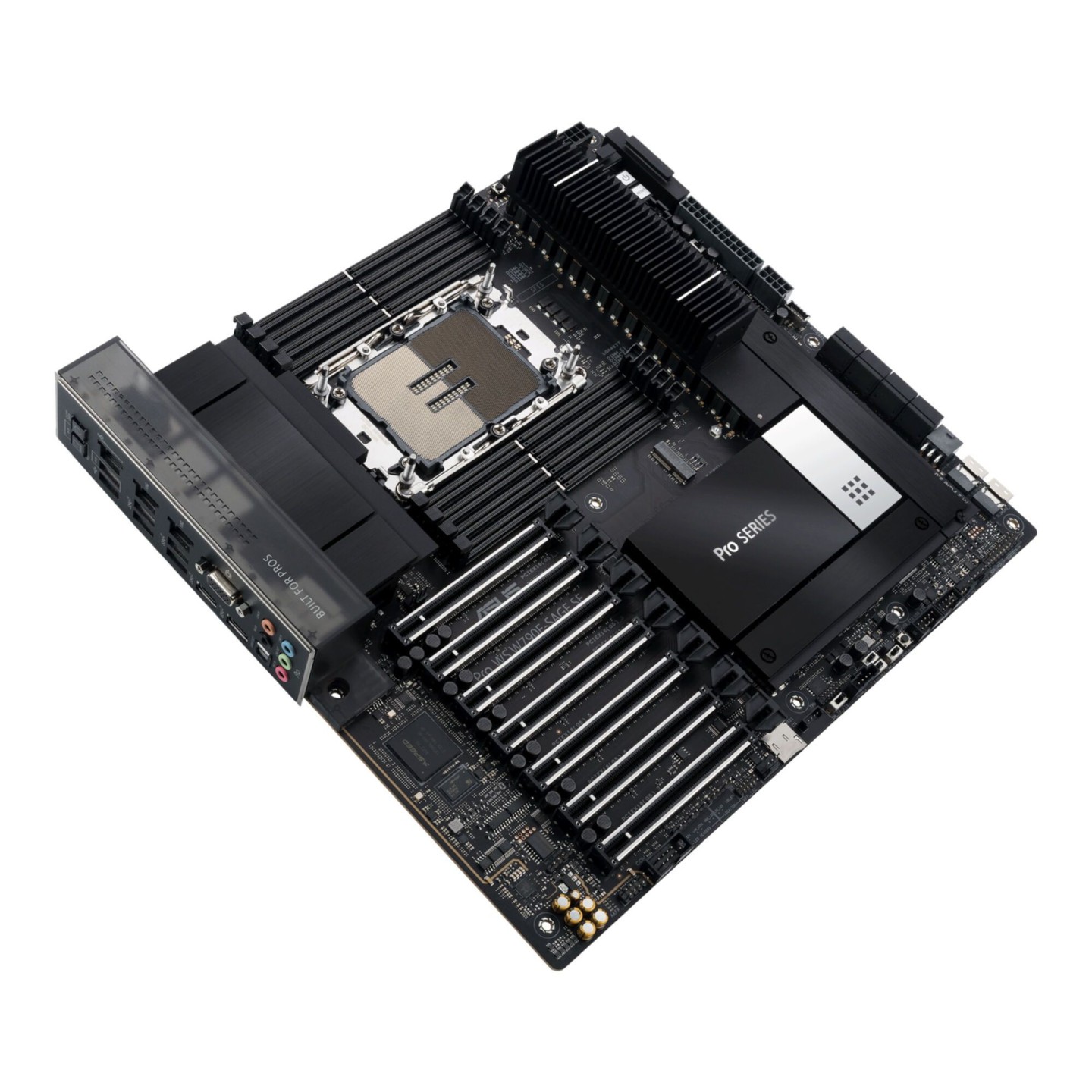

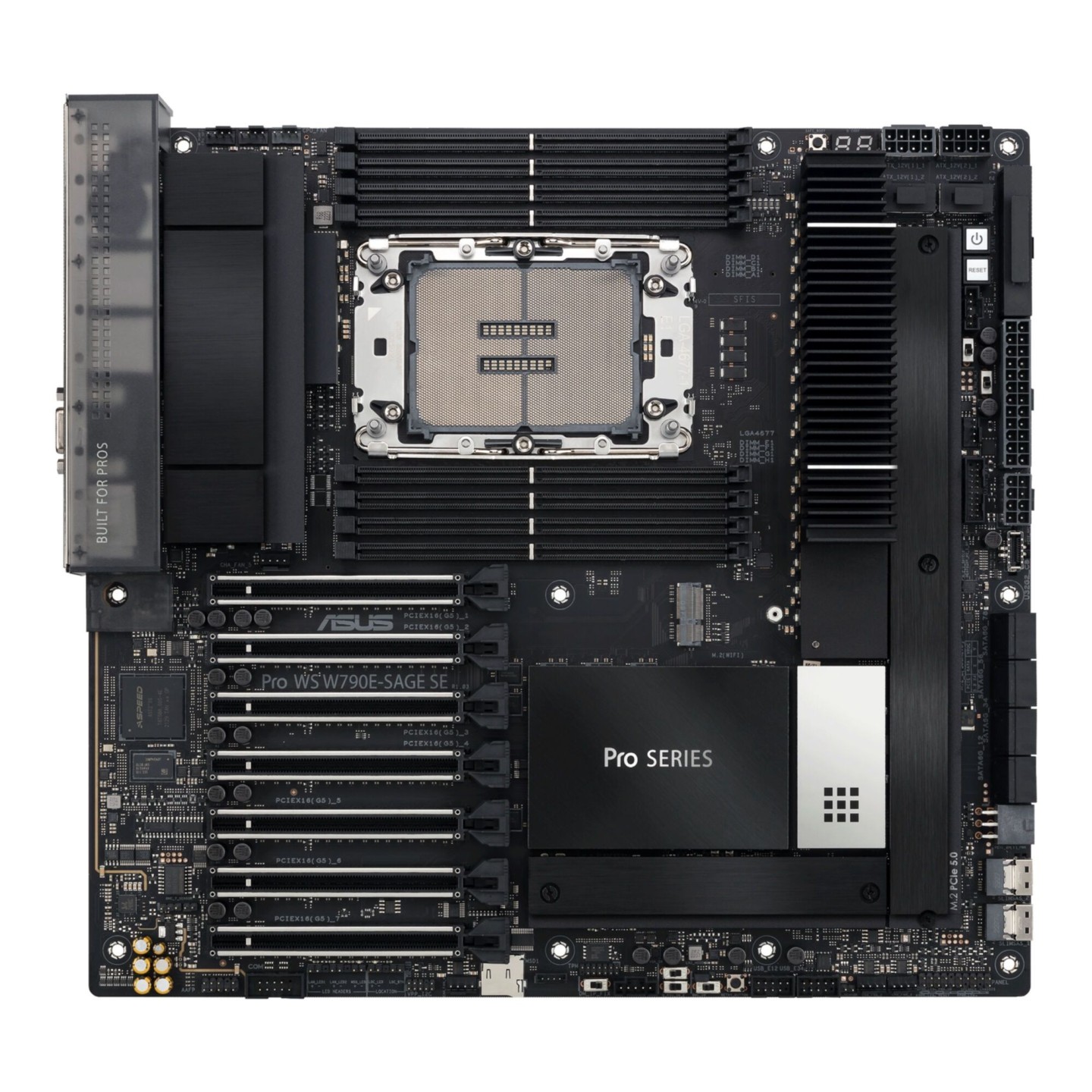

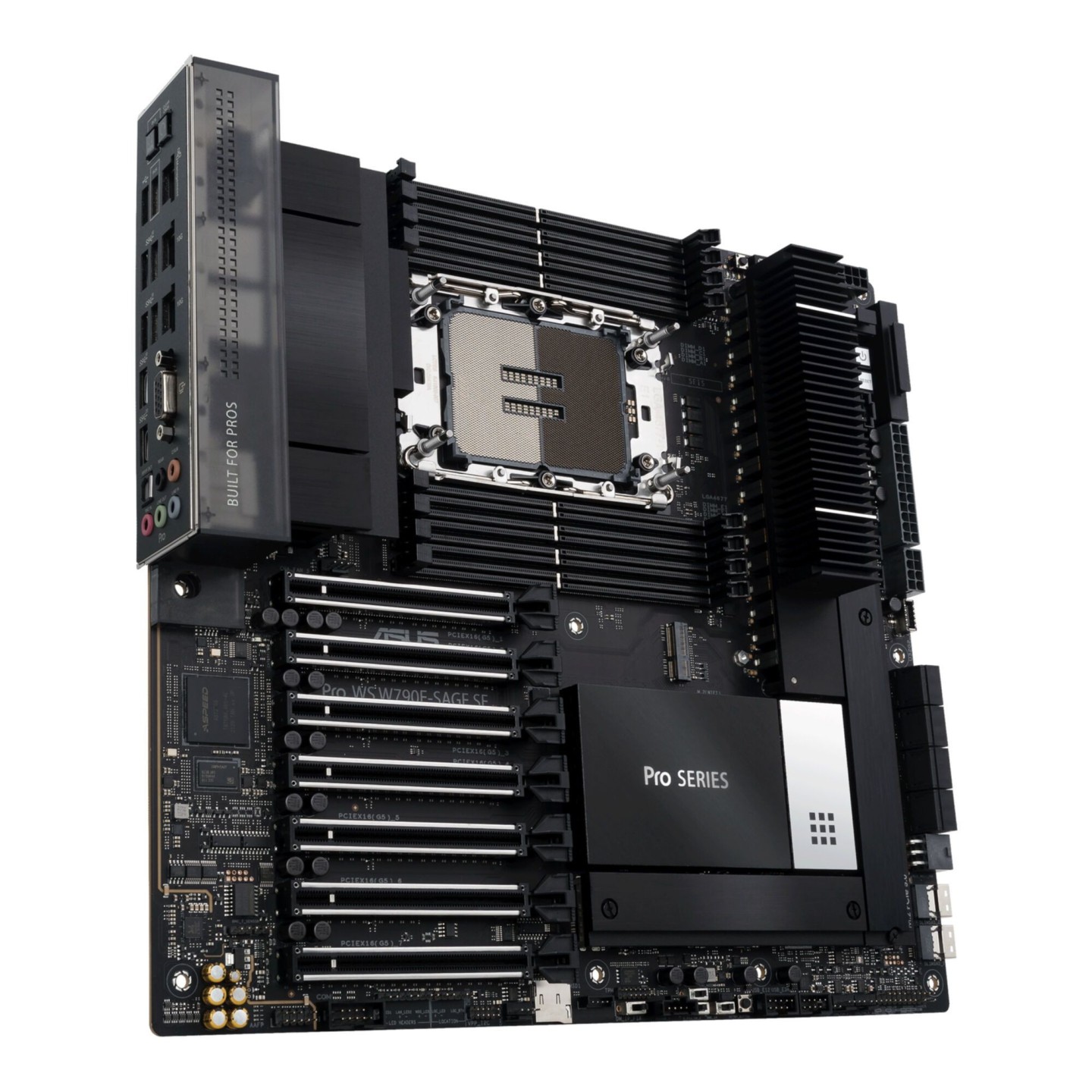

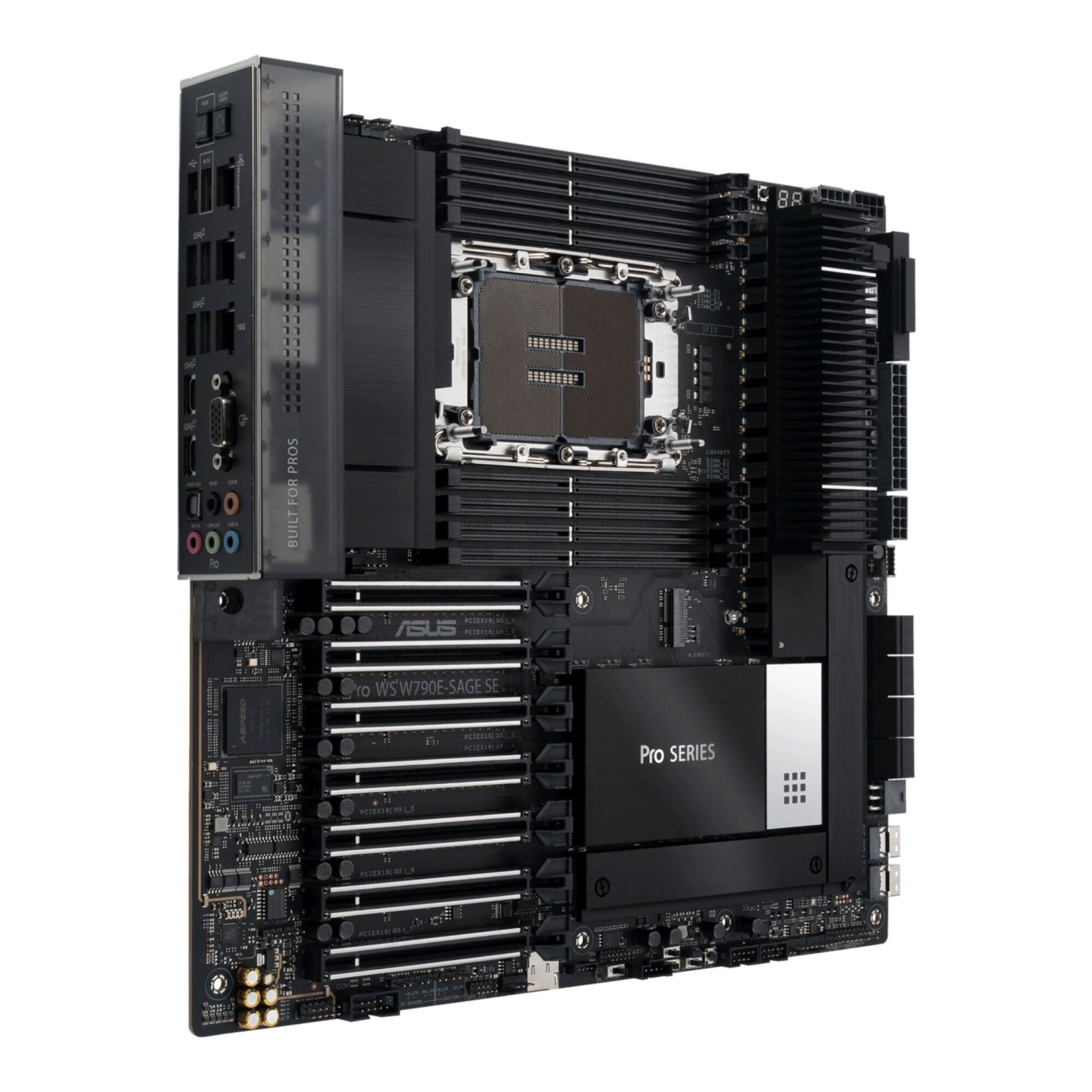

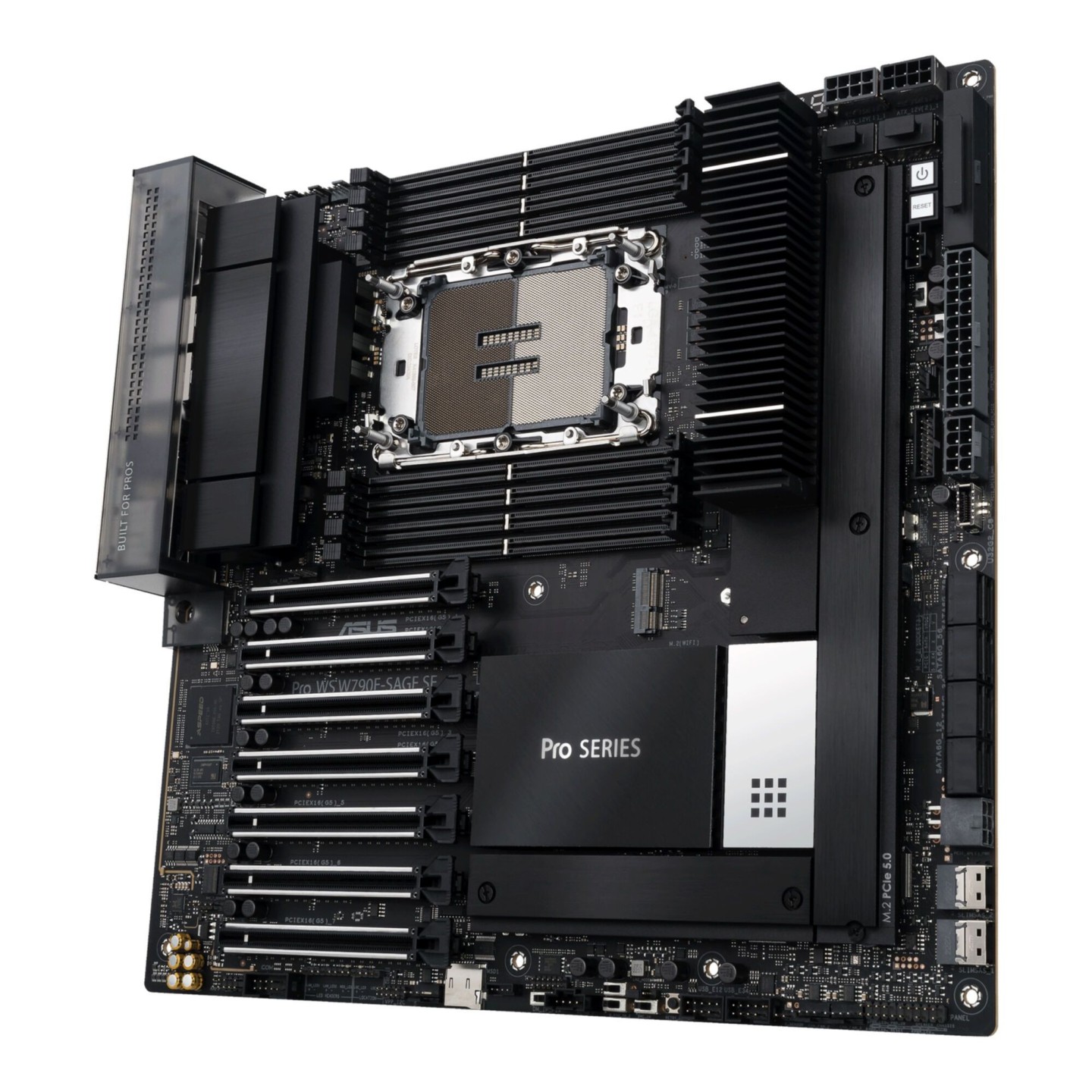

The ASUS Pro WS W790E-SAGE SE is a premium workstation motherboard for Intel Xeon W-3400 & W-2400 series processors on LGA4677 socket with W790 chipset. It supports 8-channel DDR5 RDIMM ECC memory up to 2TB with overclocking to 6800MHz(OC), optimized trace layout, and server-grade IPMI via AST2600 BMC with dedicated 1GbE port. Features 7x PCIe 5.0 x16 slots for multi-GPU, dual Intel X710-AT2 10GbE + 1GbE LAN, 3x M.2 (2x PCIe 5.0, 1x PCIe 4.0) with heatsinks, 8x SATA III, 2x SlimSAS, and robust 14+1+1 power stages with 8-pin/6-pin PCIe connectors.
DIY-friendly with pre-mounted I/O shield, BIOS Flashback, ASUS Control Center Express for remote management. Thorough cooling via VRM/chipset/M.2 heatsinks. Premium Realtek S1220A 7.1 audio, VGA from BMC, front USB 3.2 Gen 2x2 Type-C. Tested for 24/7 reliability up to 45°C/80% humidity with extensive QVL.
- ✅ 8x DIMM DDR5 ECC OC to 6800MHz, max 2TB
- ✅ 7x PCIe 5.0 x16 Multi-GPU support
- ✅ Dual 10GbE + BMC IPMI remote management
- ✅ 3x M.2 PCIe 5.0/4.0 + 2x SlimSAS storage
- ✅ SSI EEB form factor, robust power/thermal design
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-2400, W-3400 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz (OC) |
| Supported memory clock speed (max) | 6800 MHz (OC) |
| Maximum internal memory | 2 TB |
| Number of SATA III connectors | 8 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Ethernet LAN (RJ-45) ports | 3 (2x 10GbE, 1x 1GbE BMC) |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| RAID levels | 0, 1, 5, 10 |
| Power stages | 14+1+1 |
| BMC / IPMI | Yes (AST2600) |
| Package width | 379 mm |
| Package depth | 362 mm |
| Package height | 81 mm |
| Package weight | 2.99 kg |
