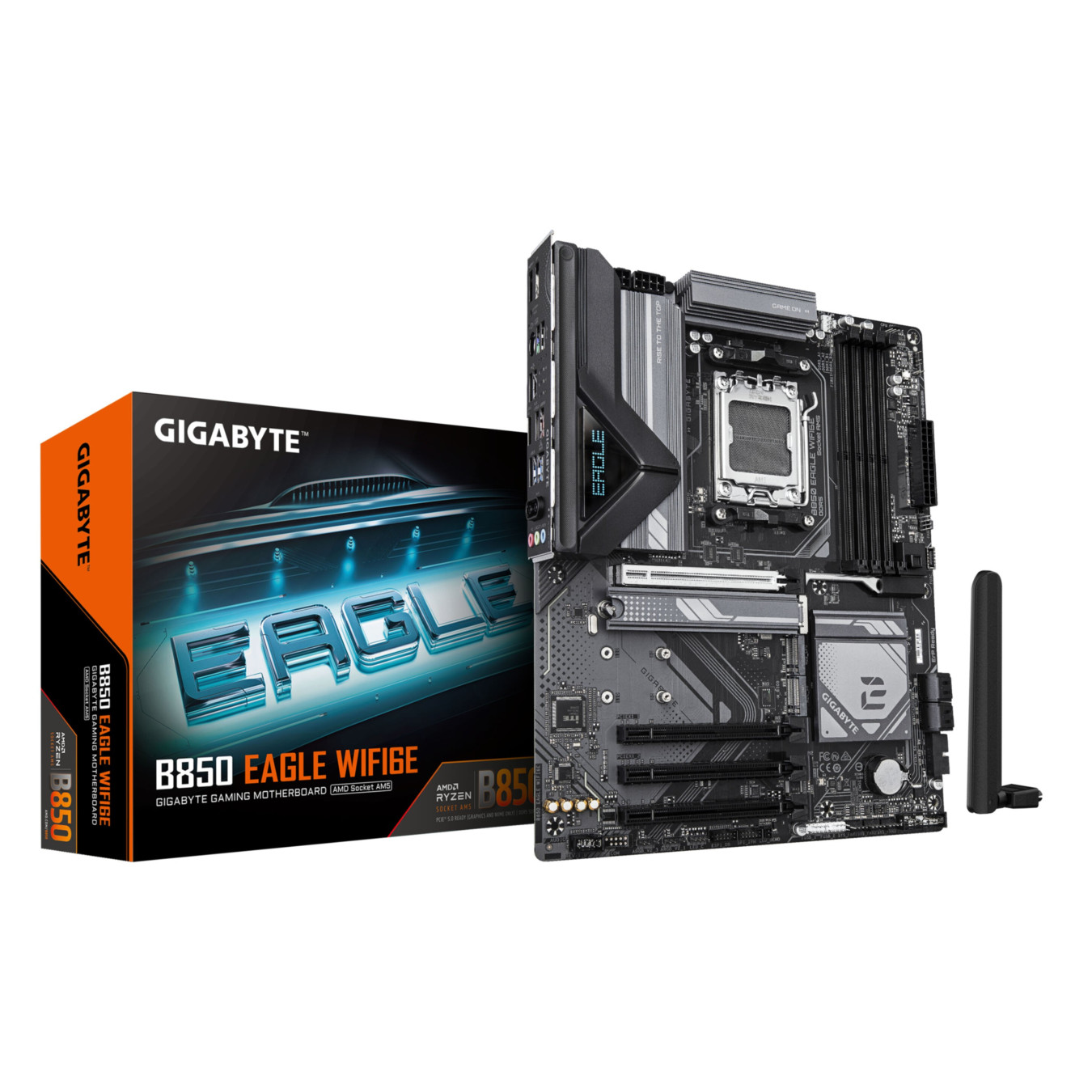

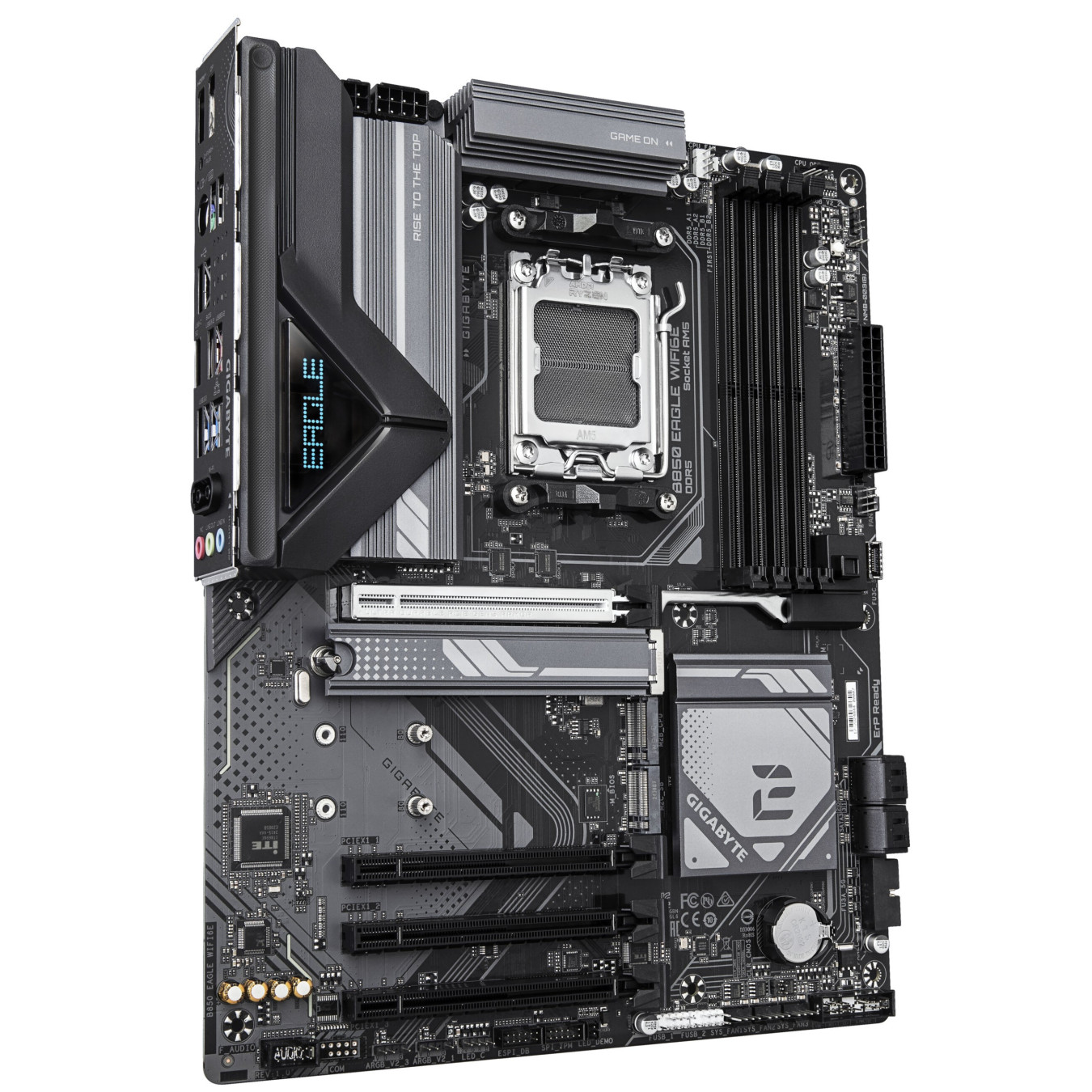

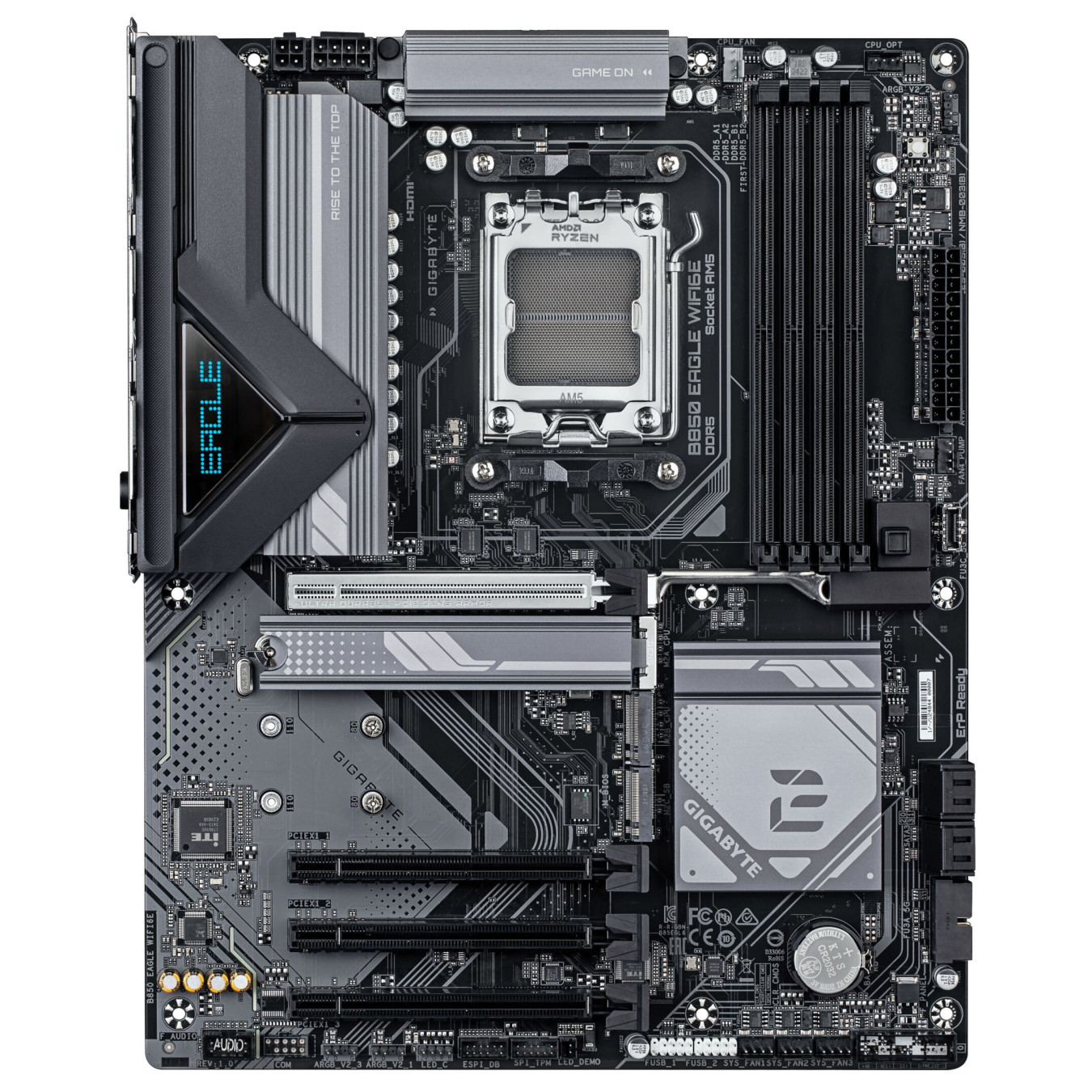

GIGABYTE B850 EAGLE WIFI6E AM5 ATX DDR5 Wi-Fi 6E PCIe 5.0 (Boxed)
AM5 ATX motherboard w/ DDR5 (4x DIMM, 256GB), Wi-Fi 6E Intel AX210, BT 5.3, PCIe 5.0 x16 slot, 3x M.2 (1x PCIe5), 4x SATA, HDMI 2.1, DP 2.1, 7.1 audio, EXPO/XMP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD B850 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
Elevate your PC build with the GIGABYTE B850 EAGLE WIFI6E, an AM5 ATX motherboard designed for AMD Ryzen 7000/8000/9000 series processors. Featuring a robust 8+2+2 phase digital VRM, 6-layer PCB, and support for DDR5 memory up to 256GB (8200MT/s OC) with AMD EXPO and XMP profiles, it delivers exceptional performance for gaming and content creation.
Connectivity is top-tier with Wi-Fi 6E (Intel AX210) supporting 2.4/5/6GHz bands, Bluetooth 5.3, Gigabit Ethernet, USB 3.2 Gen2x2 Type-C, and multiple USB ports. Storage options include 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) and 4x SATA III with RAID 0/1/10 support. Expansion features PCIe 5.0 x16, plus EZ-Latch mechanisms for easy installation.
- ✅ Socket AM5 + B850 chipset
- ✅ Dual-channel DDR5, 4x DIMM up to 256GB
- ✅ Wi-Fi 6E, 2.5GbE LAN, BT 5.3
- ✅ 3x M.2 (PCIe 5.0), 4x SATA, PCIe 5.0 x16
- ✅ HDMI 2.1, DP 2.1, 7.1-channel audio
- ✅ X3D Turbo Mode, AI-enhanced BIOS
- ✅ 3-year warranty
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B850 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| Memory Profile Support | AMD EXPO, XMP |
| VRM Design | 8+2+2 Twin Digital VRM |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.93 kg |
| Manufacturer Part Number | B850EAGWIFI6E |
| Warranty period | 3 year(s) |
